Ferrari 296 GTS — [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE (diagram 0097)

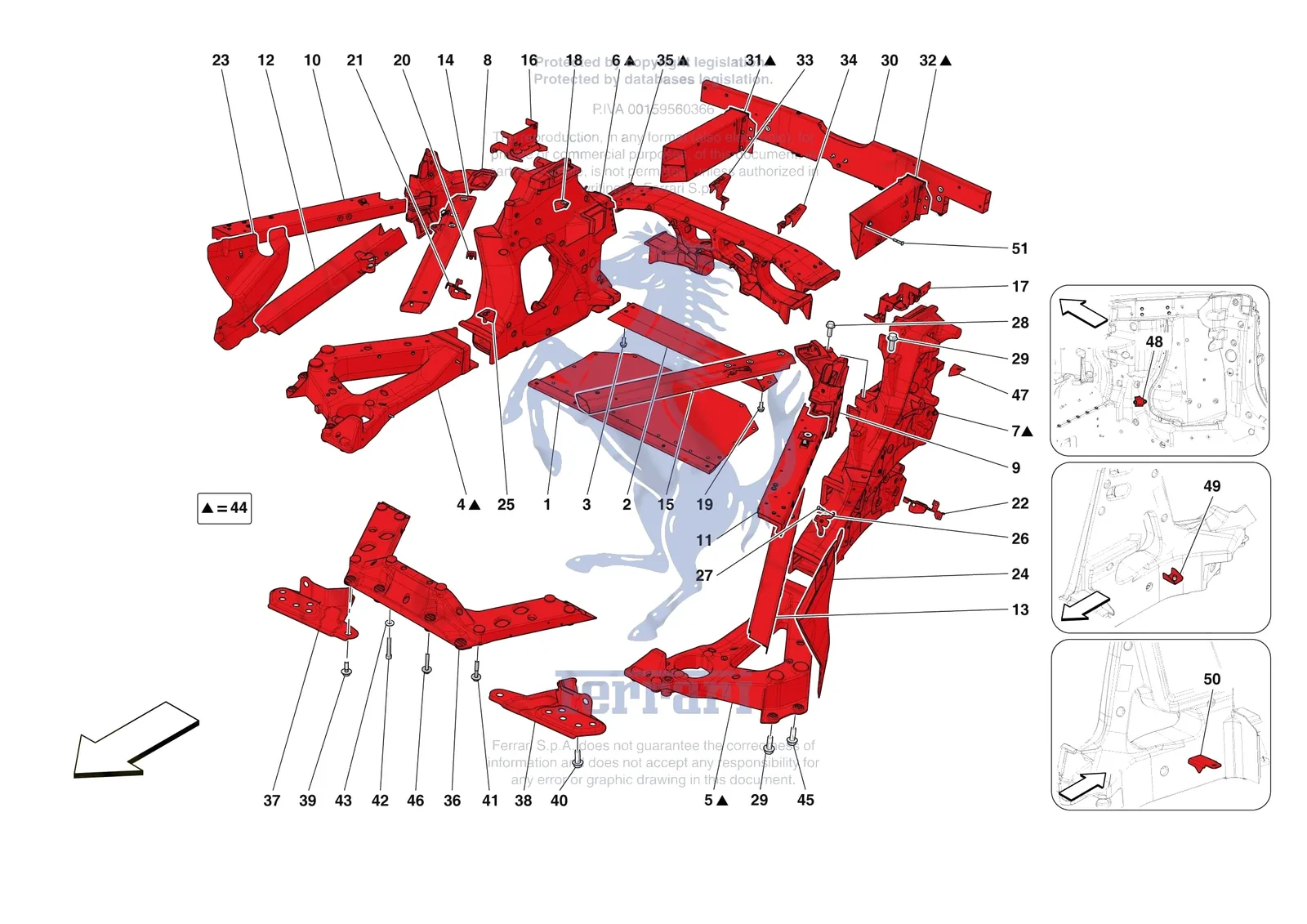

Exploded view of the [vehicle trim] - e.01.03 - structures and elements rear of vehicle on the Ferrari 296 GTS, with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTS [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
101632Ferrari Half Shaft Bolt - 101632$14.50In stock
265036Ferrari Screw - 265036SupersededOrder 101632 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
14496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
1966512Ferrari Rear Structural Undertray - 966512$417.97Special order, ships in 7-14 days
2985966691Ferrari Compl. Lower Gearbox Mountin - 985966691$1,229.39Special order, ships in 7-14 days
316288421Ferrari Screw - 16288421$14.39Special order, ships in 7-14 days
4985966623Ferrari Compl. RH Engine Strut Mount - 985966623$7,566.11Special order, ships in 7-14 days
5985966559Ferrari Compl. LH Engine Strut Mount - 985966559$7,048.57Special order, ships in 7-14 days
6985966779Ferrari Compl. RH Rear Shock Tower C - 985966779$33,515.08Contact us to order
7985966737Ferrari Compl. LH Rear Shock Tower C - 985966737$31,896.59Contact us to order
8985966674Ferrari Compl. RH Casting - 985966674$8,446.59Special order, ships in 7-14 days
9985966523Ferrari Compl. LH Casting - 985966523$8,893.86Special order, ships in 7-14 days
10985966651Ferrari RH Outer Upper Rear Diagonal - 985966651$1,573.62Special order, ships in 7-14 days
11985966759Ferrari LH Outer Upper Rear Diagonal - 985966759$1,671.97Special order, ships in 7-14 days
12985966580Ferrari RH Rear Lateral Diagonal Bra - 985966580$1,573.62Special order, ships in 7-14 days
13985966715Ferrari LH Rear Lateral Diagonal Bra - 985966715$1,647.38Special order, ships in 7-14 days
14985787364Ferrari RH Upper Internal Engine Com - 985787364$1,303.14Special order, ships in 7-14 days
15985787369Ferrari LH Upper Internal Engine Com - 985787369$1,253.96Special order, ships in 7-14 days
16956717Ferrari RH Rear Trellis Frame Mounti - 956717$164.72Special order, ships in 7-14 days
17960147Ferrari LH Rear Trellis Frame Mounti - 960147$295.03Special order, ships in 7-14 days
18972815Ferrari Compl. Upper Rear Mounting B - 972815$61.45Special order, ships in 7-14 days
1916288474Ferrari Vite Tef M10X1.25X25 Gamb.In - 16288474$2.59Special order, ships in 7-14 days
20966687Ferrari Oil Tank Fastener Bracket - 966687$61.45Special order, ships in 7-14 days
21968400Ferrari RH Rear Brake Hose Bracket - 968400$164.72Special order, ships in 7-14 days
22968399Ferrari LH Rear Brake Hose Bracket - 968399$164.72Special order, ships in 7-14 days
23985966688Ferrari RH Tank Guard Bracket - 985966688$1,180.21Special order, ships in 7-14 days
24985966650Ferrari LH Tank Guard Bracket - 985966650$1,180.21Special order, ships in 7-14 days
25966592Ferrari Compl. Lower Front Oil Tank - 966592$61.45Special order, ships in 7-14 days
26830173Ferrari Compl. Hv Cable Fastener Bra - 830173$46.69Special order, ships in 7-14 days
2714639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
28811998Ferrari Vite Tef M14X1.5X40 - 811998$19.42Special order, ships in 7-14 days
29239871Ferrari Screw - 239871$4.77Special order, ships in 7-14 days
30985966690Ferrari Rear Bumper Cross Member - 985966690$3,334.60Special order, ships in 7-14 days
31985966724Ferrari Rear RH Strut - 985966724$6,502.96Special order, ships in 7-14 days
32985966571Ferrari LH Rear Spar - 985966571$6,502.96Special order, ships in 7-14 days
33956906Ferrari Compl. RH Inverter Trellis F - 956906$113.08Special order, ships in 7-14 days
34956658Ferrari Compl. LH Inverter Trellis F - 956658$113.08Special order, ships in 7-14 days
35985966778Ferrari Compl. Gearbox Cross Member - 985966778$9,160.81Special order, ships in 7-14 days
36985966611Ferrari Compl. Battery Mount Casting - 985966611$5,732.53Special order, ships in 7-14 days
37802744Ferrari RH Reinforcement Plate - 802744$319.62Special order, ships in 7-14 days
38802722Ferrari LH Reinforcement Plate - 802722$319.62Special order, ships in 7-14 days
39741471Ferrari Screw - 741471$4.35Special order, ships in 7-14 days
40840371Ferrari Screw - 840371$8.93Special order, ships in 7-14 days
41741495Ferrari Screw - 741495$5.86Special order, ships in 7-14 days
4214308234Ferrari Screw - 14308234SupersededOrder 101632 instead
4312646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
44985966511Ferrari Rear Subframe - 985966511$48,634.62Contact us to order
45801266Ferrari Screw - 801266$14.62Special order, ships in 7-14 days
4616289021Ferrari Screw - 16289021$14.39Special order, ships in 7-14 days
47966508Ferrari Compl. Bracket - 966508$41.76Special order, ships in 7-14 days
48791248Ferrari Compl. Inertia Switch Fasten - 791248$110.61Special order, ships in 7-14 days
48979541Ferrari Compl. Inertia Switch Fasten - 979541$83.57Special order, ships in 7-14 days
49966684Ferrari RH Bracket - 966684$66.35Special order, ships in 7-14 days
50966492Ferrari LH Bracket - 966492$88.49Special order, ships in 7-14 days
51204430Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430$2.82Available, ships in 3-6 days
