Ferrari 296 GTS — [VEHICLE TRIM] - E.16 - REAR SHIELDS (diagram 0115)

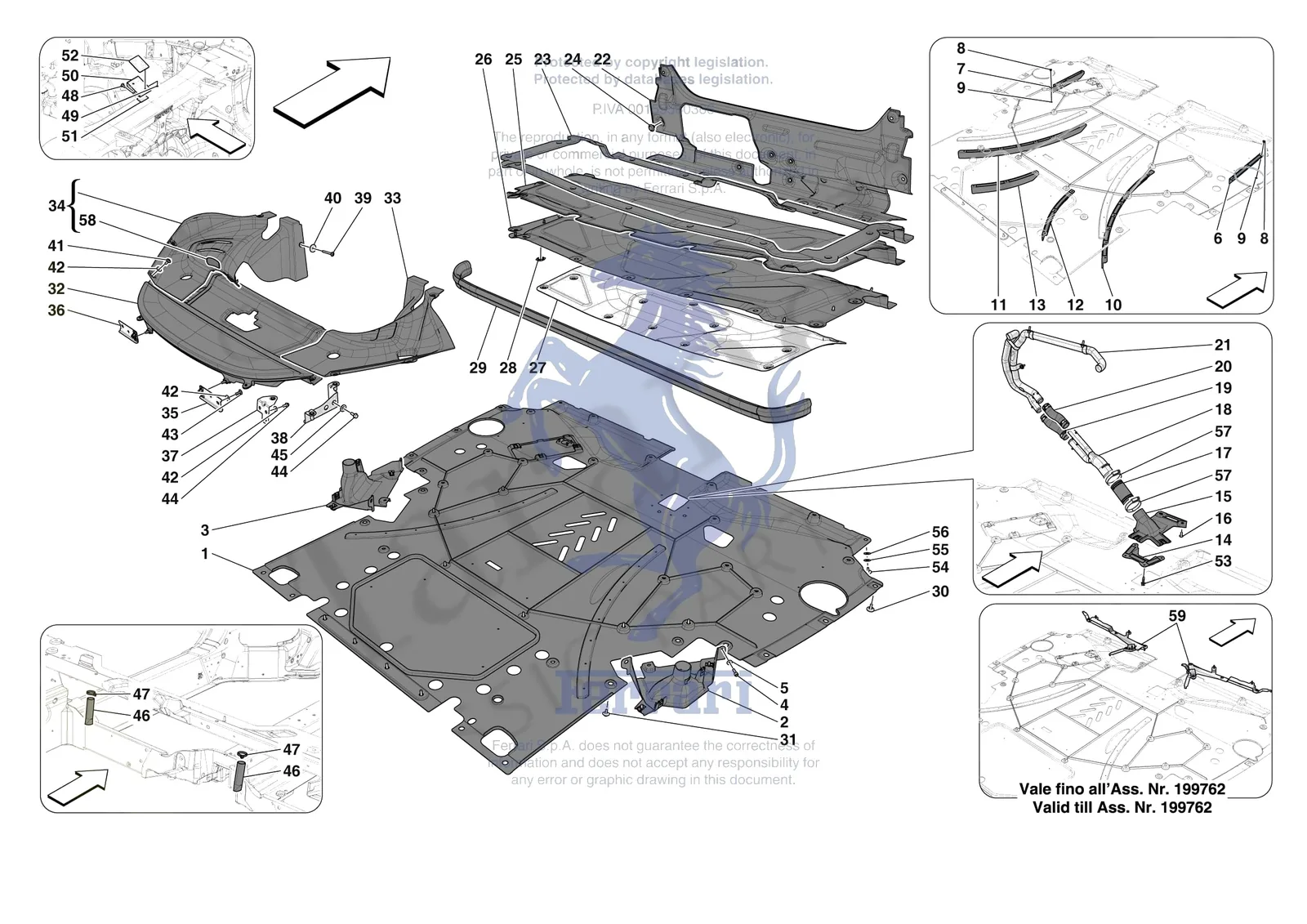

Exploded view of the [vehicle trim] - e.16 - rear shields on the Ferrari 296 GTS, with 84 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTS [VEHICLE TRIM] - E.16 - REAR SHIELDS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1857513Ferrari Compl. Rear Underbody Shield - 857513$1,278.55Special order, ships in 7-14 days
1857516Ferrari Compl. Rear Underbody Shield - 857516$1,376.91Special order, ships in 7-14 days
2869716Ferrari Compl. RH Brake Cooling Duct - 869716$78.66Special order, ships in 7-14 days
2885409Ferrari Compl. RH Brake Cooling Duct - 885409SupersededOrder 869716 instead
3869708Ferrari Compl. LH Brake Cooling Duct - 869708$78.66Special order, ships in 7-14 days
3885467Ferrari Compl. LH Brake Cooling Duct - 885467SupersededOrder 869708 instead
414433134Ferrari Screw - 14433134$0.96Special order, ships in 7-14 days
512646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
6812292Ferrari RH Outer Rear Dam - 812292$54.07Special order, ships in 7-14 days
7812291Ferrari LH Outer Rear Dam - 812291$54.07Special order, ships in 7-14 days
814295696Ferrari Rivet - 14295696$0.92Available, ships in 3-6 days
912642878Ferrari Washer - 12642878$0.19Available, ships in 3-6 days
10980659Ferrari RH Rear Lateral Dam - 980659$83.57Special order, ships in 7-14 days
11980672Ferrari LH Rear Lateral Dam - 980672$83.57Special order, ships in 7-14 days
12980647Ferrari RH Centre Rear Dam - 980647$61.45Special order, ships in 7-14 days
13980653Ferrari LH Centre Rear Dam - 980653$61.45Special order, ships in 7-14 days
14857221Ferrari Air Deflector - 857221$100.78Special order, ships in 7-14 days
15857241Ferrari Compl. Coil Cooling Duct - 857241$63.90Special order, ships in 7-14 days
1665377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
17834821Ferrari Hose - 834821$66.35Special order, ships in 7-14 days
18871754Ferrari Coil Cooling System Three-Wa - 871754$590.08Special order, ships in 7-14 days
19745999Ferrari Lower Hose - 745999$68.83Special order, ships in 7-14 days
20833248Ferrari Upper Hose - 833248$68.83Special order, ships in 7-14 days
21852671Ferrari Coil Cooling Pipe - 852671$688.45Special order, ships in 7-14 days
22813830Ferrari Cosmetic Cover - 813830$319.62Special order, ships in 7-14 days
23813744Ferrari Tub Seal Kit - 813744$524.51Special order, ships in 7-14 days
2484324400Ferrari COSMETIC CAP - 84324400$2.36Available, ships in 3-6 days
25813794Ferrari Tub Soundproofing - 813794$319.62Special order, ships in 7-14 days
26813753Ferrari Comp. Container Tub - 813753$663.86Special order, ships in 7-14 days
27813771Ferrari Container Tub Heat Shield - 813771$159.79Special order, ships in 7-14 days
2867315400Ferrari Washer - 67315400$0.82Special order, ships in 7-14 days
29788136Ferrari Tray Gasket - 788136$305.96Special order, ships in 7-14 days
3083442900Ferrari Body Screw - 83442900$1.51In stock
3181290900Ferrari Screw With Double Washer - 81290900$1.42In stock
32804984Ferrari Rear Engine Compartment Lid - 804984$4,379.00Contact us to order
32818722Ferrari Rear Engine Compartment Lid - 818722$4,247.86Contact us to order
32885377Ferrari Rear Engine Compartment Lid - 885377$762.20Contact us to order
32980671Ferrari Rear Engine Compartment Lid - 980671$762.20Contact us to order
3270007643Ferrari REAR ENGINE COMPARTMENT LID SHIELD - 70007643Price on requestContact us for price and availability
3270007828Ferrari REAR ENGINE COMPARTMENT LID SHIELD - 70007828Price on requestContact us for price and availability
3370007829Ferrari COMPL. RH LATERAL SHIELD - 70007829Price on requestContact us for price and availability
33840468Ferrari Compl. RH Lateral Shield - 840468SupersededOrder 842978 instead
33842978Ferrari Compl. RH Lateral Shield - 842978$201.59Special order, ships in 7-14 days
33887506Ferrari Compl. RH Lateral Shield - 887506$3,849.78Special order, ships in 7-14 days
33887509Ferrari Compl. RH Lateral Shield - 887509$3,969.20Special order, ships in 7-14 days
3470007830Ferrari COMPL. LH LATERAL SHIELD - 70007830Price on requestContact us for price and availability
34840467Ferrari Compl. LH Lateral Shield - 840467SupersededOrder 842962 instead
34842962Ferrari Compl. LH Lateral Shield - 842962$228.64Special order, ships in 7-14 days
34887517Ferrari Compl. LH Lateral Shield - 887517$4,547.61Special order, ships in 7-14 days
34887520Ferrari Compl. LH Lateral Shield - 887520$4,723.23Special order, ships in 7-14 days
35980654Ferrari Compl. RH Rear Shield Thread - 980654$44.24Special order, ships in 7-14 days
36980652Ferrari Compl. LH Rear Shield Thread - 980652$44.24Special order, ships in 7-14 days
37980660Ferrari Compl. Centre Rear Shield Mo - 980660$41.76Special order, ships in 7-14 days
38980670Ferrari COMPL. LH REAR SHIELD MOUNTING BRACKET - 980670$51.37Special order, ships in 7-14 days
38980668Ferrari COMPL. RH REAR SHIELD MOUNTING BRACKET - 980668$51.37Special order, ships in 7-14 days
3988831000Ferrari Screw M5 x 40 - 88831000$1.05Special order, ships in 7-14 days
4012624124Ferrari Washer 5.15-22X - 12624124$2.82Available, ships in 3-6 days
4012643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
41907300Ferrari Screw M5 x 14 TBFTX Nerinox - 907300$0.98Special order, ships in 7-14 days
4212638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
4385833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
4416281827Ferrari Screw 5x14 - 16281827$0.46Special order, ships in 7-14 days
4514496527Ferrari Washer - 14496527$2.38Available, ships in 3-6 days
4683911400Ferrari Water Drain Pipe - 83911400$29.48Special order, ships in 7-14 days
47206739Ferrari Tear Clip - 206739$16.37Available, ships in 3-6 days
4916101711Ferrari Nut M3 x 2.4 - 16101711$0.17Available, ships in 3-6 days
50952938Ferrari Bracket - 952938$44.24Special order, ships in 7-14 days
51292835Ferrari Plug - 292835$1.86Special order, ships in 7-14 days
5314415690Ferrari Rivet - 14415690$1.80Available, ships in 3-6 days
5410902824Ferrari Screw M6 x 30 - 10902824$0.17Available, ships in 3-6 days
5511197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
5612640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
57296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
58887515Ferrari Gearbox Release Plug Glossy - 887515$442.56Special order, ships in 7-14 days
58887518Ferrari Gearbox Release Plug Matte C - 887518$442.56Special order, ships in 7-14 days
5955024741Ferrari Rear Underbody Shield Recove - 55024741$3,409.53Special order, ships in 7-14 days
