Ferrari 308 Quattrovalvole — Throttle Control (Variants For RHD Version) (diagram 043)

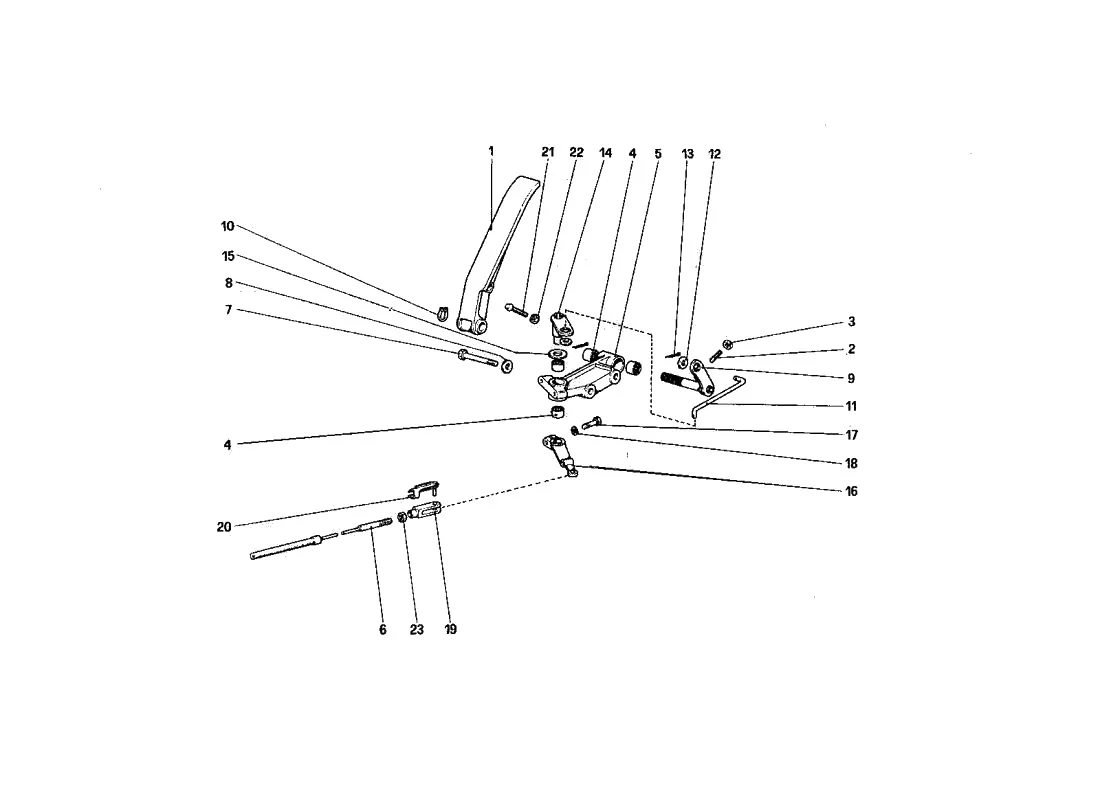

Exploded view of the throttle control (variants for rhd version) on the Ferrari 308 Quattrovalvole, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 105006 | Ferrari Accelerator Pedal - 105006 | Price on request | Contact us for price and availability |
| 2 | 13708910 | Ferrari Pedal Stop Screw - 13708910 | $0.82 | Available, ships in 3-6 days |
| 3 | 15889611 | Ferrari Lock Nut - 15889611 | Price on request | Contact us for price and availability |
| 4 | 101677 | Ferrari Roller Bearing - 101677 | $14.85 | Available, ships in 3-6 days |
| 5 | 110933 | Ferrari Support - 110933 | Price on request | Contact us for price and availability |
| 6 | 120498 | Ferrari Acc Cable (RHD)(308QV/ 328GTB/S) - 120498 | $136.29 | Available, ships in 3-6 days |
| 7 | 16136321 | Ferrari Bolt - 16136321 | $1.59 | Available, ships in 3-6 days |
| 8 | 12601371 | Ferrari Washer - 12601371 | $0.06 | Available, ships in 3-6 days |
| 8 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 9 | 106295 | Ferrari Pin Lever - 106295 | $237.09 | Special order, ships in 7-14 days |
| 10 | 11066076 | Ferrari Snap Ring - 11066076 | Price on request | Contact us for price and availability |
| 11 | 106297 | Ferrari Tie Rod - 106297 | $22.08 | Available, ships in 3-6 days |
| 12 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 13 | 10734208 | Ferrari Split Pin D. 2 x 12 - 10734208 | $0.06 | Available, ships in 3-6 days |
| 13 | 10734201 | Ferrari Split Pin - 10734201 | Superseded | Order 10734208 instead |
| 14 | 107158 | Ferrari Lever Pin - 107158 | $236.73 | Available, ships in 3-6 days |
| 15 | 107826 | Ferrari Washer - 107826 | $5.33 | Available, ships in 3-6 days |
| 16 | 110934 | Ferrari Lever - 110934 | $180.68 | Available, ships in 3-6 days |
| 17 | 16043424 | Ferrari Bolt M8 x 20 - 16043424 | $0.38 | Available, ships in 3-6 days |
| 17 | 16043421 | Ferrari Bolt - 16043421 | Superseded | Order 16043424 instead |
| 18 | 127496 | Ferrari Spring Washer 8mm - 127496 | $0.12 | Available, ships in 3-6 days |
| 18 | 106852 | Ferrari Spring Washer 8mm - 106852 | Price on request | Special order, ships in 7-14 days |
| 19 | 100655 | Ferrari RH Threaded Fork - 100655 | Price on request | Contact us for price and availability |
| 20 | 100656 | Ferrari Linkage Clip - 100656 | $4.41 | Available, ships in 3-6 days |
| 21 | 100640 | Ferrari Screw - 100640 | $10.20 | Available, ships in 3-6 days |
| 22 | 16102314 | Ferrari Nut M8 x 5 - 16102314 | $0.13 | Available, ships in 3-6 days |
| 22 | 16102311 | Ferrari RH Thread Nut - 16102311 | Superseded | Order 16102314 instead |
| 23 | 10752911 | Ferrari Nut - 10752911 | Superseded | Order 10725914 instead |
| 23 | 10725914 | Ferrari Nut M6 x 4 - 10725914 | $0.19 | Available, ships in 3-6 days |
| 11066075 | Ferrari Circlip Aa12e Ext - 11066075 | Price on request | Contact us for price and availability | |
| 16100825 | Ferrari Nut - 16100825 | Superseded | Order 16102314 instead | |
| 16102315 | Ferrari Nut - 16102315 | Superseded | Order 16102314 instead | |
| 16102321 | Ferrari Nut - 16102321 | Price on request | Contact us for price and availability | |
| 16100821 | Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821 | Superseded | Order 16102314 instead | |
| 106293 | Ferrari Support - 106293 | Price on request | Contact us for price and availability | |
| 107154 | Ferrari Support - 107154 | Price on request | Contact us for price and availability |
