Ferrari 328 GTB/GTS (1985) — Brake System (diagram 032)

Exploded view of the brake system on the Ferrari 328 GTB/GTS (1985), with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

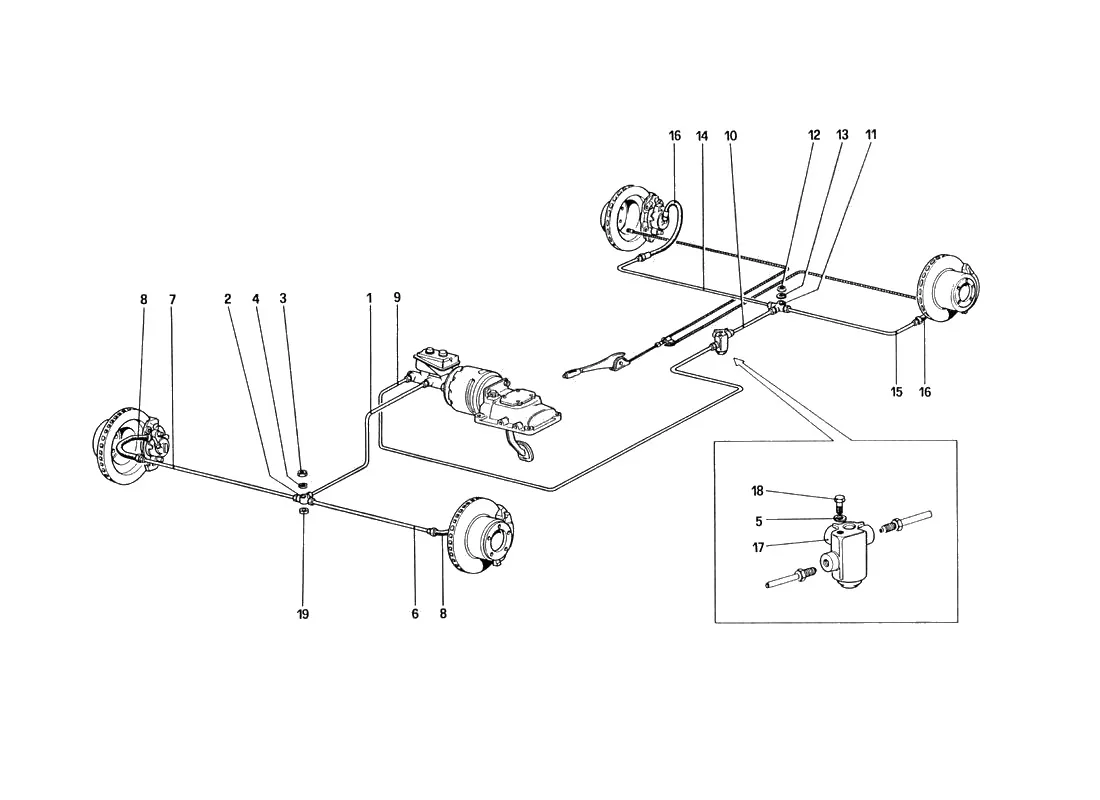

Ferrari 328 GTB/GTS (1985) Brake System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1105278Ferrari Brake Pipe LHD - 105278Price on requestContact us for price and availability
2101394Ferrari 3-Way Union - 101394$177.28Available, ships in 3-6 days
3102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
312574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
412639701Ferrari Washer - 12639701Price on requestContact us for price and availability
5127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
5106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
8118101Ferrari Front Brake Hose - 118101$185.90In stock
9106670Ferrari Brake Pipe LHD - 106670Price on requestContact us for price and availability
9101407Ferrari Brake Pipe RHD - 101407Price on requestContact us for price and availability
10128370Ferrari Brake Pipe LHD - 128370Price on requestContact us for price and availability
10117344Ferrari Brake Pipe - 117344Price on requestContact us for price and availability
14104470Ferrari RH Small Pipe - 104470SupersededOrder 680850 instead
14680850Ferrari Tube - 680850$18.65Available, ships in 3-6 days
15101395Ferrari Brake Pipe RHD - 101395SupersededOrder 143641 instead
16127838Ferrari 208/328 Rear Brake Hose 240mm - 127838$56.10In stock
17124373Ferrari Brake Regulator - 124373Price on requestContact us for price and availability
1816043021Ferrari Screw M8 x 12 - 16043021$0.34Available, ships in 3-6 days
19104339Ferrari Exhaust Strap Spacer - 104339$7.80Available, ships in 3-6 days
680980Ferrari 3-Way Union - 680980SupersededOrder 101394 instead
143641Ferrari Brake Pipe To RH Front Caliper - 143641$295.43Special order, ships in 7-14 days
14499370Ferrari Lock Washer - 14499370Price on requestContact us for price and availability
680683Ferrari Pipe - 680683Price on requestContact us for price and availability
680839Ferrari Pipe - 680839SupersededOrder 143641 instead
131359Ferrari Rear Brake Pressure Regulator - 131359$389.66Available, ships in 3-6 days
103299Ferrari Spacer - 103299Price on requestContact us for price and availability
740291Ferrari Spacer - 740291Price on requestContact us for price and availability
113022Ferrari Tube - 113022$25.03Special order, ships in 7-14 days

All 328 GTB/GTS (1985) diagrams
