Ferrari 328 GTB/GTS (1985) — Rear Suspension - Shock Absorber And Brake Disc (diagram 039)

Exploded view of the rear suspension - shock absorber and brake disc on the Ferrari 328 GTB/GTS (1985), with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

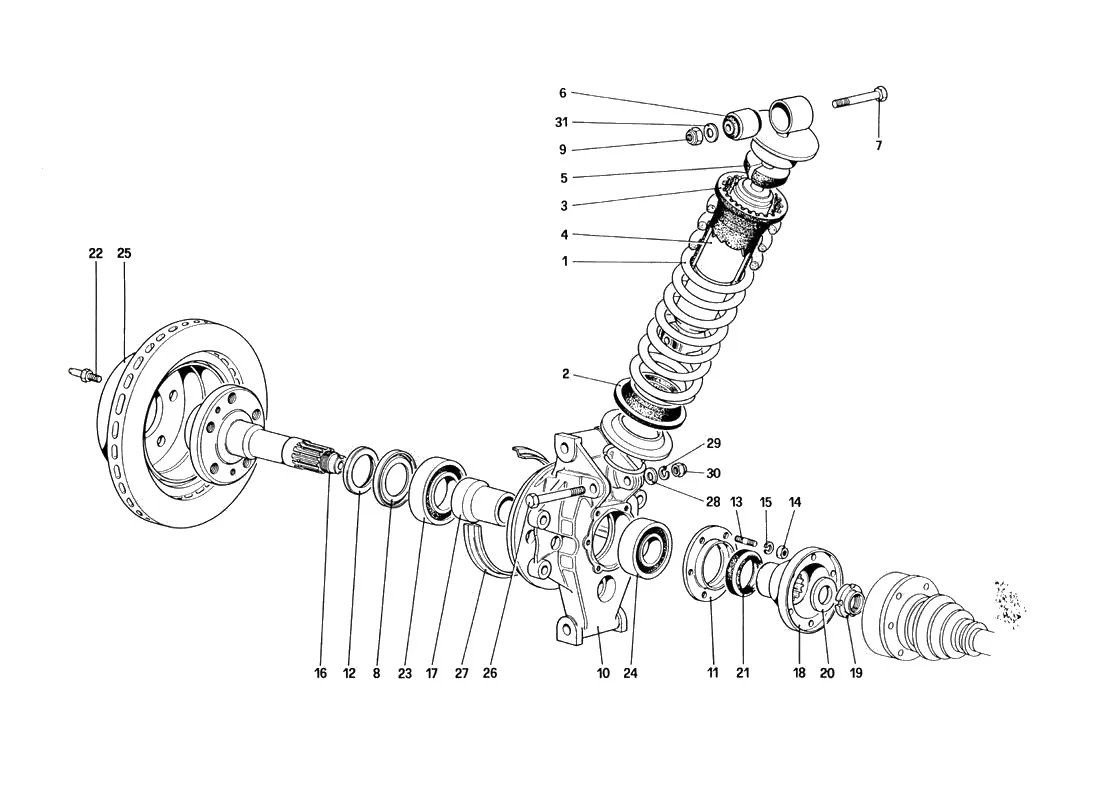

Ferrari 328 GTB/GTS (1985) Rear Suspension - Shock Absorber And Brake Disc exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1112971Ferrari Rear Road Spring GTB - 112971$1,001.48Available, ships in 3-6 days
1112877Ferrari Rear Road Spring GTS - 112877$809.48Available, ships in 3-6 days
1113517Ferrari Rear Road Spring GTB - 113517$904.88Available, ships in 3-6 days
1113039Ferrari Rear Road Spring GTS - 113039$724.69Available, ships in 3-6 days
2103263/4Ferrari Shock Spring Seat Upper & Lower Pair - 103263/4$79.20In stock
2103264Ferrari Lower Spring Pad - 103264$72.20Available, ships in 3-6 days
3103263Ferrari Shock Absorber Dust cover - 103263$70.26Available, ships in 3-6 days
4128178Ferrari Rear Shock Absorber - 128178$992.75Available, ships in 3-6 days
5104442Ferrari Pad - 104442Price on requestContact us for price and availability
6100809Ferrari Shock Bushing - 100809$25.25In stock
7127849Ferrari Bolt - 127849Price on requestContact us for price and availability
8124966Ferrari Centrifugal Ring - 124966$45.52Available, ships in 3-6 days
8108047Ferrari Centrifugal Ring - 108047$122.46Available, ships in 3-6 days
9148020Ferrari Nut - 148020$7.65In stock
916105121Ferrari Nyloc Nut - 16105121SupersededOrder 148020 instead
10129819Ferrari Rear Hub Housing Complete - 129819$2,107.73Available, ships in 3-6 days
10129312Ferrari Rear Hub Housing - 129312SupersededOrder 129819 instead
11125976Ferrari Rear Inner Wheel Flange - 125976$64.90In stock
12124965Ferrari Inner Spacer - 124965$83.03Available, ships in 3-6 days
1313543321Ferrari Short Stud - 13543321SupersededOrder 13543324 instead
1313543324Ferrari Stud M8 x 16 - Shank 20mm - 13543324$11.58Available, ships in 3-6 days
1416102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
1416100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
15127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
15106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
16124964Ferrari Rear Hub Shaft - 124964$3,020.06Available, ships in 3-6 days
17120876Ferrari Inner Spacer - 120876$108.35In stock
18119372Ferrari Drive Flange - 119372$360.37Available, ships in 3-6 days
19102289Ferrari Ring Nut - Rear Suspension - 102289$36.14In stock
20105511Ferrari Washer - 105511Price on requestContact us for price and availability
21115968Ferrari Wheel Hub Seal - 115968$29.04In stock
21115968/AFerrari Alt Front/Rear Hub Oil Seal - 115968/A$68.69Available, ships in 3-6 days
22104370Ferrari Wheel Alignment Stud - 104370$16.39In stock
23144807Ferrari Rear Outer Wheel Bearing - 144807$162.80In stock
23125935Ferrari Outer Bearing - 125935SupersededOrder 144807 instead
24145805Ferrari Bearing - 145805$132.00In stock
24125934Ferrari Inner Bearing - 125934SupersededOrder 145805 instead
25117186/2Ferrari 328/Mondial Rear Brake Rotor Pair (2) - 117186/2$635.80In stock
26106290Ferrari Bolt - 106290$42.01Available, ships in 3-6 days
27103117Ferrari Cover - 103117$125.45Available, ships in 3-6 days
28106616Ferrari Washer - 106616SupersededOrder 12601574 instead
2812601574Ferrari Wavy Washer 13mm - 12601574$0.13Available, ships in 3-6 days
29127498Ferrari Spring Washer 12mm - 127498$0.27Available, ships in 3-6 days
29106854Ferrari Spring Washer 12mm - 106854SupersededOrder 127498 instead
3016103621Ferrari Nut 12x1.25x7 - 16103621$2.03Available, ships in 3-6 days
3016103621/AFerrari Nut 12x1.25x6 - 16103621/A$2.15Available, ships in 3-6 days
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
16505121Ferrari Nut - 16505121SupersededOrder 148020 instead
16102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
13516821Ferrari RH Threaded Stud - 13516821SupersededOrder 13543324 instead
105223Ferrari Shock Absorber Dust Cover - 105223$68.29Available, ships in 3-6 days
106129Ferrari Spacer - 106129Price on requestContact us for price and availability
121693Ferrari Suspension Bolt - 121693$52.61Available, ships in 3-6 days
12601579Ferrari Washer - 12601579SupersededOrder 12601574 instead

All 328 GTB/GTS (1985) diagrams
