Ferrari 328 GTB/GTS (1985) — Air Conditioning Compressor And Controls (Not For U.S. Version) (diagram 044)

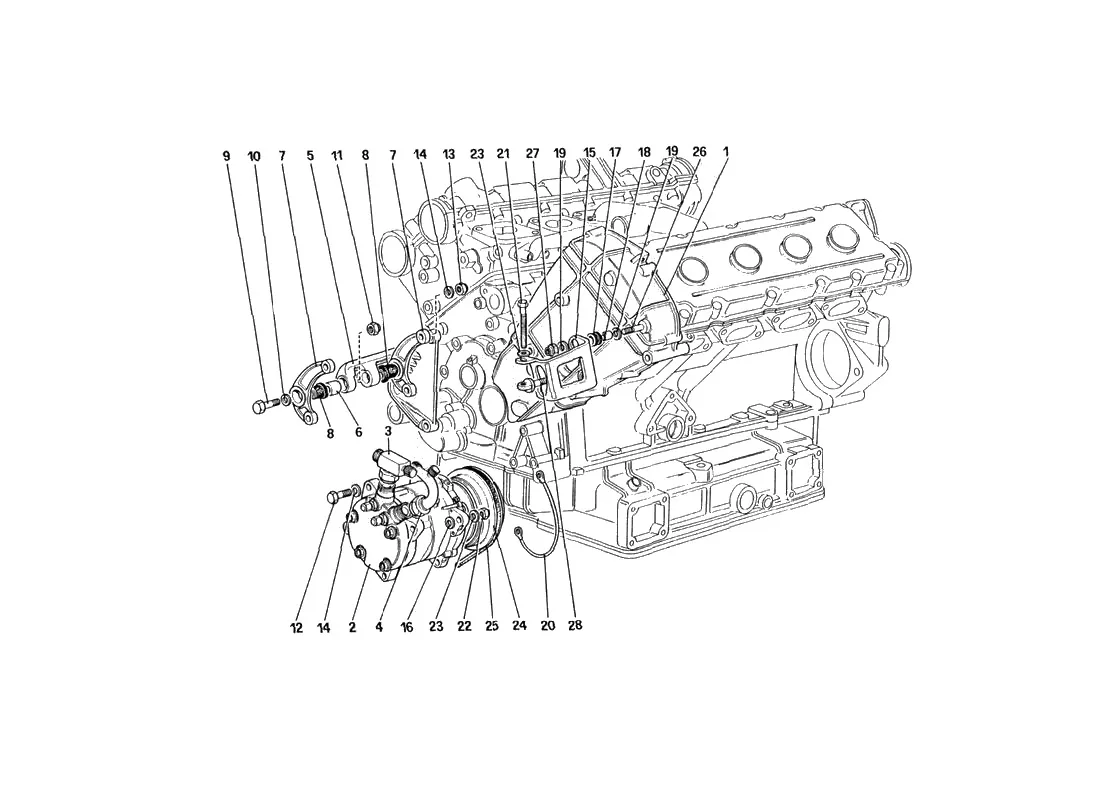

Exploded view of the air conditioning compressor and controls (not for u.s. version) on the Ferrari 328 GTB/GTS (1985), with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/044.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 124681 | Ferrari LH Cam Belt Cover - 124681 | $566.93 | Available, ships in 3-6 days |
| 2 | 121966 | Ferrari AC Compressor - 121966 | $1,204.50 | In stock |
| 3 | 124333 | Ferrari Compressor Valve Inlet - 124333 | Price on request | Contact us for price and availability |
| 4 | 124335 | Ferrari Union - 124335 | Price on request | Contact us for price and availability |
| 5 | 123698 | Ferrari Support - 123698 | Price on request | Contact us for price and availability |
| 6 | 123707 | Ferrari Spacer - 123707 | $83.47 | Available, ships in 3-6 days |
| 7 | 123699 | Ferrari Bracket - 123699 | $183.54 | Special order, ships in 7-14 days |
| 8 | 117969 | Ferrari Alternator Bush - 117969 | $44.43 | Available, ships in 3-6 days |
| 10 | 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days |
| 10 | 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead |
| 11 | 102742 | Ferrari Nyloc Nut M10x1.25x10 - 102742 | $0.79 | Available, ships in 3-6 days |
| 11 | 12575611 | Ferrari Nut - 12575611 | Superseded | Order 102742 instead |
| 12 | 11307021 | Ferrari Bolt - 11307021 | $12.23 | Available, ships in 3-6 days |
| 13 | 12574511 | Ferrari Nyloc Nut M10 x 1.25 x 12 - 12574511 | $1.74 | Available, ships in 3-6 days |
| 13 | 12574521 | Ferrari Nyloc Nut - 12574521 | $1.74 | Available, ships in 3-6 days |
| 15 | 123704 | Ferrari A/C Adjuster Bracket - 123704 | Price on request | Contact us for price and availability |
| 17 | 123701 | Ferrari Bush - 123701 | $9.60 | Available, ships in 3-6 days |
| 17 | 123701/A | Ferrari Rubber Bush - 123701/A | $9.55 | Available, ships in 3-6 days |
| 18 | 123702 | Ferrari Bush - 123702 | Price on request | Contact us for price and availability |
| 19 | 108283 | Ferrari Wavy Washer 0.4mm - 108283 | $1.50 | Available, ships in 3-6 days |
| 20 | 108043 | Ferrari Cable - 108043 | $4.47 | Available, ships in 3-6 days |
| 21 | 125668 | Ferrari Screw - 125668 | Price on request | Contact us for price and availability |
| 22 | 104030 | Ferrari/Maserati Nut - 104030 | $0.88 | In stock |
| 22 | 16104111 | Ferrari Nut - 16104111 | Superseded | Order 104030 instead |
| 23 | 14496521 | Ferrari Washer - 14496521 | $0.08 | Special order, ships in 7-14 days |
| 24 | 122422 | Ferrari Ac Electromagnetic Clutch Unit - 122422 | Price on request | Contact us for price and availability |
| 25 | 124108 | Ferrari AC Belt - 124108 | $130.90 | In stock |
| 26 | 13449521 | Ferrari Stud - 13449521 | $15.36 | Available, ships in 3-6 days |
| 28 | 123188 | Ferrari Adjuster - 123188 | $159.50 | In stock |
| 16104125 | Ferrari Nut - 16104125 | Superseded | Order 104030 instead | |
| 12575625 | Ferrari Nyloc Nut - 12575625 | Superseded | Order 102742 instead | |
| 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead | |
| 126648 | Ferrari Washer - 126648 | Superseded | Order 14496624 instead |
