Ferrari 328 GTB/GTS (1985) — Air Conditioning Compressor And Controls (For U.S. Version) (diagram 045)

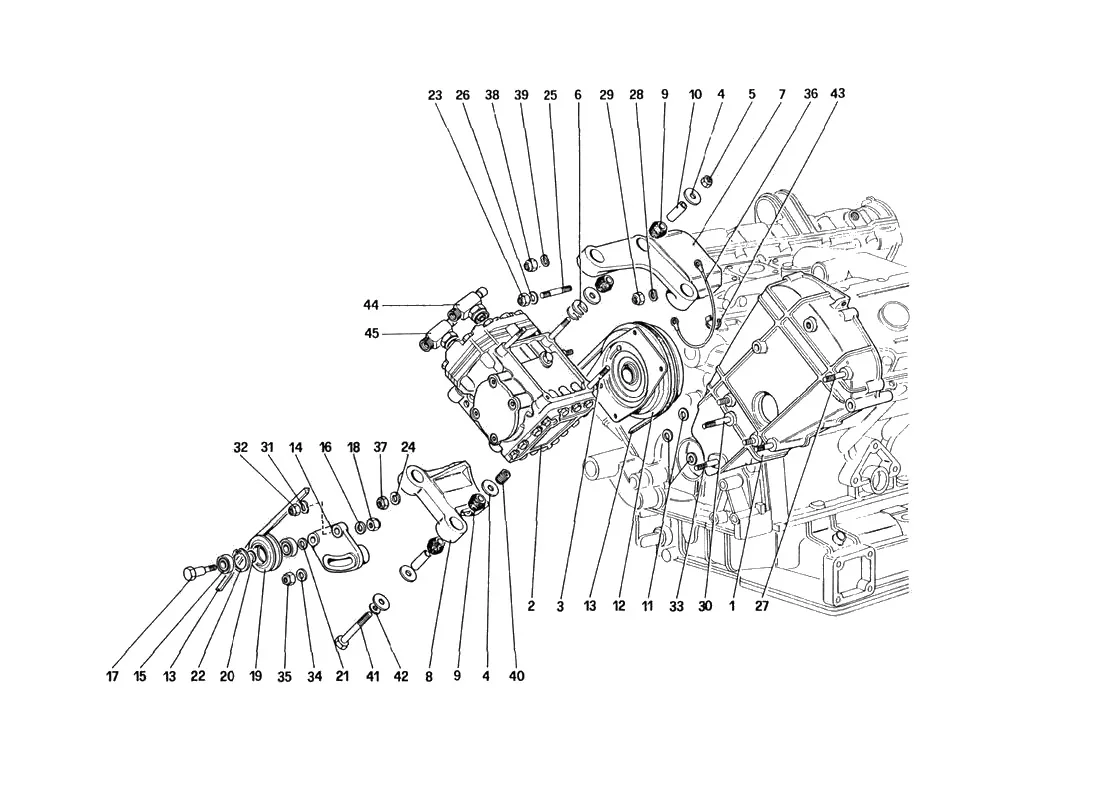

Exploded view of the air conditioning compressor and controls (for u.s. version) on the Ferrari 328 GTB/GTS (1985), with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/045.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 117438 | Ferrari LH Cam Belt Cover Complete - 117438 | Price on request | Contact us for price and availability |
| 2 | 115776 | Ferrari A/C Compressor - 115776 | $852.50 | In stock |
| 3 | 105044 | Ferrari Stud - 105044 | $82.63 | Available, ships in 3-6 days |
| 4 | 108051 | Ferrari Washer - 108051 | $2.93 | Available, ships in 3-6 days |
| 5 | 12574511 | Ferrari Nyloc Nut M10 x 1.25 x 12 - 12574511 | $1.74 | Available, ships in 3-6 days |
| 5 | 12574521 | Ferrari Nyloc Nut - 12574521 | $1.74 | Available, ships in 3-6 days |
| 6 | 105039 | Ferrari Spacer Shim - 105039 | $24.69 | Available, ships in 3-6 days |
| 7 | 111539 | Ferrari Support - 111539 | $347.47 | Available, ships in 3-6 days |
| 8 | 108056 | Ferrari Air Con Lower Bracket - 108056 | $209.72 | Available, ships in 3-6 days |
| 8 | 108056/U | Ferrari Air Con Lower Bracket - 108056/U | $208.50 | Special order, ships in 7-14 days |
| 9 | 107335 | Ferrari Rear Sway Bar Link Bushing - 107335 | $13.20 | In stock |
| 10 | 108052 | Ferrari Tube Spacer - 108052 | $33.73 | Available, ships in 3-6 days |
| 11 | 107835 | Ferrari Washer 1.0mm - 107835 | $15.24 | Available, ships in 3-6 days |
| 12 | 105148 | Ferrari AC Compressor Clutch - 105148 | $498.00 | In stock |
| 13 | 105046 | Ferrari A/C Air Conditioning Compressor Belt - 105046 | $68.10 | In stock |
| 14 | 105051 | Ferrari Support - 105051 | Price on request | Contact us for price and availability |
| 15 | 105038 | Ferrari Idler Pulley Bearing - 105038 | $19.31 | In stock |
| 16 | 103025 | Ferrari Washer - 103025 | Price on request | Contact us for price and availability |
| 17 | 105048 | Ferrari Pin - 105048 | $106.47 | Special order, ships in 7-14 days |
| 18 | 148020 | Ferrari Nut - 148020 | $7.65 | In stock |
| 18 | 16105121 | Ferrari Nyloc Nut - 16105121 | Superseded | Order 148020 instead |
| 19 | 121405 | Ferrari Pulley - 121405 | $130.90 | In stock |
| 20 | 107841 | Ferrari Spacer - 107841 | $61.85 | Special order, ships in 7-14 days |
| 21 | 107842 | Ferrari Spacer - 107842 | $26.76 | Available, ships in 3-6 days |
| 22 | 11059076 | Ferrari Circlip - 11059076 | $1.36 | Available, ships in 3-6 days |
| 24 | 107993 | Ferrari Washer - 107993 | Price on request | Contact us for price and availability |
| 25 | 13546621 | Ferrari Stud - 13546621 | $9.10 | Available, ships in 3-6 days |
| 26 | 12601474 | Ferrari Wavy Washer 10mm - 12601474 | $0.06 | Available, ships in 3-6 days |
| 26 | 12601471 | Ferrari Washer - 12601471 | Superseded | Order 12601474 instead |
| 27 | 13543621 | Ferrari Stud - 13543621 | Price on request | Contact us for price and availability |
| 29 | 104030 | Ferrari/Maserati Nut - 104030 | $0.88 | In stock |
| 29 | 16104111 | Ferrari Nut - 16104111 | Superseded | Order 104030 instead |
| 30 | 13449921 | Ferrari Stud - 13449921 | $1.72 | Available, ships in 3-6 days |
| 33 | 13517421 | Ferrari Stud - 13517421 | $50.75 | Special order, ships in 7-14 days |
| 34 | 13550321 | Ferrari Washer - 13550321 | $0.52 | Available, ships in 3-6 days |
| 36 | 108043 | Ferrari Cable - 108043 | $4.47 | Available, ships in 3-6 days |
| 37 | 104114 | Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114 | $0.73 | Available, ships in 3-6 days |
| 37 | 12575621 | Ferrari Nyloc Nut - 12575621 | Superseded | Order 102742 instead |
| 40 | 13526070 | Ferrari Threaded Insert - 13526070 | Price on request | Contact us for price and availability |
| 41 | 11288031 | Ferrari Bolt - 11288031 | $2.61 | Available, ships in 3-6 days |
| 42 | 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead |
| 43 | 110381 | Ferrari Cable Tie D1.6-16mm 100mm - 110381 | $0.17 | Available, ships in 3-6 days |
| 44 | 123722 | Ferrari Air Con Exhaust Valve - 123722 | $370.11 | Special order, ships in 7-14 days |
| 45 | 123721 | Ferrari Air Con Inlet Valve - 123721 | Price on request | Contact us for price and availability |
| 104657 | Ferrari Heli Coil - 104657 | Price on request | Contact us for price and availability | |
| 117351 | Ferrari LH Cam Belt Cover - 117351 | Price on request | Contact us for price and availability | |
| 16104125 | Ferrari Nut - 16104125 | Superseded | Order 104030 instead | |
| 16505121 | Ferrari Nut - 16505121 | Superseded | Order 148020 instead | |
| 12575625 | Ferrari Nyloc Nut - 12575625 | Superseded | Order 102742 instead | |
| 102742 | Ferrari Nyloc Nut M10x1.25x10 - 102742 | $0.79 | Available, ships in 3-6 days | |
| 13517420 | Ferrari Stud - 13517420 | Price on request | Contact us for price and availability | |
| 13543624 | Ferrari Stud Bolt M8x16 -Shank length 30- - 13543624 | Price on request | Contact us for price and availability | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead |
