Ferrari 328 GTB/GTS (1985) — Body Shell - Outer Elements (Not For U.S. And Sa Version) (diagram 101)

Exploded view of the body shell - outer elements (not for u.s. and sa version) on the Ferrari 328 GTB/GTS (1985), with 117 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

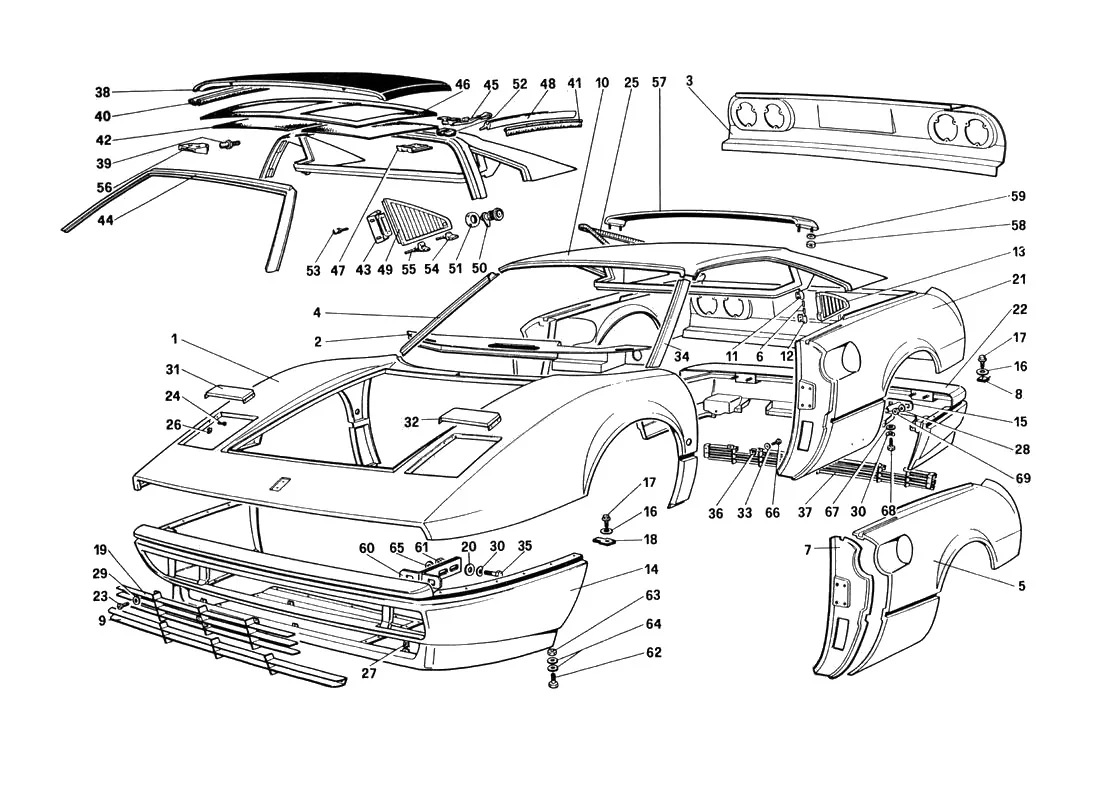

Ferrari 328 GTB/GTS (1985) Body Shell - Outer Elements (Not For U.S. And Sa Version) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
161751200Ferrari Front End Panel Assy - 61751200Price on requestContact us for price and availability
261797700Ferrari Panel LHD - 61797700$257.50Available, ships in 3-6 days
261851100Ferrari Panel RHD - 61851100$208.34Available, ships in 3-6 days
361109600Ferrari Rear Panel - 61109600Price on requestContact us for price and availability
461141100Ferrari Panel GTB - 61141100$251.26Special order, ships in 7-14 days
560359106Ferrari RH Rear Wing GTB - 60359106Price on requestContact us for price and availability
560358900Ferrari RH Rear Wing GTS - 60358900$3,359.08Contact us to order
560359205Ferrari LH Rear Wing GTB - 60359205$5,079.70Contact us to order
560359007Ferrari LH Rear Wing GTS - 60359007$3,105.40Contact us to order
660042108Ferrari Pin - 60042108$2.95Available, ships in 3-6 days
760216801Ferrari RH Door Closing Panel LHD - 60216801Price on requestContact us for price and availability
760216900Ferrari LH Door Closing Panel LHD - 60216900Price on requestContact us for price and availability
760891000Ferrari RH Door Closing Panel RHD - 60891000Price on requestContact us for price and availability
760891100Ferrari LH Door Closing Panel RHD - 60891100$185.19Available, ships in 3-6 days
861878200Ferrari Screw Clip - 61878200$2.26Available, ships in 3-6 days
961797300Ferrari Front Spoiler Grille - 61797300Price on requestContact us for price and availability
1060214806Ferrari Roof Steel - 60214806Price on requestContact us for price and availability
1160040805Ferrari Upper Hinge GTB - 60040805$122.20Available, ships in 3-6 days
1260040706Ferrari Lower Hinge GTB - 60040706$92.13Available, ships in 3-6 days
1360370004Ferrari RH Grille GTB - 60370004Price on requestContact us for price and availability
1360337409Ferrari LH Grille GTB - 60337409Price on requestContact us for price and availability
1461741700Ferrari Front Lower Panel - 61741700$6,896.46Available, ships in 3-6 days
1561740600Ferrari Rear Bumper Bracket - 61740600$34.58Available, ships in 3-6 days
1612640678Ferrari Washer 6.15x25x2 - 12640678$3.47Available, ships in 3-6 days
1612640608Ferrari Washer - 12640608SupersededOrder 12640678 instead
1715926101Ferrari Screw - 15926101Price on requestContact us for price and availability
1861848800Ferrari Screw Clip - 61848800$6.34Available, ships in 3-6 days
1961736800Ferrari 328 Upper Grille - 61736800$735.68In stock
1995403267Ferrari Black Lower Panel Grill - 95403267$1,038.03Available, ships in 3-6 days
2012642001Ferrari Washer - 12642001$0.27Available, ships in 3-6 days
2161901500Ferrari Rear Panel Complete GTB - 61901500Price on requestContact us for price and availability
2161901700Ferrari Rear Panel Complete GTS - 61901700Price on requestContact us for price and availability
2261740400Ferrari Rear Under Panel - 61740400Price on requestContact us for price and availability
2315688178Ferrari Self Tapping Screw - 15688178$3.91Special order, ships in 7-14 days
2415903878Ferrari Screw - 15903878$0.90Available, ships in 3-6 days
2560528300Ferrari Seal 110cm - 60528300$19.26Available, ships in 3-6 days
25MC3478/1Ferrari Titanfast 351 Black Beading *Per Metre* - MC3478/1$19.15Available, ships in 3-6 days
2660679600Ferrari Screw Clip - 60679600$1.65Available, ships in 3-6 days
2760696300Ferrari Screw Clip - 60696300$0.84Available, ships in 3-6 days
2820291308Ferrari Washer - 20291308$1.02Available, ships in 3-6 days
2910519306Ferrari Washer - 10519306SupersededOrder 10519378 instead
2910519378Ferrari Spring Washer 5mm - 10519378$0.08Available, ships in 3-6 days
30127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
30106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
3161810800Ferrari RH Plate - 61810800Price on requestContact us for price and availability
3261810900Ferrari LH Plate - 61810900Price on requestContact us for price and availability
3312637878Ferrari Washer - 12637878$0.19Available, ships in 3-6 days
3312637806Ferrari Washer - 12637806SupersededOrder 12637878 instead
3461141200Ferrari Panel - 61141200Price on requestContact us for price and availability
3516043424Ferrari Bolt M8 x 20 - 16043424$0.38Available, ships in 3-6 days
3516043421Ferrari Bolt - 16043421SupersededOrder 16043424 instead
3661066500Ferrari Screw Clip - 61066500$4.16Available, ships in 3-6 days
3661066500/AFerrari Screw Clip - 61066500/A$3.76Available, ships in 3-6 days
3761734400Ferrari Rear Lower Panel Grille - 61734400$1,111.70Available, ships in 3-6 days
3861128700Ferrari Hardtop Roof - 61128700Price on requestContact us to order
3960189008Ferrari Pin Roof Locating - 60189008$74.12Available, ships in 3-6 days
4060398104Ferrari RH/LH Roof Gasket GTS - 60398104$211.06Available, ships in 3-6 days
4062341800Ferrari LH Roof Rubber GTS - 62341800$211.06Available, ships in 3-6 days
4062341700Ferrari RH Roof Rubber GTS - 62341700$218.14Available, ships in 3-6 days
4160608500Ferrari Rubber GTS - 60608500$158.41Available, ships in 3-6 days
4160608500/KFerrari Side Roof Seal Set - GTS - 60608500/K$157.47Available, ships in 3-6 days
4261202800Ferrari RH Lining GTS - 61202800$192.85Available, ships in 3-6 days
4261202900Ferrari LH Lining GTS - 61202900Price on requestContact us for price and availability
4360325305Ferrari Hinge - 60325305$180.97Available, ships in 3-6 days
4460872700Ferrari Windscreen Frame GTS - 60872700$967.65Available, ships in 3-6 days
4560421500Ferrari 308/328 Targa Top Latch - 60421500$581.90Contact us
4661203000Ferrari Lining GTS - 61203000$378.77Available, ships in 3-6 days
4760500500Ferrari Roof Peg GTS - 60500500Price on requestContact us for price and availability
4860608300Ferrari RH Moulding GTS - 60608300$339.31Available, ships in 3-6 days
4860608400Ferrari LH Moulding GTS - 60608400$226.34Available, ships in 3-6 days
4961818700Ferrari LH Grille GTS - 61818700$589.91Available, ships in 3-6 days
4961818600Ferrari RH Grille GTS - 61818600$1,269.03Available, ships in 3-6 days
5061819300Ferrari Lock - 61819300Price on requestContact us for price and availability
5161819400Ferrari Nut - 61819400$4.66Available, ships in 3-6 days
5260395506Ferrari Guide - 60395506$86.12Available, ships in 3-6 days
5360892600Ferrari Rubber Bump Stop - 60892600$19.70Available, ships in 3-6 days
5420106001Ferrari Rubber Buffer GTS - 20106001$35.73Available, ships in 3-6 days
5460551400/KFerrari Side Grille GTS Grommet Set Of 4 - 60551400/K$48.95Available, ships in 3-6 days
5560551400Ferrari Central Grommet GTS - 60551400$35.73Available, ships in 3-6 days
5660336807Ferrari Bracket - 60336807$71.78Available, ships in 3-6 days
5761024700Ferrari Spoiler Flat Finish - 61024700$820.75Available, ships in 3-6 days
5761290200Ferrari Spoiler Grained Finish - 61290200Price on requestContact us for price and availability
5761024700/DFerrari Spoiler Flat Finish - 61024700/DPrice on requestSpecial order, ships in 7-14 days
58102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
5812574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
5912643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
6061741500Ferrari Front Bumper Iron - 61741500Price on requestContact us for price and availability
61104030Ferrari/Maserati Nut - 104030$0.88In stock
6116104111Ferrari Nut - 16104111SupersededOrder 104030 instead
6210902221Ferrari Bolt M6 x 16 - 10902221$1.92Available, ships in 3-6 days
6315896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
6512646201Ferrari Washer - 12646201$1.02Available, ships in 3-6 days
6615688278Ferrari Screw - 15688278Price on requestContact us for price and availability
6816043411Ferrari Hex Head Screw - 16043411SupersededOrder 16043424 instead
61938100Ferrari Front Spoiler Grille - 61938100$905.60Available, ships in 3-6 days
60036001Ferrari LH Grille - 60036001Price on requestContact us for price and availability
60415403Ferrari LH Moulding GTS - 60415403$249.57Available, ships in 3-6 days
60586000Ferrari LH Rear Wing GTS - 60586000Price on requestContact us for price and availability
60320504Ferrari LH Windscreen Pillar GTB - 60320504Price on requestContact us for price and availability
60381407Ferrari LH Windscreen Pillar GTB - 60381407Price on requestContact us for price and availability
61817500Ferrari Lock Set GTS - 61817500Price on requestContact us for price and availability
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
61013800Ferrari Panel LHD - 61013800$138.48Available, ships in 3-6 days
60217403Ferrari Rear Panel - 60217403$7,726.17Available, ships in 3-6 days
60057809Ferrari RH Grille - 60057809$216.51Available, ships in 3-6 days
60585700Ferrari RH Rear Wing GTB - 60585700Price on requestContact us for price and availability
60320405Ferrari RH Windscreen Pillar - 60320405Price on requestContact us for price and availability
60320403Ferrari RH Windscreen Pillar GTB - 60320403Price on requestContact us for price and availability
60381308Ferrari RH Windscreen Pillar GTB - 60381308Price on requestContact us for price and availability
60328903Ferrari Roof Panel GTS - 60328903Price on requestContact us to order
60608600Ferrari Roof Panel GTS - 60608600Price on requestContact us to order
60879900Ferrari Roof Pegs GTS - 60879900Price on requestContact us for price and availability
60373305Ferrari Rubber GTS - 60373305Price on requestContact us for price and availability
15688275Ferrari Screw - 15688275Price on requestContact us for price and availability
10519377Ferrari Washer - 10519377SupersededOrder 10519378 instead
12640677Ferrari Washer - 12640677SupersededOrder 12640678 instead
60362209Ferrari Windscreen Frame GTS - 60362209$520.53Available, ships in 3-6 days
