Ferrari 348 tb/ts — L.H. Cylinder Head (diagram 004)

Exploded view of the l.h. cylinder head on the Ferrari 348 tb/ts, with 84 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

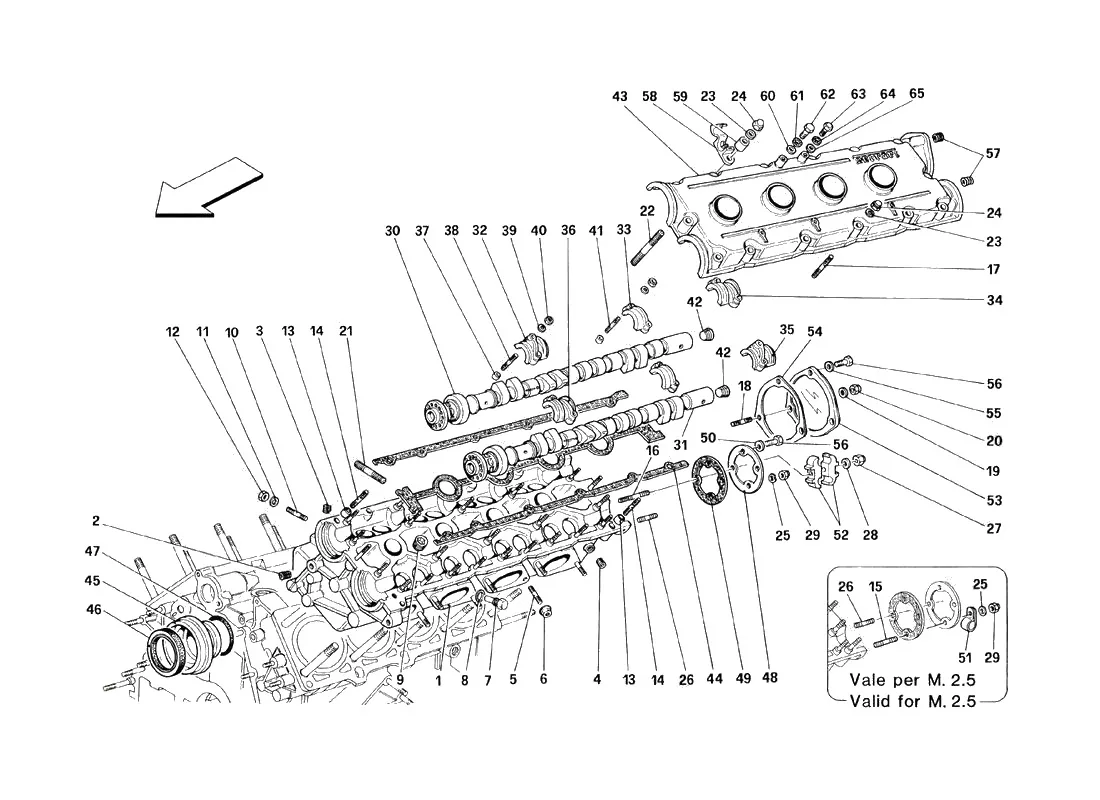

Ferrari 348 tb/ts L.H. Cylinder Head exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
213525870Ferrari Heli-Coil - 13525870$5.44Available, ships in 3-6 days
414326150Ferrari/Maserati Threaded Plug - 14326150$2.56In stock
512354524Ferrari Stud M8 x 16 Gambo 22mm - 12354524$59.07Available, ships in 3-6 days
6138392Ferrari/Maserati Exhaust Nut - 138392$2.95In stock
7139489Ferrari Plug - 139489$13.38Available, ships in 3-6 days
810257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
9127635Ferrari Threaded Plug M18 x 11 x 1.5 - 127635$6.75Available, ships in 3-6 days
1013541621Ferrari Stud 6x12 Stem 35 - 13541621SupersededOrder 13541624 instead
1111197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
1215896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
13102725Ferrari/Maserati Dowel - 102725$2.79In stock
1413541721Ferrari Stud 6 x 12 Stem 40 - 13541721Price on requestContact us for price and availability
1511500524Ferrari Stud Bolt M6 x 9 Gambo 22 - 11500524$0.73Available, ships in 3-6 days
1511500521Ferrari Stud - 11500521SupersededOrder 11500524 instead
1611501421Ferrari Threaded Stud - 11501421$2.34Available, ships in 3-6 days
20102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
2213541921Ferrari Stud - 13541921Price on requestContact us for price and availability
24100044Ferrari Cam Cover Nut - 10pack - 100044$9.85In stock
24151230Ferrari Nut - 151230SupersededOrder 100044 instead
2512601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
2611500321Ferrari Stud - 11500321Price on requestContact us for price and availability
27102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2712574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
2810519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
2810519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
2912575411Ferrari Nyloc Nut M6 x 6 - 12575411SupersededOrder 12575421 instead
30139336Ferrari LH Inlet Camshaft - 139336Price on requestContact us for price and availability
31139338Ferrari LH Exhaust Camshaft - 139338$3,645.37Available, ships in 3-6 days
38102754Ferrari Stud - 102754$9.74Available, ships in 3-6 days
41102735Ferrari Stud - 102735$16.86Available, ships in 3-6 days
4210269750Ferrari Plug-10269750$3.99In stock
44AW3324000Ferrari 308 QV/328/Mondial 4V Cam Cover Gasket Kit - AW3324000$163.90In stock
44150084Ferrari Cam Cover Gasket - 150084$42.90In stock
44AW3F40000Ferrari F40 Cam Cover Gasket Kit - AW3F40000$163.90In stock
45117257Ferrari Cam Oil Seal Housing - 117257$715.00In stock
45144973Ferrari Cam Oil seal housing - 144973SupersededOrder 117257 instead
46AW1348000Ferrari 348/Mondial T Cam Seal Set - AW1348000$165.00In stock
46134714Ferrari Camshaft Seal - 134714$21.98In stock
47117275Ferrari Cam Housing O-Ring - 117275$5.26In stock
48103796Ferrari End Plate Cover - 103796$652.75Available, ships in 3-6 days
49AW3348000Ferrari 348 Mondial T Cam Cover Gasket Kit - AW3348000$163.90In stock
49150075Ferrari End Cover Gasket - 150075$11.09In stock
5110418601Ferrari Clamp 14mm - 10418601$1.86Available, ships in 3-6 days
5110418401Ferrari Clamp 12mm - 10418401SupersededOrder 10418601 instead
5262658700Ferrari Clip - 62658700Price on requestContact us for price and availability
53140102Ferrari Cover - 140102Price on requestContact us for price and availability
54150074Ferrari End Cover Gasket - 150074$11.09In stock
5610902324Ferrari Screw M6 x 18 - 10902324$0.27Available, ships in 3-6 days
5713525470Ferrari Heli Coil - 13525470$1.05Available, ships in 3-6 days
58129544Ferrari Clamp - 129544$3.70Available, ships in 3-6 days
59140085Ferrari Spacer - 140085$76.57Special order, ships in 7-14 days
6012648201Ferrari Washer - 12648201Price on requestContact us for price and availability
6112601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
6110615479Ferrari Washer - 10615479Price on requestSpecial order, ships in 7-14 days
6210902024Ferrari Screw M6 x 12 - 10902024$0.12Available, ships in 3-6 days
6310977624Ferrari Screw TE M5 x 12 - 10977624$0.12Available, ships in 3-6 days
64149951Ferrari Shake Proof Washer - 149951$0.59Available, ships in 3-6 days
6510519377Ferrari Washer - 10519377SupersededOrder 10519378 instead
6510519378Ferrari Spring Washer 5mm - 10519378$0.08Available, ships in 3-6 days
10902411Ferrari Bolt - 10902411SupersededOrder 10902024 instead
10261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
12575421Ferrari Nyloc Nut M6 x 6 - 12575421$0.40Available, ships in 3-6 days
105055Ferrari Oil Seal - 105055SupersededOrder 134714 instead
110314Ferrari Oil Seal - 110314SupersededOrder 134714 instead
10902011Ferrari Screw 6x12 - 10902011$13.69Available, ships in 3-6 days
11500324Ferrari Stud - 11500324Price on requestContact us for price and availability
11501424Ferrari Stud - 11501424SupersededOrder 11501421 instead
12354521Ferrari Stud - 12354521SupersededOrder 12354524 instead
13541924Ferrari Stud - 13541924Price on requestContact us for price and availability
4146561Ferrari Stud - 4146561Price on requestContact us for price and availability
13541724Ferrari Stud 6x12 Stem 40 - 13541724Price on requestContact us for price and availability
183447Ferrari Threaded Plug - 183447$18.48Available, ships in 3-6 days
10519306Ferrari Washer - 10519306SupersededOrder 10519378 instead
10615301Ferrari Washer - 10615301SupersededOrder 149951 instead
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
13550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
-133994Ferrari Cylinder Head - 133994$8,120.53Available, ships in 3-6 days
-149502Ferrari LH Cylinder Head Complete - 149502$9,617.76Available, ships in 3-6 days
