Ferrari 365 GTB4 (Daytona) — Cylinder Heads - Camshaft Valves (diagram 004)

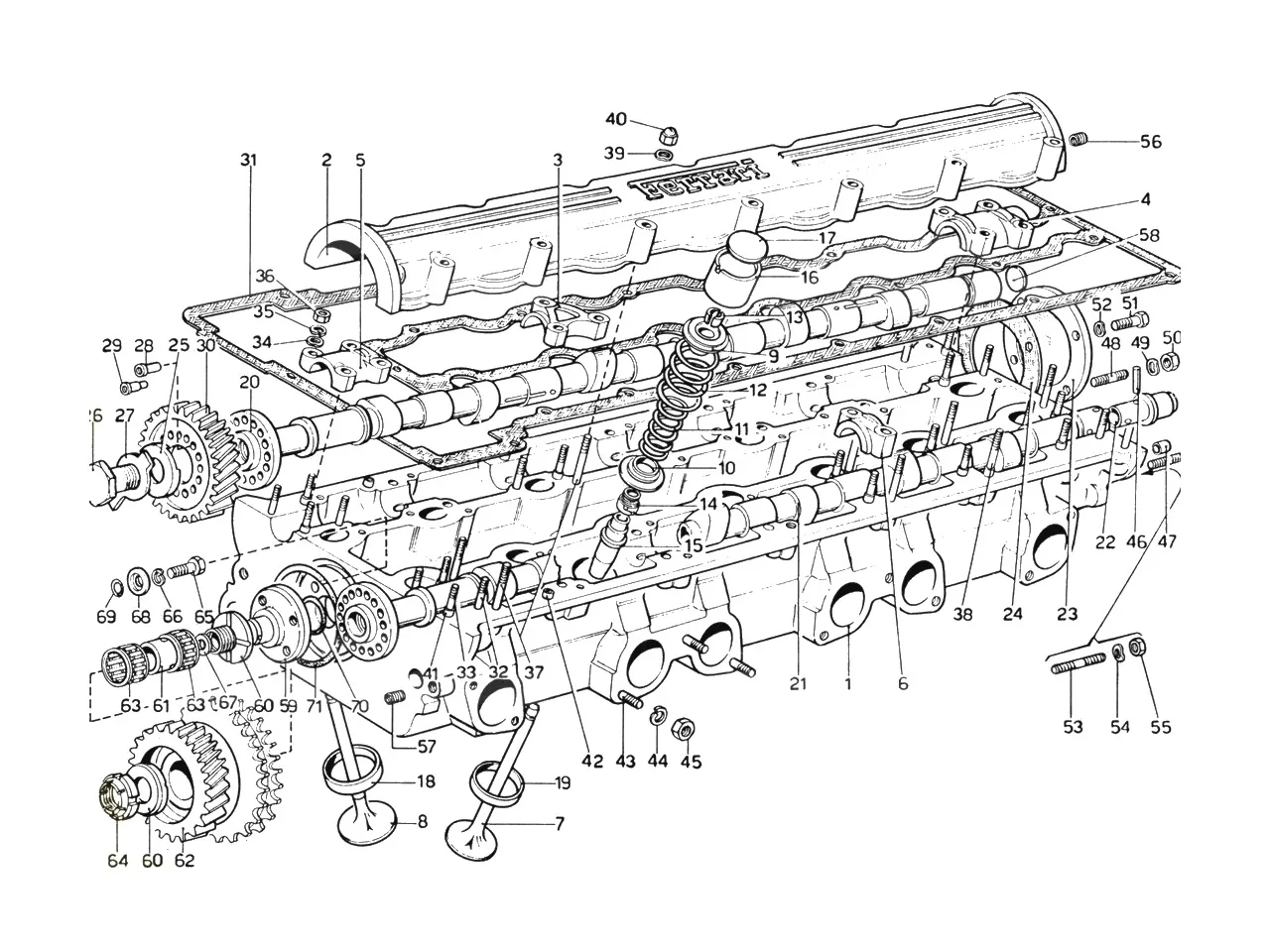

Exploded view of the cylinder heads - camshaft valves on the Ferrari 365 GTB4 (Daytona), with 163 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Cylinder Heads - Camshaft Valves exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
19161438/DFerrari RH Cylinder Head - 9161438/DPrice on requestSpecial order, ships in 7-14 days
19161438/SFerrari LH Cylinder Head - 9161438/SPrice on requestSpecial order, ships in 7-14 days
19162195/DFerrari RH Cylinder Head - 9162195/DPrice on requestSpecial order, ships in 7-14 days
19162195/SFerrari LH Cylinder Head - 9162195/SPrice on requestSpecial order, ships in 7-14 days
29161296Ferrari LH Inlet Cam Cover - 9161296Price on requestContact us for price and availability
29161297Ferrari LH Exhaust Cam Cover - 9161297Price on requestContact us for price and availability
29161298Ferrari RH Inlet Cam Cover - 9161298Price on requestContact us for price and availability
29161299Ferrari RH Exhaust Cam Cover - 9161299Price on requestContact us for price and availability
39161304Ferrari Cam Cap - 9161304Price on requestContact us for price and availability
49161301Ferrari RH Rear Cam Cap - 9161301Price on requestContact us for price and availability
49161303Ferrari LH Rear Cam Cap - 9161303Price on requestContact us for price and availability
59161300Ferrari LH Front Cam Cap - 9161300Price on requestContact us for price and availability
59161302Ferrari RH Front Cam Cap - 9161302Price on requestContact us for price and availability
69161305Ferrari Cam Cap - 9161305Price on requestContact us for price and availability
79162098Ferrari Exhaust Valve - 9162098Price on requestContact us for price and availability
79161467Ferrari Exhaust Valve - 9161467SupersededOrder 9162839 instead
79162839Ferrari 365GTB/S4 Exhaust Valve - 9162839$179.48Available, ships in 3-6 days
8100234Ferrari Intake Valve-100234$69.08In stock
89161466Ferrari 365GTB/S4 Inlet Valve - 9161466$91.39Available, ships in 3-6 days
99161344Ferrari Upper Spring Seat - 9161344Price on requestContact us for price and availability
109161343Ferrari Valve Spring Base Plate - 9161343Price on requestContact us for price and availability
11100239/240Ferrari Engine Valve Spring Set - 100239/240$30.80In stock
119161346Ferrari Valve Spring (Inner) - 9161346SupersededOrder 100239 instead
11100239Ferrari Valve Spring Inner - 100239$21.95Available, ships in 3-6 days
129161347Ferrari Valve Spring (Outer) - 9161347SupersededOrder 100240 instead
12100240Ferrari Valve Spring Outer - 100240$26.05Available, ships in 3-6 days
13100244Ferrari Valve Collet - 100244$13.09Available, ships in 3-6 days
1317672Ferrari Valve Collet - 17672SupersededOrder 100244 instead
14119766TFerrari Valve Stem Seal - 119766T$13.75In stock
14119766VFerrari Valve Stem Seal - 119766V$3.30In stock
149160896Ferrari Valve Seal - 9160896SupersededOrder 119766 instead
149160898Ferrari Valve Seal - 9160898SupersededOrder 119766 instead
15100236Ferrari Valve Guide-100236$31.90In stock
15100236/24Ferrari Valve Guide Set - 100236/24$715.00In stock
159161468Ferrari Valve Guide - 9161468SupersededOrder 100236 instead
16100232Ferrari Tappet Bucket - 100232$38.46Available, ships in 3-6 days
169161340Ferrari Tappet Bucket - 9161340SupersededOrder 100232 instead
174152448Ferrari Tappet Pad 4.00mm - 4152448$13.63Available, ships in 3-6 days
174152449Ferrari Tappet Pad 3.50mm - 4152449SupersededOrder 102833 instead
17102833Ferrari Tappet Pad 3.50mm - 102833$17.42Available, ships in 3-6 days
174152450Ferrari Tappet Pad 3.55mm - 4152450$13.11Available, ships in 3-6 days
174152451Ferrari Tappet Pad 3.60mm - 4152451SupersededOrder 102835 instead
174152452Ferrari Tappet Pad 3.65mm - 4152452SupersededOrder 102836 instead
17102836Ferrari Tappet Pad 3.65mm - 102836$16.27Available, ships in 3-6 days
174152453Ferrari Tappet Pad 3.70mm - 4152453SupersededOrder 102837 instead
174152454Ferrari Tappet Pad 3.75mm - 4152454SupersededOrder 102838 instead
174152455Ferrari Tappet Pad 3.80mm - 4152455SupersededOrder 102839 instead
174152456Ferrari Tappet Pad 3.85mm - 4152456SupersededOrder 102840 instead
17116103Ferrari Tappet Pad 3.82mm - 116103$13.26Available, ships in 3-6 days
174152457Ferrari Tappet Pad 3.90mm - 4152457Price on requestContact us for price and availability
174152458Ferrari Tappet Pad 3.95mm - 4152458SupersededOrder 102848 instead
174152459Ferrari Tappet Pad 4.05mm - 4152459SupersededOrder 102844 instead
17102844Ferrari Tappet Pad 4.05mm - 102844$18.00Available, ships in 3-6 days
174152460Ferrari Tappet Pad 4.10mm - 4152460SupersededOrder 102845 instead
17102845Ferrari Tappet Pad 4.10mm - 102845$15.74Available, ships in 3-6 days
174152461Ferrari Tappet Pad 4.15mm - 4152461$15.43Available, ships in 3-6 days
174152462Ferrari Tappet Pad 4.20mm - 4152462$15.54Available, ships in 3-6 days
174152463Ferrari Tappet Pad 4.25mm - 4152463$16.58Available, ships in 3-6 days
174152464Ferrari Tappet Pad 4.30mm - 4152464SupersededOrder 102849 instead
174152465Ferrari Tappet Pad 4.35mm - 4152465$13.55Available, ships in 3-6 days
174152466Ferrari Tappet Pad 4.40mm - 4152466SupersededOrder 102851 instead
17102851Ferrari Tappet Pad 4.40mm - 102851$18.04Available, ships in 3-6 days
174152467Ferrari Tappet Pad 4.45mm - 4152467$15.43Available, ships in 3-6 days
174152468Ferrari Tappet Pad 4.50mm - 4152468$12.48Available, ships in 3-6 days
179161345Ferrari Tappet Pad 4.00mm - 9161345$13.55Available, ships in 3-6 days
189160466Ferrari Valve Seat Leaded - 9160466$13.90Available, ships in 3-6 days
189162194Ferrari Valve Seat Leaded - 9162194SupersededOrder 100237 instead
18100237Ferrari Valve Seat Leaded - 100237$55.55Available, ships in 3-6 days
199160465Ferrari Valve Seat Leaded - 9160465$15.12Available, ships in 3-6 days
199162167Ferrari Valve Seat Leaded - 9162167$37.24Available, ships in 3-6 days
209161416Ferrari LH Inlet Cam - 9161416$1,833.54Special order, ships in 7-14 days
209162552Ferrari LH Inlet Cam LM Specification - 9162552$2,596.04Available, ships in 3-6 days
209161415Ferrari RH Inlet Cam - 9161415$1,833.54Available, ships in 3-6 days
209162551Ferrari RH Inlet Cam LM Specification - 9162551$2,596.04Special order, ships in 7-14 days
219161419Ferrari LH Exhaust Cam - 9161419Price on requestContact us for price and availability
219162553Ferrari RH Exhaust Cam LM Specification - 9162553$2,596.04Available, ships in 3-6 days
219161418Ferrari RH Exhaust Cam - 9161418Price on requestContact us for price and availability
219162554Ferrari LH Exhaust Cam LM Specification - 9162554$2,596.04Available, ships in 3-6 days
229161429Ferrari LH Adaptor - 9161429Price on requestContact us for price and availability
229161430Ferrari RH Adaptor - 9161430Price on requestContact us for price and availability
239161306Ferrari Casing - 9161306$78.43Available, ships in 3-6 days
24147619Ferrari 365/400 End Cover Gasket - 147619$6.60In stock
249161310Ferrari Gasket - 9161310SupersededOrder 147619 instead
259160236Ferrari Washer - 9160236$41.69Available, ships in 3-6 days
269160779Ferrari Bolt - 9160779$72.64Available, ships in 3-6 days
2795240Ferrari Lock Washer - 95240$13.80Available, ships in 3-6 days
28102827Ferrari Timing Gear Pin - 102827$95.78Available, ships in 3-6 days
2822448Ferrari Pin - 22448SupersededOrder 102827 instead
29100203Ferrari Cam Sprocket Location Peg - 100203$101.78Available, ships in 3-6 days
2922449Ferrari Peg - 22449SupersededOrder 100203 instead
30220411Ferrari 365GTB4 Cam Front Drive Gear - 220411Price on requestContact us for price and availability
31AW3365000Ferrari 365 GTB4 Daytona Cam Cover Gasket Kit - AW3365000$204.22In stock
319161324Ferrari 365 GTB 4 Daytona Cam Cover Gasket - 9161324$106.57In stock
319161325Ferrari 365 GTB 4 Daytona Cam Cover Gasket-9161325$95.57In stock
3295920113Ferrari Stud 6x32 P1 - 95920113$6.57Available, ships in 3-6 days
33104188Ferrari Stud 6x28 P1 - 104188Price on requestContact us for price and availability
34103044Ferrari Washer - 103044Price on requestContact us for price and availability
3512604274Ferrari Wavy Washer 6mm - 12604274$0.12Available, ships in 3-6 days
3510516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
36134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
3615896221Ferrari Nut - 15896221SupersededOrder 134041 instead
37104185Ferrari Stud 6x45 P1 - 104185Price on requestContact us for price and availability
3894207Ferrari Stud Long - 94207Price on requestContact us for price and availability
3912601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
3912601278Ferrari Washer - 12601278$0.19Available, ships in 3-6 days
40100436Ferrari Water Pump Nut - 100436$6.44In stock
41102725Ferrari/Maserati Dowel - 102725$2.79In stock
4192793Ferrari Location Dowel - 92793$2.13Available, ships in 3-6 days
4395920405Ferrari Stud 8X20 P2 - 95920405$23.21Available, ships in 3-6 days
44127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
4410516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
4594803Ferrari Exhaust Nut - 94803$11.83In stock
4692610Ferrari Pin - 92610SupersededOrder 100279 instead
47100272Ferrari Location Dowel - 100272$4.49Available, ships in 3-6 days
4794043Ferrari Loc Peg - 94043SupersededOrder 100272 instead
4895920105Ferrari Stud 6x16 P1 - 95920105Price on requestContact us for price and availability
4895920104Ferrari Stud 6X14 P1 - 95920104$1.94Available, ships in 3-6 days
4912601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
5110902124Ferrari Screw - 10902124$0.29In stock
5195880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
5110902431Ferrari Bolt 6x20 - 10902431Price on requestContact us for price and availability
5395920107Ferrari Stud 6X18 P1 - 95920107$3.76Available, ships in 3-6 days
55100273Ferrari Nut (Dist Housing) - 100273$20.78Available, ships in 3-6 days
5594864Ferrari Nut - 94864SupersededOrder 100273 instead
5893965Ferrari Disc - 93965Price on requestContact us for price and availability
59220205Ferrari Pin - 220205Price on requestContact us for price and availability
59220570Ferrari Pin - 220570Price on requestContact us for price and availability
6022955Ferrari Washer - 22955Price on requestContact us for price and availability
60220568Ferrari Washer - 220568Price on requestContact us for price and availability
6122987Ferrari Roller Bush 226 - 22987Price on requestContact us for price and availability
62220410Ferrari Pinion - 220410Price on requestContact us for price and availability
62220569Ferrari Pinion - 220569Price on requestContact us for price and availability
6395893007Ferrari Caged Needle Bearing - 95893007$102.35Available, ships in 3-6 days
64101241Ferrari Nut - 101241$155.16Available, ships in 3-6 days
6595880508Ferrari Bolt 8X22 Uni 5739 - 95880508$25.35Available, ships in 3-6 days
6795073Ferrari Core Plug - 95073Price on requestContact us for price and availability
6895104Ferrari Washer - 95104$3.51Available, ships in 3-6 days
6995860041Ferrari O-Ring - 95860041$2.99Available, ships in 3-6 days
7095860046Ferrari O Ring - 95860046$1.85In stock
7195860202Ferrari O Ring - 95860202$5.85In stock
107082Ferrari 365/400/412 Exhaust Valve - 107082SupersededOrder 9162839 instead
10902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
100113Ferrari End Plate Gasket - 100113SupersededOrder 147619 instead
100238Ferrari Exhaust Valve Seat - 100238$49.99Available, ships in 3-6 days
126595Ferrari Exhaust Valve Seat - 126595$37.24Available, ships in 3-6 days
127494Ferrari Lock Washer - 127494$0.50In stock
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
100279Ferrari Pin - 100279$31.05Available, ships in 3-6 days
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
108677Ferrari Tappet Pad 3.50 - 108677SupersededOrder 102833 instead
102834Ferrari Tappet Pad 3.55mm - 102834$18.00Available, ships in 3-6 days
102840Ferrari Tappet Pad 3.85mm - 102840$16.27Available, ships in 3-6 days
102841Ferrari Tappet Pad 3.90mm - 102841$13.74Available, ships in 3-6 days
102843Ferrari Tappet Pad 4.00mm - 102843$17.90Available, ships in 3-6 days
102846Ferrari Tappet Pad 4.15mm - 102846$17.33Available, ships in 3-6 days
102842Ferrari Tappet Pad 4.25mm - 102842$15.74Available, ships in 3-6 days
102850Ferrari Tappet Pad 4.35mm - 102850$15.74Available, ships in 3-6 days
102852Ferrari Tappet Pad 4.45mm - 102852$15.95Available, ships in 3-6 days
100241Ferrari Upper Spring Seat - 100241$50.59Available, ships in 3-6 days
100242Ferrari Valve Spring Base Plate - 100242$74.32Available, ships in 3-6 days
100243Ferrari Valve Stem Oil Seal - 100243SupersededOrder 119766 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
-220390Ferrari Gasket - 220390$7.53Available, ships in 3-6 days

All 365 GTB4 (Daytona) diagrams

Loading…
header Logo 3 (1)

120 Kremer Ave. Eatontown, NJ 07724
Corner of Highway 35 and Kremer Ave.
(Mile North of the Mall)

800-631-5589
info@awitalian.com

Mon – Fri 9-6
Sat, Sun closed

NOTE ABOUT IN/OUT OF STOCK

We always attempt to indicate when a part is out of stock. In the event that you order a part and we are currently out of stock, you will be notified within 24 business hours.

Please read our Shipping & Returns Policy for more information

By the same token, we have many parts or can get many parts that may not be found on our site. Please email or call with inquiries.

JOIN OUR MAILING LIST

Receive promotions directly in your email

WE ACCEPT
credit cards 03
TERMS, CONDITIONS, AND PRIVACY

Terms and Conditions & Privacy Policy AW Italian Auto Parts is a division of AW Imported Auto Parts and Service

© 1965 - 2026 • AW ITALIAN is an American Auto Part Dealer for Luxury Italian Vehicles • All Rights Reserved

Go to Top
