Ferrari 365 GTB4 (Daytona) — Timing (diagram 005)

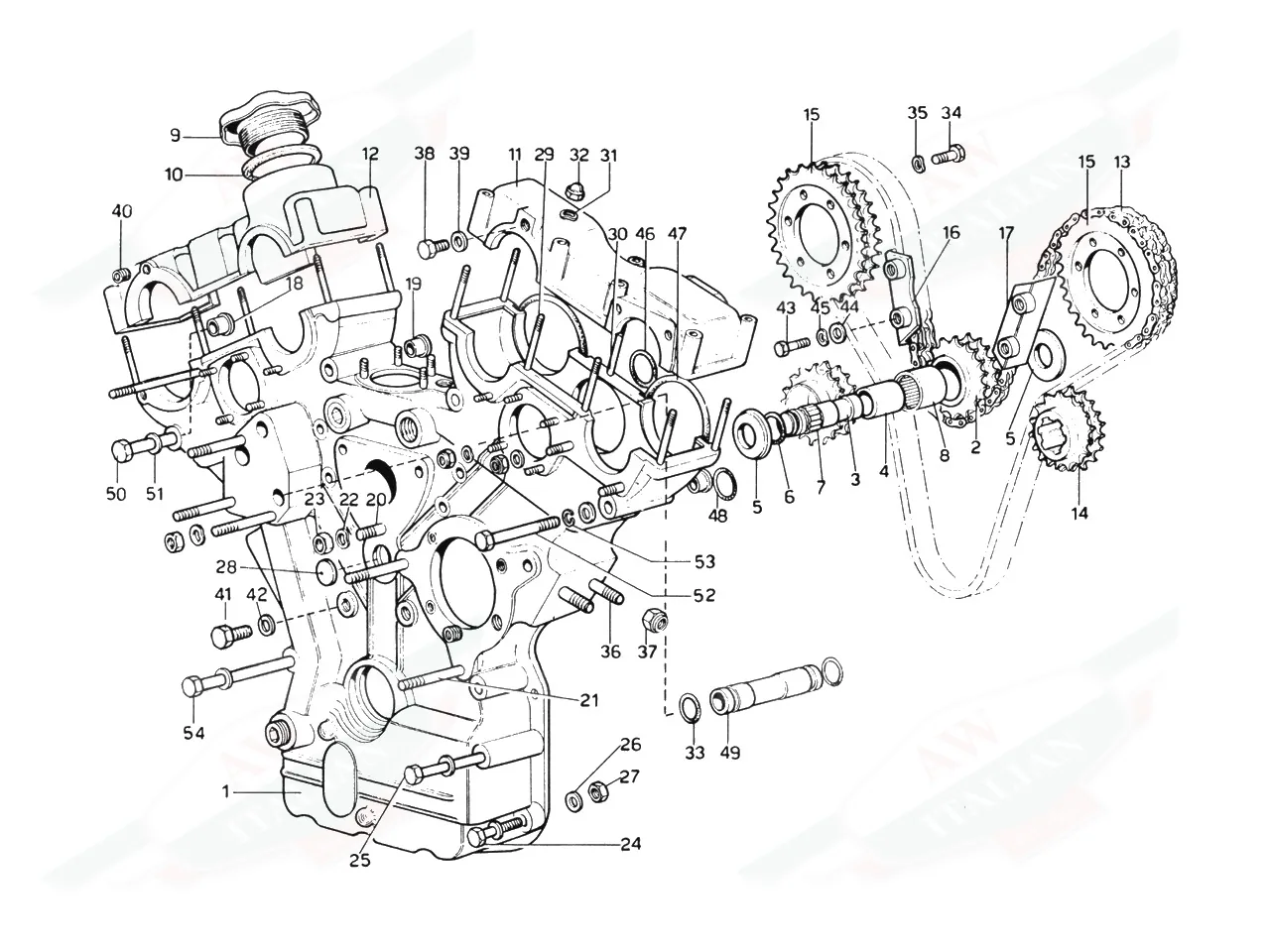

Exploded view of the timing on the Ferrari 365 GTB4 (Daytona), with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Timing exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1220282Ferrari Front Timing Cover - 220282Price on requestContact us for price and availability
1220426Ferrari Front Timing Cover - 220426Price on requestContact us for price and availability
1220778Ferrari Front Timing Cover - 220778Price on requestContact us for price and availability
29220210Ferrari Sprocket - 9220210$240.25Available, ships in 3-6 days
3220214Ferrari Timing Gear Pin - 220214$67.95Available, ships in 3-6 days
4220215Ferrari Bush - 220215Price on requestContact us for price and availability
522718Ferrari Timing Sprocket Spacer - 22718$135.87Available, ships in 3-6 days
6105329Ferrari O Ring-105329$2.95In stock
7101591Ferrari Star Ring - 101591$24.71Available, ships in 3-6 days
895893004Ferrari Caged Roller Bearing - 95893004$25.40Available, ships in 3-6 days
9220228Ferrari Oil Filler Cap - 220228Price on requestContact us for price and availability
10220229Ferrari Oil Cap Gasket - 220229Price on requestContact us for price and availability
119220208Ferrari LH Cap - 9220208Price on requestContact us for price and availability
129220209Ferrari RH Cap - 9220209Price on requestContact us for price and availability
12220524Ferrari Top Timing Cover - 220524Price on requestContact us for price and availability
139220070Ferrari Duplex Timing Chain - 9220070$692.97Available, ships in 3-6 days
149220200Ferrari Gear - 9220200Price on requestContact us for price and availability
159220203Ferrari Timing Chain Wheel - 9220203$612.62Available, ships in 3-6 days
16220424Ferrari Chain Guide - 220424$310.67Available, ships in 3-6 days
17220425Ferrari Chain Guide - 220425$209.99Available, ships in 3-6 days
18220444Ferrari Bush - 220444Price on requestContact us for price and availability
19100103Ferrari Distance Bush - 100103$85.83Available, ships in 3-6 days
2095920409Ferrari Stud 8X25 P2 - 95920409Price on requestContact us for price and availability
2195920421Ferrari Stud 8X70 P2 - 95920421$3.53Available, ships in 3-6 days
2195920419Ferrari Stud 8x60 P2 - 95920419$3.53Available, ships in 3-6 days
22127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
22106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
23103181Ferrari Nut 8x1 - 103181$3.79Available, ships in 3-6 days
2595352Ferrari Bolt - 95352Price on requestContact us for price and availability
2810158700Ferrari Core Plug - 10158700$31.57Available, ships in 3-6 days
2995920117Ferrari Stud 6x50 P1 - 95920117$26.62Available, ships in 3-6 days
30104185Ferrari Stud 6x45 P1 - 104185Price on requestContact us for price and availability
3112601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
3112601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
32102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
3395860062Ferrari 365 O Ring - 95860062$1.55In stock
3495880504Ferrari Bolt 8X16 Uni 5739 - 95880504Price on requestContact us for price and availability
3510516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
3695170Ferrari Stud - 95170Price on requestContact us for price and availability
3795900610Ferrari Nyloc Nut M12 x 1.50 - 95900610$1.30Available, ships in 3-6 days
3910260160Ferrari Copper Washer D. 10 - 14 x 1 - 10260160$1.99Available, ships in 3-6 days
3994385Ferrari Washer - 94385$3.28Available, ships in 3-6 days
4195880800Ferrari Bolt 10X15uni 187 - 95880800$0.59Available, ships in 3-6 days
4310902224Ferrari Screw M6 x 16 - 10902224$0.12Available, ships in 3-6 days
4395880303Ferrari Bolt - 95880303$0.11Available, ships in 3-6 days
4495450Ferrari Gasket - 95450Price on requestContact us for price and availability
45127494Ferrari Lock Washer - 127494$0.50In stock
4510516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
4695860103Ferrari O-Ring - 95860103$8.05Available, ships in 3-6 days
47101028Ferrari O Ring-101028$3.58In stock
48105558Ferrari 246/308 Shift Shaft O ring-105558$2.52In stock
4922756Ferrari Filter Base Gallery Transfer Tube - 22756$229.95Available, ships in 3-6 days
5095410Ferrari Bolt - 95410Price on requestContact us for price and availability
5112601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
51106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
5295212Ferrari Bolt - 95212Price on requestContact us for price and availability
5295610Ferrari Bolt - 95610SupersededOrder 103576 instead
5495190Ferrari Bolt - 95190Price on requestContact us for price and availability
103576Ferrari Bolt - 103576$32.79Special order, ships in 7-14 days
102879Ferrari Oil Filler Cap - 102879$184.64Available, ships in 3-6 days
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
10519460Ferrari Washer - 10519460Price on requestContact us for price and availability
12601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
