Ferrari 365 GTB4 (Daytona) — Engine Oil Filters & Brake Booster Vacuum Pump (diagram 008)

Exploded view of the engine oil filters & brake booster vacuum pump on the Ferrari 365 GTB4 (Daytona), with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

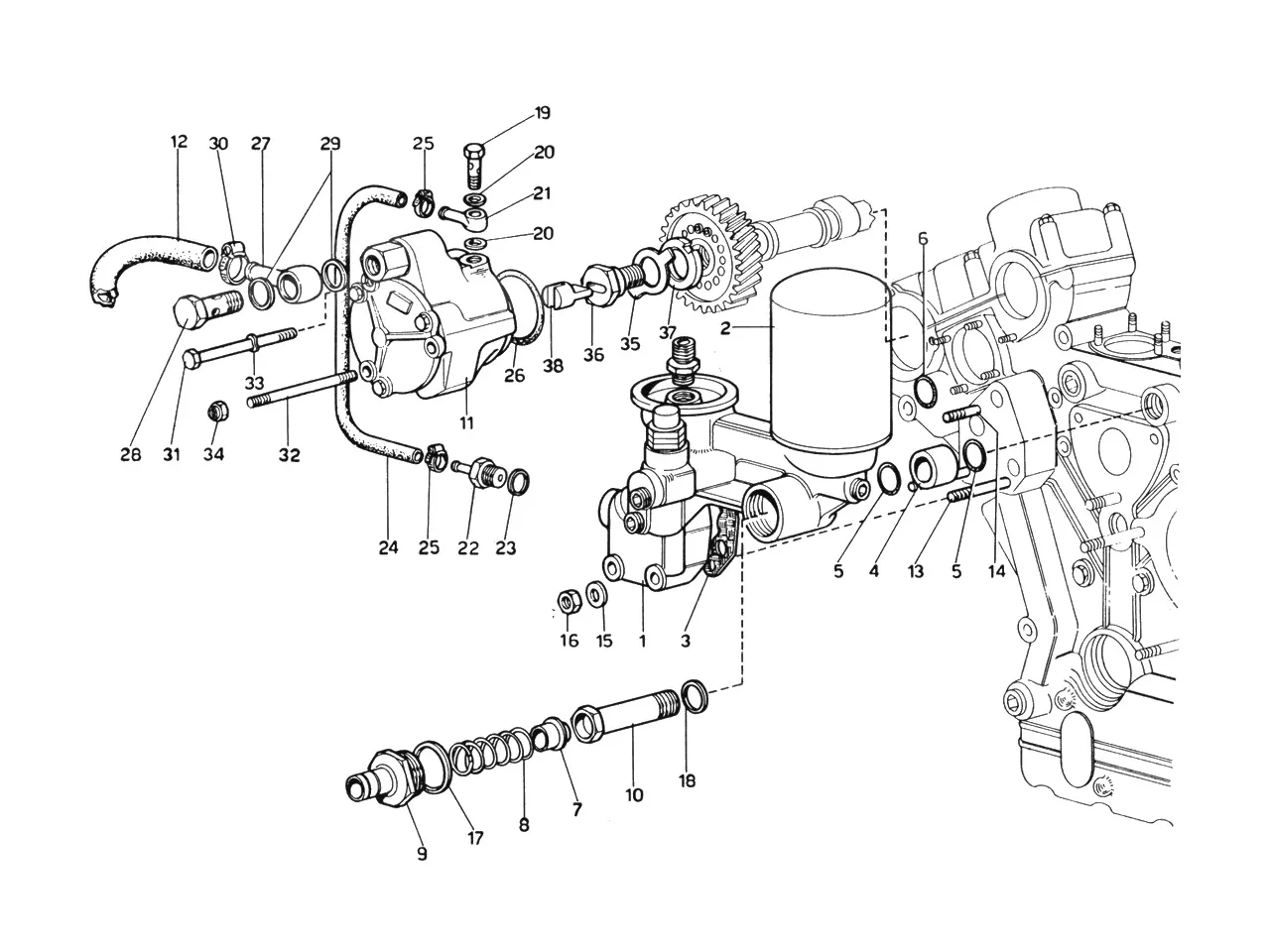

Ferrari 365 GTB4 (Daytona) Engine Oil Filters & Brake Booster Vacuum Pump exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1240450Ferrari Oil Filter Housing - 240450Price on requestContact us for price and availability
2100325/2Ferrari 275 Oil Filter Pair - 100325/2$82.50In stock
2100325Ferrari Oil Filter - 100325SupersededOrder 191993 instead
3240445Ferrari Silencer Crossmember - 240445$348.11Special order, ships in 7-14 days
4240129Ferrari Bush - 240129Price on requestContact us for price and availability
595860065Ferrari O-Ring - 95860065$3.09Available, ships in 3-6 days
695860044Ferrari O-Ring - 95860044$2.11Available, ships in 3-6 days
722918Ferrari By-Pass Valve - 22918$111.50Available, ships in 3-6 days
822915Ferrari Oil Filter Housing Spring - 22915$29.03Available, ships in 3-6 days
922919Ferrari Oil Cap Adaptor - 22919$171.88Available, ships in 3-6 days
109220021Ferrari Feed Bolt - 9220021Price on requestContact us for price and availability
10220551Ferrari Bolt - 220551$47.51Available, ships in 3-6 days
11220766Ferrari 365Gtb/S4 Brake Servo Vacuum Pump - 220766Price on requestContact us for price and availability
119220693Ferrari Brake Servo Vacuum Pump - 9220693Price on requestContact us for price and availability
1395920418Ferrari Stud 8X55 P2 - 95920418Price on requestContact us for price and availability
1495920416Ferrari Stud 8X45 P2 - 95920416Price on requestContact us for price and availability
15127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1510516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
16103181Ferrari Nut 8x1 - 103181$3.79Available, ships in 3-6 days
1794983Ferrari 330/365 Oil Filter Housing Washer - 94983$5.70In stock
1894702Ferrari Copper Washer - 94702Price on requestContact us for price and availability
1911903811Ferrari Banjo Bolt M10 x 1.25 - 11903811$8.05Special order, ships in 7-14 days
1994905Ferrari Banjo Bolt - 94905Price on requestContact us for price and availability
2010260160Ferrari Copper Washer D. 10 - 14 x 1 - 10260160$1.99Available, ships in 3-6 days
2095064Ferrari Gasket Washer - 95064$1.69Available, ships in 3-6 days
2195435Ferrari Cover - 95435Price on requestContact us for price and availability
2194952Ferrari Banjo Union - 94952Price on requestContact us for price and availability
2295408Ferrari Union - 95408Price on requestContact us for price and availability
2310257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
2394877Ferrari Copper Washer - 94877$0.50Available, ships in 3-6 days
24111462Ferrari Pipe - 111462Price on requestContact us for price and availability
2495602Ferrari Tube 500mm - 95602Price on requestContact us for price and availability
25157990Ferrari Hose Retaining Clip D. 7 - 11 x 5 - 157990$4.14Available, ships in 3-6 days
2510170990Ferrari Clip - 10170990Price on requestContact us for price and availability
2695860023Ferrari O-Ring - 95860023$4.27Available, ships in 3-6 days
27100499Ferrari Union Dia 12Mm - 100499$42.32Available, ships in 3-6 days
2795457Ferrari Nut - 95457SupersededOrder 100499 instead
28100498Ferrari Banjo Union Bolt - 100498$20.12Available, ships in 3-6 days
2895456Ferrari Nut - 95456SupersededOrder 100498 instead
2995118Ferrari Copper Washer - 95118$0.38Available, ships in 3-6 days
2910263360Ferrari Gasket D. 20-26 x 1 - 10263360$0.38Available, ships in 3-6 days
3013000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
3195407Ferrari Bolt - 95407Price on requestContact us for price and availability
33127494Ferrari Lock Washer - 127494$0.50In stock
3310516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
34102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
3412574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
3595406Ferrari Lock Tab - 95406Price on requestContact us for price and availability
369161633Ferrari Bolt - 9161633Price on requestContact us for price and availability
379161634Ferrari Washer - 9161634$38.87Available, ships in 3-6 days
389220347Ferrari Drive - 9220347$70.30Available, ships in 3-6 days
38103225/AFerrari Lock Ring (Nyloc) - 103225/A$54.23Available, ships in 3-6 days
100206Ferrari Bolt - 100206Price on requestContact us for price and availability
100495Ferrari Bolt - 100495Price on requestContact us for price and availability
102721Ferrari Clip - 102721SupersededOrder 157990 instead
12179090Ferrari Clip - 12179090SupersededOrder 157990 instead
178052Ferrari Clip - 178052$3.26Available, ships in 3-6 days
10261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
10257460Ferrari Gasket - 10257460$0.38Available, ships in 3-6 days
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
104022Ferrari Jubilee Clip - 104022SupersededOrder 13000390 instead
12179990Ferrari Jubilee Clip 20-32mm - 12179990SupersededOrder 13000390 instead
111782Ferrari Oil Filter - 111782SupersededOrder 191993 instead
191993Ferrari Oil Filter - 191993$48.80In stock
4170601Ferrari Oil Filter - 4170601SupersededOrder 191993 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
-95840031Ferrari Belt Z14 Daytona RHD Vac Pump - 95840031$56.00Available, ships in 3-6 days
-103225Ferrari Lock Ring - 103225$54.23Available, ships in 3-6 days
