Ferrari 365 GTB4 (Daytona) — Intake Manifolds - Air Intake (diagram 011)

Exploded view of the intake manifolds - air intake on the Ferrari 365 GTB4 (Daytona), with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

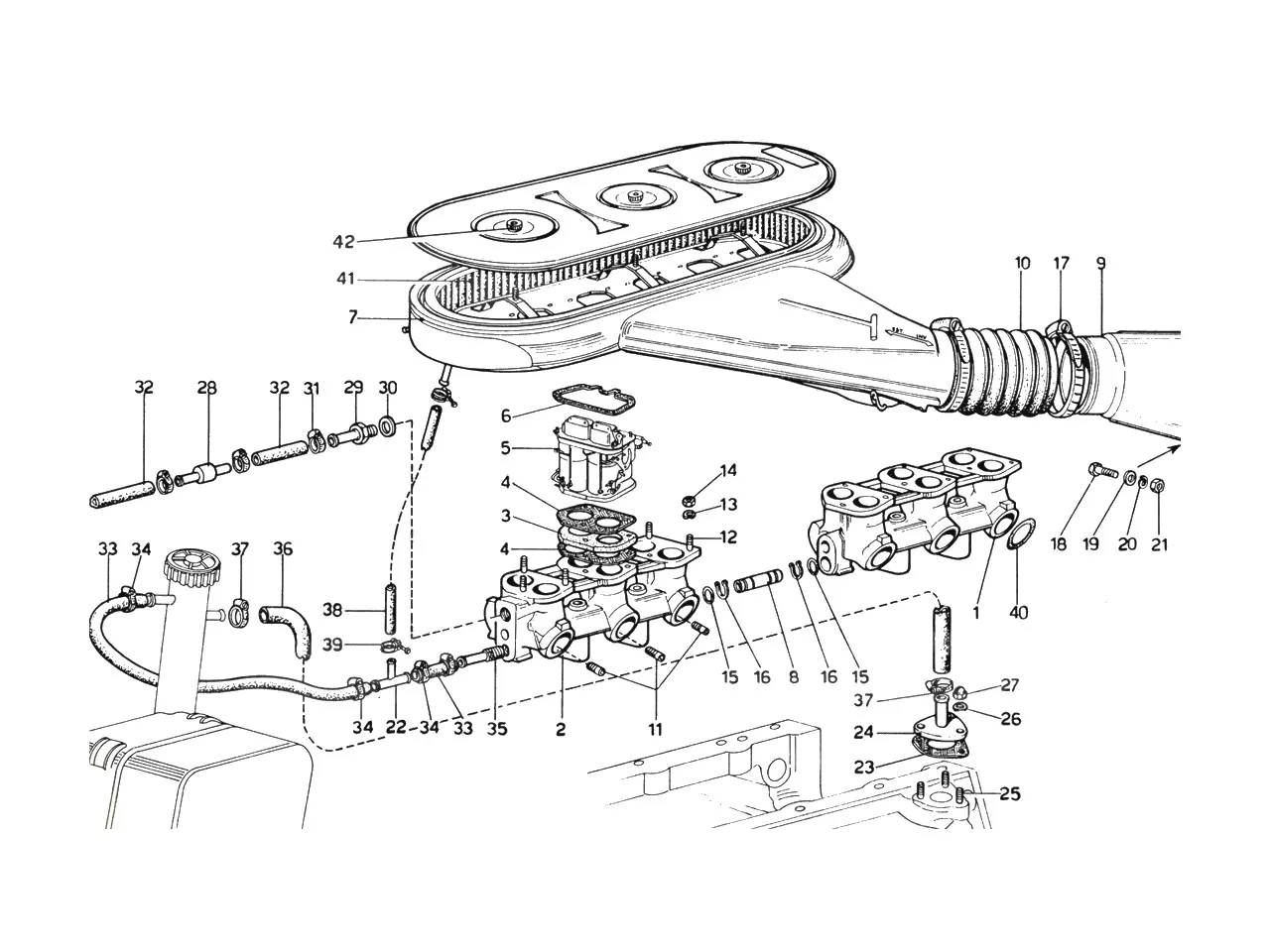

Ferrari 365 GTB4 (Daytona) Intake Manifolds - Air Intake exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
19180715Ferrari Manifold - 9180715Price on requestContact us for price and availability
29180714Ferrari Manifold - 9180714Price on requestContact us for price and availability
39180783Ferrari 365Gtb4 Carb Base Spacer 365Gtb4 - 9180783$144.00Available, ships in 3-6 days
49180878Ferrari 365 GTB4 Carburetor Gasket - 9180878$23.50In stock
518950.063Ferrari 40DCN14 Carb - 18950.063Price on requestSpecial order, ships in 7-14 days
69180926Ferrari Gasket (Carb To Airbox) - 9180926$12.27Available, ships in 3-6 days
79181030Ferrari Air Box - 9181030Price on requestContact us for price and availability
89180798Ferrari Pin - 9180798$34.73Available, ships in 3-6 days
99180989Ferrari Air Intake - 9180989Price on requestContact us for price and availability
10107533Ferrari Lower Oil Cooler Air Hose-107533$86.90In stock
109181108Ferrari Air Trunking - 9181108SupersededOrder 107533 instead
119181107Ferrari Air Bleed Jet - 9181107Price on requestContact us for price and availability
1295920412Ferrari Stud 8x32 P2 - 95920412$49.87Available, ships in 3-6 days
13127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
13106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
1495900504Ferrari Nut M8 D2 - 95900504$0.96Available, ships in 3-6 days
1495209Ferrari Manifold Nut - 95209$2.15Available, ships in 3-6 days
1595860062Ferrari 365 O Ring - 95860062$1.55In stock
1611066676Ferrari Circlip - 11066676$0.34Available, ships in 3-6 days
1795031Ferrari Clip 89-108 - 95031Price on requestContact us for price and availability
1810902224Ferrari Screw M6 x 16 - 10902224$0.12Available, ships in 3-6 days
1895880303Ferrari Bolt - 95880303$0.11Available, ships in 3-6 days
1912643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
1994703Ferrari Washer - 94703SupersededOrder 12643701 instead
20127494Ferrari Lock Washer - 127494$0.50In stock
20106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
2110725911Ferrari RH Thread Nut 6mm - 10725911SupersededOrder 10725914 instead
2110725914Ferrari Nut M6 x 4 - 10725914$0.19Available, ships in 3-6 days
2221112Ferrari Hose - 21112Price on requestContact us for price and availability
239111343Ferrari Gasket - 9111343$9.79Available, ships in 3-6 days
249111362Ferrari RH Vent Cover - 9111362Price on requestContact us for price and availability
249111359Ferrari LH Vent Cover - 9111359Price on requestContact us for price and availability
2595920105Ferrari Stud 6x16 P1 - 95920105Price on requestContact us for price and availability
2612601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
2612601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
27134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
2715896221Ferrari Nut - 15896221SupersededOrder 134041 instead
28128435AFerrari Brake Booster Check Valve - 128435A$48.80In stock
28101538Ferrari Servo Valve - 101538SupersededOrder 128435 instead
2969545Ferrari Union - 69545Price on requestContact us for price and availability
3094191Ferrari Washer - 94191$0.65Available, ships in 3-6 days
31100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
3113000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
359180713Ferrari Pipe Joint - 9180713$64.71Available, ships in 3-6 days
3913000190Ferrari Hose Clip 10-16mm - 13000190$1.09Available, ships in 3-6 days
39104879Ferrari Clip - 104879SupersededOrder 13000190 instead
419181944Ferrari Air Filter - 9181944$159.50In stock
42104550Ferrari Air Box/Battery Cover Knurled Nut - 104550$13.20In stock
350357Ferrari Carburetor - 350357Price on requestContact us for price and availability
12179490Ferrari Hose Clip - 12179490SupersededOrder 13000190 instead
12179690Ferrari Hose Clip - 12179690SupersededOrder 13000190 instead
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
680956Ferrari Servo Valve - 680956SupersededOrder 128435 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead

All 365 GTB4 (Daytona) diagrams
