Ferrari 365 GTB4 (Daytona) — Clutch & Controls (diagram 015)

Exploded view of the clutch & controls on the Ferrari 365 GTB4 (Daytona), with 95 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

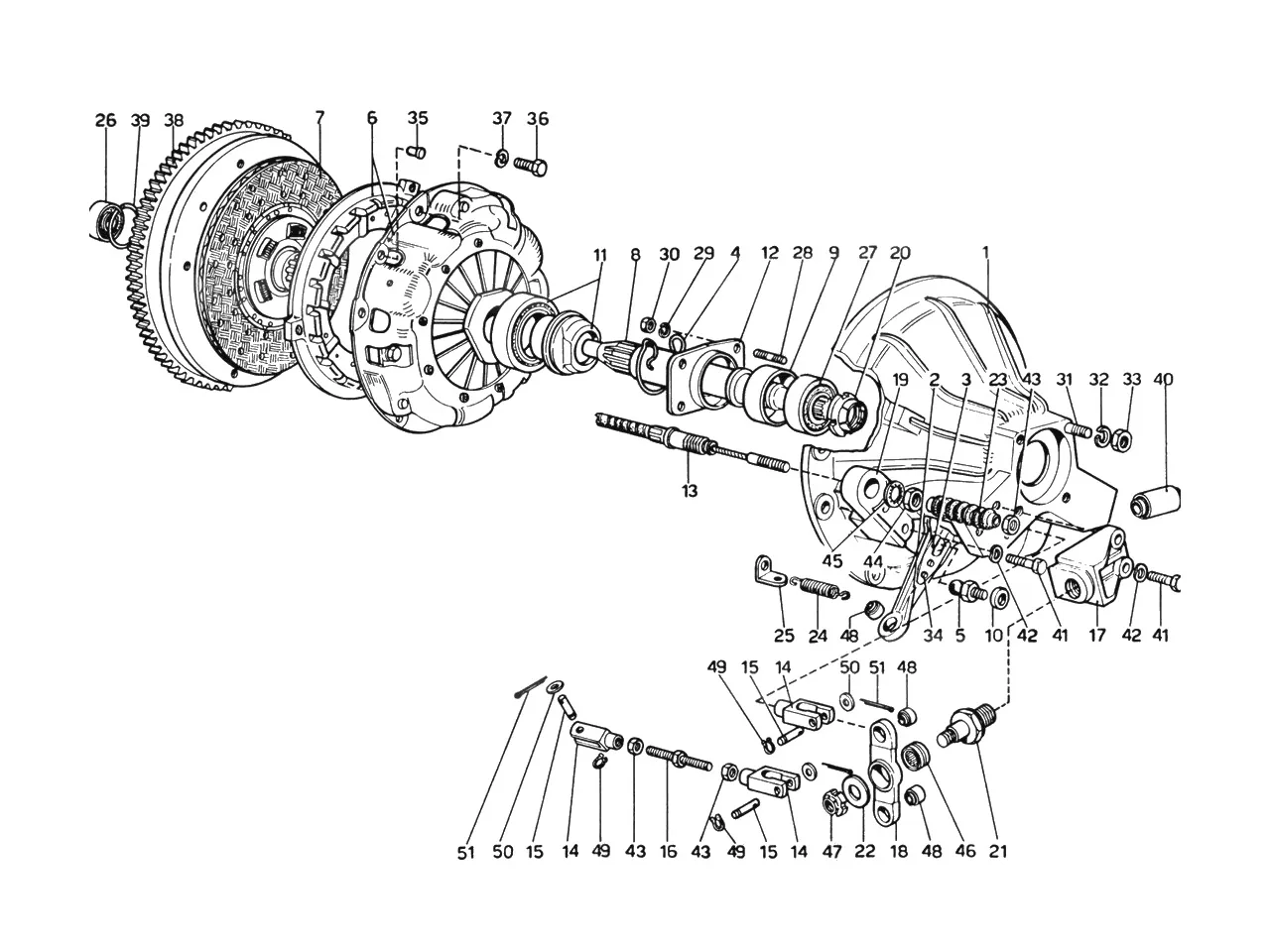

Ferrari 365 GTB4 (Daytona) Clutch & Controls exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1500605Ferrari Clutch Bell Housing LHD - 500605Price on requestContact us for price and availability
1500749Ferrari Clutch Bell Housing RHD - 500749Price on requestContact us for price and availability
2500608Ferrari Clutch Lever With Spring - 500608Price on requestContact us for price and availability
2500607Ferrari Fork - 500607Price on requestContact us for price and availability
3100851Ferrari Clutch Fork Spring - 100851$91.09Available, ships in 3-6 days
3500192Ferrari Clutch Fork Spring - 500192$134.38Available, ships in 3-6 days
4500204Ferrari Spring - 500204SupersededOrder 105732 instead
5500220Ferrari Pin - 500220Price on requestContact us for price and availability
6109382Ferrari Clutch Pressure Plate-109382$412.50In stock
6CLAV12Ferrari Clutch Kit - CLAV12$984.50In stock
6109382/AFerrari V12 Clutch 3 Piece Set (Diaphragm Type) - 109382/A$2,769.07Available, ships in 3-6 days
7CLAV8Ferrari 308/328/Mondial Clutch Kit - CLAV8$823.49In stock
7109643Ferrari 365GTB4 LM Clutch Disc - 109643$474.87Available, ships in 3-6 days
7110558Ferrari Clutch Disc V8/V12 - 110558$551.65Available, ships in 3-6 days
7110558/AFerrari Clutch Disc V8/V12 - 110558/A$649.88Available, ships in 3-6 days
8500558Ferrari Shaft - 500558SupersededOrder 500770 instead
8500770Ferrari Shaft - 500770$843.91Available, ships in 3-6 days
9500320Ferrari Spacer - 500320Price on requestContact us for price and availability
10500322Ferrari Spacer - 500322$10.79Available, ships in 3-6 days
11100849Ferrari Clutch Release Bearing - 100849$138.60In stock
11100848Ferrari Clutch Release Carrier - 100848$499.98In stock
11100849CFerrari Clutch Release Bearing with Carrier - 100849C$343.56In stock
11500568Ferrari Release Bearing and Carrier Assy - 500568SupersededOrder 100848 instead
12500569Ferrari Flange - 500569Price on requestContact us for price and availability
13500577Ferrari 365 GTB/4 Daytona Clutch Cable-500577$142.95In stock
13500577/AFerrari Clutch Cable - 500577/APrice on requestSpecial order, ships in 7-14 days
14103238Ferrari Fork - 103238$49.37Available, ships in 3-6 days
14500631Ferrari Cable End - 500631Price on requestContact us for price and availability
14500599Ferrari Fork - 500599SupersededOrder 103238 instead
15103218Ferrari Clevis Pin - 103218$37.56Available, ships in 3-6 days
15500601Ferrari Clevis Pin - 500601SupersededOrder 103218 instead
16500795Ferrari Adjuster - 500795Price on requestSpecial order, ships in 7-14 days
16500609Ferrari Adjuster - 500609$43.37Available, ships in 3-6 days
17500610Ferrari Bracket - 500610$30.95Available, ships in 3-6 days
18500611Ferrari Lever - 500611Price on requestContact us for price and availability
19500613Ferrari Bracket - 500613Price on requestContact us for price and availability
20102289Ferrari Ring Nut - Rear Suspension - 102289$36.14In stock
20700648Ferrari RH Nut - 700648SupersededOrder 102289 instead
20522670Ferrari Nut - 522670SupersededOrder 523129 instead
20523129Ferrari Nut - 523129$123.99Available, ships in 3-6 days
21500495Ferrari Pin - 500495$204.93Available, ships in 3-6 days
22500496Ferrari Washer - 500496Price on requestContact us for price and availability
23100858Ferrari Clutch Cable Boot - 100858$49.70In stock
23500551Ferrari Boot - 500551SupersededOrder 100858 instead
24660666Ferrari Spring - 660666$20.76Available, ships in 3-6 days
25500641Ferrari Spring Bracket - 500641Price on requestContact us for price and availability
26101297Ferrari Engine Bearing - 101297$13.15In stock
2795891500Ferrari Sealed Ball Race - 95891500$673.07Available, ships in 3-6 days
2895920300Ferrari Stud 7x12 P1 - 95920300Price on requestContact us for price and availability
2995930510Ferrari Washer 7R4 - 95930510$0.59Available, ships in 3-6 days
2912603871Ferrari Wavy Washer 7mm - 12603871$0.59Available, ships in 3-6 days
30100861Ferrari RH Thread Nut - 100861$13.55Available, ships in 3-6 days
3195178Ferrari Stud - 95178Price on requestContact us for price and availability
3210516870Ferrari Spring Washer - 10516870Price on requestContact us for price and availability
3395900703Ferrari Lock Nut - 95900703Price on requestContact us for price and availability
3495930221Ferrari Rivet - 95930221Price on requestSpecial order, ships in 7-14 days
35101535Ferrari Location Dowel - 101535$29.73Available, ships in 3-6 days
3594892Ferrari Location Peg - 94892SupersededOrder 101535 instead
3695880508Ferrari Bolt 8X22 Uni 5739 - 95880508$25.35Available, ships in 3-6 days
37127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
37106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
3812644Ferrari Flywheel - 12644$4,325.95Available, ships in 3-6 days
3994766Ferrari C-Clip - 94766Price on requestContact us for price and availability
40640309Ferrari Bell Housing Mount Bush - 640309$62.43Available, ships in 3-6 days
40101618Ferrari Silentbloc - 101618$62.43Available, ships in 3-6 days
4195880520Ferrari Bolt 8X30 B10 - 95880520$0.96Available, ships in 3-6 days
4195880520/AFerrari Bolt 8 X 30 - 95880520/A$0.96Available, ships in 3-6 days
4211198074Ferrari/Maserati Washer - 11198074$0.14In stock
44101156Ferrari RH Thread Nut - 101156$35.23Available, ships in 3-6 days
4495426Ferrari Nut - 95426SupersededOrder 101156 instead
4512605970Ferrari Spring Washer - 12605970$2.15Available, ships in 3-6 days
46100864Ferrari Roller Bearing - 100864$76.25Available, ships in 3-6 days
47103225Ferrari Lock Ring - 103225$54.23Available, ships in 3-6 days
47103225/AFerrari Lock Ring (Nyloc) - 103225/A$54.23Available, ships in 3-6 days
48100860Ferrari Clutch Uniball Bearing - 100860$108.90In stock
49984988Ferrari Circlip - 984988$2.00In stock
4911065476Ferrari Circlip - 11065476SupersededOrder 984988 instead
50103044Ferrari Washer - 103044Price on requestContact us for price and availability
5110734101Ferrari Split pin - 10734101Price on requestSpecial order, ships in 7-14 days
11065470Ferrari Circlip - 11065470SupersededOrder 984988 instead
11065474Ferrari Circlip - 11065474SupersededOrder 984988 instead
100606Ferrari Clip - 100606Price on requestContact us for price and availability
109381Ferrari Clutch Assy - 109381SupersededOrder 110558 instead
105708Ferrari Clutch Cover Assy - 105708Price on requestContact us for price and availability
105709Ferrari Clutch Disc - 105709SupersededOrder 110558 instead
109383Ferrari Clutch Disc - 109383SupersededOrder 110558 instead
115452Ferrari Clutch Disc - 115452SupersededOrder 110558 instead
500798Ferrari Clutch Disc - 500798SupersededOrder 110558 instead
105707Ferrari Clutch Plate - 105707SupersededOrder 110558 instead
100850Ferrari Clutch Release Bearing Spring - 100850SupersededOrder 105732 instead
105732Ferrari Clutch Release Bearing Spring - 105732$44.01Available, ships in 3-6 days
100855Ferrari Fork LH Thread - 100855Price on requestContact us for price and availability
10734104Ferrari Pin - 10734104Price on requestContact us for price and availability
100853Ferrari Washer - 100853Price on requestContact us for price and availability
-109642Ferrari 365Gtb4 Lm Clutch Pressure Plate Ap - 109642$1,346.30Available, ships in 3-6 days
