Ferrari 365 GTB4 (Daytona) — Transmission Case - Differential (diagram 017)

Exploded view of the transmission case - differential on the Ferrari 365 GTB4 (Daytona), with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

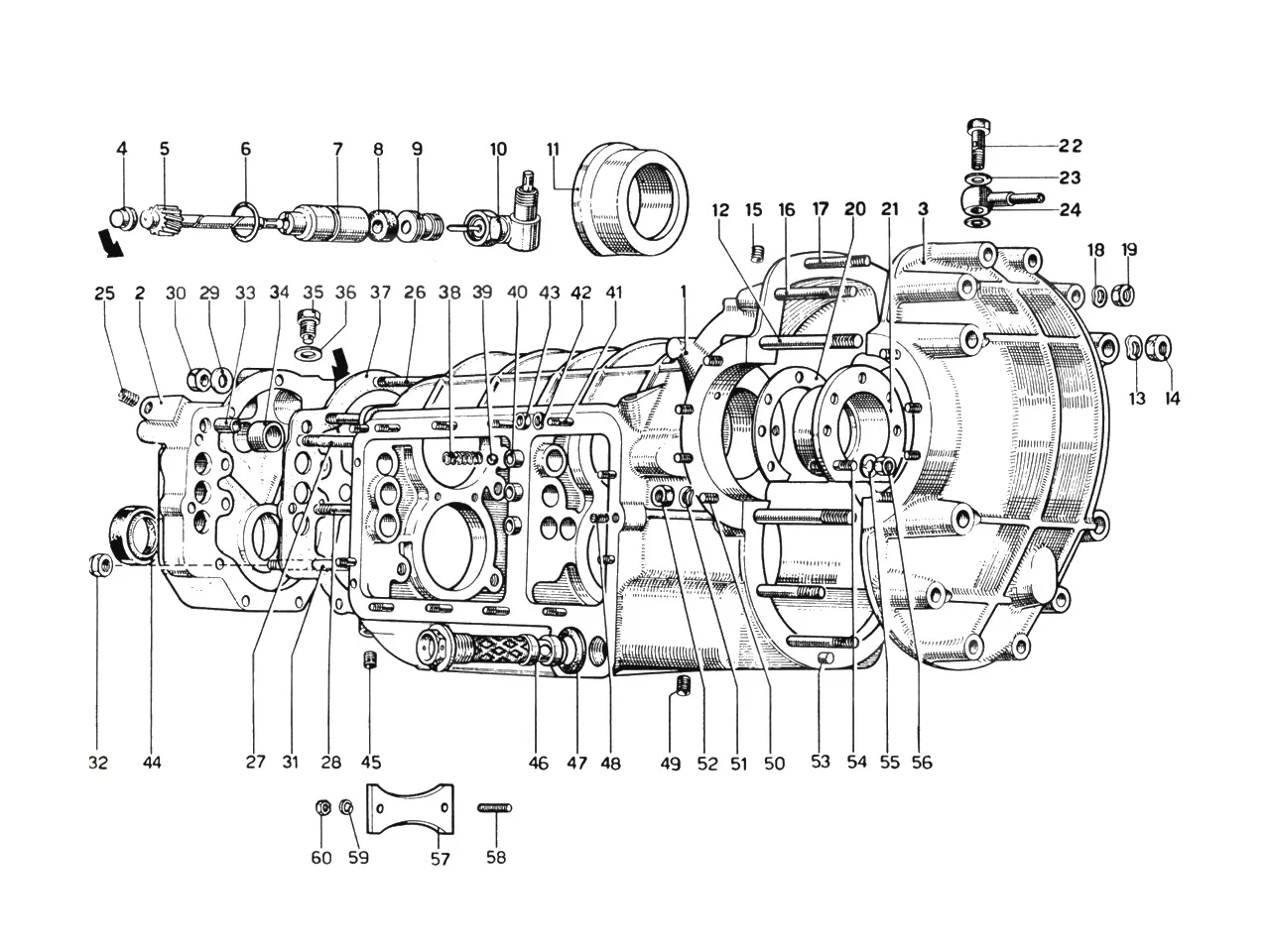

Ferrari 365 GTB4 (Daytona) Transmission Case - Differential exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1523144Ferrari Casing - 523144SupersededOrder 525188 instead
1525188Ferrari 365Gtb4 Transaxle Case - 525188$18,467.78Contact us to order
2522938Ferrari Front Gearbox Cover - 522938$1,219.46Available, ships in 3-6 days
3523145Ferrari Rear Gearbox Cover - 523145SupersededOrder 525188 instead
4520708Ferrari Button - 520708SupersededOrder 101354 instead
4101354Ferrari Location Peg - 101354$36.99Available, ships in 3-6 days
5523074Ferrari Speedo Drive Pinion 10/33 Ratio - 523074$443.80Special order, ships in 7-14 days
5524484Ferrari Speedo Drive Pinion 9/35 Ratio 365Lm - 524484Price on requestContact us for price and availability
695860096Ferrari O-Ring - 95860096$5.63Available, ships in 3-6 days
7523077Ferrari Shaft - 523077$212.21Available, ships in 3-6 days
895850001Ferrari Speedometer Drive Oil Seal - 95850001$7.10In stock
9521218Ferrari Union - 521218$139.38Available, ships in 3-6 days
10101353Ferrari Angle Drive - 101353$7,749.30Available, ships in 3-6 days
10524541Ferrari Angle Drive - 524541SupersededOrder 101353 instead
11522259Ferrari Housing - 522259$163.26Available, ships in 3-6 days
1295422Ferrari Stud - 95422$48.70Available, ships in 3-6 days
1311198673Ferrari Washer - 11198673$1.99Available, ships in 3-6 days
1495900704Ferrari Nut - 95900704$24.94Available, ships in 3-6 days
1695424Ferrari Stud - 95424$41.42Available, ships in 3-6 days
1695362Ferrari Stud - 95362$41.02Available, ships in 3-6 days
1795423Ferrari Stud - 95423$39.14Available, ships in 3-6 days
1812601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
1995900703Ferrari Lock Nut - 95900703Price on requestContact us for price and availability
20522262Ferrari Spacer - 522262Price on requestContact us for price and availability
21522260Ferrari Bearing Housing - 522260$249.59Available, ships in 3-6 days
2292929Ferrari Banjo Bolt Oil - 92929Price on requestContact us for price and availability
2395910602Ferrari Fibre Washer - 95910602Price on requestContact us for price and availability
2492575Ferrari Banjo bolt - 92575Price on requestContact us for price and availability
25101639Ferrari Grub Screw - 101639$1.80Available, ships in 3-6 days
2695364Ferrari Stud - 95364$28.37Available, ships in 3-6 days
2795372Ferrari Stud - 95372$37.38Available, ships in 3-6 days
2895363Ferrari Stud - 95363$26.41Available, ships in 3-6 days
32101633Ferrari Half Shaft Nut Self Locking - 101633$7.65In stock
33100041Ferrari Dowel - 100041$14.22Available, ships in 3-6 days
34520686Ferrari Bush - 520686$30.48Special order, ships in 7-14 days
35520709Ferrari Bolt - 520709SupersededOrder 101349 instead
35101349Ferrari Bolt - 101349$21.24Available, ships in 3-6 days
36103044Ferrari Washer - 103044Price on requestContact us for price and availability
37522982Ferrari Gasket - 522982$62.66Available, ships in 3-6 days
3853684Ferrari Selector Spring - 53684$75.59Available, ships in 3-6 days
39101612Ferrari Ball - 101612$1.96Available, ships in 3-6 days
4053123Ferrari Bush - 53123SupersededOrder 100749 instead
40100749Ferrari Bush - 100749$98.71Available, ships in 3-6 days
4195920110Ferrari Stud 6X22 P1 - 95920110Price on requestContact us for price and availability
4195920103Ferrari Stud 6X12 P1 - 95920103$1.65Available, ships in 3-6 days
4212601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
4212601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
43134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
4315896221Ferrari Nut - 15896221SupersededOrder 134041 instead
4495850105Ferrari Transmission Output Shaft Seal - 95850105$35.00In stock
46520687Ferrari Gearbox Drain Plug/Filter - 520687$514.99In stock
46522410Ferrari Plug - 522410SupersededOrder 520687 instead
47102645Ferrari Copper Washer - 102645$3.03In stock
47520161Ferrari Copper Washer - 520161SupersededOrder 102645 instead
5095920406Ferrari Stud 8X20 P6 - 95920406Price on requestContact us for price and availability
51127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
51106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
52103181Ferrari Nut 8x1 - 103181$3.79Available, ships in 3-6 days
5310839600Ferrari Dowel - 10839600Price on requestContact us for price and availability
5495920403Ferrari Stud 8X16 P2 - 95920403Price on requestContact us for price and availability
5695182Ferrari Nut - 95182Price on requestContact us for price and availability
57522961Ferrari Lock Tab - 522961$38.87Available, ships in 3-6 days
5895920104Ferrari Stud 6X14 P1 - 95920104$1.94Available, ships in 3-6 days
59127494Ferrari Lock Washer - 127494$0.50In stock
5910516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
104283Ferrari Washer - 104283SupersededOrder 102645 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
12601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
-401252Ferrari 330 GTC/365 4 Daytona Speedometer Cable - 401252$199.98In stock
