Ferrari 365 GTB4 (Daytona) — Gearbox Controls & Oil Pump (1974 Revision - Cars With Air Pollution System) (diagram 020A)

Exploded view of the gearbox controls & oil pump (1974 revision - cars with air pollution system) on the Ferrari 365 GTB4 (Daytona), with 104 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

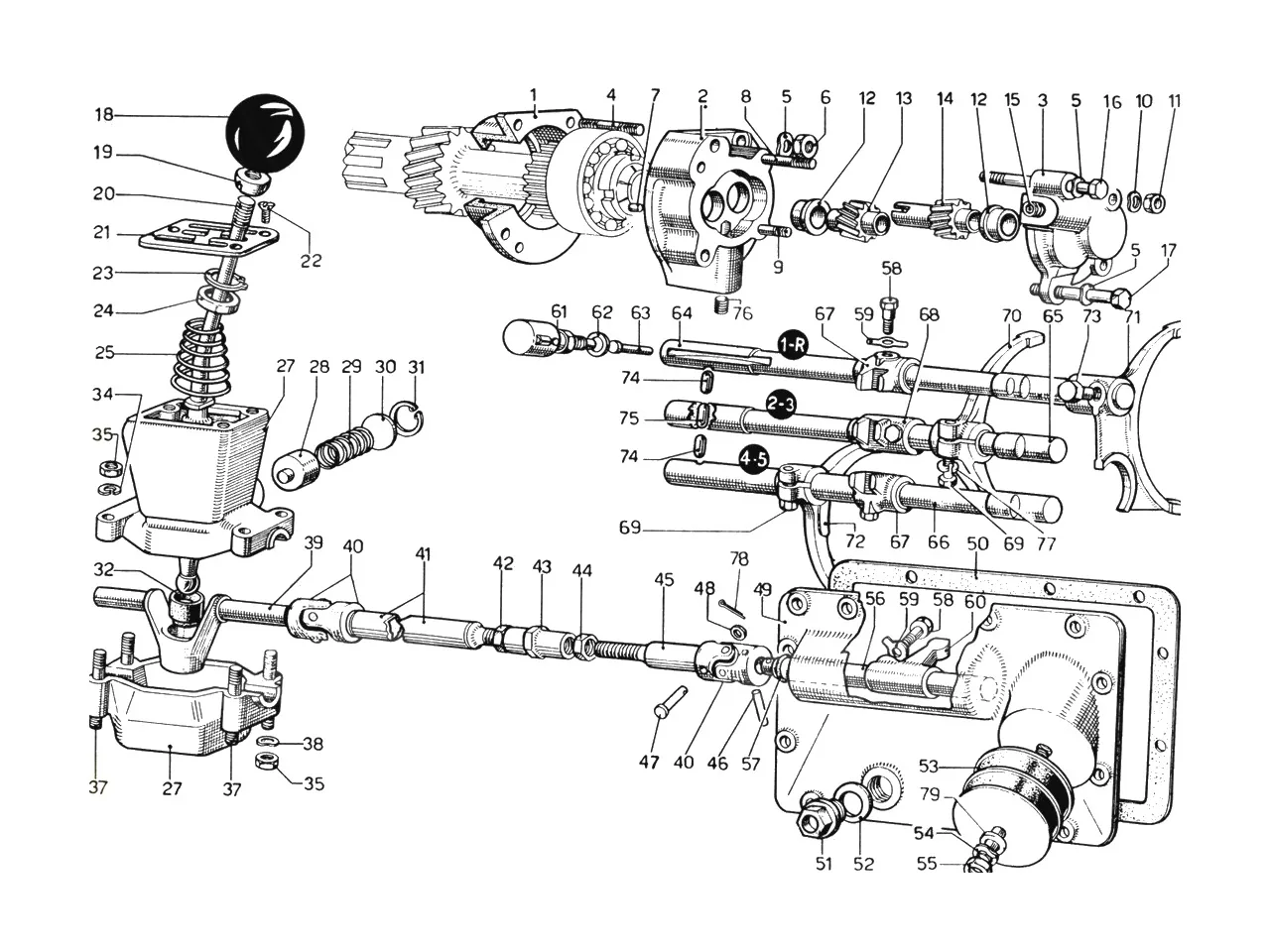

Ferrari 365 GTB4 (Daytona) Gearbox Controls & Oil Pump (1974 Revision - Cars With Air Pollution System) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1522261Ferrari Ring - 522261$249.59Available, ships in 3-6 days
2522957Ferrari Case - 522957$238.80Available, ships in 3-6 days
3520650Ferrari Oil Pump Case - 520650Price on requestContact us for price and availability
495920409Ferrari Stud 8X25 P2 - 95920409Price on requestContact us for price and availability
5127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
5106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
6103181Ferrari Nut 8x1 - 103181$3.79Available, ships in 3-6 days
793338Ferrari Location Dowel - 93338$26.97Available, ships in 3-6 days
895920113Ferrari Stud 6x32 P1 - 95920113$6.57Available, ships in 3-6 days
995920107Ferrari Stud 6X18 P1 - 95920107$3.76Available, ships in 3-6 days
1012601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
1012601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
11134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
1115896221Ferrari Nut - 15896221SupersededOrder 134041 instead
12520675Ferrari Bush - 520675$116.82Available, ships in 3-6 days
13520674Ferrari Oil Pump Gear - 520674Price on requestContact us for price and availability
14522956Ferrari Gear - 522956Price on requestContact us for price and availability
15102031Ferrari Grub Screw - 102031$1.74Available, ships in 3-6 days
1595134Ferrari Pin - 95134SupersededOrder 102031 instead
16106006Ferrari Bolt 8X80uni5738 - 106006$2.55Available, ships in 3-6 days
1795880530Ferrari Bolt 8X65 UNI 5738 - 95880530$1.71Available, ships in 3-6 days
18523148Ferrari Gear Lever Knob - 523148SupersededOrder 103301 instead
19103312Ferrari Retaining Nut - 103312$59.74Available, ships in 3-6 days
19523214Ferrari Retaining Nut - 523214SupersededOrder 103312 instead
20523143Ferrari Lever - 523143$346.36Special order, ships in 7-14 days
21520548Ferrari 365 GTB4 Daytona Gear Shift Gate - 520548$406.82In stock
22101619Ferrari Selector Gate Screw - 101619$4.55Available, ships in 3-6 days
2295940229Ferrari Screw 2Vr5x12 - 95940229$18.05Available, ships in 3-6 days
2311066376Ferrari Circlip D.15 - 11066376Price on requestContact us for price and availability
24520566Ferrari Washer - 520566$3.56Available, ships in 3-6 days
25520568Ferrari Spring - 520568SupersededOrder 104317 instead
25104317Ferrari Spring - 104317$98.57Available, ships in 3-6 days
27524147Ferrari Gearbox Casing - 524147Price on requestContact us for price and availability
27524148Ferrari Casting - 524148Price on requestContact us for price and availability
28520565Ferrari Plungers - 520565$17.04Available, ships in 3-6 days
29520567Ferrari Gear Lever Spring - 520567$5.88Available, ships in 3-6 days
30520569Ferrari Spacer - 520569Price on requestContact us for price and availability
3111057876Ferrari Circlip - 11057876$0.13Available, ships in 3-6 days
32521754Ferrari Bush - 521754Price on requestContact us for price and availability
3410516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
37520701Ferrari Stud - 520701$7.57Available, ships in 3-6 days
39524150Ferrari Shaft - 524150$387.07Available, ships in 3-6 days
40103189Ferrari Gear Linkage Universal Joint - 103189$415.36Available, ships in 3-6 days
40524508Ferrari Gear Linkage Universal Joint - 524508SupersededOrder 103189 instead
41522850Ferrari Shaft - 522850$154.37Available, ships in 3-6 days
4295900511Ferrari Nut M12 D2 - 95900511Price on requestContact us for price and availability
43521362Ferrari Adjuster - 521362SupersededOrder 103321 instead
4410791924Ferrari LH Threaded Nut - 10791924$45.56Available, ships in 3-6 days
44523971Ferrari Nut - 523971SupersededOrder 10791924 instead
45521843Ferrari Pin - 521843$147.91Available, ships in 3-6 days
47103309Ferrari Clevis Pin - 103309$65.49Available, ships in 3-6 days
47524521Ferrari Pin - 524521SupersededOrder 103309 instead
4895930506Ferrari Washer - 95930506Price on requestContact us for price and availability
49521212Ferrari Transaxle Side Plate - 521212$226.65Special order, ships in 7-14 days
50520651Ferrari Gasket - 520651$43.42Available, ships in 3-6 days
51104282Ferrari Fill Plug - 104282$111.38In stock
51524146Ferrari Drain Plug - 524146SupersededOrder 104282 instead
52102645Ferrari Copper Washer - 102645$3.03In stock
52520161Ferrari Copper Washer - 520161SupersededOrder 102645 instead
53131252Ferrari Engine Mount - 131252$214.99In stock
5312160Ferrari Engine Mounting 106mm - 12160$296.62Available, ships in 3-6 days
5310983Ferrari Engine Mounting 86mm - 10983$216.08Available, ships in 3-6 days
53100825Ferrari Engine Mount OD 86mm - 100825$216.08Available, ships in 3-6 days
5410516870Ferrari Spring Washer - 10516870Price on requestContact us for price and availability
5595900703Ferrari Lock Nut - 95900703Price on requestContact us for price and availability
56520183Ferrari Selector Shaft - 520183Price on requestContact us for price and availability
57101032Ferrari O-Ring - 101032$1.93In stock
5895557Ferrari Bolt - 95557Price on requestContact us for price and availability
5992692Ferrari Lock Tab - 92692SupersededOrder 103587 instead
59103587Ferrari Locktab - 103587$14.45Available, ships in 3-6 days
60520166Ferrari Fork - 520166$177.10Available, ships in 3-6 days
6195403254Ferrari Rev Light Switch - 95403254$96.24Available, ships in 3-6 days
6155488Ferrari Switch - 55488SupersededOrder 95403254 instead
6295910602Ferrari Fibre Washer - 95910602Price on requestContact us for price and availability
6355670Ferrari Rev Light Switch Plunger - 55670Price on requestContact us for price and availability
64524469Ferrari Selector Shaft 1st & RM - 524469$213.67Special order, ships in 7-14 days
65524470Ferrari Selector Shaft 2nd & 3rd - 524470$248.74Available, ships in 3-6 days
66524471Ferrari Selector Shaft 4th & 5th - 524471$240.18Available, ships in 3-6 days
67520149Ferrari Control Fork 1st & RM & 4th & 5th - 520149$628.13Available, ships in 3-6 days
68520150Ferrari Control Fork 2nd & 3rd - 520150$628.13Available, ships in 3-6 days
70523194Ferrari Selector Fork 2nd & 3rd - 523194Price on requestContact us for price and availability
71522736Ferrari Selector Fork 1st & RM - 522736$2,190.77Available, ships in 3-6 days
72523195Ferrari Selector Fork 4th & 5th - 523195Price on requestContact us for price and availability
74520146Ferrari Plunger - 520146SupersededOrder 100747 instead
7553126Ferrari Plunger - 53126SupersededOrder 100748 instead
75100748Ferrari Plunger - 100748$44.66Available, ships in 3-6 days
76101639Ferrari Grub Screw - 101639$1.80Available, ships in 3-6 days
7810734101Ferrari Split pin - 10734101Price on requestSpecial order, ships in 7-14 days
7992306Ferrari Washer - 92306$3.56Special order, ships in 7-14 days
103321Ferrari Adjuster - 103321$92.29Available, ships in 3-6 days
104316Ferrari Bush - 104316$44.16Available, ships in 3-6 days
131251Ferrari Engine Mount - 131251$181.50In stock
104956Ferrari Engine Mount OD 106mm - 104956$236.69Available, ships in 3-6 days
520187Ferrari Gear Linkage Universal Joint - 520187SupersededOrder 103189 instead
520543Ferrari Gear Shift Housing - 520543Price on requestContact us for price and availability
103301Ferrari Gear Shift Knob - 103301$178.88In stock
10791921Ferrari LH Threaded Nut - 10791921SupersededOrder 10791924 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
520465Ferrari Nut - 520465SupersededOrder 10791924 instead
10734104Ferrari Pin - 10734104Price on requestContact us for price and availability
522671Ferrari Rod - 522671Price on requestContact us for price and availability
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
104283Ferrari Washer - 104283SupersededOrder 102645 instead
10730501Ferrari Washer - 10730501$1.51Available, ships in 3-6 days
