Ferrari 365 GTB4 (Daytona) — Shock Absorber, Hub & Front Brake Disc (diagram 023)

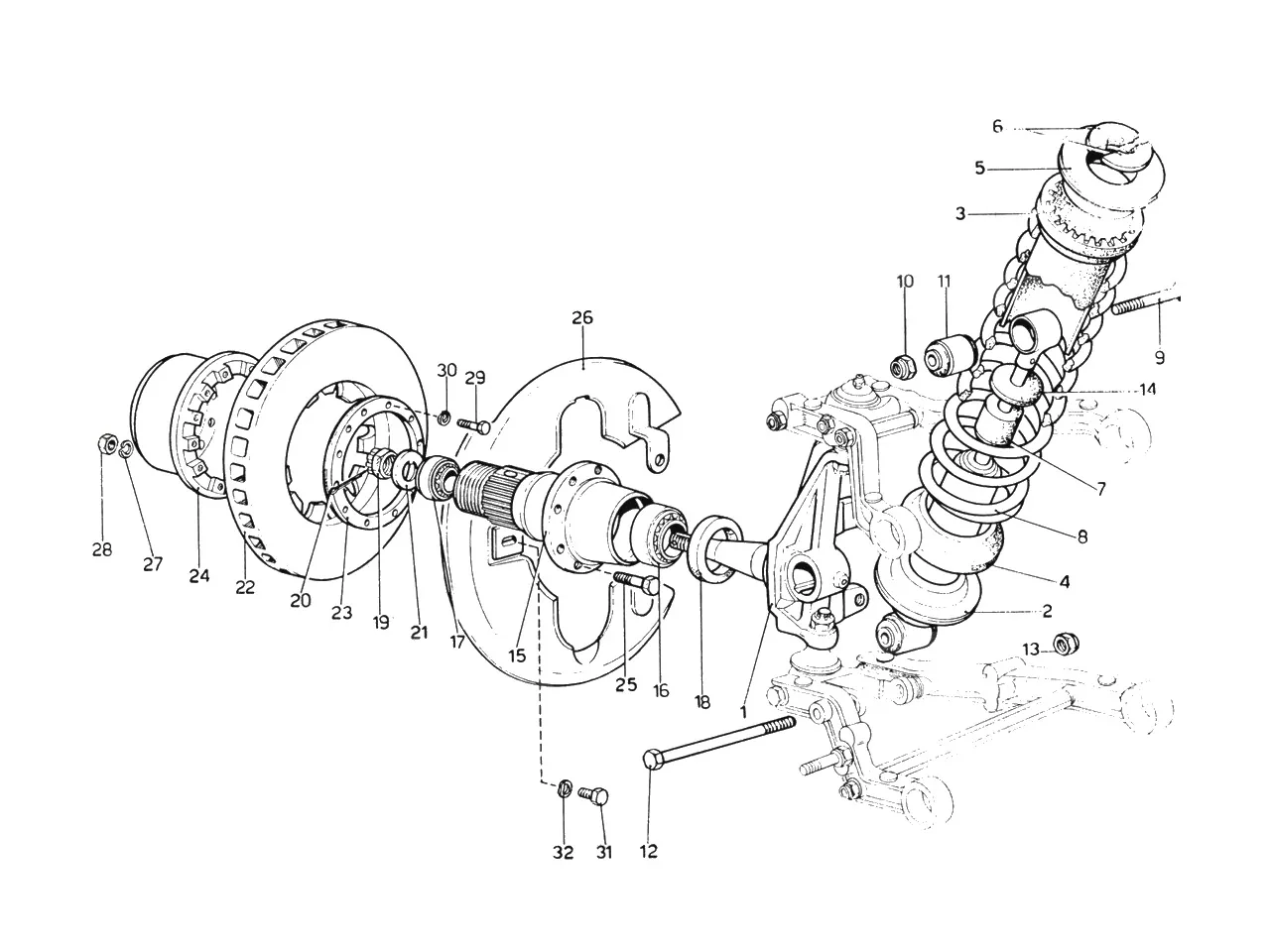

Exploded view of the shock absorber, hub & front brake disc on the Ferrari 365 GTB4 (Daytona), with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/023.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 641014 | Ferrari RH Front Stub Axle - 641014 | $3,642.05 | Special order, ships in 7-14 days |
| 1 | 641015 | Ferrari LH Front Stub Axle - 641015 | Price on request | Contact us for price and availability |
| 2 | 640987 | Ferrari Front Shock Absorber 365 GTB4 - 640987 | $2,235.33 | Available, ships in 3-6 days |
| 3 | 100980 | Ferrari Suspension Spring Rubber - 100980 | $62.43 | In stock |
| 3 | 640534 | Ferrari Rubber Cover - 640534 | Superseded | Order 100980 instead |
| 4 | 100988 | Ferrari Suspension Spring Rubber - 100988 | $62.43 | In stock |
| 4 | 12860 | Ferrari Spring Pad - 12860 | Superseded | Order 100988 instead |
| 5 | 640535 | Ferrari Shock Absorber Plate - 640535 | Price on request | Contact us for price and availability |
| 6 | 640499 | Ferrari Retainer - 640499 | Price on request | Contact us for price and availability |
| 7 | 640835 | Ferrari Plug - 640835 | Price on request | Contact us for price and availability |
| 8 | 641066 | Ferrari 365GTB4 Front Road Spring - 641066 | $1,258.14 | Available, ships in 3-6 days |
| 9 | 15541221 | Ferrari Bolt 12X70 Uni 5738 184 - 15541221 | $8.47 | Available, ships in 3-6 days |
| 10 | 95900610 | Ferrari Nyloc Nut M12 x 1.50 - 95900610 | $1.30 | Available, ships in 3-6 days |
| 11 | 640429 | Ferrari Bush - 640429 | Superseded | Order 100809 instead |
| 12 | 95183 | Ferrari Bolt - 95183 | Superseded | Order 101052 instead |
| 12 | 101052 | Ferrari Bolt - 101052 | $84.56 | Available, ships in 3-6 days |
| 14 | 601562 | Ferrari Spacer - 601562 | Price on request | Contact us for price and availability |
| 15 | 700478 | Ferrari RH Hub - 700478 | Price on request | Contact us for price and availability |
| 15 | 700479 | Ferrari LH Hub - 700479 | Price on request | Contact us for price and availability |
| 16 | 101363 | Ferrari Front Wheel Bearing - 101363 | $29.54 | In stock |
| 17 | 101218 | Ferrari 365 Front Outer Wheel Bearing - 101218 | $129.80 | In stock |
| 18 | 101219 | Ferrari Front Hub Oil Seal - 101219 | $29.54 | In stock |
| 19 | 92429 | Ferrari RH Thread Castellated Nut - 92429 | $65.04 | Available, ships in 3-6 days |
| 19 | 92431 | Ferrari LH Thread Castellated Nut - 92431 | $65.04 | Available, ships in 3-6 days |
| 19 | 10724621 | Ferrari RH Thread Castellated Nut - 10724621 | $83.39 | Available, ships in 3-6 days |
| 19 | 11638021 | Ferrari LH Thread Castellated Nut - 11638021 | $69.33 | Available, ships in 3-6 days |
| 20 | 10733801 | Ferrari Split pin - 10733801 | Price on request | Contact us for price and availability |
| 21 | 101446 | Ferrari Washer - 101446 | $25.75 | In stock |
| 21 | 640349 | Ferrari Washer - 640349 | Superseded | Order 101446 instead |
| 22 | 681018 | Ferrari Front Brake Disc - 681018 | $2,374.22 | Available, ships in 3-6 days |
| 23 | 680403 | Ferrari Disc Mounting Bell Ring - 680403 | $466.13 | Available, ships in 3-6 days |
| 24 | 680407 | Ferrari Brake Disc Mounting Bell - 680407 | $1,047.46 | Special order, ships in 7-14 days |
| 25 | 680006 | Ferrari Rear Disc Bolt - 680006 | $29.58 | Available, ships in 3-6 days |
| 26 | 680735 | Ferrari RH Disc Cover - 680735 | Price on request | Contact us for price and availability |
| 26 | 680736 | Ferrari LH Disc Cover - 680736 | $128.01 | Special order, ships in 7-14 days |
| 27 | 127496 | Ferrari Spring Washer 8mm - 127496 | $0.12 | Available, ships in 3-6 days |
| 27 | 10516670 | Ferrari Spring Washer 8mm - 10516670 | Superseded | Order 127496 instead |
| 28 | 103181 | Ferrari Nut 8x1 - 103181 | $3.79 | Available, ships in 3-6 days |
| 29 | 95880203 | Ferrari Bolt5x16mm Setscrew - 95880203 | $2.32 | Special order, ships in 7-14 days |
| 30 | 11195470 | Ferrari 5mm Wavy Washer - 11195470 | $0.21 | Available, ships in 3-6 days |
| 31 | 16135721 | Ferrari Bolt - 16135721 | $2.24 | Available, ships in 3-6 days |
| 32 | 106852 | Ferrari Spring Washer 8mm - 106852 | Price on request | Special order, ships in 7-14 days |
| 101049 | Ferrari Rebound Bush - 101049 | Price on request | Contact us for price and availability | |
| 100809 | Ferrari Shock Bushing - 100809 | $25.25 | In stock | |
| 100981 | Ferrari Spacer - 100981 | Price on request | Contact us for price and availability |
