Ferrari 365 GTB4 (Daytona) — Rear Suspension (diagram 024)

Exploded view of the rear suspension on the Ferrari 365 GTB4 (Daytona), with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

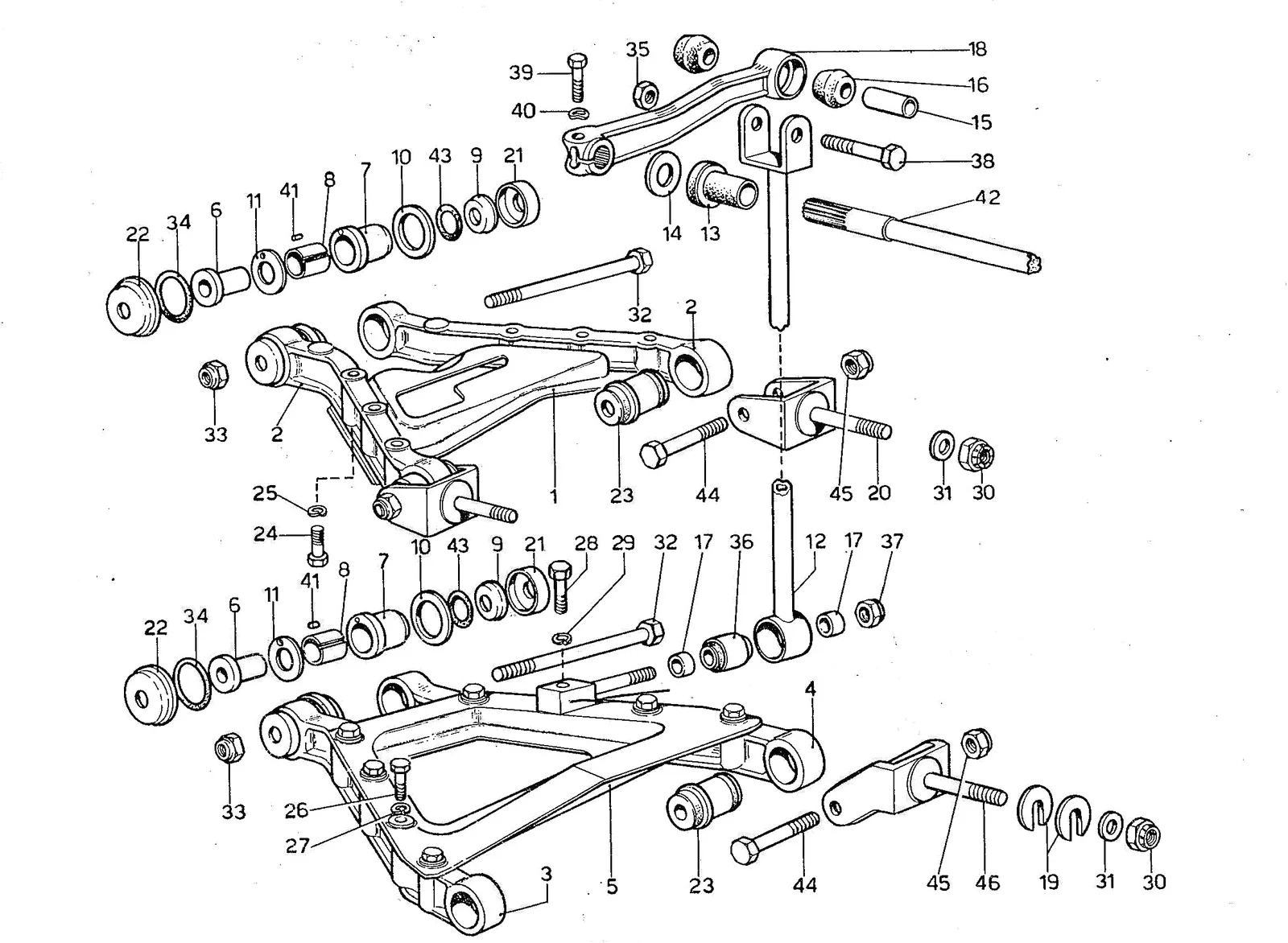

Ferrari 365 GTB4 (Daytona) Rear Suspension exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1601482Ferrari Rear Upper Plate - 601482$143.27Available, ships in 3-6 days
1602101Ferrari RH Suspension Plate - 602101$126.63Available, ships in 3-6 days
2601483Ferrari Rear Upper Lever - 601483Price on requestContact us for price and availability
3601487Ferrari Rear Suspension Lever RH/LH - 601487Price on requestContact us for price and availability
4601488Ferrari Rear Suspension Lever RH/LH - 601488Price on requestContact us for price and availability
5601486Ferrari LH Rear Suspension Lower Plate - 601486$335.93Available, ships in 3-6 days
5601493Ferrari RH Rear Suspension Lower Plate - 601493$335.93Available, ships in 3-6 days
6600740Ferrari Stainless Steel Bush - 600740$75.92Available, ships in 3-6 days
7601616Ferrari Suspension Bush - 601616$110.21Available, ships in 3-6 days
8100787Ferrari Suspension Inner Bushing - 100787$7.58In stock
8600750Ferrari Bush - 600750SupersededOrder 100787 instead
9600742Ferrari Spacing Washer - 600742SupersededOrder 101016 instead
9101016Ferrari Suspension Spacing Washer 12.5 - 30 x 3.2 - 101016$7.85Available, ships in 3-6 days
10601617Ferrari Washer - 601617$30.76Available, ships in 3-6 days
11101009Ferrari Suspension Thrust Washer - 101009$13.92In stock
11600771Ferrari Thrust Washer - 600771SupersededOrder 101009 instead
12601569Ferrari Rear Roll Bar Link - 601569$415.69Available, ships in 3-6 days
13600822Ferrari Rubber bush - 600822$62.60Available, ships in 3-6 days
14600824Ferrari Washer - 600824$26.50Available, ships in 3-6 days
15100985Ferrari Inner Bushing Sleeve - 100985$34.89In stock
1564431Ferrari Bush - 64431SupersededOrder 100985 instead
16100984Ferrari Front Sway Bar Link Bushing - 100984$11.55In stock
1664430Ferrari Bush - 64430SupersededOrder 100984 instead
1764544Maserati Thermostat - 64544SupersededOrder 100771 instead
18600994Ferrari Rear Anti Roll Bar Lever - 600994Price on requestContact us for price and availability
19101039Ferrari Suspension Shim - 101039$3.25In stock
19600831Ferrari Spacing Washer - 600831SupersededOrder 101039 instead
20600953Ferrari Suspension Fork - 600953$569.05Available, ships in 3-6 days
21101011Ferrari Suspension Bush Dust Cover - 101011$8.95Available, ships in 3-6 days
21600956Ferrari Dust Cover - 600956SupersededOrder 101011 instead
22101014Ferrari Suspension Bush Dust Cover - 101014$13.65Available, ships in 3-6 days
22600957Ferrari Dust Cover - 600957SupersededOrder 101014 instead
23154536KITFerrari Control Arm Bushing Kit Rear - 154536KIT$379.50In stock
23154536Ferrari/Maserati Control Arm Bushing - 154536$59.98In stock
23601157Ferrari Bush - 601157SupersededOrder 111616 instead
2495880801Ferrari Bolt 10X18 Uni5740 - 95880801$2.13Available, ships in 3-6 days
2512601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
2510516870Ferrari Spring Washer - 10516870Price on requestContact us for price and availability
25106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
2895881063Ferrari Bolt - 95881063Price on requestContact us for price and availability
2910517070Ferrari Washer - 10517070$3.99Available, ships in 3-6 days
2910517071Ferrari Washer - 10517071$0.27Available, ships in 3-6 days
29127498Ferrari Spring Washer 12mm - 127498$0.27Available, ships in 3-6 days
29153594Ferrari Spring Washer 12mm - 153594$3.99Available, ships in 3-6 days
30150238Ferrari Nyloc Nut - 150238$1.05In stock
3095900611Ferrari Nut B70 214MB - 95900611$0.50Available, ships in 3-6 days
31101041Ferrari Washer 14.5x24x2.5 - 101041$0.44Available, ships in 3-6 days
3295183Ferrari Bolt - 95183SupersededOrder 101052 instead
32101052Ferrari Bolt - 101052$84.56Available, ships in 3-6 days
33102825Ferrari Locking Suspension Nut - 102825$1.10In stock
3395900610Ferrari Nyloc Nut M12 x 1.50 - 95900610$1.30Available, ships in 3-6 days
34101043Ferrari O-Ring - 101043$1.82In stock
36100773RFerrari Sway Bar Link Silent Block Bushing - 100773$38.50In stock
36100773Ferrari Bonded Silent Bloc Bush - 100773$38.50Available, ships in 3-6 days
3815540921Ferrari Bolt - 15540921$0.75In stock
3895187Ferrari Bolt - 95187Price on requestContact us for price and availability
3916043824Ferrari Bolt M8 x 30 - 16043824$0.86Available, ships in 3-6 days
3916043821Ferrari Bolt 8 x 30 UNI 5737 - 16043821SupersededOrder 16043824 instead
40127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
40106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
4194943Ferrari Pin - 94943SupersededOrder 100796 instead
42601573Ferrari Rear Anti Roll Bar - 601573Price on requestContact us for price and availability
43101044Ferrari Water Pump O-Ring - 101044$2.41In stock
4415541221Ferrari Bolt 12X70 Uni 5738 184 - 15541221$8.47Available, ships in 3-6 days
46600776Ferrari Rear Lower Fork - 600776$569.05Available, ships in 3-6 days
100771Ferrari Bush - 100771$64.65Available, ships in 3-6 days
101315Ferrari Bush - 101315SupersededOrder 100787 instead
103170Ferrari Bush - 103170SupersededOrder 111616 instead
153590Ferrari Spring Washer - 153590$7.80Available, ships in 3-6 days
100785Ferrari Stainless Steel Bush - 100785SupersededOrder 600740 instead
109905Ferrari Stainless Steel Bush - 109905SupersededOrder 600740 instead
602109Ferrari Stainless Steel Bush - 602109SupersededOrder 600740 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
10571911Ferrari Washer - 10571911Price on requestContact us for price and availability
12601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
