Ferrari 365 GTB4 (Daytona) — Shock Absorber, Hub & Rear Brake Disc (diagram 025)

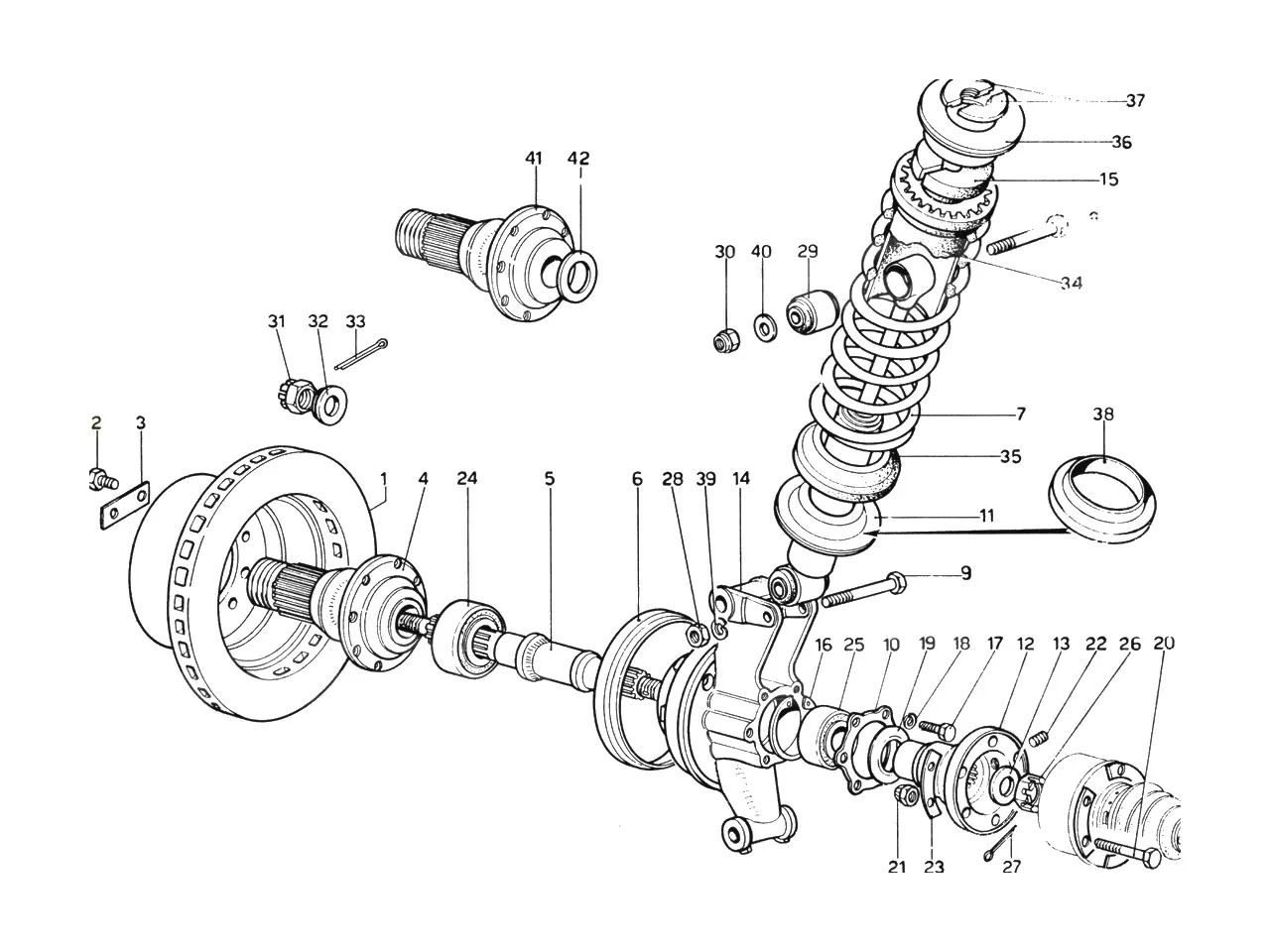

Exploded view of the shock absorber, hub & rear brake disc on the Ferrari 365 GTB4 (Daytona), with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Shock Absorber, Hub & Rear Brake Disc exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1101260/2Ferrari 365/512 Rear Brake Disc Rotor Pair - 101260/2$1,995.98In stock
1680637Ferrari Rear Brake Disc - 680637SupersededOrder 101260 instead
2680648Ferrari Bolt - 680648SupersededOrder 101265 instead
3101267Ferrari Rear Hub Lock Tab - 101267$11.45In stock
395398Ferrari Lock Tab - 95398SupersededOrder 101267 instead
4700475Ferrari RH Rear Hub - 700475Price on requestContact us for price and availability
4700476Ferrari LH Rear Hub - 700476Price on requestContact us for price and availability
5700473Ferrari RH Rear Hub Shaft - 700473Price on requestContact us for price and availability
5700474Ferrari LH Rear Hub Shaft - 700474$3,042.77Available, ships in 3-6 days
6101546Ferrari Ring - 101546$33.31Available, ships in 3-6 days
6601519Ferrari Ring - 601519SupersededOrder 101546 instead
7601601Ferrari Rear Road Spring - 601601$1,891.21Available, ships in 3-6 days
7601677Ferrari Rear Road Spring - 601677$376.76Available, ships in 3-6 days
8106419Ferrari Suspension Bolt - 106419$31.35In stock
8601475Ferrari Bolt - 601475SupersededOrder 106419 instead
9601476Ferrari Bolt - 601476$37.39Available, ships in 3-6 days
10101540Ferrari Retaining Plate - 101540$165.98Available, ships in 3-6 days
10600435Ferrari Retaining Plate - 600435SupersededOrder 101540 instead
11601494Ferrari Rear Shock Absorber - 601494$1,763.89Available, ships in 3-6 days
12580453Ferrari Flange - 580453Price on requestContact us for price and availability
13580150Ferrari Spacer - 580150$14.89Available, ships in 3-6 days
14601513Ferrari LH Rear Hub Carrier - 601513Price on requestContact us for price and availability
14601514Ferrari RH Rear Hub Carrier - 601514$713.52Available, ships in 3-6 days
15601495Ferrari Shock Absorber Rebound Rubber - 601495Price on requestContact us for price and availability
1611061576Ferrari Circlip - 11061576$3.47Available, ships in 3-6 days
17102219Ferrari Bolt M8 x 20 - 102219Price on requestContact us for price and availability
18127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
18106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
19600939Ferrari Dust Cover - 600939Price on requestContact us for price and availability
20101632Ferrari Half Shaft Bolt - 101632$14.50In stock
20101632/AFerrari Bolt - 101632/A$96.58Available, ships in 3-6 days
21101633Ferrari Half Shaft Nut Self Locking - 101633$7.65In stock
23104184Ferrari Lock Tab - 104184$10.08Available, ships in 3-6 days
23580553Ferrari Lock Tab - 580553SupersededOrder 104184 instead
24101221Ferrari Rear Inner Wheel Bearing - 101221$88.45In stock
25101220Ferrari Rear Outer Wheel Bearing - 101220$79.20In stock
25101220KIT1Ferrari 308 2V Rear Wheel Bearing & Seal Kit - 101220KIT1$181.50In stock
25101220KIT2Ferrari 308 QV Rear Wheel Bearing & Seal Kit - 101220KIT2$181.50In stock
2694945Ferrari Castellated LH Rear Hub Nut - 94945$18.46Available, ships in 3-6 days
2694944Ferrari Castellated RH Rear Hub Nut - 94944$89.74Special order, ships in 7-14 days
2710734801Ferrari Front Hub Split Pin 3.7X35mm - 10734801$1.15Available, ships in 3-6 days
2710734901Ferrari Split Pin 3.4 x 40 - 10734901$1.15Available, ships in 3-6 days
2895186Ferrari Nut - 95186Price on requestContact us for price and availability
29640429Ferrari Bush - 640429SupersededOrder 100809 instead
30102825Ferrari Locking Suspension Nut - 102825$1.10In stock
3192433Ferrari RH Nut - 92433SupersededOrder 10723021 instead
3110723021Ferrari RH Thread Castellated Nut - 10723021$106.43Available, ships in 3-6 days
3194970Ferrari LH Nut - 94970Price on requestContact us for price and availability
32700477Ferrari Washer - 700477Price on requestContact us for price and availability
34100980Ferrari Suspension Spring Rubber - 100980$62.43In stock
34601018Ferrari Rubber Cover - 601018SupersededOrder 100980 instead
35100988Ferrari Suspension Spring Rubber - 100988$62.43In stock
3512860Ferrari Spring Pad - 12860SupersededOrder 100988 instead
35602030Ferrari Spring Pad - 602030SupersededOrder 100988 instead
36640535Ferrari Shock Absorber Plate - 640535Price on requestContact us for price and availability
37640499Ferrari Retainer - 640499Price on requestContact us for price and availability
38601676Ferrari Rear Spring Spacer - 601676Price on requestContact us for price and availability
39101445Ferrari Washer - 101445$1.17Available, ships in 3-6 days
3910517070Ferrari Washer - 10517070$3.99Available, ships in 3-6 days
39127498Ferrari Spring Washer 12mm - 127498$0.27Available, ships in 3-6 days
39153594Ferrari Spring Washer 12mm - 153594$3.99Available, ships in 3-6 days
41700552Ferrari RH Rear Hub - 700552Price on requestContact us for price and availability
41700553Ferrari LH Rear Hub - 700553Price on requestContact us for price and availability
42700554Ferrari Rear Hub Spacer - 700554Price on requestContact us for price and availability
100808Ferrari Bolt - 100808SupersededOrder 106419 instead
103432Ferrari Bolt - 103432SupersededOrder 101632 instead
101216Ferrari Dust Cover - 101216$59.42Special order, ships in 7-14 days
101223Ferrari LH Thread Castle Nut - 101223Price on requestContact us for price and availability
14308234Ferrari Screw - 14308234SupersededOrder 101632 instead
265036Ferrari Screw - 265036SupersededOrder 101632 instead
100809Ferrari Shock Bushing - 100809$25.25In stock
100981Ferrari Spacer - 100981Price on requestContact us for price and availability
101212Ferrari Spacer - 101212Price on requestContact us for price and availability
153590Ferrari Spring Washer - 153590$7.80Available, ships in 3-6 days
101213Ferrari Washer - 101213Price on requestContact us for price and availability

All 365 GTB4 (Daytona) diagrams
