Ferrari 365 GTB4 (Daytona) — Pedal Board & Clutch Control (diagram 026)

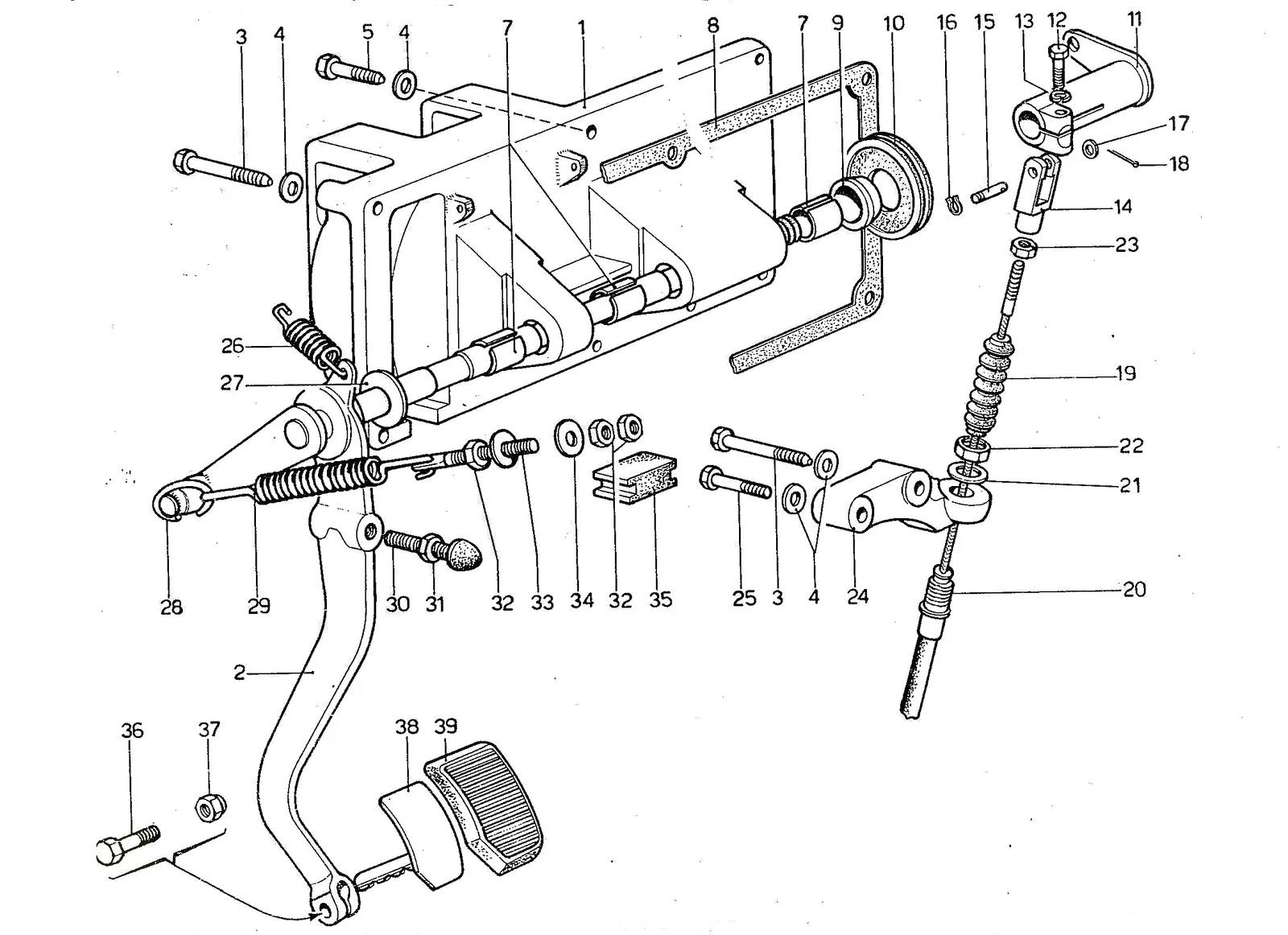

Exploded view of the pedal board & clutch control on the Ferrari 365 GTB4 (Daytona), with 61 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Pedal Board & Clutch Control exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1660799Ferrari Pedal Support Housing LHD - 660799Price on requestContact us for price and availability
2660778Ferrari Clutch Lever 365Gtb4 - 660778$335.93Available, ships in 3-6 days
395060Ferrari Bolt - 95060Price on requestContact us for price and availability
4127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
4106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
595193Ferrari Bolt - 95193Price on requestContact us for price and availability
7100787Ferrari Suspension Inner Bushing - 100787$7.58In stock
8660803Ferrari Gasket - 660803$14.49Special order, ships in 7-14 days
9660800Ferrari Spacer - 660800Price on requestContact us for price and availability
10660686Ferrari Grommet - 660686Price on requestContact us for price and availability
11660845Ferrari Clutch Lever - 660845Price on requestContact us for price and availability
1216043824Ferrari Bolt M8 x 30 - 16043824$0.86Available, ships in 3-6 days
1216043821Ferrari Bolt 8 x 30 UNI 5737 - 16043821SupersededOrder 16043824 instead
14100856Ferrari Fork - 100856$91.92Available, ships in 3-6 days
14500600Ferrari Fork - 500600$91.39Available, ships in 3-6 days
15103218Ferrari Clevis Pin - 103218$37.56Available, ships in 3-6 days
15500601Ferrari Clevis Pin - 500601SupersededOrder 103218 instead
16984988Ferrari Circlip - 984988$2.00In stock
1611065476Ferrari Circlip - 11065476SupersededOrder 984988 instead
17103044Ferrari Washer - 103044Price on requestContact us for price and availability
1810734101Ferrari Split pin - 10734101Price on requestSpecial order, ships in 7-14 days
19100858Ferrari Clutch Cable Boot - 100858$49.70In stock
19500551Ferrari Boot - 500551SupersededOrder 100858 instead
20500577Ferrari 365 GTB/4 Daytona Clutch Cable-500577$142.95In stock
20500577/AFerrari Clutch Cable - 500577/APrice on requestSpecial order, ships in 7-14 days
2112605970Ferrari Spring Washer - 12605970$2.15Available, ships in 3-6 days
22101156Ferrari RH Thread Nut - 101156$35.23Available, ships in 3-6 days
2295426Ferrari Nut - 95426SupersededOrder 101156 instead
23100861Ferrari RH Thread Nut - 100861$13.55Available, ships in 3-6 days
24660804Ferrari Support - 660804Price on requestSpecial order, ships in 7-14 days
2595880523Ferrari Bolt 8X40 Uni5738 - 95880523Price on requestContact us for price and availability
26101305Ferrari/Maserati Pedal Spring - 101305$53.79In stock
26660343Ferrari Spring - 660343SupersededOrder 101305 instead
2795359Ferrari Spacing Washer - 95359Price on requestContact us for price and availability
28660304Ferrari Spring - 660304Price on requestContact us for price and availability
29660346Ferrari Clutch Helper Spring - 660346$94.74Special order, ships in 7-14 days
29660986Ferrari Clutch Helper Spring - 660986$14.47Available, ships in 3-6 days
30660344Ferrari Adjuster - 660344SupersededOrder 101317 instead
30101317Ferrari Adjuster - 101317$70.30Available, ships in 3-6 days
31134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
32103181Ferrari Nut 8x1 - 103181$3.79Available, ships in 3-6 days
33660306Ferrari 365GT 2+2 Brake Pedal Adj Rod - 660306$80.25Available, ships in 3-6 days
3495129Ferrari Washer - 95129Price on requestContact us for price and availability
35660802Ferrari Rubber - 660802$6.71Available, ships in 3-6 days
3695192Ferrari Bolt - 95192SupersededOrder 101308 instead
36101308Ferrari Bolt - 101308$16.37Available, ships in 3-6 days
37101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
38660790Ferrari Clutch Pedal - 660790Price on requestContact us for price and availability
39660736Ferrari Pedal Rubber - 660736Price on requestContact us for price and availability
101315Ferrari Bush - 101315SupersededOrder 100787 instead
600750Ferrari Bush - 600750SupersededOrder 100787 instead
660826Ferrari Bush - 660826SupersededOrder 100787 instead
11065470Ferrari Circlip - 11065470SupersededOrder 984988 instead
11065474Ferrari Circlip - 11065474SupersededOrder 984988 instead
101325Ferrari Grommet - 101325$36.92Available, ships in 3-6 days
15896221Ferrari Nut - 15896221SupersededOrder 134041 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
10734104Ferrari Pin - 10734104Price on requestContact us for price and availability
101307Ferrari Rubber Clutch Pedal Pad - 101307$36.68In stock
