Ferrari 365 GTB4 (Daytona) — Steering Box & Steering Linkage (diagram 032)

Exploded view of the steering box & steering linkage on the Ferrari 365 GTB4 (Daytona), with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

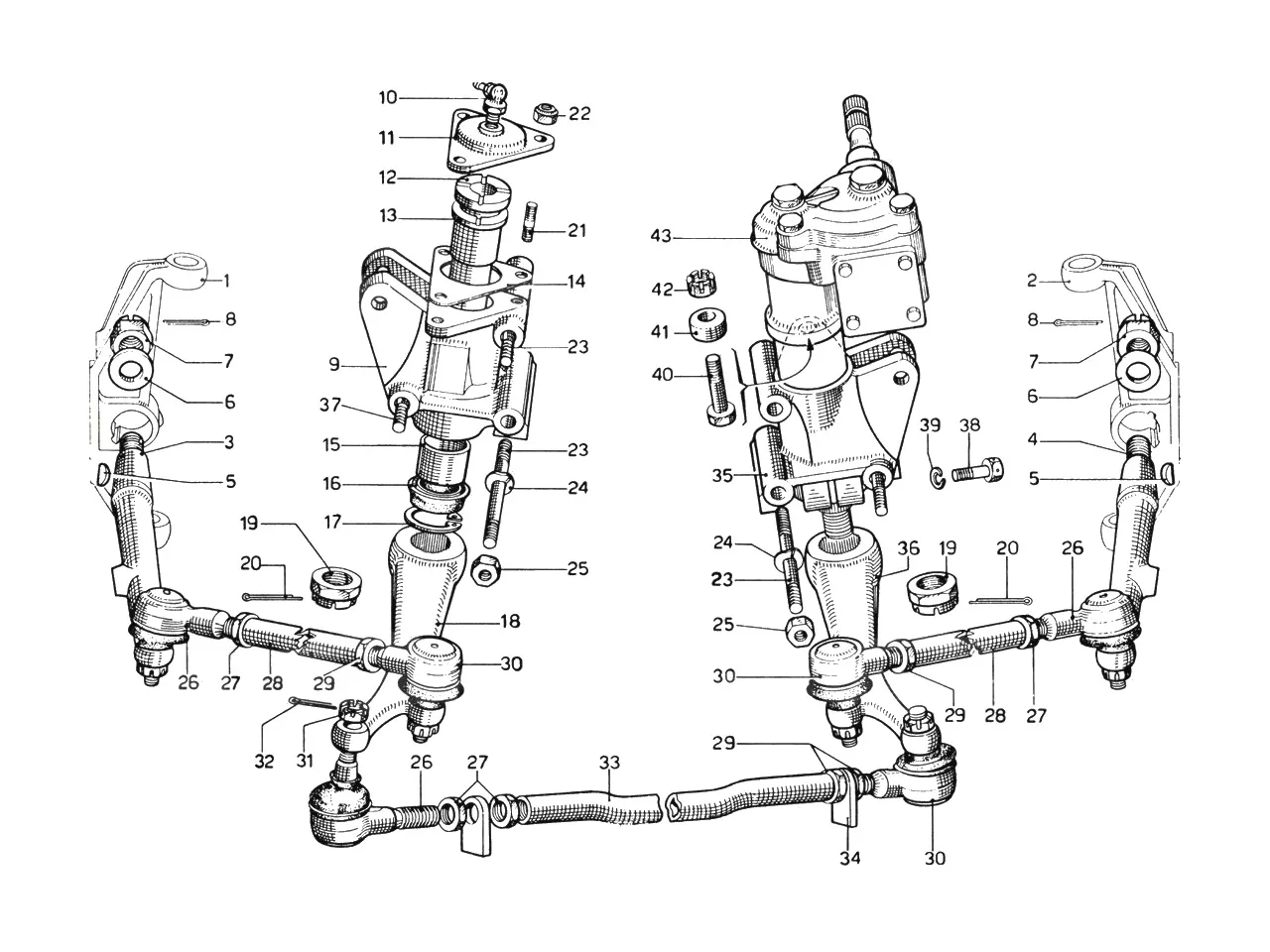

Ferrari 365 GTB4 (Daytona) Steering Box & Steering Linkage exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1641014Ferrari RH Front Stub Axle - 641014$3,642.05Special order, ships in 7-14 days
2641015Ferrari LH Front Stub Axle - 641015Price on requestContact us for price and availability
3760140Ferrari RH Steering Lever - 760140SupersededOrder 760151 instead
3760151Ferrari Steering Lever - 760151$376.20Available, ships in 3-6 days
4760152Ferrari Steering Lever - 760152$376.20Available, ships in 3-6 days
4760141Ferrari LH Rear Air Intake - 760141$342.66Special order, ships in 7-14 days
594629Ferrari Key - 94629Price on requestContact us for price and availability
692302Ferrari Washer - 92302Price on requestContact us for price and availability
795208Ferrari Nut - 95208Price on requestContact us for price and availability
810734801Ferrari Front Hub Split Pin 3.7X35mm - 10734801$1.15Available, ships in 3-6 days
810734901Ferrari Split Pin 3.4 x 40 - 10734901$1.15Available, ships in 3-6 days
9740382Ferrari Support - 740382$709.93Special order, ships in 7-14 days
10101140Ferrari Grease Nipple - 101140$4.98Available, ships in 3-6 days
1175254Ferrari Housing Cover - 75254Price on requestContact us for price and availability
1275253Ferrari Idler Box Shaft - 75253Price on requestContact us for price and availability
13101129Ferrari Upper Bush - 101129$270.08Available, ships in 3-6 days
1375255Ferrari Bush - 75255SupersededOrder 101129 instead
14101134Ferrari Spacer - 101134$15.95Available, ships in 3-6 days
14740114Ferrari Spacer - 740114SupersededOrder 101134 instead
15101130Ferrari Lower Bush - 101130$158.49Available, ships in 3-6 days
1575256Ferrari Bush - 75256SupersededOrder 101130 instead
16101141Ferrari Oil Seal - 101141$33.71Available, ships in 3-6 days
17101142Ferrari Circlip - 101142$4.18Available, ships in 3-6 days
18760098Ferrari Steering Arm - 760098$1,734.22Special order, ships in 7-14 days
19101147Ferrari Nut - 101147$96.64Available, ships in 3-6 days
1975257Ferrari Nut - 75257SupersededOrder 101147 instead
2010735001Ferrari Split pin - 10735001Price on requestContact us for price and availability
2195920402Ferrari Stud 8x15 P5 - 95920402Price on requestContact us for price and availability
22101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
2395357Ferrari Stud - 95357$17.48Special order, ships in 7-14 days
2411198673Ferrari Washer - 11198673$1.99Available, ships in 3-6 days
2595900704Ferrari Nut - 95900704$24.94Available, ships in 3-6 days
26764012Ferrari 275/330/365 Steering Kit - 764012$891.00In stock
2676401Ferrari Tie Rod End Right - 76401$152.90In stock
27101413Ferrari Plain Nut - 101413$23.12Available, ships in 3-6 days
2794630Ferrari Track Rod Nut - RH Thread - 94630SupersededOrder 101413 instead
28760094Ferrari Outer Tie Rod - 760094Price on requestContact us for price and availability
2994631Ferrari Track Rod Nut - LH thread - 94631$62.56Available, ships in 3-6 days
3076402Ferrari Tie Rod End Left - 76402$152.90In stock
31MC1821/23Ferrari B/E Nut - MC1821/23Price on requestSpecial order, ships in 7-14 days
3210734600Ferrari Cotter - 10734600Price on requestContact us for price and availability
33760139Ferrari Steering Tube - 760139Price on requestContact us for price and availability
34760070Ferrari Bolt Plate - 760070Price on requestContact us for price and availability
34760136Ferrari Spacer - 760136Price on requestContact us for price and availability
35740383Ferrari Support - 740383Price on requestContact us for price and availability
35740540Ferrari Support - 740540Price on requestContact us for price and availability
36760099Ferrari Drop Arm - 760099$477.79Available, ships in 3-6 days
3795358Ferrari Stud - 95358$16.92Available, ships in 3-6 days
3895880810Ferrari Bolt - 95880810Price on requestContact us for price and availability
39127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
3910516870Ferrari Spring Washer - 10516870Price on requestContact us for price and availability
39106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
40740125Ferrari Bolt - 740125$13.26Available, ships in 3-6 days
40740407Ferrari Bolt - 740407Price on requestContact us for price and availability
41740126Ferrari Spacer - 740126Price on requestContact us for price and availability
41740408Ferrari Spacer - 740408Price on requestContact us for price and availability
4295900705Ferrari Nut - 95900705Price on requestContact us for price and availability
43740127Ferrari Steering Box LHD - 740127Price on requestContact us for price and availability
43740443Ferrari Steering Box RHD - 740443Price on requestContact us for price and availability
43740557Ferrari Steering Box LHD - 740557$3,534.61Special order, ships in 7-14 days
104486Ferrari Castellated Nut - 104486$15.12Available, ships in 3-6 days
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
101128Ferrari Plate - 101128Price on requestContact us for price and availability
101127Ferrari Steering Idler Pin - 101127Price on requestContact us for price and availability
104485Ferrari Washer - 104485Price on requestContact us for price and availability
104484Ferrari Woodruff Key - 104484Price on requestContact us for price and availability
-760096Ferrari Outer Tie Rod Assy - 760096Price on requestContact us for price and availability
-760153Ferrari Part Search Results - 760153$467.15Special order, ships in 7-14 days
