Ferrari 365 GTB4 (Daytona) — Exhaust System (1974 Revision - Cars With Air Pollution System) (diagram 036A)

Exploded view of the exhaust system (1974 revision - cars with air pollution system) on the Ferrari 365 GTB4 (Daytona), with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

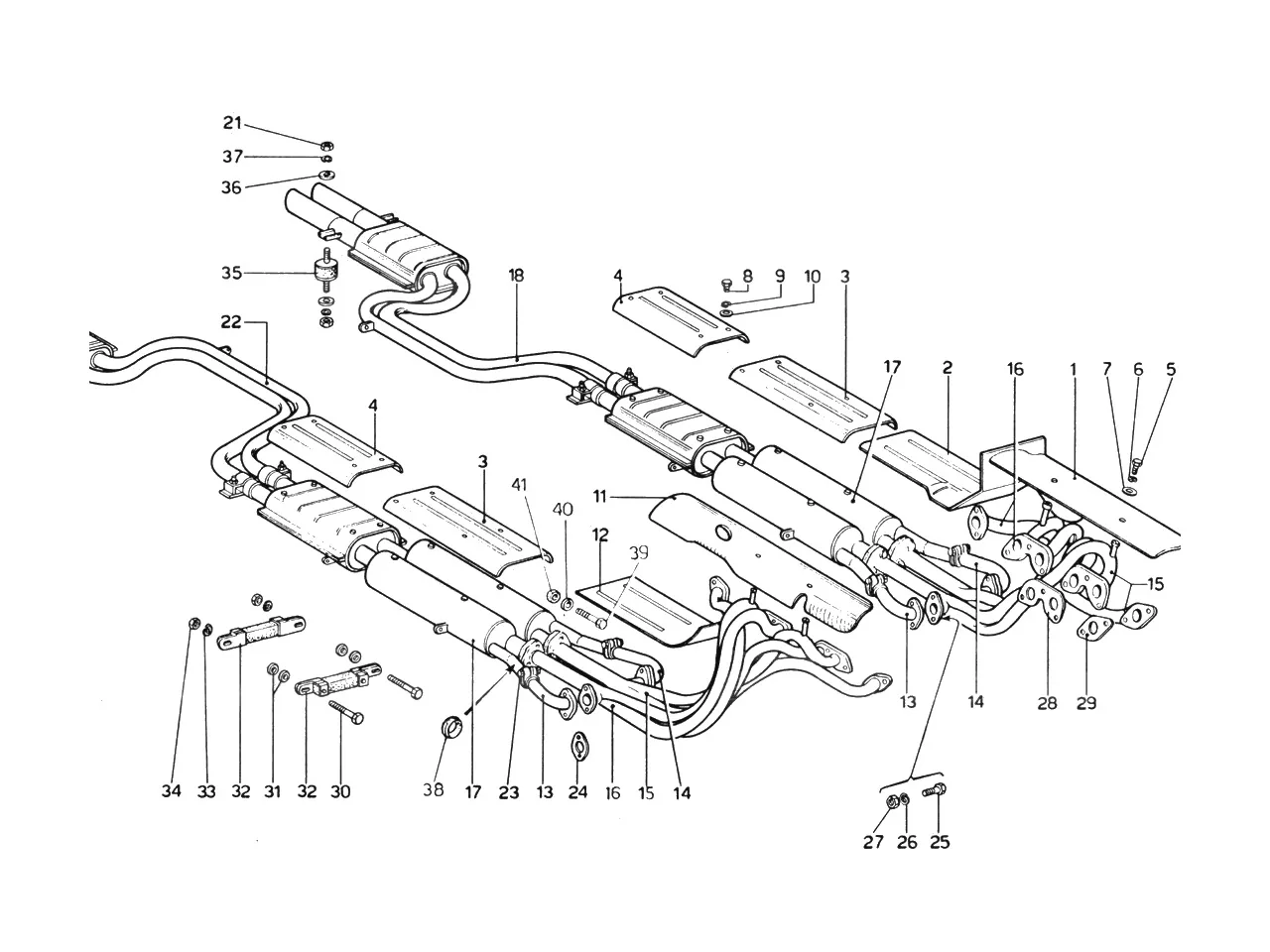

Ferrari 365 GTB4 (Daytona) Exhaust System (1974 Revision - Cars With Air Pollution System) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
120439Ferrari LH Shield - 20439Price on requestContact us for price and availability
220442Ferrari LH Shield - 20442Price on requestContact us for price and availability
320443Ferrari Heat Shield - 20443Price on requestContact us for price and availability
420444Ferrari Rear Heat Shield - 20444Price on requestContact us for price and availability
510902224Ferrari Screw M6 x 16 - 10902224$0.12Available, ships in 3-6 days
595880303Ferrari Bolt - 95880303$0.11Available, ships in 3-6 days
6127494Ferrari Lock Washer - 127494$0.50In stock
610516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
712643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
794703Ferrari Washer - 94703SupersededOrder 12643701 instead
1120440Ferrari RH Shield - 20440Price on requestContact us for price and availability
1220441Ferrari RH Shield - 20441Price on requestContact us for price and availability
1320448Ferrari RH Balance Pipe - 20448$110.92Special order, ships in 7-14 days
1420447Ferrari LH Balance Pipe - 20447$110.92Special order, ships in 7-14 days
1520510Ferrari Front Exhaust Manifold - 20510$1,774.93Available, ships in 3-6 days
1520510/DFerrari RH Front Exhaust Manifold - 20510/D$3,147.71Available, ships in 3-6 days
1520510/SFerrari LH Front Exhaust Manifold - 20510/SPrice on requestSpecial order, ships in 7-14 days
1520510/S/SFerrari 365GTB4 70/74 LHF Manifold S.Steel - 20510/S/S$1,774.93Available, ships in 3-6 days
1620511Ferrari Rear Exhaust Manifold - 20511Price on requestContact us for price and availability
1620511/DFerrari RH Rear Exhaust Manifold - 20511/DPrice on requestSpecial order, ships in 7-14 days
1620511/SFerrari LH Rear Exhaust Manifold - 20511/SPrice on requestSpecial order, ships in 7-14 days
1720512Ferrari 365GTB4 Late Main Silencer (Flange Type) - 20512$1,777.69Available, ships in 3-6 days
1820446Ferrari LH Rear Tail Pipe - 20446$1,880.93Available, ships in 3-6 days
21134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
2115896221Ferrari Nut - 15896221SupersededOrder 134041 instead
2220445Ferrari RH Rear Tail Pipe - 20445$1,880.93Available, ships in 3-6 days
2320337Ferrari Exhaust Clamp - 20337$16.85Available, ships in 3-6 days
2420450Ferrari Gasket - 20450Price on requestContact us for price and availability
2592885Ferrari Bolt - 92885Price on requestContact us for price and availability
2612603871Ferrari Wavy Washer 7mm - 12603871$0.59Available, ships in 3-6 days
2792454Ferrari Steel Nut 8mm - 92454$29.52Available, ships in 3-6 days
28147631Ferrari Copper Exhaust Gasket - 147631$17.33In stock
2820276Ferrari Double Exhaust Manifold Gasket - 20276SupersededOrder 147631 instead
29147630Ferrari Copper Exhaust Gasket - 147630$29.99In stock
2920242Ferrari Single Exhaust Manifold Gasket - 20242SupersededOrder 147630 instead
3095880322Ferrari Bolt - 95880322Price on requestContact us for price and availability
31104339Ferrari Exhaust Strap Spacer - 104339$7.80Available, ships in 3-6 days
3120181Ferrari Exhaust Strap Spacer - 20181SupersededOrder 104339 instead
32101497Ferrari Exhaust / Radiator Hanger Strap - 101497$16.23In stock
3220240Ferrari Exhaust Strap - 20240SupersededOrder 101497 instead
3415896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
35102947Ferrari Vibration Dampening Support - 102947$8.31In stock
3520456Ferrari Mounting - 20456SupersededOrder 102947 instead
3820459Ferrari Gasket Ring - 20459Price on requestContact us for price and availability
39103378Ferrari Bolt - 103378Price on requestContact us for price and availability
40127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
4010516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
41114748Ferrari Exhaust Lock Nut - 114748$7.85In stock
4195304Ferrari Nut - 95304SupersededOrder 114748 instead
10902821Ferrari Bolt - 10902821$0.17Available, ships in 3-6 days
100115Ferrari Brass Exhaust Nut - 100115SupersededOrder 114748 instead
124525Ferrari Brass Exhaust Nut - 124525SupersededOrder 114748 instead
105938Ferrari Brass Nut - 105938SupersededOrder 114748 instead
102015Ferrari Exhaust Manifold Gasket - 102015SupersededOrder 147630 instead
102017Ferrari Exhaust Manifold Gasket - 102017SupersededOrder 147631 instead
146698Ferrari Exhaust Pipe Donut Gasket - 146698$24.20In stock
147697Ferrari Exhaust Pipe Gasket - 147697$9.35In stock
103377Ferrari Exhaust Seal - 103377$28.38Contact us for price and availability
108272Ferrari Lock Nut - 108272SupersededOrder 114748 instead
102007Ferrari Mounting - 102007SupersededOrder 102947 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
4155314Ferrari Nut - 4155314SupersededOrder 114748 instead
9162124Ferrari Nut - 9162124SupersededOrder 114748 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
-20509Ferrari Exhaust Complete - 20509Price on requestContact us for price and availability
