Ferrari 365 GTB4 (Daytona) — Air Conditioning (diagram 037)

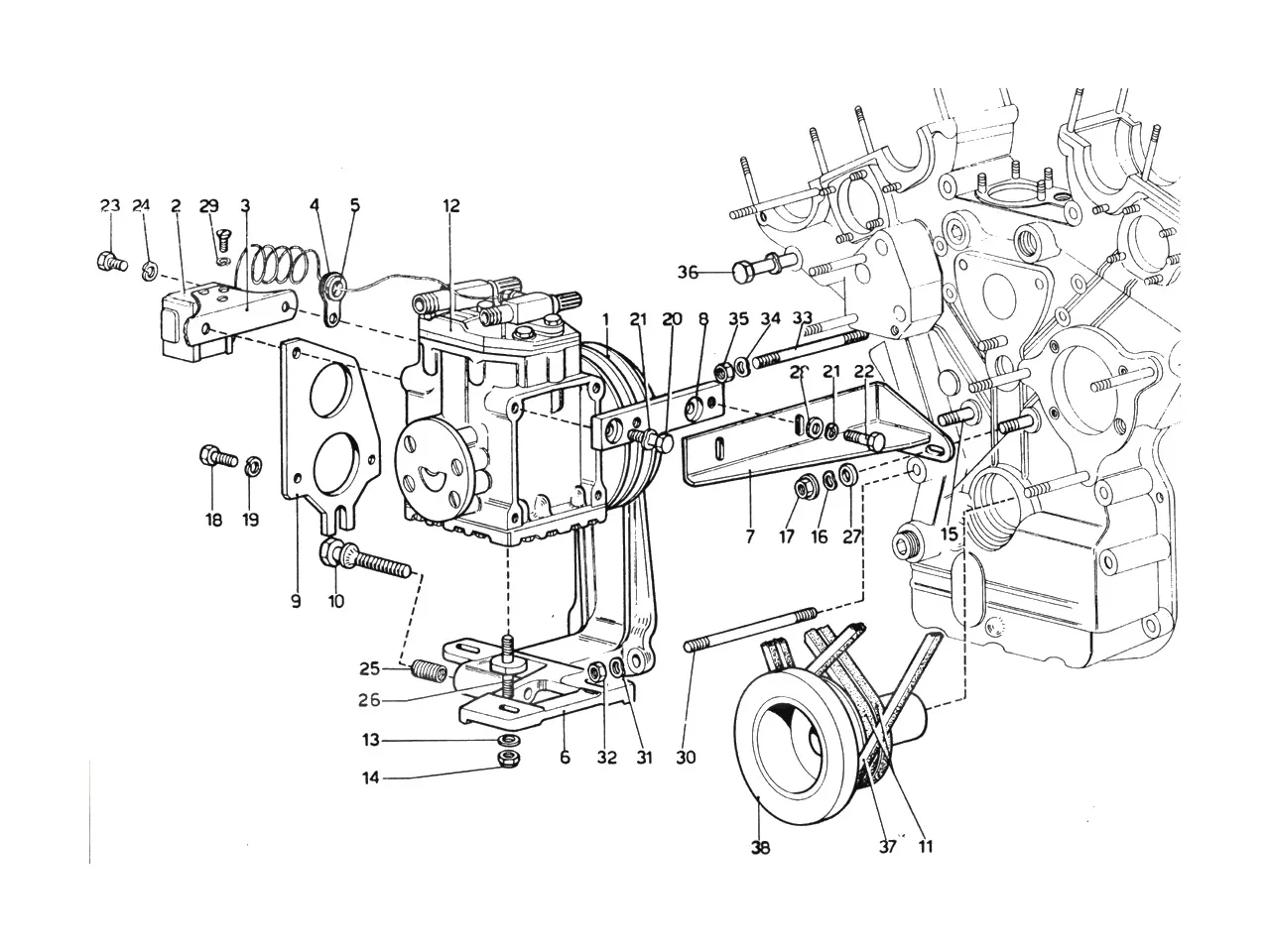

Exploded view of the air conditioning on the Ferrari 365 GTB4 (Daytona), with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/037.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 100473 | Ferrari A.C Clutch - 100473 | Price on request | Contact us for price and availability |
| 2 | 109253 | Ferrari 308/365 Thermostat - 109253 | $142.78 | Contact us |
| 3 | 32317 | Ferrari Bracket - 32317 | Superseded | Order 106608 instead |
| 3 | 106608 | Ferrari Plate - 106608 | $122.90 | Available, ships in 3-6 days |
| 4 | 29061 | Ferrari Plate - 29061 | Price on request | Contact us for price and availability |
| 4 | 104843 | Ferrari Bracket - 104843 | $6.90 | Available, ships in 3-6 days |
| 4 | 32347 | Ferrari Plate - 32347 | Superseded | Order 104843 instead |
| 5 | 10396580 | Ferrari Rubber Grommet - 10396580 | $10.11 | In stock |
| 5 | 28978 | Ferrari Grommet - 28978 | Superseded | Order 10396580 instead |
| 6 | 32335 | Ferrari Support - 32335 | Price on request | Contact us for price and availability |
| 7 | 32332 | Ferrari Support - 32332 | Price on request | Contact us for price and availability |
| 8 | 32307 | Ferrari A/C Bracket - 32307 | $131.85 | Available, ships in 3-6 days |
| 8 | 32322 | Ferrari A/C Comp Bracket - 32322 | $131.06 | Available, ships in 3-6 days |
| 9 | 32331 | Ferrari Lock Plate - 32331 | Price on request | Contact us for price and availability |
| 10 | 32330 | Ferrari Bolt - 32330 | Price on request | Contact us for price and availability |
| 11 | 320393 | Ferrari Air Con Fan Belt - 320393 | $26.02 | Available, ships in 3-6 days |
| 12 | 100458 | Ferrari Compressor (Flange Connectors) - 100458 | Price on request | Contact us for price and availability |
| 13 | 100964 | Ferrari Washer - 100964 | Price on request | Contact us for price and availability |
| 14 | 95900604 | Ferrari Nyloc Nut N70 110Mb 10 x 1.0 - 95900604 | $3.85 | Available, ships in 3-6 days |
| 15 | 94849 | Ferrari Stud - 94849 | $4.10 | Available, ships in 3-6 days |
| 16 | 12601474 | Ferrari Wavy Washer 10mm - 12601474 | $0.06 | Available, ships in 3-6 days |
| 16 | 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead |
| 17 | 92399 | Ferrari Nut - 92399 | $23.36 | Available, ships in 3-6 days |
| 19 | 127496 | Ferrari Spring Washer 8mm - 127496 | $0.12 | Available, ships in 3-6 days |
| 23 | 100470 | Ferrari Bolt - 100470 | $16.41 | Available, ships in 3-6 days |
| 23 | 95286 | Ferrari Bolt - 95286 | $16.31 | Available, ships in 3-6 days |
| 27 | 10516870 | Ferrari Spring Washer - 10516870 | Price on request | Contact us for price and availability |
| 29 | 11195370 | Ferrari Spring Washer 4mm - 11195370 | $0.71 | Available, ships in 3-6 days |
| 30 | 95438 | Ferrari Stud - 95438 | Price on request | Contact us for price and availability |
| 32 | 95900703 | Ferrari Lock Nut - 95900703 | Price on request | Contact us for price and availability |
| 33 | 95920615 | Ferrari Stud 10X120 P2 - 95920615 | $15.64 | Available, ships in 3-6 days |
| 35 | 95900412 | Ferrari Nut 10mm - 95900412 | $12.07 | Available, ships in 3-6 days |
| 35 | 92401 | Ferrari Main Bearing Cap Nut - 92401 | $14.39 | Available, ships in 3-6 days |
| 36 | 95409 | Ferrari Bolt - 95409 | Price on request | Contact us for price and availability |
| 37 | 300071 | Ferrari 365 GTB/4 Daytona Alternator Belt - 300071 | $20.90 | In stock |
| 38 | 106472 | Ferrari Spacing Washer 3mm - 106472 | $21.01 | Available, ships in 3-6 days |
| 38 | 220336 | Ferrari Crankshaft Damper - 220336 | Price on request | Contact us for price and availability |
| 320368 | Ferrari Air Con Clutch Magnetic - 320368 | Price on request | Contact us for price and availability | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12601471 | Ferrari Washer - 12601471 | Superseded | Order 12601474 instead | |
| - | 32309 | Ferrari Spacer - 32309 | Superseded | Order 106472 instead |
| - | 320364 | Ferrari Stud - 320364 | Price on request | Contact us for price and availability |
