Ferrari 458 Speciale Aperta (Convertible) — Cooling - Radiators And Air Ducts (diagram 021)

Exploded view of the cooling - radiators and air ducts on the Ferrari 458 Speciale Aperta (Convertible), with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

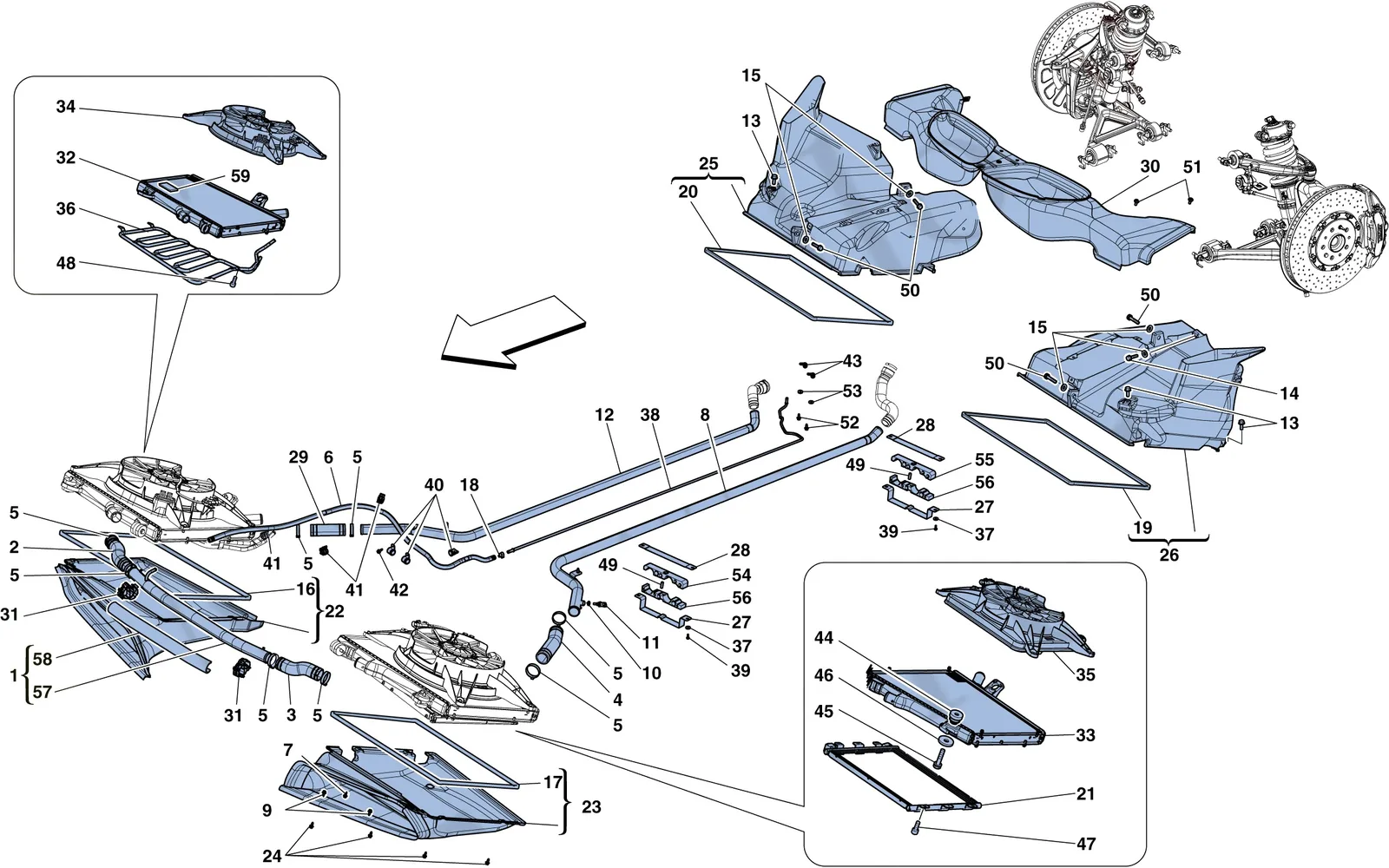

Ferrari 458 Speciale Aperta (Convertible) Cooling - Radiators And Air Ducts exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1265669Ferrari Water Pipe - 265669Price on requestContact us for price and availability
2251271Ferrari RH Side Radiators Rubber Connector Pipe - 251271$141.95Special order, ships in 7-14 days
3251273Ferrari LH Side Radiators Rubber Connector Pipe - 251273$93.00Available, ships in 3-6 days
4262473Ferrari Rubber Pipe - 262473$173.76Special order, ships in 7-14 days
5262114Ferrari Collar - 262114$2.38Available, ships in 3-6 days
6267276Ferrari Vent Pipe - 267276$269.23Special order, ships in 7-14 days
715699804Ferrari Screw 6X20 - 15699804$0.38Available, ships in 3-6 days
8262496Ferrari Water Delivery Pipe - 262496$304.48Available, ships in 3-6 days
8265889Ferrari Water Delivery Pipe - 265889$514.01Special order, ships in 7-14 days
983442900Ferrari Body Screw - 83442900$1.51In stock
1010298460Ferrari Washer - 10298460$1.10In stock
11180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
12262497Ferrari Water Return Pipe - 262497$562.96Special order, ships in 7-14 days
1381290900Ferrari Screw With Double Washer - 81290900$1.42In stock
1410903024Ferrari Screw M6 x 35 - 10903024$0.38Available, ships in 3-6 days
1512644424Ferrari Washer 6.15-15 x 1 - 12644424$0.12Available, ships in 3-6 days
1512644404Ferrari Washer - 12644404SupersededOrder 12644424 instead
1685684500Ferrari Gasket - 85684500$104.42Special order, ships in 7-14 days
1813125470Ferrari Collar - 13125470SupersededOrder 13126970 instead
21262836Ferrari A/C Condenser - 262836$1,308.23Available, ships in 3-6 days
2285891400Ferrari RH Lower Duct - 85891400$440.56Special order, ships in 7-14 days
2385891500Ferrari LH Lower Duct - 85891500$440.56Special order, ships in 7-14 days
2416285224Ferrari Screw 5x20 - 16285224$0.52Available, ships in 3-6 days
2416285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
2585531300Ferrari RH Upper Duct Lower Section - 85531300$1,888.26Special order, ships in 7-14 days
2685531400Ferrari LH Upper Duct Lower Section - 85531400$1,888.26Special order, ships in 7-14 days
27263069Ferrari Lower Bracket - 263069$23.36Special order, ships in 7-14 days
28263068Ferrari Upper Bracket - 263068$31.99Available, ships in 3-6 days
29237511Ferrari Hose - 237511$168.88Special order, ships in 7-14 days
3085581700Ferrari Central Luggage Compartment Radiator Duct - 85581700$1,444.15Special order, ships in 7-14 days
31258919Ferrari Clip - 258919$1.99Available, ships in 3-6 days
32270265Ferrari RH Water Radiator - 270265$2,322.65Available, ships in 3-6 days
33262837Ferrari LH Water Radiator - 262837$1,899.82Available, ships in 3-6 days
34270923Ferrari RH Electric Fan Complete - 270923$1,542.07Special order, ships in 7-14 days
35270924Ferrari LH Electric Fan Complete - 270924$1,542.07Available, ships in 3-6 days
36266603Ferrari Cooling Coil - 266603$660.87Available, ships in 3-6 days
3714497704Ferrari Washer - 14497704$1.30Special order, ships in 7-14 days
38262478Ferrari Pipe - 262478$127.27Special order, ships in 7-14 days
3914302424Ferrari Screw 4X45 - 14302424$0.82Special order, ships in 7-14 days
4010441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
41260064Ferrari Ring Clamp - 260064SupersededOrder 808986 instead
42231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
4310441190Ferrari P clip Bracket With Sheath D8mm - 10441190$0.90Available, ships in 3-6 days
44237478Ferrari Mounting - 237478$36.86Available, ships in 3-6 days
4516287734Ferrari Screw M8 x 50 - 16287734$2.59Available, ships in 3-6 days
46247751Ferrari Washer - 247751$11.56Available, ships in 3-6 days
4711566724Ferrari Screw 5X25 - 11566724$3.91Available, ships in 3-6 days
4711566524Ferrari Screw M5X20 - 11566524$0.98Available, ships in 3-6 days
49263070Ferrari Bushing - 263070$10.06Available, ships in 3-6 days
5010902424Ferrari Bolt M6 x 20 - 10902424$0.27Available, ships in 3-6 days
5010903224Ferrari Screw M6 x 40 - 10903224$0.50Available, ships in 3-6 days
5185833800Ferrari Screw M5 x 14 TBFTX - 85833800$0.90Available, ships in 3-6 days
5216286124Ferrari Screw M6x20 - 16286124$0.71Special order, ships in 7-14 days
5312643724Ferrari/Maserati Washer - 12643724$0.20In stock
54263071Ferrari Upper Pillory - 263071$31.80Special order, ships in 7-14 days
55264829Ferrari Upper Pillory - 264829$39.14Special order, ships in 7-14 days
56263072Ferrari Lower Pillory - 263072$31.80Special order, ships in 7-14 days
57265668Ferrari Water Pipe - 265668$461.07Available, ships in 3-6 days
58293973Ferrari Insulation - 293973$163.97Special order, ships in 7-14 days
5984514800Ferrari Gasket - 84514800$63.08Available, ships in 3-6 days
10902426Ferrari Bolt - 10902426SupersededOrder 10902424 instead
10903221Ferrari Bolt - 10903221SupersededOrder 10903224 instead
10902421Ferrari Bolt M6 - 10902421$0.25Available, ships in 3-6 days
81521700Ferrari Gasket - 81521700SupersededOrder 85684500 instead
82660400Ferrari Gasket - 82660400SupersededOrder 85684500 instead
82670300Ferrari Gasket - 82670300SupersededOrder 85684500 instead
82671400Ferrari Gasket - 82671400SupersededOrder 85684500 instead
262833Ferrari RH Water Radiator - 262833SupersededOrder 270265 instead
808986Ferrari Ring Clamp - 808986$0.44Special order, ships in 7-14 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
262477Ferrari Vent Pipe - 262477SupersededOrder 267276 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
251272Ferrari Water Pipe - 251272Price on requestContact us for price and availability
