Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS (diagram 0080)

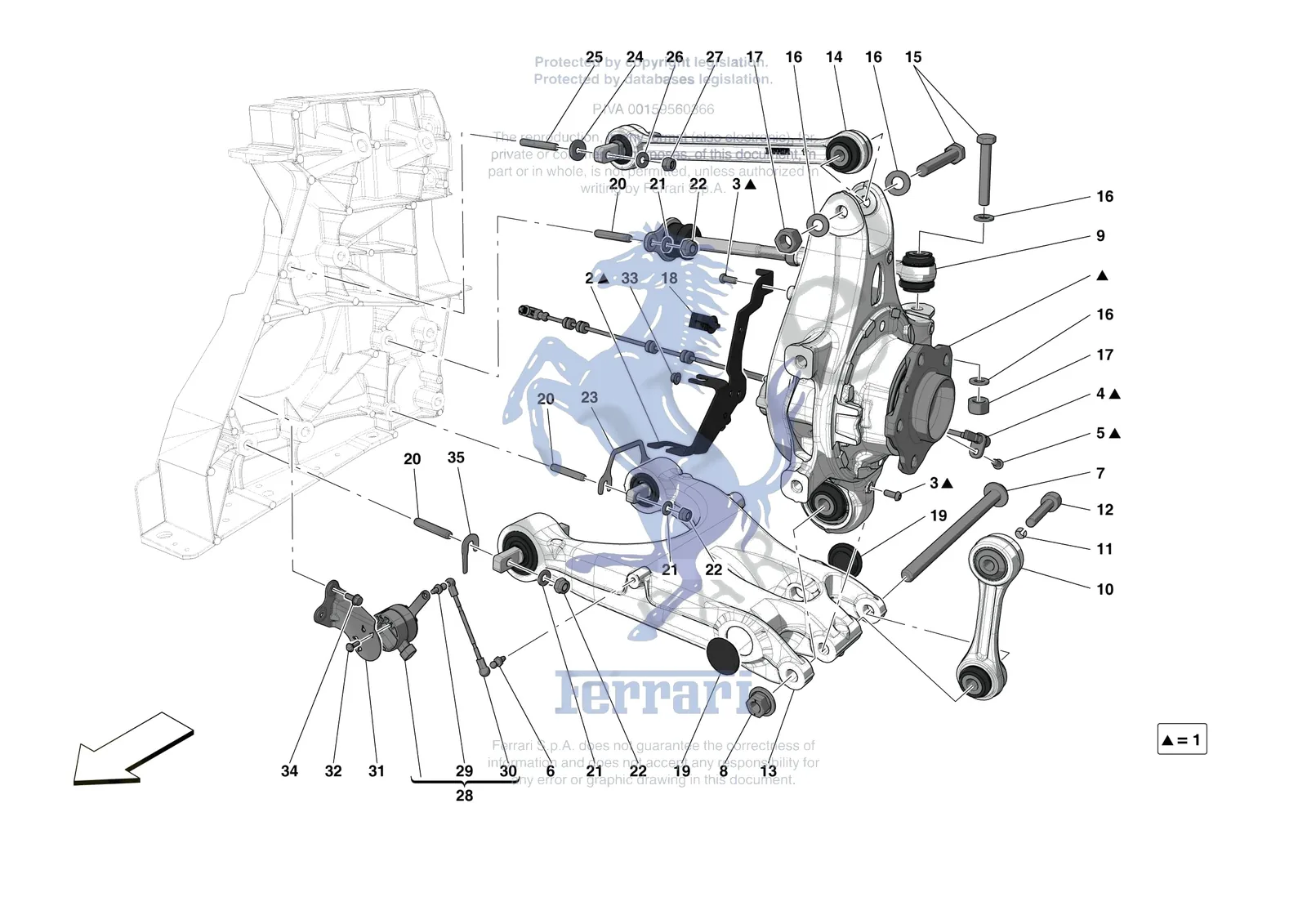

Exploded view of the [mechanical system] - d.27.02 - rear suspension - arms on the Ferrari 488 Pista, with 80 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 488 Pista [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
238693Ferrari Camber Spacer 1.0mm - 238693$10.25Special order, ships in 7-14 days
238881Ferrari Camber Spacer 1.5mm - 238881$10.25Special order, ships in 7-14 days
238694Ferrari Camber Spacer 2.0mm - 238694SupersededOrder 263035 instead
238882Ferrari Camber Spacer 2.5mm - 238882$10.25Special order, ships in 7-14 days
238884Ferrari Camber Spacer 3.5mm - 238884$10.25Special order, ships in 7-14 days
238885Ferrari Camber Spacer 4.0mm - 238885$10.25Special order, ships in 7-14 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
238469Ferrari LH Rear Hub Holder - 238469SupersededOrder 299933 instead
268379Ferrari LH Rear Hub Holder - 268379SupersededOrder 299933 instead
276809Ferrari LH Rear Hub Holder - 276809SupersededOrder 299933 instead
230953Ferrari LH Rear Motion Sensor Complete - 230953SupersededOrder 259265 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
236783Ferrari Rear Suspension Link Arm - 236783SupersededOrder 259688 instead
230954Ferrari RH Rear Motion Sensor Complete - 230954$391.61Special order, ships in 7-14 days
190870Ferrari Screw 6x14 - 190870$4.10Special order, ships in 7-14 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1299933Ferrari LH Rear Hub Carrier Complete - 299933$3,718.64Available, ships in 3-6 days
1299935Ferrari RH Rear Hub Carrier Complete - 299935$3,718.64Special order, ships in 7-14 days
2299534Ferrari LH Rear Joint Bracket - 299534$639.27Special order, ships in 7-14 days
2299535Ferrari RH Rear Joint Bracket - 299535$811.38Special order, ships in 7-14 days
3250657Ferrari Screw M6 x 14 TBTX - 250657$13.36Available, ships in 3-6 days
4252514Ferrari ABS Sensor - 252514$349.68Special order, ships in 7-14 days
6216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
7238656Ferrari Special Screw TCEI M14 x 1.5 x 21 - 238656$45.87Available, ships in 3-6 days
8238063Ferrari Nut M14 x 1.x - 238063$7.40Available, ships in 3-6 days
9245161Ferrari Tie Rod Complete - 245161$301.17Available, ships in 3-6 days
10259688Ferrari Anti Rotation Linkage - 259688$295.03Special order, ships in 7-14 days
11222956Ferrari Compensator Ring 24x12 - 222956$20.76Available, ships in 3-6 days
12238258Ferrari Screw M12 x 1.25 x 75 - 238258$63.37Special order, ships in 7-14 days
13896443Ferrari Compl. LH Rear Lower Arm - 896443SupersededOrder 911176 instead
13911176Ferrari Compl. LH Rear Lower Arm - 911176$1,745.74Special order, ships in 7-14 days
13896445Ferrari Compl. RH Rear Lower Arm - 896445SupersededOrder 911175 instead
13911175Ferrari Compl. RH Rear Lower Arm - 911175$1,745.74Special order, ships in 7-14 days
13314774Ferrari LH Rear Lower Arm Complete - 314774SupersededOrder 911176 instead
13329243Ferrari LH Rear Lower Arm Complete - 329243SupersededOrder 911176 instead
13314775Ferrari RH Rear Lower Arm Complete - 314775SupersededOrder 911175 instead
13329244Ferrari RH Rear Lower Arm Complete - 329244SupersededOrder 911175 instead
14295792Ferrari Rear Upper Arm - 295792$888.98Available, ships in 3-6 days
1515541434Ferrari Screw 12x1.25x80 - 15541434$4.12Special order, ships in 7-14 days
1614496721Ferrari Washer - 14496721$0.19Special order, ships in 7-14 days
17203666Ferrari Nut - 203666$1.80Available, ships in 3-6 days
18303365Ferrari Clip - 303365$2.61Available, ships in 3-6 days
1914507987Ferrari Rubber Plug - 14507987$3.85In stock
20264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
2114496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
22104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
23262544Ferrari Camber Spacer 0.5mm - 262544$18.36Special order, ships in 7-14 days
23262545Ferrari Camber Spacer 1.0mm - 262545$18.32Special order, ships in 7-14 days
23262546Ferrari Camber Spacer 1.5mm - 262546$18.32Special order, ships in 7-14 days
23262539Ferrari Camber Spacer 2.0mm - 262539$18.32Special order, ships in 7-14 days
23262540Ferrari Camber Spacer 2.5mm - 262540$18.32Special order, ships in 7-14 days
23262541Ferrari Camber Spacer 3.0mm - 262541$18.32Special order, ships in 7-14 days
23262542Ferrari Camber Spacer 3.5mm - 262542$18.32Available, ships in 3-6 days
23262543Ferrari Camber Spacer 4.0mm - 262543$18.32Special order, ships in 7-14 days
24816274Ferrari Washer - 816274$3.91Special order, ships in 7-14 days
25302406Ferrari Threaded Rod - 302406$4.77Special order, ships in 7-14 days
2614496524Ferrari Washer - 14496524$0.19Available, ships in 3-6 days
27104030Ferrari/Maserati Nut - 104030$0.88In stock
28259265Ferrari LH Rear Motion Sensor Complete - 259265$349.68Special order, ships in 7-14 days
28259266Ferrari RH Rear Motion Sensor Complete - 259266$349.68Special order, ships in 7-14 days
30229653Ferrari Potentiometer Tie-Rod - 229653$78.66Special order, ships in 7-14 days
31259569Ferrari LH Rear Bracket - 259569$36.92Special order, ships in 7-14 days
31260444Ferrari RH Rear Bracket - 260444$36.92Special order, ships in 7-14 days
32217456Ferrari Screw 5X16 - 217456$0.59Available, ships in 3-6 days
3314040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
3416286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
35263032Ferrari Camber Spacer 0.5mm - 263032$24.02Available, ships in 3-6 days
35263033Ferrari Camber Spacer 1.0mm - 263033$7.19Special order, ships in 7-14 days
35263034Ferrari Camber Spacer 1.5mm - 263034$7.19Special order, ships in 7-14 days
35263035Ferrari Camber Spacer 2.0mm - 263035$7.19Available, ships in 3-6 days
35263036Ferrari Camber Spacer 2.5mm - 263036$10.25Special order, ships in 7-14 days
35238883Ferrari Camber Spacer 3.0mm - 238883$10.25Available, ships in 3-6 days
35263037Ferrari Camber Spacer 3.0mm - 263037SupersededOrder 238883 instead
35263038Ferrari Camber Spacer 3.5mm - 263038$10.25Special order, ships in 7-14 days
35263039Ferrari Camber Spacer 4.0mm - 263039$10.25Special order, ships in 7-14 days

All 488 Pista diagrams
