Ferrari 488 Pista — [VEHICLE TRIM] - E.16 - REAR SHIELDS (diagram 0115)

Exploded view of the [vehicle trim] - e.16 - rear shields on the Ferrari 488 Pista, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

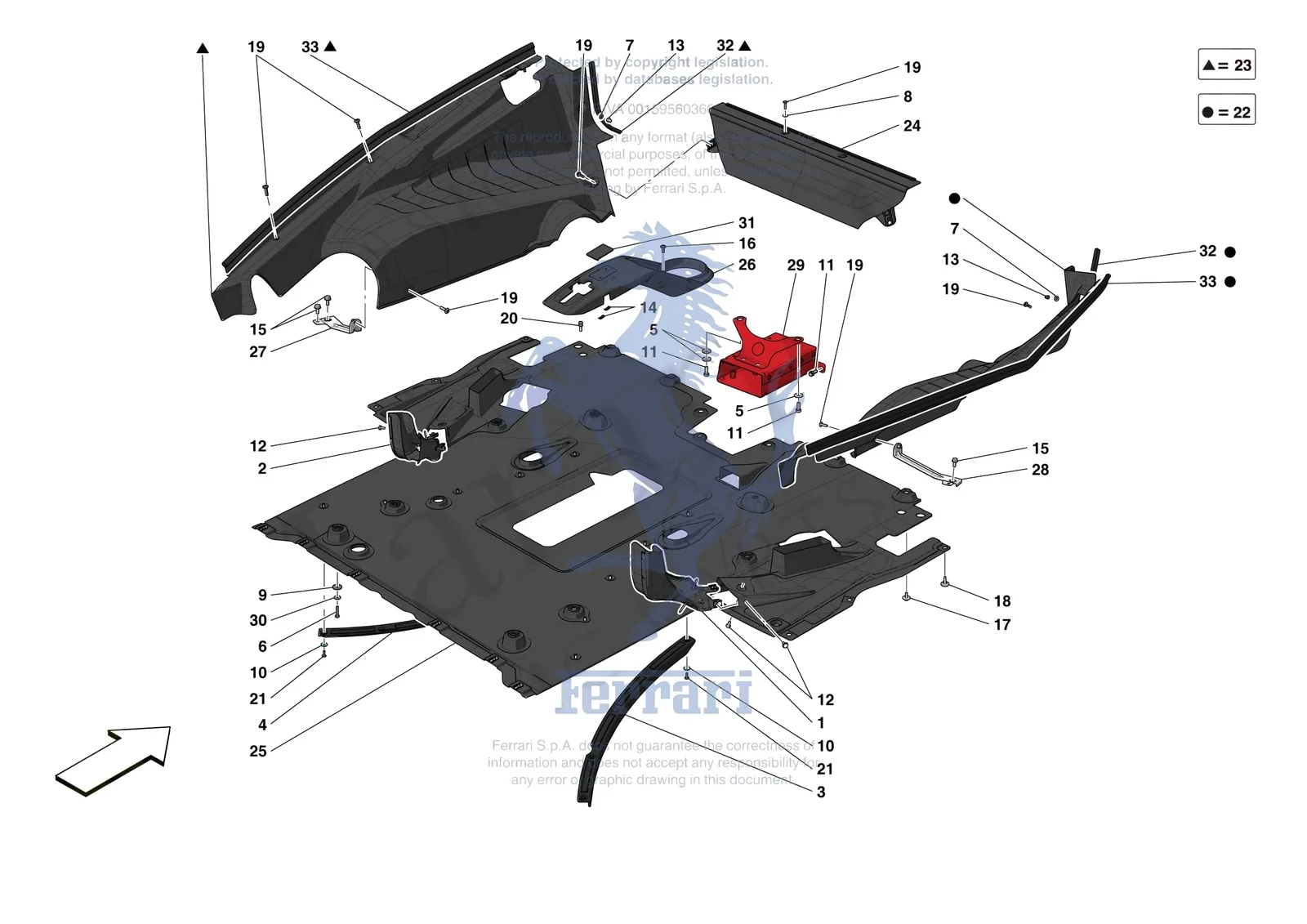

Ferrari 488 Pista [VEHICLE TRIM] - E.16 - REAR SHIELDS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
300832Ferrari Engine Buffer - 300832SupersededOrder 87546300 instead
87739200Ferrari Underscreen Cosmetic Shield - 87739200SupersededOrder 86422300 instead
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1762216Ferrari Compl. RH Engine Air Vent Du - 762216$206.81Special order, ships in 7-14 days
2762226Ferrari Compl. LH Engine Air Vent Du - 762226$206.81Special order, ships in 7-14 days
3768520Ferrari RH Rear Lateral Dam - 768520$184.65Special order, ships in 7-14 days
4768518Ferrari LH Rear Lateral Dam - 768518$184.65Special order, ships in 7-14 days
510523401Ferrari Washer - 10523401$0.84Available, ships in 3-6 days
610902824Ferrari Screw M6 x 30 - 10902824$0.17Available, ships in 3-6 days
812638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
912640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
1012643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
1113027024Ferrari Screw TCEI M6 x 16 - 13027024$0.38Special order, ships in 7-14 days
1213290024Ferrari Screw M6 x 14 TCIC PZ - 13290024$0.82Available, ships in 3-6 days
1314042177Ferrari Nut - 14042177$1.99Available, ships in 3-6 days
1414183376Ferrari Screw Clip - 14183376$0.19Available, ships in 3-6 days
1516296934Ferrari Screw 6x14 - 16296934$0.90Special order, ships in 7-14 days
1665864100Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100$2.82Available, ships in 3-6 days
1781290900Ferrari Screw With Double Washer - 81290900$1.42In stock
1883442900Ferrari Body Screw - 83442900$1.51In stock
1985692400Ferrari Screw M5 x 20 TBFTX - 85692400$0.92Available, ships in 3-6 days
2085797600Ferrari Special Screw - 85797600$59.07Available, ships in 3-6 days
2185833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
2270006279Ferrari Compl. RH Engine Compartment - 70006279$17,318.56Contact us to order
22782010Ferrari Compl. RH Engine Compartment - 782010$5,340.78Special order, ships in 7-14 days
22782030Ferrari Compl. RH Engine Compartment - 782030$318.19Special order, ships in 7-14 days
22813259Ferrari Compl. RH Engine Compartment - 813259$5,336.13Special order, ships in 7-14 days
2370006280Ferrari Compl. LH Engine Compartment - 70006280$16,707.78Contact us to order
23782017Ferrari Compl. LH Engine Compartment - 782017$5,340.78Special order, ships in 7-14 days
23782040Ferrari Compl. LH Engine Compartment - 782040$318.19Special order, ships in 7-14 days
23813260Ferrari Compl. LH Engine Compartment - 813260$5,336.13Special order, ships in 7-14 days
2470006352Ferrari Compl. Underscreen Cosmetic - 70006352$10,613.99Contact us to order
24826052Ferrari Compl. Underscreen Cosmetic - 826052$3,123.80Special order, ships in 7-14 days
24907054Ferrari Compl. Underscreen Cosmetic - 907054$149.29Special order, ships in 7-14 days
2486422300Ferrari Underscreen Cosmetic Shield - 86422300$217.83Special order, ships in 7-14 days
25785180Ferrari Compl. Rear Underbody Shield - 785180$9,884.32Special order, ships in 7-14 days
25891487Ferrari Compl. Rear Underbody Shield - 891487SupersededOrder 785180 instead
2686921700Ferrari Central Cosmetic Shield Complete - 86921700$68.92Special order, ships in 7-14 days
2686935100Ferrari Central Cosmetic Shield Complete - 86935100$1,969.79Special order, ships in 7-14 days
2670006353Ferrari Compl. Central Cosmetic Shie - 70006353$16,302.16Contact us to order
2787347300Ferrari LH Lower Shield Bracket - 87347300$66.07Special order, ships in 7-14 days
2887347400Ferrari RH Lower Shield Bracket - 87347400$66.07Special order, ships in 7-14 days
2987546300Ferrari Engine Buffer Complete - 87546300$344.69Special order, ships in 7-14 days
3011197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
31844308Ferrari Serial Number Plate - 844308$154.18Special order, ships in 7-14 days
32825854Ferrari Front Seal For Lateral Shiel - 825854$56.54Special order, ships in 7-14 days
3386553700Ferrari Lateral Seal For Lateral Shield - 86553700$132.69Available, ships in 3-6 days
