Ferrari 488 Pista — [VEHICLE TRIM] - E.42 - REAR BUMPER (diagram 0143)

Exploded view of the [vehicle trim] - e.42 - rear bumper on the Ferrari 488 Pista, with 115 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

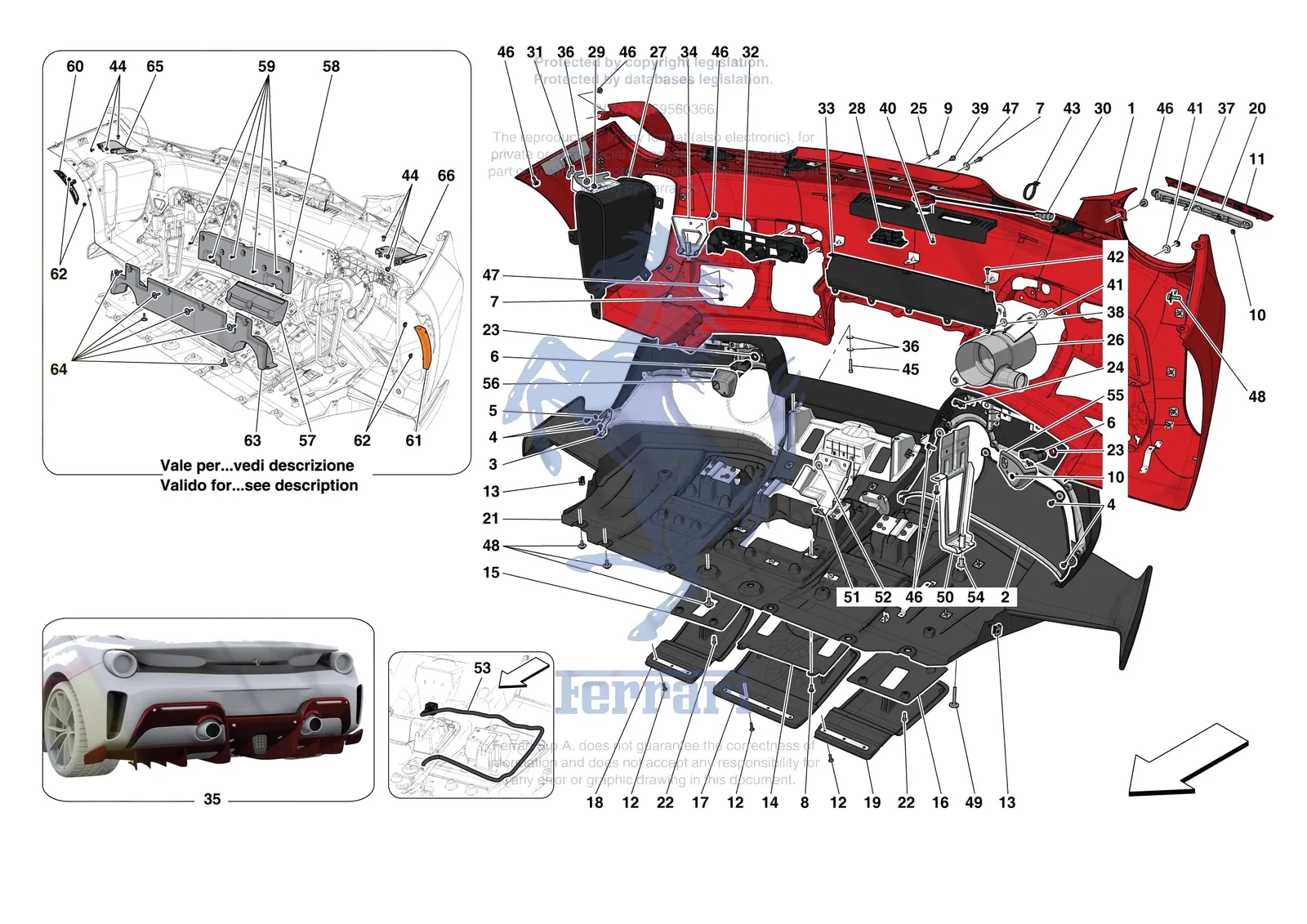

Ferrari 488 Pista [VEHICLE TRIM] - E.42 - REAR BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
86367200Ferrari Compl. LH Aerodynamic Floor Bracket Complete - 86367200SupersededOrder 86844100 instead
87295200Ferrari Floor Bracket And Vacuum Tank Complete - 87295200SupersededOrder 86843900 instead
86141300Ferrari Screw - 86141300SupersededOrder 66294400 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
170006265Ferrari COMPL. REAR BUMPER - 70006265Price on requestContact us to order
1985881692Ferrari COMPL. REAR BUMPER - 985881692Price on requestContact us to order
170006234Ferrari Compl. Rear Mesh - 70006234$57,273.59Contact us to order
170006266Ferrari Compl. Rear Mesh - 70006266$81,206.35Contact us to order
1985827913Ferrari Compl. Rear Mesh - 985827913$41,390.41Contact us to order
1985828449Ferrari Compl. Rear Mesh - 985828449$48,139.79Contact us to order
1985828639Ferrari Compl. Rear Mesh - 985828639$49,828.76Contact us to order
1985829588Ferrari Compl. Rear Mesh - 985829588$43,077.22Contact us to order
1985829761Ferrari Compl. Rear Mesh - 985829761$49,828.76Contact us to order
1985829933Ferrari Compl. Rear Mesh - 985829933$51,515.57Contact us to order
1985881317Ferrari Compl. Rear Mesh - 985881317SupersededOrder 70006234 instead
1985881651Ferrari Compl. Rear Mesh - 985881651SupersededOrder 70006266 instead
2783919Ferrari Compl. LH Lower Mesh - 783919$413.37Special order, ships in 7-14 days
2783913Ferrari Compl. RH Lower Mesh - 783913$413.37Special order, ships in 7-14 days
3818516Ferrari LH Stiffener Bracket - 818516$56.27Special order, ships in 7-14 days
3818513Ferrari RH Stiffener Bracket - 818513$56.27Special order, ships in 7-14 days
485692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
485833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
464460500Ferrari Screw M5 x 0.8 x 10 - 64460500$2.13Available, ships in 3-6 days
513550224Ferrari Washer D 6.15-13x1 - 13550224$2.59Available, ships in 3-6 days
6295361Ferrari Parking Sensor - 295361$80.91In stock
7231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
885833800Ferrari Screw M5 x 14 TBFTX - 85833800$0.90Available, ships in 3-6 days
914433128Ferrari Screw M6 x 18 TCEI - 14433128$1.05Special order, ships in 7-14 days
1084784600Ferrari Washer For Pin - 84784600$43.68Special order, ships in 7-14 days
1184806900Ferrari Left Rear Reflector - 84806900$29.75In stock
1184806800Ferrari Right Rear Reflector - 84806800$29.40In stock
1285692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
1314189071Ferrari M6 x 1Screw clip - 14189071$1.36Available, ships in 3-6 days
14772143Ferrari Active Aero Centre Cover - 772143$3,701.94Special order, ships in 7-14 days
1489284000Ferrari Active Aero Centre Cover - 89284000$29.34Special order, ships in 7-14 days
14880667Ferrari Compl. Diffuser - 880667SupersededOrder 70006189 instead
1589284100Ferrari RH Active Aero Lateral Cover - 89284100$19.30Special order, ships in 7-14 days
1689284200Ferrari LH Active Aero Lateral Cover - 89284200$19.30Special order, ships in 7-14 days
17786907Ferrari Central Hatch - 786907$5,119.33Special order, ships in 7-14 days
17880671Ferrari Central Hatch - 880671$6,065.79Special order, ships in 7-14 days
1789284300Ferrari Central Hatch - 89284300$1,150.42Special order, ships in 7-14 days
18786906Ferrari RH Lateral Hatch - 786906$3,517.50Special order, ships in 7-14 days
1889284400Ferrari RH Lateral Hatch - 89284400$709.82Special order, ships in 7-14 days
19786905Ferrari LH Lateral Hatch - 786905$3,517.50Special order, ships in 7-14 days
1989284500Ferrari LH Lateral Hatch - 89284500$709.82Special order, ships in 7-14 days
20813796Ferrari Bracket For LH Reflector - 813796$44.29Special order, ships in 7-14 days
20813788Ferrari Bracket For RH Reflector - 813788$44.29Special order, ships in 7-14 days
21796698Ferrari Compl. Diffuser - 796698$27,636.80Contact us to order
21827845Ferrari Compl. Diffuser - 827845$6,198.66Contact us to order
21880668Ferrari Compl. Diffuser - 880668$34,489.85Contact us to order
2381544800Ferrari/Maserati Parking Sensor Ring - 81544800$11.59In stock
2468700200Ferrari Fixing Clip - 68700200$10.68Special order, ships in 7-14 days
2513550278Ferrari Washer D.6x13x1 - 13550278$1.80Available, ships in 3-6 days
26821148Ferrari Compl. LH Cosmetic Tailpipe Tip - 821148$870.30Special order, ships in 7-14 days
26821208Ferrari Compl. LH Cosmetic Tailpipe Tip - 821208$4,664.47Special order, ships in 7-14 days
26821059Ferrari Compl. RH Cosmetic Tailpipe Tip - 821059$870.30Special order, ships in 7-14 days
26821207Ferrari Compl. RH Cosmetic Tailpipe Tip - 821207$4,664.47Special order, ships in 7-14 days
26821275Ferrari Part Search Results - 821275$1,827.64Special order, ships in 7-14 days
26821276Ferrari Part Search Results - 821276$1,827.64Special order, ships in 7-14 days
2770006236Ferrari Compl. LH Air Outlet Duct - 70006236$8,429.65Special order, ships in 7-14 days
27767076Ferrari Compl. LH Air Outlet Duct - 767076$6,741.85Special order, ships in 7-14 days
27865303Ferrari Compl. LH Air Outlet Duct - 865303$7,947.08Special order, ships in 7-14 days
27881627Ferrari Compl. LH Air Outlet Duct - 881627SupersededOrder 70006236 instead
2770006235Ferrari Compl. RH Air Outlet Duct - 70006235$8,429.65Special order, ships in 7-14 days
27767072Ferrari Compl. RH Air Outlet Duct - 767072$6,741.85Special order, ships in 7-14 days
27865309Ferrari Compl. RH Air Outlet Duct - 865309$7,947.08Special order, ships in 7-14 days
27881631Ferrari COMPL. RH AIR OUTLET DUCT - 881631$7,049.57Special order, ships in 7-14 days
28264480Ferrari Rear License Plate Lamp - 264480$55.00In stock
29301909Ferrari Self-Locking Nut M6 - 301909$3.26Special order, ships in 7-14 days
30314630Ferrari Magnetic Battery Conditioner Sealed Socket - 314630$688.45Available, ships in 3-6 days
30343200Ferrari Magnetic Battery Conditioner Sealed Socket - 343200$1,253.96Special order, ships in 7-14 days
31766950Ferrari Shim For Duct - 766950$66.07Special order, ships in 7-14 days
32813789Ferrari Compl. LH Lower Bracket - 813789$489.54Special order, ships in 7-14 days
32813778Ferrari Compl. RH Lower Bracket - 813778$489.54Special order, ships in 7-14 days
33814316Ferrari Rete All Centrale Infer Cpl - 814316$391.61Special order, ships in 7-14 days
33835750Ferrari Rete All Centrale Infer Cpl - 835750$609.19Special order, ships in 7-14 days
34747668Ferrari Compl. LH Outer Bumper Mount - 747668$146.84Special order, ships in 7-14 days
34747675Ferrari Compl. RH Outer Bumper Mount - 747675$146.84Special order, ships in 7-14 days
3570006189Ferrari Compl. Diffuser - 70006189$38,044.87Contact us to order
3612643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
3713046124Ferrari Nut - 13046124Price on requestContact us for price and availability
3862769800Ferrari Washer - 62769800$0.44Available, ships in 3-6 days
3918750324Ferrari Screw 6x18 - 18750324$0.96Special order, ships in 7-14 days
4065752800Ferrari Screw M4 x 10 TBEI - 65752800$4.12Available, ships in 3-6 days
4181078500Ferrari Washer - 81078500$2.01Available, ships in 3-6 days
43145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
4466294400Ferrari Screw M6 x 12 TBFEI - 66294400$2.82Special order, ships in 7-14 days
4514305424Ferrari Allen Screw M6 x 25mm - 14305424$0.12Available, ships in 3-6 days
4510589624Ferrari Screw M6 x 80 TCEI - 10589624$0.59Available, ships in 3-6 days
4611625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
4712647778Ferrari Cup Washer - 12647778$0.82Available, ships in 3-6 days
4881290900Ferrari Screw With Double Washer - 81290900$1.42In stock
4985687400Ferrari 488 Rear Bumper Screw - 85687400$4.16In stock
5086844100Ferrari Compl. LH Aerodynamic Floor Bracket - 86844100$216.66Special order, ships in 7-14 days
5086843900Ferrari Compl. RH Aerodynamic Floor Bracket - 86843900$211.73Special order, ships in 7-14 days
5188759900Ferrari Rear Fog Light Heat Shield - 88759900$39.14Special order, ships in 7-14 days
5212647701Ferrari Washer - 12647701$0.12Available, ships in 3-6 days
53342266Ferrari Analogue Rear Camera - 342266$2,471.06Special order, ships in 7-14 days
53310755Ferrari Digital Rear Camera - 310755SupersededOrder 770066 instead
53770066Ferrari Digital Rear Camera - 770066$2,471.06Special order, ships in 7-14 days
54320219Ferrari Pin M6 x 34 - 320219$7.40Special order, ships in 7-14 days
55821340Ferrari LH Lateral Parking Sensor Heat Shield - 821340$129.70Special order, ships in 7-14 days
55821344Ferrari RH Lateral Parking Sensor Heat Shield - 821344$129.70Special order, ships in 7-14 days
56821341Ferrari LH Centre Parking Sensor Heat Shield - 821341$129.70Special order, ships in 7-14 days
56821342Ferrari RH Centre Parking Sensor Heat Shield - 821342$129.70Special order, ships in 7-14 days
57786500Ferrari Centre Impact Absorber - 786500$465.04Special order, ships in 7-14 days
58783599Ferrari Centre Rear Impact Absorber - 783599$220.26Special order, ships in 7-14 days
5914415690Ferrari Rivet - 14415690$1.80Available, ships in 3-6 days
6087329800Ferrari RH Rear Side Marker - 87329800$122.36Special order, ships in 7-14 days
6187329700Ferrari LH Rear Side Marker - 87329700$122.36Special order, ships in 7-14 days
6289241300Ferrari Nut - 89241300$32.76Special order, ships in 7-14 days
6387161000Ferrari Rear Cross Member Heat Shield - 87161000$269.23Special order, ships in 7-14 days
6483442900Ferrari Body Screw - 83442900$1.51In stock
65819325Ferrari RH Tail Light Bracket - 819325$161.52Special order, ships in 7-14 days
66819326Ferrari LH Tail Light Bracket - 819326$161.52Special order, ships in 7-14 days

All 488 Pista diagrams
