Ferrari 488 Pista — [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM (diagram 0172)

Exploded view of the [vehicle trim] - e.59 - external lateral trim on the Ferrari 488 Pista, with 61 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

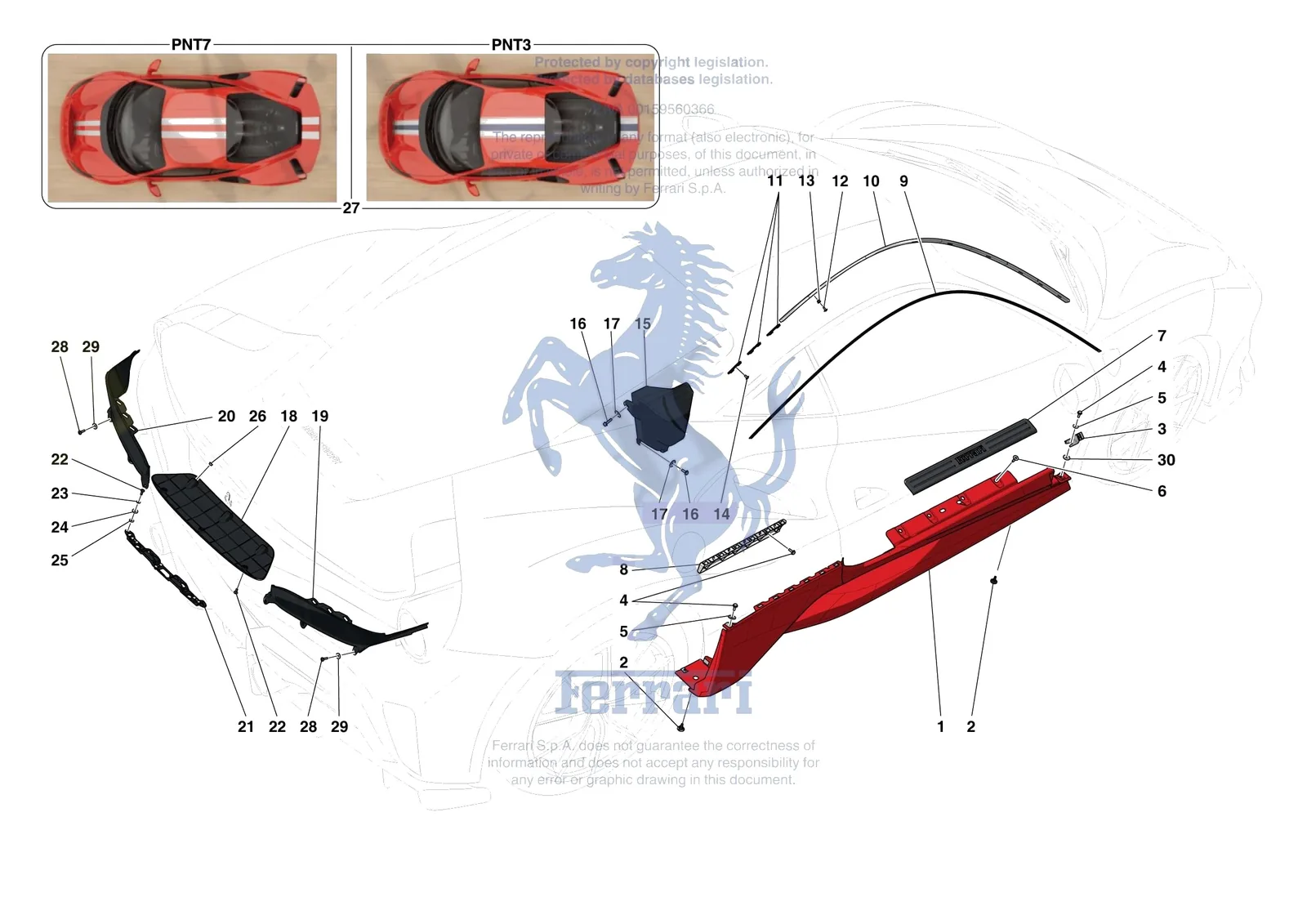

Ferrari 488 Pista [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
84046600Ferrari Adhesive Spacer - 84046600SupersededOrder 807883 instead
87546900Ferrari Adhesive Spacer - 87546900SupersededOrder 807883 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
13579124Ferrari Washer - 13579124SupersededOrder 13579178 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
13579107Ferrari Washer D.5.15-10X - 13579107SupersededOrder 13579178 instead
170006233Ferrari Compl. LH Underdoor Trim - 70006233$20,725.44Contact us to order
1766055Ferrari Compl. LH Underdoor Trim - 766055$17,892.05Contact us to order
1879613Ferrari Compl. LH Underdoor Trim - 879613SupersededOrder 70006233 instead
170006232Ferrari Compl. RH Underdoor Trim - 70006232$20,725.44Contact us to order
1766048Ferrari Compl. RH Underdoor Trim - 766048$17,892.05Contact us to order
1879629Ferrari Compl. RH Underdoor Trim - 879629$18,183.34Contact us to order
189265110Ferrari Rivest. Sottoporta Vern. Dx - 89265110$2,398.79Special order, ships in 7-14 days
189265410Ferrari Rivest.Sottoporta Sx Vernici - 89265410$2,398.79Special order, ships in 7-14 days
283442900Ferrari Body Screw - 83442900$1.51In stock
3814949Ferrari Compl. LH Front Bracket - 814949$39.37Special order, ships in 7-14 days
3814950Ferrari Compl. RH Front Bracket - 814950$39.37Special order, ships in 7-14 days
411625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
512643724Ferrari/Maserati Washer - 12643724$0.20In stock
665933500Ferrari Screw M6 x 15 TBEI - 65933500$3.26Available, ships in 3-6 days
680874200Ferrari Screw M6 x 22 - 80874200$1.59Available, ships in 3-6 days
770006545Ferrari LH Kickplate - 70006545$5,534.27Special order, ships in 7-14 days
786538200Ferrari LH Kickplate - 86538200$1,501.96Special order, ships in 7-14 days
7915177Ferrari LH Kickplate - 915177$1,493.12Special order, ships in 7-14 days
770006544Ferrari RH Kickplate - 70006544$15,488.57Contact us to order
786538300Ferrari RH Kickplate - 86538300$1,501.96Special order, ships in 7-14 days
7915176Ferrari RH Kickplate - 915176$1,493.12Special order, ships in 7-14 days
886785800Ferrari LH Sill Fastener Bracket - 86785800$24.34Available, ships in 3-6 days
886785900Ferrari RH Sill Fastener Bracket - 86785900$24.34Special order, ships in 7-14 days
9959682Ferrari Guarnizione Molura Gronda Dx - 959682$39.14Special order, ships in 7-14 days
9951708Ferrari Guarnizione Molura Gronda Sx - 951708$56.54Special order, ships in 7-14 days
987015700Ferrari Roof Gutter Moulding Seal - 87015700$41.30Special order, ships in 7-14 days
10807883Ferrari Adhesive Spacer - 807883$63.61Special order, ships in 7-14 days
1186746200Ferrari Clip - 86746200$4.75Special order, ships in 7-14 days
1215538777Ferrari Screw 8x13 - 15538777$0.34Available, ships in 3-6 days
1314214880Ferrari Plastic Screw Block - 14214880$0.71Available, ships in 3-6 days
1485692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
15815640Ferrari LH Foam Element For Compl. Crash Box - 815640$115.69Special order, ships in 7-14 days
1586719400Ferrari RH Foam Element For Compl. Crash Box - 86719400$118.16Special order, ships in 7-14 days
1616286224Ferrari Screw M6x25 - 16286224$4.77Special order, ships in 7-14 days
1712648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
1889274400Ferrari Rear Spoiler Inspection Cove - 89274400$63.61Special order, ships in 7-14 days
19783727Ferrari Compl. RH Vertical Closure P - 783727$3,597.04Special order, ships in 7-14 days
19883116Ferrari Compl. RH Vertical Closure P - 883116$416.09Special order, ships in 7-14 days
20783726Ferrari Compl. LH Vertical Closure P - 783726$3,597.04Special order, ships in 7-14 days
20883115Ferrari Compl. LH Vertical Closure P - 883115$416.09Special order, ships in 7-14 days
21765966Ferrari Compl. Third Brake Light Bra - 765966$66.07Special order, ships in 7-14 days
2285833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
2313579178Ferrari Washer 5X1 - 13579178$0.65Special order, ships in 7-14 days
2412646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
2512638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
2614040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
27854666Ferrari Livrea 488 Vs Mono 4 Mascher - 854666$1,044.35Special order, ships in 7-14 days
27854668Ferrari Two-Tone Colour Racing Livery - 854668$1,174.90Special order, ships in 7-14 days
2888004600Ferrari Screw 5x16 - 88004600$3.26Special order, ships in 7-14 days
3087944700Ferrari Washer - 87944700$0.57Special order, ships in 7-14 days
