Ferrari 512 BB (Carburetor) — Clutch Release Control (diagram 017)

Exploded view of the clutch release control on the Ferrari 512 BB (Carburetor), with 74 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

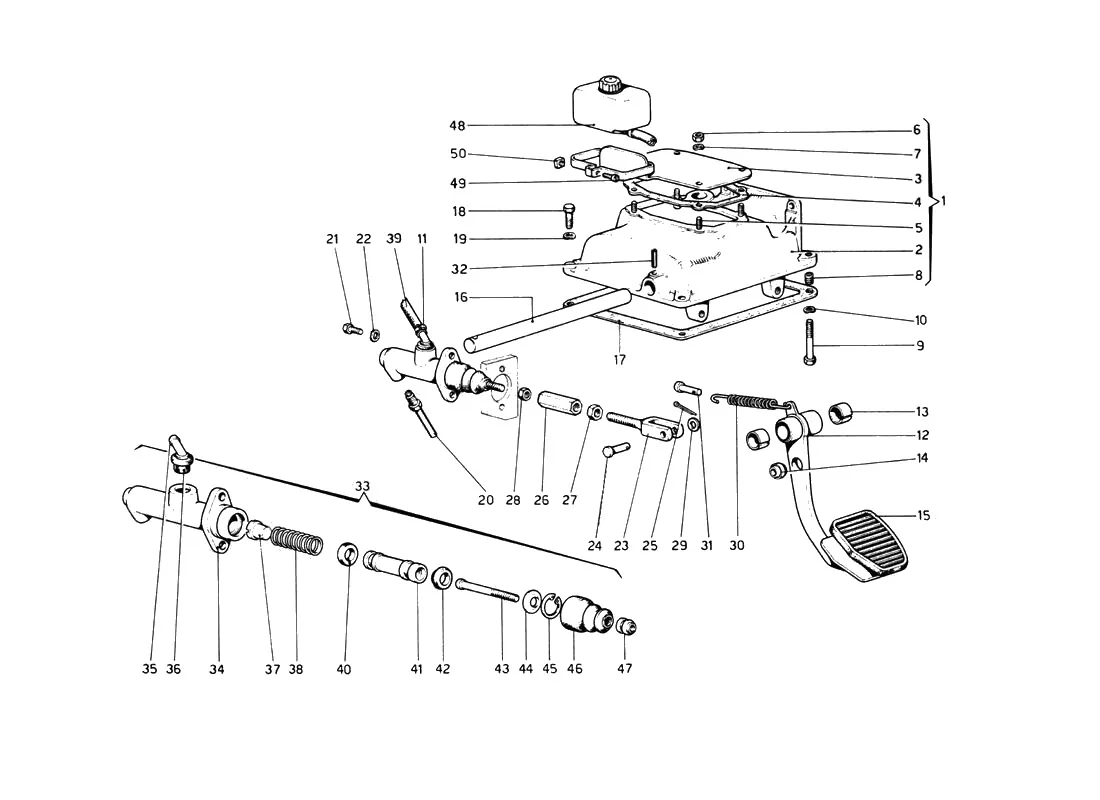

Ferrari 512 BB (Carburetor) Clutch Release Control exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1108022Ferrari Pedal Box Support Complete - 108022$5,273.57Available, ships in 3-6 days
2106187Ferrari Pedal Box Support - 106187SupersededOrder 108022 instead
3111135Ferrari Clutch Reservoir Bracket - 111135$76.09Available, ships in 3-6 days
4104905Ferrari Gasket - 104905$15.16Available, ships in 3-6 days
511500021Ferrari Stud - 11500021Price on requestContact us for price and availability
615896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
7127494Ferrari Lock Washer - 127494$0.50In stock
7106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
8106188Ferrari Bush - 106188Price on requestContact us for price and availability
916044424Ferrari Screw M8 x 60 - 16044424$3.91Available, ships in 3-6 days
916044421Ferrari Bolt - 16044421SupersededOrder 16044424 instead
10127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1010516671Ferrari Washer - 10516671SupersededOrder 127496 instead
11102604Ferrari Clip - 102604Price on requestContact us for price and availability
12107917Ferrari Clutch Pedal - 107917$331.81Available, ships in 3-6 days
13103163Ferrari Bush - 103163$12.21Available, ships in 3-6 days
14100424Ferrari Spherical joint - 100424$40.69Available, ships in 3-6 days
15106949Ferrari Clutch Pedal Pad - 106949$19.88In stock
16104900Ferrari Pin - 104900$179.17Available, ships in 3-6 days
17104899Ferrari Gasket - 104899Price on requestContact us for price and availability
1816139021Ferrari Bolt - 16139021$5.31Available, ships in 3-6 days
1912601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
1912601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
20108864Ferrari Tube - 108864$145.97Special order, ships in 7-14 days
2116043424Ferrari Bolt M8 x 20 - 16043424$0.38Available, ships in 3-6 days
2116043421Ferrari Bolt - 16043421SupersededOrder 16043424 instead
22106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
2310008571Ferrari Fork - 10008571Price on requestContact us for price and availability
2410033410Ferrari Clevis Pin - 10033410Price on requestContact us for price and availability
2510734401Ferrari Spit Pin - 10734401Price on requestContact us for price and availability
26107921Ferrari Adjuster Sleeve - 107921$106.07Available, ships in 3-6 days
2710791011Ferrari Nut M10 x 1.25 x 6 - 10791011$1.40Available, ships in 3-6 days
2816102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
2816102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
29103167Ferrari Washer - 103167$6.98Special order, ships in 7-14 days
30104895Ferrari Spring - 104895$41.06Available, ships in 3-6 days
31104896Ferrari Clevis Pin - 104896$46.94Available, ships in 3-6 days
32104901Ferrari Roll Pin - 104901$2.99Available, ships in 3-6 days
33175211Ferrari Clutch Master Cylinder - 175211$306.90In stock
33108419Ferrari Clutch Master Cylinder - 108419$522.16Available, ships in 3-6 days
34111257Ferrari Master Cylinder - 111257Price on requestContact us for price and availability
35111255Ferrari Union - 111255Price on requestContact us for price and availability
36175189Ferrari Master Cylinder Grommet Seal - 175189$7.70In stock
36106625Ferrari Seal Ring For Master Cylinder - 106625SupersededOrder 175189 instead
37111256Ferrari Clutch Cylinder - 111256$6.42Available, ships in 3-6 days
38111258Ferrari Spring - 111258$22.50Available, ships in 3-6 days
39111138Ferrari Tube - 111138Price on requestContact us for price and availability
40111259Ferrari Seal - 111259Price on requestContact us for price and availability
41111260Ferrari Piston Clutch Cylinder - 111260$69.17Available, ships in 3-6 days
42111261Ferrari Seal - 111261$50.39Available, ships in 3-6 days
43111268Ferrari Pin - 111268$16.41Available, ships in 3-6 days
44111267Ferrari Ring - 111267$1.99Available, ships in 3-6 days
45111266Ferrari Circlip - 111266$2.40Available, ships in 3-6 days
46111269Ferrari Rubber Boot - 111269$43.60Available, ships in 3-6 days
47111270Ferrari Adjuster Nut - 111270$13.90Available, ships in 3-6 days
48103168Ferrari Brake Fluid Reservoir - 103168$71.50In stock
4910374911Ferrari Screw - 10374911$0.52Available, ships in 3-6 days
5010196911Ferrari Nut - 10196911$0.12Available, ships in 3-6 days
4099978Ferrari Brake Reservoir - 4099978SupersededOrder 103168 instead
660442Ferrari Brake Reservoir - 660442SupersededOrder 103168 instead
12179190Ferrari Clip - 12179190Price on requestContact us for price and availability
129957Ferrari Gasket - 129957Price on requestContact us for price and availability
157934Ferrari Jubilee Clip - 157934Price on requestContact us for price and availability
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102315Ferrari Nut - 16102315SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
16100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
11500024Ferrari Short Stud - 11500024$0.54Available, ships in 3-6 days
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
661058Ferrari Tank - 661058SupersededOrder 103168 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead

All 512 BB (Carburetor) diagrams
