Ferrari 512 BB (Carburetor) — Front Suspension - Hub And Shock Absorber (diagram 031)

Exploded view of the front suspension - hub and shock absorber on the Ferrari 512 BB (Carburetor), with 54 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

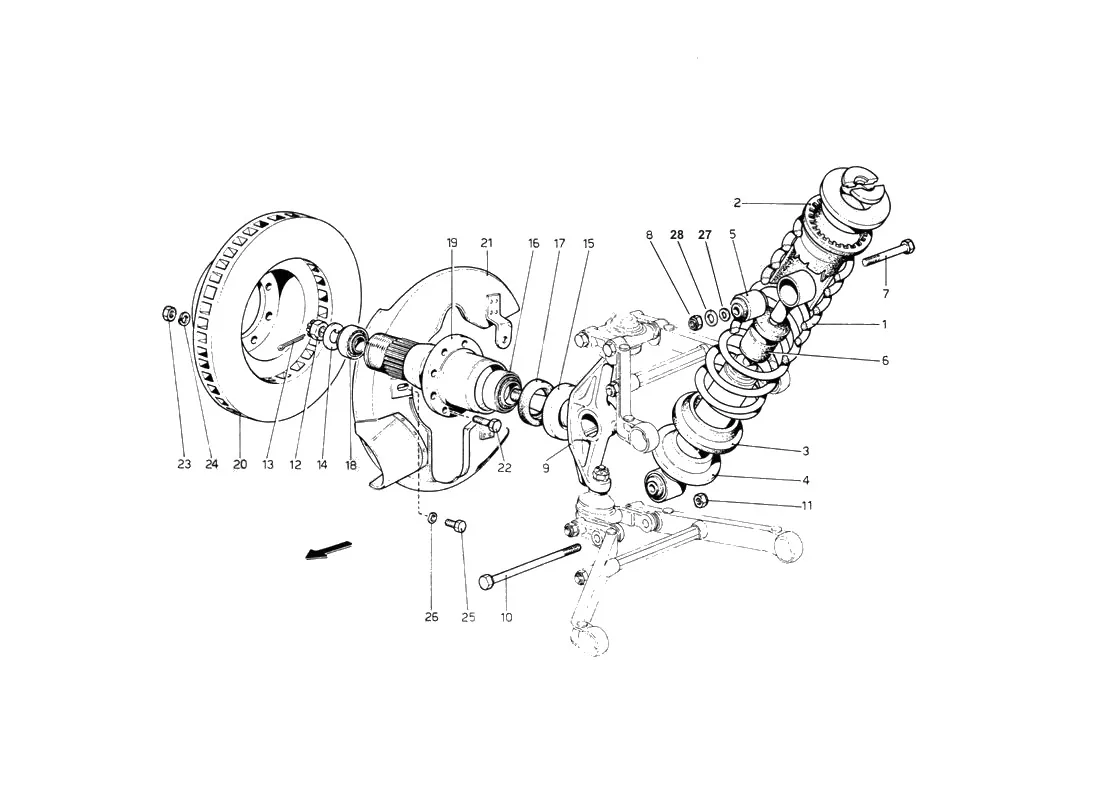

Ferrari 512 BB (Carburetor) Front Suspension - Hub And Shock Absorber exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1110917Ferrari Front Road Spring - 110917$709.93Available, ships in 3-6 days
2105223Ferrari Shock Absorber Dust Cover - 105223$68.29Available, ships in 3-6 days
3103263/4Ferrari Shock Spring Seat Upper & Lower Pair - 103263/4$79.20In stock
3103264Ferrari Lower Spring Pad - 103264$72.20Available, ships in 3-6 days
4103265Ferrari Front Koni Shock Absorber - 103265$525.36In stock
5100809Ferrari Shock Bushing - 100809$25.25In stock
6139448Ferrari 348 Shock Absorber Bump Stop - 139448$47.32In stock
6105311Ferrari Bump Stop - 105311$44.08Available, ships in 3-6 days
7106419Ferrari Suspension Bolt - 106419$31.35In stock
8148020Ferrari Nut - 148020$7.65In stock
816105121Ferrari Nyloc Nut - 16105121SupersededOrder 148020 instead
9104589Ferrari RH Front Stub Axle - 104589$1,310.08Available, ships in 3-6 days
9104590Ferrari LH Front Stub Axle - 104590$1,375.59Available, ships in 3-6 days
9104589/UFerrari RH Front Stub Axle - 104589/U$1,310.08Available, ships in 3-6 days
10103241Ferrari Suspension Bolt - 103241$82.46Available, ships in 3-6 days
10101052Ferrari Bolt - 101052$84.56Available, ships in 3-6 days
1292429Ferrari RH Thread Castellated Nut - 92429$65.04Available, ships in 3-6 days
1292431Ferrari LH Thread Castellated Nut - 92431$65.04Available, ships in 3-6 days
1210724621Ferrari RH Thread Castellated Nut - 10724621$83.39Available, ships in 3-6 days
1211638021Ferrari LH Thread Castellated Nut - 11638021$69.33Available, ships in 3-6 days
1310733801Ferrari Split pin - 10733801Price on requestContact us for price and availability
14101446Ferrari Washer - 101446$25.75In stock
15101217Ferrari Ring Unmod Mod - 101217SupersededOrder 110150 instead
15110150Ferrari Ring (Oil Seal Cover) - 110150$205.39Available, ships in 3-6 days
16101363Ferrari Front Wheel Bearing - 101363$29.54In stock
17101219Ferrari Front Hub Oil Seal - 101219$29.54In stock
18104588Front Wheel Bearing - 104588$50.60In stock
19104594Ferrari RH Front Hub - 104594$1,221.61Available, ships in 3-6 days
19104593Ferrari LH Front Hub - 104593Price on requestContact us for price and availability
20103208/2Ferrari 365 BB & 512 Front Brake Rotor Pair - 103208/2Price on requestContact us
21110901Ferrari RH Front Brake Disc Cover - 110901Price on requestContact us for price and availability
21110902Ferrari LH Front Brake Disc Cover - 110902Price on requestContact us for price and availability
2216043821Ferrari Bolt 8 x 30 UNI 5737 - 16043821SupersededOrder 16043824 instead
2316102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
2316100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
24127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
2410516671Ferrari Washer - 10516671SupersededOrder 127496 instead
2516043221Ferrari Bolt M8 x 16 - 16043221$0.19Available, ships in 3-6 days
27106616Ferrari Washer - 106616SupersededOrder 12601574 instead
2712601574Ferrari Wavy Washer 13mm - 12601574$0.13Available, ships in 3-6 days
2812601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
2812646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
16043824Ferrari Bolt M8 x 30 - 16043824$0.86Available, ships in 3-6 days
100808Ferrari Bolt - 100808SupersededOrder 106419 instead
601475Ferrari Bolt - 601475SupersededOrder 106419 instead
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
16505121Ferrari Nut - 16505121SupersededOrder 148020 instead
16102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
103263Ferrari Shock Absorber Dust cover - 103263$70.26Available, ships in 3-6 days
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601579Ferrari Washer - 12601579SupersededOrder 12601574 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead

All 512 BB (Carburetor) diagrams
