Ferrari 512 BB (Carburetor) — Rear Suspension Hub And Brake Disc (diagram 033)

Exploded view of the rear suspension hub and brake disc on the Ferrari 512 BB (Carburetor), with 47 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

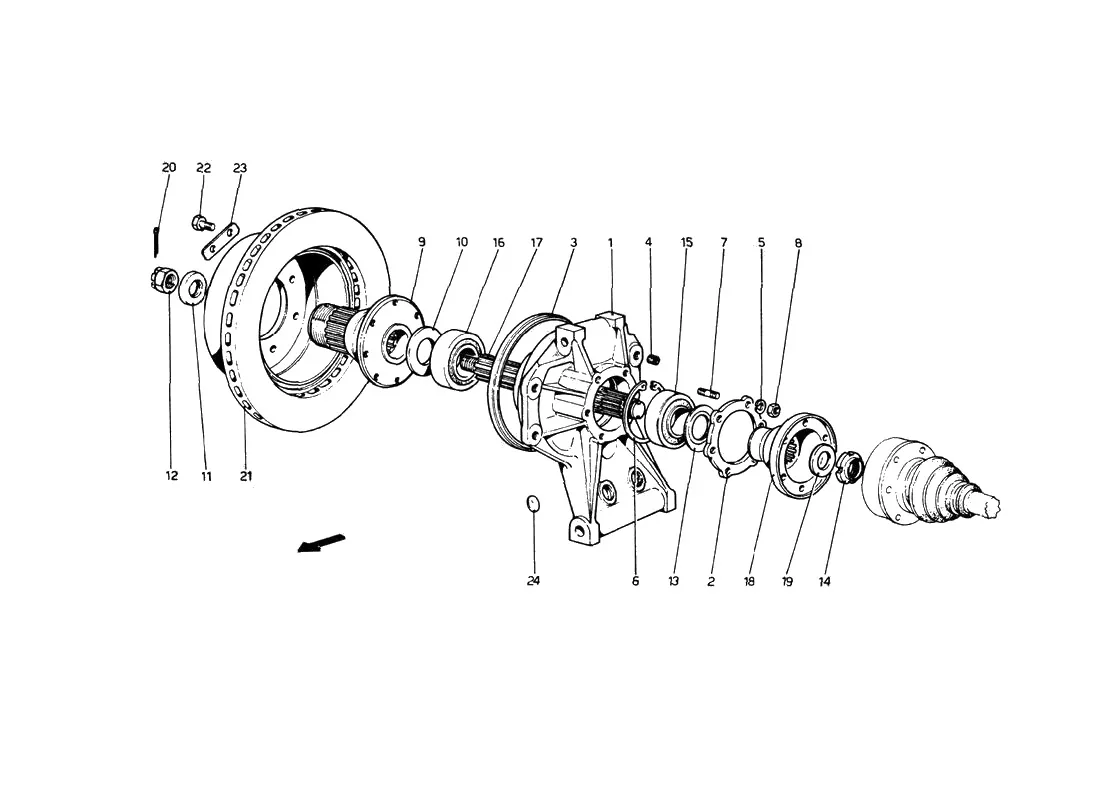

Ferrari 512 BB (Carburetor) Rear Suspension Hub And Brake Disc exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1106917Ferrari Rear Hub Carrier Complete - 106917Price on requestContact us for price and availability
1106253Ferrari Rear Hub Carrier - 106253Price on requestContact us for price and availability
2101540Ferrari Retaining Plate - 101540$165.98Available, ships in 3-6 days
3103117Ferrari Cover - 103117$125.45Available, ships in 3-6 days
4105621Ferrari Heli Coil - 105621SupersededOrder 13524570 instead
413524570Ferrari Heli Coil - 13524570$6.10Available, ships in 3-6 days
5127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
510516671Ferrari Washer - 10516671SupersededOrder 127496 instead
611061575Ferrari Ring - 11061575SupersededOrder 11061576 instead
713543121Ferrari Stud - 13543121SupersededOrder 13543124 instead
816102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
816100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
9103120Ferrari RH Rear Wheel Hub - 103120Price on requestContact us for price and availability
9103119Ferrari LH Rear Wheel Hub - 103119Price on requestContact us for price and availability
10101212Ferrari Spacer - 101212Price on requestContact us for price and availability
11101213Ferrari Washer - 101213Price on requestContact us for price and availability
1210723021Ferrari RH Thread Castellated Nut - 10723021$106.43Available, ships in 3-6 days
12101223Ferrari LH Thread Castle Nut - 101223Price on requestContact us for price and availability
13101216Ferrari Dust Cover - 101216$59.42Special order, ships in 7-14 days
14RNT45Ferrari 308/328 Clutch / Trans Groove Nut Socket - RNT45$104.50In stock
14102289Ferrari Ring Nut - Rear Suspension - 102289$36.14In stock
14102290Ferrari Rear Hub Inner Flange Lock Nut - 102290$90.45In stock
15101220Ferrari Rear Outer Wheel Bearing - 101220$79.20In stock
15101220KIT1Ferrari 308 2V Rear Wheel Bearing & Seal Kit - 101220KIT1$181.50In stock
15101220KIT2Ferrari 308 QV Rear Wheel Bearing & Seal Kit - 101220KIT2$181.50In stock
16101221Ferrari Rear Inner Wheel Bearing - 101221$88.45In stock
17103647Ferrari LH Rear Hub Shaft - 103647Price on requestContact us for price and availability
17103646Ferrari RH Rear Hub Shaft - 103646Price on requestContact us for price and availability
18104604Ferrari Drive Coupling - 104604$1,062.50Available, ships in 3-6 days
19105511Ferrari Washer - 105511Price on requestContact us for price and availability
2010734801Ferrari Front Hub Split Pin 3.7X35mm - 10734801$1.15Available, ships in 3-6 days
2010734901Ferrari Split Pin 3.4 x 40 - 10734901$1.15Available, ships in 3-6 days
21101260/2Ferrari 365/512 Rear Brake Disc Rotor Pair - 101260/2$1,995.98In stock
22101265Ferrari Bolt - 101265$50.96Available, ships in 3-6 days
23101267Ferrari Rear Hub Lock Tab - 101267$11.45In stock
2410159201Ferrari Plug - 10159201$1.50Available, ships in 3-6 days
2410159250Ferrari Plug - 10159250$4.56Available, ships in 3-6 days
111521Ferrari Drive Coupling - 111521$451.03Available, ships in 3-6 days
600939Ferrari Dust Cover - 600939Price on requestContact us for price and availability
104166Ferrari Hub - 104166Price on requestContact us for price and availability
94970Ferrari LH Nut - 94970Price on requestContact us for price and availability
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
700554Ferrari Rear Hub Spacer - 700554Price on requestContact us for price and availability
16102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
13543124Ferrari Stud Bolt M8x16 -Stem 16mm - 13543124$13.53Special order, ships in 7-14 days
700477Ferrari Washer - 700477Price on requestContact us for price and availability

All 512 BB (Carburetor) diagrams
