Ferrari 512 BB (Carburetor) — Air Conditioning System (diagram 038)

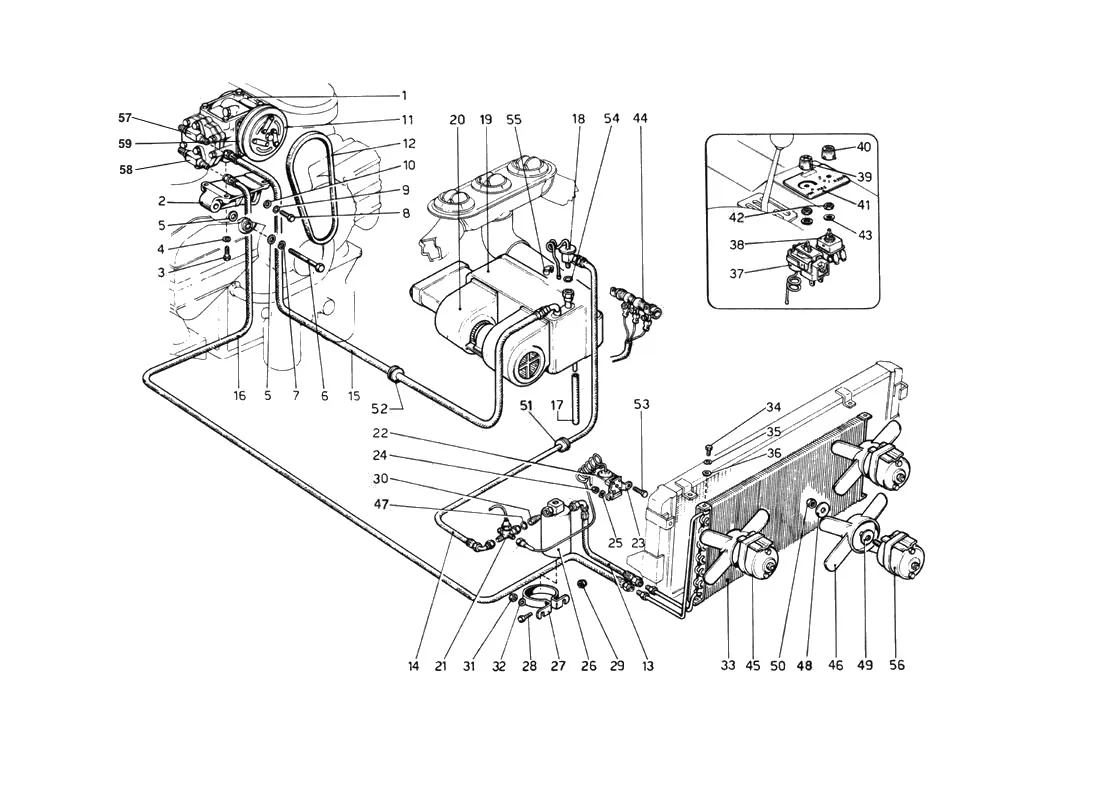

Exploded view of the air conditioning system on the Ferrari 512 BB (Carburetor), with 91 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Air Conditioning System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1115776Ferrari A/C Compressor - 115776$852.50In stock
1106607Ferrari A/C Compressor - 106607$1,838.49Available, ships in 3-6 days
2104529Ferrari Support - 104529Price on requestContact us for price and availability
3102916Ferrari Bolt - 102916$16.94Available, ships in 3-6 days
411198371Ferrari Washer - 11198371$0.44Available, ships in 3-6 days
5103024Ferrari Washer - 103024Price on requestContact us for price and availability
611360221Ferrari Bolt - 11360221Price on requestContact us for price and availability
795930517Ferrari Spring Washer - 95930517$0.25Available, ships in 3-6 days
710517171Ferrari Spring Washer 14mm - 10517171$0.25Available, ships in 3-6 days
815970921Ferrari Bolt M10 x 1.25 x 35 - 15970921$0.71Available, ships in 3-6 days
9127497Ferrari Spring Washer 10mm - 127497$0.69In stock
910516871Ferrari Washer - 10516871SupersededOrder 127497 instead
10105391Ferrari Washer - 105391$4.16Available, ships in 3-6 days
11105246Ferrari Air Compressor Clutch - 105246Price on requestContact us for price and availability
12105317Ferrari AC Belt - 105317$59.45In stock
13106640Ferrari A.C. Pipe - 106640Price on requestContact us for price and availability
14110964Ferrari AC Tube LHD - 110964Price on requestContact us for price and availability
14109920Ferrari Tube - 109920Price on requestContact us for price and availability
15109921Ferrari Tube - 109921Price on requestContact us for price and availability
16106643Ferrari A.C. Pipe - 106643Price on requestContact us for price and availability
17106710Ferrari Drain Tube - 106710Price on requestContact us for price and availability
18106644Ferrari Valve - 106644SupersededOrder 60929600 instead
19109818Ferrari Air Con System - 109818Price on requestContact us for price and availability
19109931Ferrari Evapourator LHD - 109931Price on requestContact us for price and availability
20109039Ferrari Motor & Fan Assy - 109039Price on requestContact us for price and availability
21106646Ferrari Pressure Stat - 106646Price on requestContact us for price and availability
22107213Ferrari Pressure Stat Complete - 107213Price on requestContact us for price and availability
22100460Ferrari Switch AirCon - 100460$153.05Available, ships in 3-6 days
22129102/AFerrari Pressostat - 129102/A$152.15Available, ships in 3-6 days
23106498Ferrari Support - 106498$18.71Available, ships in 3-6 days
2415896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
2512601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
2512601278Ferrari Washer - 12601278$0.19Available, ships in 3-6 days
26106647Ferrari Receiver Drier - 106647$141.90In stock
26107214Ferrari Dryer Complete - 107214$322.04Special order, ships in 7-14 days
27105899Ferrari Bracket - 105899$44.62Available, ships in 3-6 days
2810903231Ferrari Bolt - 10903231Price on requestContact us for price and availability
29102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2912574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
30107402Ferrari Dryer Bottle Union - 107402$67.26Available, ships in 3-6 days
31104030Ferrari/Maserati Nut - 104030$0.88In stock
3116104411Ferrari Nyloc Nut M8 x 8.5 - 16104411$0.46Available, ships in 3-6 days
3210519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
3210519621Ferrari Washer - 10519621SupersededOrder 10519624 instead
33106648Ferrari Ac Condenser - 106648Price on requestContact us for price and availability
3410902124Ferrari Screw - 10902124$0.29In stock
3410902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
3511197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
3511197773Ferrari Washer - 11197773SupersededOrder 11197774 instead
3612643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
37109819Ferrari Thermostat - 109819$343.72In stock
3761931100/AFerrari Thermostat Switch - 61931100/A$177.48Available, ships in 3-6 days
38101990Ferrari Switch Commutator AC - 101990$259.57Available, ships in 3-6 days
38101990/AFerrari Switch Commutator AC - 101990/A$258.04Available, ships in 3-6 days
39105907Ferrari AC Knob - 105907$344.64Available, ships in 3-6 days
40105908Ferrari Fan Speed Knob - 105908$349.25Available, ships in 3-6 days
41109820Ferrari AC Information Plate - 109820$82.50In stock
42105911Ferrari Nut - 105911$6.10Available, ships in 3-6 days
43107144Ferrari Washer - 107144Price on requestContact us for price and availability
44107142Ferrari Resistor - 107142$457.11Available, ships in 3-6 days
45109852Ferrari Fan Motor - 109852Price on requestContact us for price and availability
46107175Ferrari Fan Blade - 107175$130.22Available, ships in 3-6 days
47103039Ferrari O-Ring - 103039$1.65In stock
48109483Ferrari Washer - 109483$3.47Available, ships in 3-6 days
49109482Ferrari Washer - 109482$8.78Special order, ships in 7-14 days
50109481Ferrari Nut - 109481$0.11Special order, ships in 7-14 days
51102251Ferrari Cap - 102251$20.09Available, ships in 3-6 days
52102250Ferrari Cap - 102250$14.72Available, ships in 3-6 days
5317668901Ferrari Screw - 17668901$0.63Available, ships in 3-6 days
54107216Ferrari O-Ring - 107216$6.38Available, ships in 3-6 days
55109252Ferrari Clip - 109252$18.44Available, ships in 3-6 days
56119447Ferrari 308 Radiator Fan And Motor - 119447$317.90In stock
56119447MFerrari 308 Radiator Fan Motor Only - 119447M$255.00In stock
56109826Ferrari Fan Motor - 109826$483.73Available, ships in 3-6 days
57MC3994/10Ferrari A/C Green HnbrO-Ring Size No 6 - MC3994/10$2.03Available, ships in 3-6 days
58MC3994/11Ferrari A/C Green HnbrO-Ring Seal 14Mm Id - MC3994/11Price on requestSpecial order, ships in 7-14 days
59101016Ferrari Suspension Spacing Washer 12.5 - 30 x 3.2 - 101016$7.85Available, ships in 3-6 days
60929600Ferrari AC Expansion Valve - 60929600$163.68In stock
60183605Ferrari Air Conditioning Kit LHD - 60183605Price on requestContact us for price and availability
95880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
110916Ferrari Fan Blade (4-Blade) - 110916SupersededOrder 107175 instead
105820Ferrari Fan Blade - 105820SupersededOrder 107175 instead
36164Ferrari Fan Blade - 36164SupersededOrder 107175 instead
103474Ferrari Fan Motor - 103474Price on requestContact us for price and availability
102029Ferrari Motor - 102029Price on requestContact us for price and availability
36153Ferrari Motor - 36153Price on requestContact us for price and availability
40166506Ferrari Pipe - 40166506Price on requestContact us for price and availability
105913Ferrari Switch - 105913Price on requestContact us for price and availability
320395Ferrari Switch - 320395Price on requestContact us for price and availability
-109817Ferrari Air Conditioning Kit LHD - 109817Price on requestContact us for price and availability
-110956Ferrari Air Conditioning Kit RHD - 110956$1,869.30Available, ships in 3-6 days
