Ferrari 512 BB (Carburetor) — Throttle Control (For RHD Version) (diagram 040)

Exploded view of the throttle control (for rhd version) on the Ferrari 512 BB (Carburetor), with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

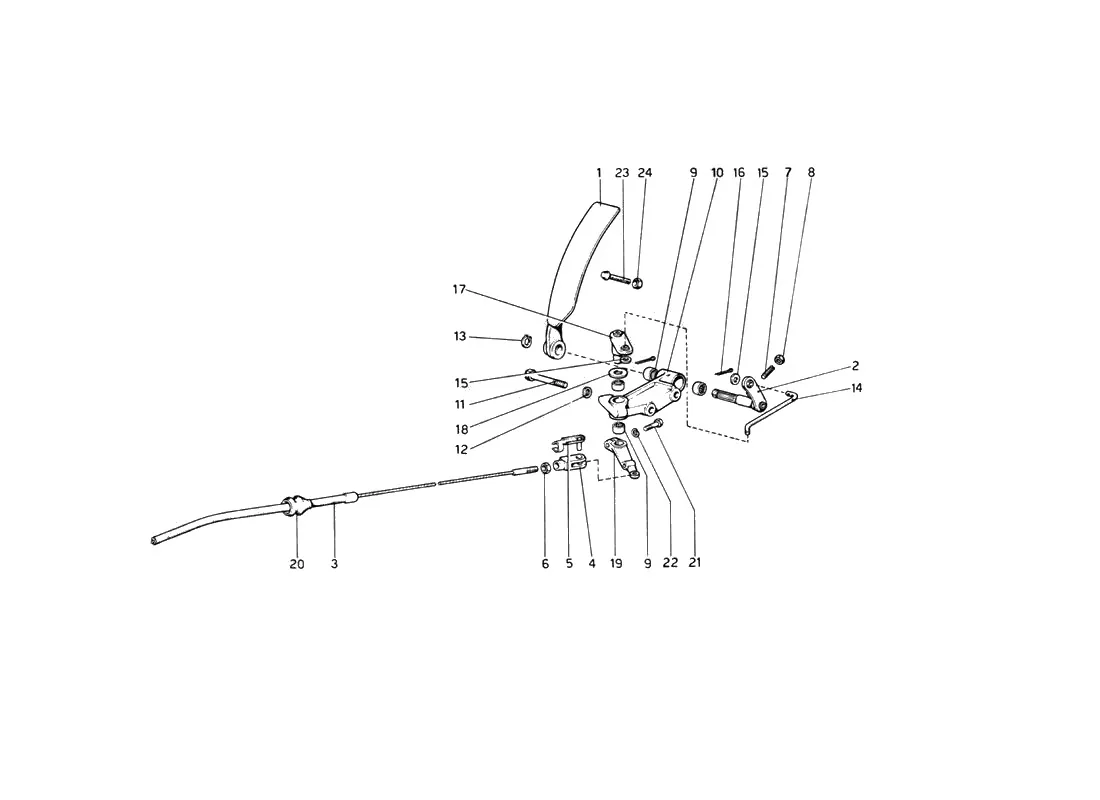

Ferrari 512 BB (Carburetor) Throttle Control (For RHD Version) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1105562Ferrari Accelerator Pedal - 105562Price on requestContact us for price and availability
2106315Ferrari Pin Lever - 106315$181.87Available, ships in 3-6 days
3106317Ferrari Throttle Cable (RHD) - 106317$152.14Available, ships in 3-6 days
4100655Ferrari RH Threaded Fork - 100655Price on requestContact us for price and availability
5100656Ferrari Linkage Clip - 100656$4.41Available, ships in 3-6 days
610725911Ferrari RH Thread Nut 6mm - 10725911SupersededOrder 10725914 instead
610725914Ferrari Nut M6 x 4 - 10725914$0.19Available, ships in 3-6 days
713708910Ferrari Pedal Stop Screw - 13708910$0.82Available, ships in 3-6 days
815896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
815896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
9101677Ferrari Roller Bearing - 101677$14.85Available, ships in 3-6 days
10110933Ferrari Support - 110933Price on requestContact us for price and availability
1116136321Ferrari Bolt - 16136321$1.59Available, ships in 3-6 days
1212601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
1212601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
1311066076Ferrari Snap Ring - 11066076Price on requestContact us for price and availability
14106297Ferrari Tie Rod - 106297$22.08Available, ships in 3-6 days
1512643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
1610743201Ferrari Split Pin - 10743201Price on requestContact us for price and availability
17107158Ferrari Lever Pin - 107158$236.73Available, ships in 3-6 days
18107826Ferrari Washer - 107826$5.33Available, ships in 3-6 days
19110934Ferrari Lever - 110934$180.68Available, ships in 3-6 days
20106313Ferrari Boot - 106313$13.46Available, ships in 3-6 days
2116043424Ferrari Bolt M8 x 20 - 16043424$0.38Available, ships in 3-6 days
2116043421Ferrari Bolt - 16043421SupersededOrder 16043424 instead
22127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
22106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
23100640Ferrari Screw - 100640$10.20Available, ships in 3-6 days
2416102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
2416102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
11066075Ferrari Circlip Aa12e Ext - 11066075Price on requestContact us for price and availability
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102315Ferrari Nut - 16102315SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
16100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
106293Ferrari Support - 106293Price on requestContact us for price and availability
107154Ferrari Support - 107154Price on requestContact us for price and availability

All 512 BB (Carburetor) diagrams
