Ferrari 512 BB (Carburetor) — Clutch Release Control (For RHD Version) (diagram 041)

Exploded view of the clutch release control (for rhd version) on the Ferrari 512 BB (Carburetor), with 77 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

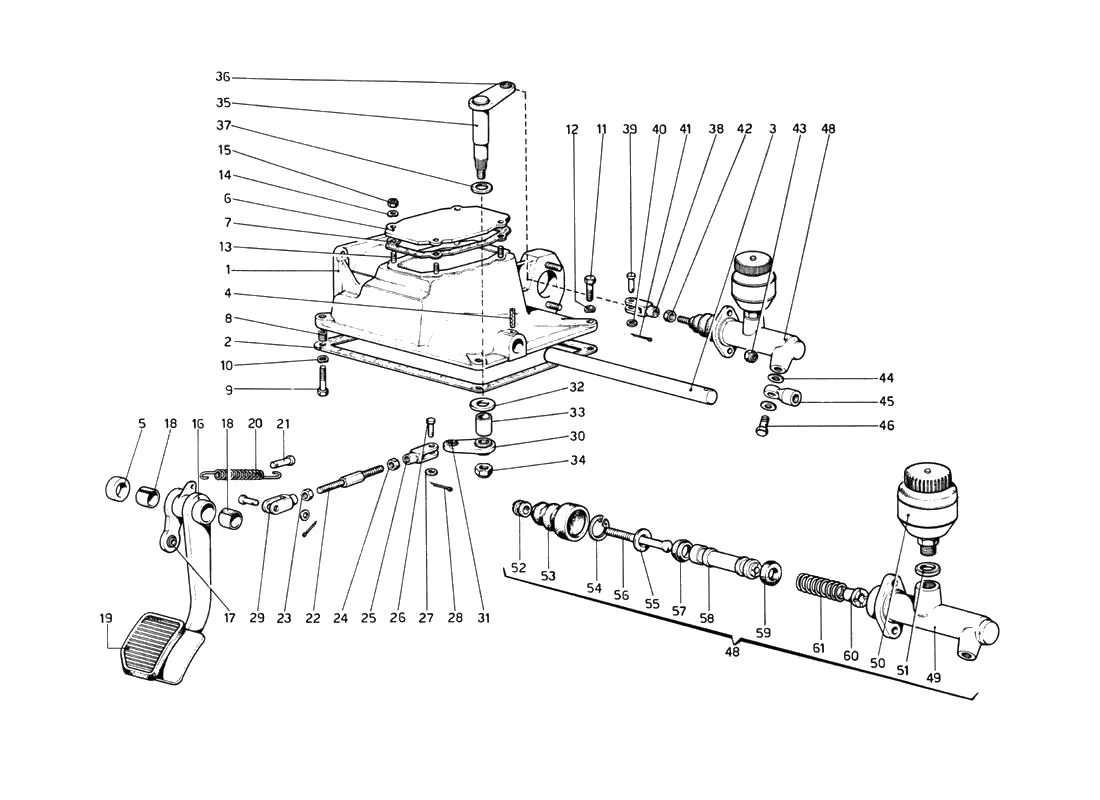

Ferrari 512 BB (Carburetor) Clutch Release Control (For RHD Version) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1109418Ferrari Pedal Support Housing Complete RHD - 109418Price on requestContact us for price and availability
1109291Ferrari Pedal Support RHD - 109291Price on requestContact us for price and availability
2109419Ferrari Gasket - 109419$25.84Available, ships in 3-6 days
3104900Ferrari Pin - 104900$179.17Available, ships in 3-6 days
4104901Ferrari Roll Pin - 104901$2.99Available, ships in 3-6 days
5106110Ferrari Spacer - 106110$35.78Available, ships in 3-6 days
6104904Ferrari Cover RHD - 104904Price on requestContact us for price and availability
7104905Ferrari Gasket - 104905$15.16Available, ships in 3-6 days
8105510Ferrari Heli Coil - 105510SupersededOrder 13525870 instead
916043624Ferrari Screw - 16043624$0.85In stock
916043621Ferrari Screw - 16043621SupersededOrder 16043624 instead
10127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1010516671Ferrari Washer - 10516671SupersededOrder 127496 instead
1116139021Ferrari Bolt - 16139021$5.31Available, ships in 3-6 days
1212601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
1212601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
1311500021Ferrari Stud - 11500021Price on requestContact us for price and availability
1412601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
1412601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
1515896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
16109406Ferrari Clutch Pedal - 109406$642.70Available, ships in 3-6 days
17109407Ferrari Ball Joint - 109407$60.28In stock
18103163Ferrari Bush - 103163$12.21Available, ships in 3-6 days
19106949Ferrari Clutch Pedal Pad - 106949$19.88In stock
20104895Ferrari Spring - 104895$41.06Available, ships in 3-6 days
21104896Ferrari Clevis Pin - 104896$46.94Available, ships in 3-6 days
22109409Ferrari Tie Rod - 109409$79.56Available, ships in 3-6 days
2316102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
2316102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
2416102911Ferrari LH Thread Nut - 16102911SupersededOrder 16102914 instead
2416102914Ferrari Nut E M8 x 5 LH Thread - 16102914$10.25Available, ships in 3-6 days
25109410Ferrari Joint - 109410Price on requestContact us for price and availability
2610050810Ferrari Pin - 10050810SupersededOrder 10050814 instead
2712642721Ferrari Washer - 12642721$4.56Available, ships in 3-6 days
2810734208Ferrari Split Pin D. 2 x 12 - 10734208$0.06Available, ships in 3-6 days
2810734201Ferrari Split Pin - 10734201SupersededOrder 10734208 instead
2910248271Ferrari Fork - 10248271Price on requestContact us for price and availability
30109411Ferrari Lever - 109411$292.89Available, ships in 3-6 days
32106084Ferrari Washer - 106084$10.35Available, ships in 3-6 days
33109414Ferrari Tube - 109414$16.41Available, ships in 3-6 days
34148020Ferrari Nut - 148020$7.65In stock
3416105111Ferrari Self-Locking Nut - 16105111$8.51Available, ships in 3-6 days
35109415Ferrari Lever - 109415$309.58Available, ships in 3-6 days
37109417Ferrari Washer - 109417$20.72Available, ships in 3-6 days
3810007871Ferrari Fork - 10007871$23.29Available, ships in 3-6 days
43104030Ferrari/Maserati Nut - 104030$0.88In stock
4316104111Ferrari Nut - 16104111SupersededOrder 104030 instead
4410298460Ferrari Washer - 10298460$1.10In stock
45108867Ferrari Union - 108867Price on requestContact us for price and availability
46108868Ferrari Union - 108868$251.83Special order, ships in 7-14 days
48109420Ferrari RHD Clutch Master Cylinder - 109420Price on requestContact us for price and availability
49111265Ferrari Pump Case - 111265Price on requestContact us for price and availability
50111263Ferrari Reservoir - 111263$102.31Available, ships in 3-6 days
51111264Ferrari Gasket - 111264$4.20Available, ships in 3-6 days
52111270Ferrari Adjuster Nut - 111270$13.90Available, ships in 3-6 days
53111269Ferrari Rubber Boot - 111269$43.60Available, ships in 3-6 days
54111267Ferrari Ring - 111267$1.99Available, ships in 3-6 days
55111266Ferrari Circlip - 111266$2.40Available, ships in 3-6 days
56111268Ferrari Pin - 111268$16.41Available, ships in 3-6 days
57111261Ferrari Seal - 111261$50.39Available, ships in 3-6 days
58111260Ferrari Piston Clutch Cylinder - 111260$69.17Available, ships in 3-6 days
59111259Ferrari Seal - 111259Price on requestContact us for price and availability
60111256Ferrari Clutch Cylinder - 111256$6.42Available, ships in 3-6 days
61111258Ferrari Spring - 111258$22.50Available, ships in 3-6 days
106526Ferrari Bolt - 106526SupersededOrder 16043624 instead
16043611Ferrari Bolt - 16043611SupersededOrder 16043624 instead
10050811Ferrari Clevis Pin - 10050811SupersededOrder 10050814 instead
10050814Ferrari Clevis Pin D. 8 x 22 - 10050814$4.75Special order, ships in 7-14 days
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102315Ferrari Nut - 16102315SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
16100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
11500024Ferrari Short Stud - 11500024$0.54Available, ships in 3-6 days
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
