Ferrari 512 TR — Bumpers (diagram 106)

Exploded view of the bumpers on the Ferrari 512 TR, with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

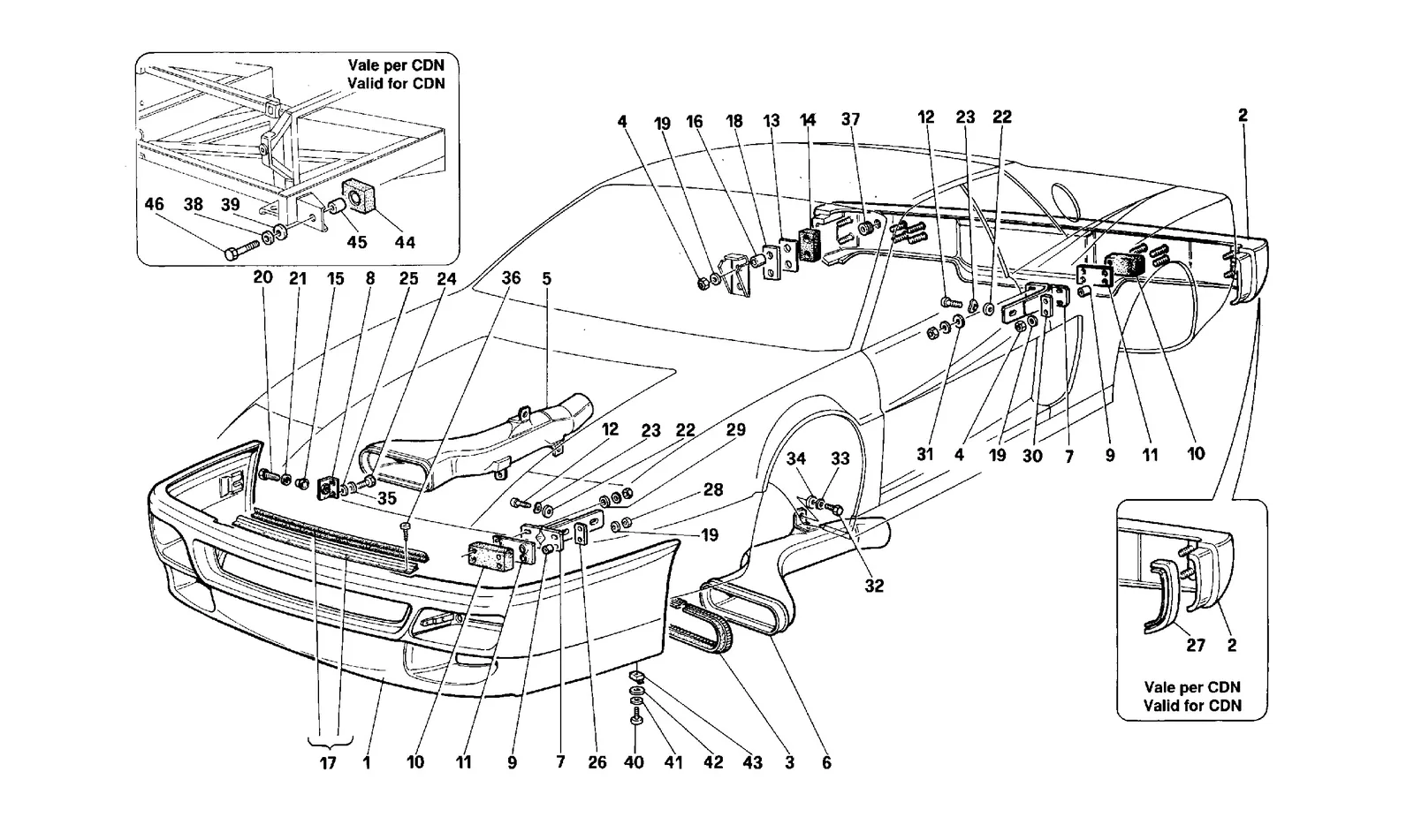

Ferrari 512 TR Bumpers exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
163027300Ferrari Front Bumper Panel Complete - 63027300$8,845.69Available, ships in 3-6 days
163100600Ferrari Front Bumper - 63100600Price on requestContact us to order
163106100Ferrari Front Bumper - 63106100$5,093.24Contact us to order
163027300/AFerrari Front Bumper Panel Without Brackets - 63027300/A$8,845.69Available, ships in 3-6 days
263692410Ferrari Rear Bumper - 63692410Price on requestContact us to order
263687610Ferrari Rear Bumper - 63687610$3,528.71Contact us to order
263102000Ferrari Rear Bumper - 63102000$4,455.68Contact us to order
363087600Ferrari Gasket - 63087600Price on requestContact us for price and availability
412577211Ferrari Nyloc Nut - 12577211$0.57Available, ships in 3-6 days
563028800Ferrari RH Air Intake - 63028800$381.82Available, ships in 3-6 days
663028900Ferrari LH Air Intake - 63028900$603.67Available, ships in 3-6 days
763022500Ferrari Bumper Brackets Front/Rear - 63022500Price on requestContact us for price and availability
763106300Ferrari LH Bumper Iron - 63106300$208.23Available, ships in 3-6 days
763106200Ferrari RH Bumper Iron - 63106200$193.68Available, ships in 3-6 days
863083700Ferrari Bracket - 63083700Price on requestContact us for price and availability
961492100Ferrari Spacer - 61492100Price on requestContact us for price and availability
961547600Ferrari Spacer - 61547600$2.32Available, ships in 3-6 days
1061492200Ferrari Rubber Pad - 61492200$188.96Available, ships in 3-6 days
1161492300Ferrari Bumper Spacer Plate - 61492300$45.00In stock
1214309434Ferrari Allen Screw - 14309434$1.67Available, ships in 3-6 days
1361532500Ferrari Plate - 61532500$8.59Available, ships in 3-6 days
1461532400Ferrari Pad - 61532400Price on requestContact us for price and availability
1561543900Ferrari Spacer - 61543900$70.88Available, ships in 3-6 days
1663049600Ferrari Spacer - 63049600$1.57Available, ships in 3-6 days
1761537400Ferrari Gasket - 61537400$107.30Available, ships in 3-6 days
1863677100Ferrari Spacer - 63677100$35.04Available, ships in 3-6 days
1912626221Ferrari Washer - 12626221SupersededOrder 12626224 instead
2062766400Ferrari Bumper Bolts - 62766400$18.17Available, ships in 3-6 days
2112646801Ferrari Washer - 12646801$2.61Available, ships in 3-6 days
2212646970Ferrari Washer - 12646970Price on requestContact us for price and availability
23127498Ferrari Spring Washer 12mm - 127498$0.27Available, ships in 3-6 days
2410902424Ferrari Bolt M6 x 20 - 10902424$0.27Available, ships in 3-6 days
2512648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
2512643770Ferrari Washer - 12643770SupersededOrder 12648978 instead
2663049900Ferrari Plate - 63049900$56.27Available, ships in 3-6 days
2663460200Ferrari Plate - 63460200Price on requestContact us for price and availability
2763104100Ferrari LH Plate - 63104100$22.08Available, ships in 3-6 days
2763104000Ferrari RH Plate - 63104000Price on requestContact us for price and availability
28102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
2912644364Ferrari Washer D.10.20-35x - 12644364$1.53Available, ships in 3-6 days
2912644301Ferrari Washer - 12644301$1.36Available, ships in 3-6 days
33127494Ferrari Lock Washer - 127494$0.50In stock
3412640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
3615688875Ferrari Self Tapping Screw - 15688875$0.17Available, ships in 3-6 days
3762770500Ferrari Cable Grommet - 62770500$2.32Available, ships in 3-6 days
38127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
38106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
3912647021Ferrari Washer - 12647021$0.57Special order, ships in 7-14 days
4360758600Ferrari Caged Captive Nut 6mm - 60758600$1.09Available, ships in 3-6 days
4461547700Ferrari Pad - 61547700$55.83Available, ships in 3-6 days
4561564900Ferrari Bush - 61564900Price on requestContact us for price and availability
4616043624Ferrari Screw - 16043624$0.85In stock
4616043621Ferrari Screw - 16043621SupersededOrder 16043624 instead
106526Ferrari Bolt - 106526SupersededOrder 16043624 instead
10902426Ferrari Bolt - 10902426SupersededOrder 10902424 instead
16043611Ferrari Bolt - 16043611SupersededOrder 16043624 instead
10902421Ferrari Bolt M6 - 10902421$0.25Available, ships in 3-6 days
12575611Ferrari Nut - 12575611SupersededOrder 102742 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
106229Ferrari Washer - 106229SupersededOrder 12646801 instead
12647001Ferrari Washer - 12647001SupersededOrder 12647021 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
83220900Ferrari Washer - 83220900SupersededOrder 12646801 instead

All 512 TR diagrams
