Ferrari 550 Barchetta — Cooling System - Radiator And Nourice (diagram 026)

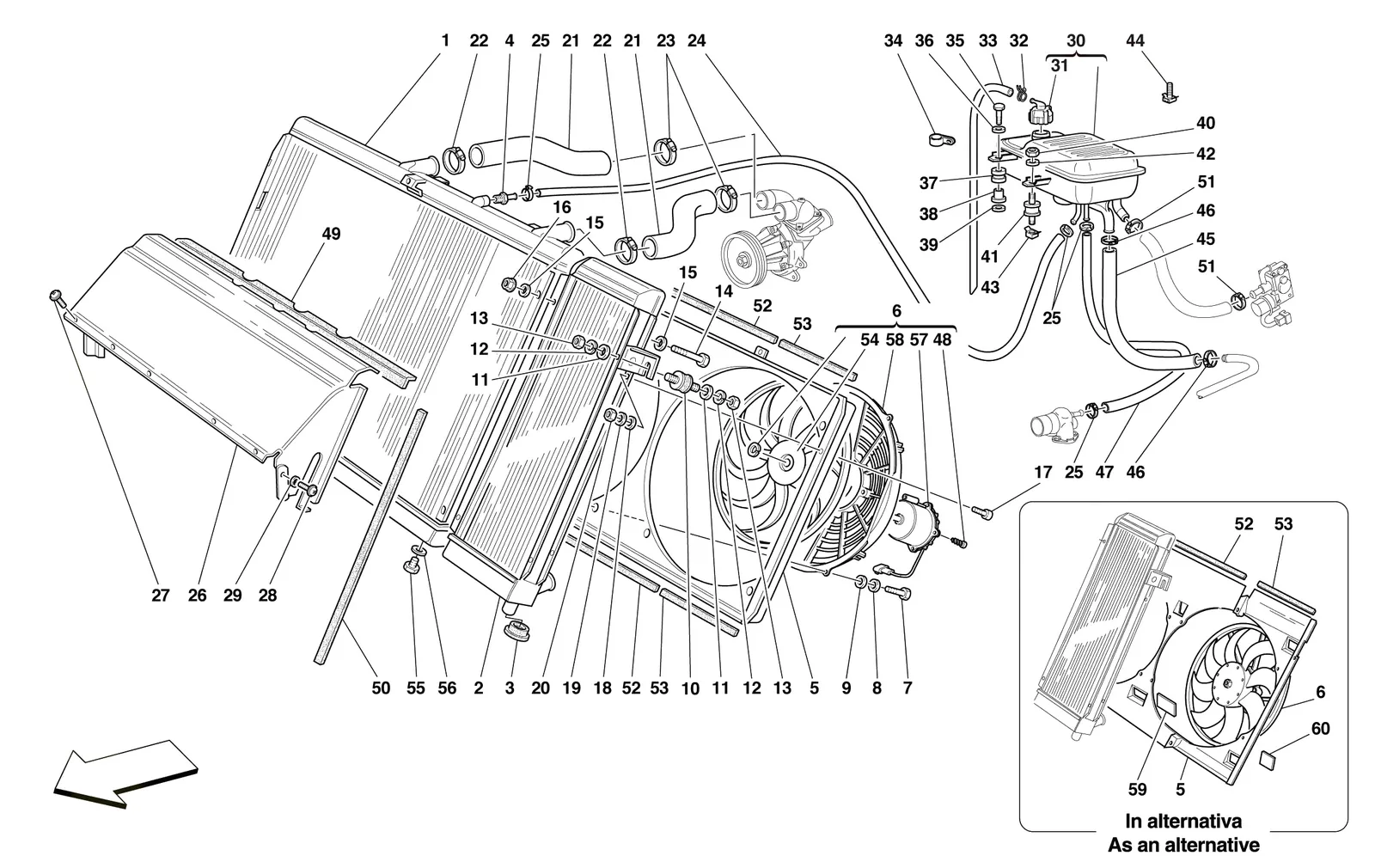

Exploded view of the cooling system - radiator and nourice on the Ferrari 550 Barchetta, with 95 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 550 Barchetta Cooling System - Radiator And Nourice exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1171772Ferrari Water Radiator - 171772$10,977.66Special order, ships in 7-14 days
2168213Ferrari Oil Cooler Radiator - 168213$3,362.58Available, ships in 3-6 days
3138926Ferrari Rubber Spacer - 138926$8.72Available, ships in 3-6 days
4157160Ferrari Union - 157160Price on requestContact us for price and availability
4174220Ferrari Union - 174220$217.83Special order, ships in 7-14 days
5181601Ferrari Fan Cowling - 181601$665.73Available, ships in 3-6 days
5165134Ferrari Fan Cowling - 165134$391.61Special order, ships in 7-14 days
6160910Ferrari Radiator Fan Complete - 160910$1,125.95Special order, ships in 7-14 days
6181604Ferrari Radiator Fan Complete - 181604$832.22Special order, ships in 7-14 days
710977824Ferrari Screw - 10977824$3.89Available, ships in 3-6 days
8127493Ferrari Spring Washer 5mm - 127493$0.17Available, ships in 3-6 days
912637824Ferrari Washer - 12637824$0.13Available, ships in 3-6 days
10157650Ferrari Mount - 157650$22.50Special order, ships in 7-14 days
1112646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
12127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
13133989Ferrari Plain Nut M8 x 1.25 x 6.5 - 133989$0.84Available, ships in 3-6 days
1415201024Ferrari Screw - 15201024Price on requestContact us for price and availability
1614058311Ferrari Flanged Nut M5 x 5 - 14058311$0.46Available, ships in 3-6 days
1714305224Ferrari Screw 6x16 - 14305224$0.96Available, ships in 3-6 days
1714305221Ferrari Screw M6 x 16 - 14305221$0.17Available, ships in 3-6 days
1812648224Ferrari Washer - 12648224$0.54Available, ships in 3-6 days
19127494Ferrari Lock Washer - 127494$0.50In stock
2015896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
21AW5456000Ferrari 456 Silicone Cooling Hose Kit - AW5456000$438.90In stock
21AW5550000Ferrari 550/575 Silicone Cooling Hose Kit - AW5550000$493.90In stock
21179037Ferrari 456/550/575 Upper Radiator Hose - 179037$93.50In stock
2213000690Ferrari/Maserati Hose Clamp - 13000690$1.49In stock
24171668Ferrari Vent Pipe - 171668$113.12Special order, ships in 7-14 days
24167465Ferrari Vent Pipe - 167465$304.58Special order, ships in 7-14 days
25177995Ferrari Clamp - 177995$2.18Available, ships in 3-6 days
2665206300Ferrari Air Conveyer - 65206300$1,542.07Special order, ships in 7-14 days
2762940900Ferrari Allen Head Screw M6 x 15 TBEI - 62940900$2.59Available, ships in 3-6 days
2814305234Ferrari Allen Head Bolt M6 x 16 - 14305234$0.50Available, ships in 3-6 days
2814305287Ferrari Screw - 14305287Price on requestContact us for price and availability
29106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
30171974Ferrari Water Header Tank LHD - 171974$1,841.62Special order, ships in 7-14 days
30171327Ferrari Water Header Tank RHD - 171327Price on requestContact us for price and availability
31145030Ferrari Radiator Cap - 145030$89.98In stock
3213423171Ferrari Clip - 13423171Price on requestContact us for price and availability
33156082Ferrari Overflow Pipe - 156082$115.94Available, ships in 3-6 days
34156083Ferrari Fixing Clip - 156083$0.92Special order, ships in 7-14 days
3510902624Ferrari Screw TE M6 x 25 - 10902624$0.27Available, ships in 3-6 days
37103549Ferrari Grommet - 103549$2.80In stock
38149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
3912643724Ferrari/Maserati Washer - 12643724$0.20In stock
41102947Ferrari Vibration Dampening Support - 102947$8.31In stock
4360659100Ferrari Caged Captive Nut 6mm - 60659100$1.72Available, ships in 3-6 days
4414662995Ferrari Screw - 14662995$3.24Available, ships in 3-6 days
45169769Ferrari Water Hose - 169769SupersededOrder 194911 instead
45190231Ferrari Water Hose - 190231SupersededOrder 194911 instead
4613000490Ferrari Screw Collar 20-32mm - 13000490$1.53Available, ships in 3-6 days
47155618Ferrari Cooling Hose - 155618$26.24In stock
47157744Ferrari Water Hose RHD - 157744$53.41Available, ships in 3-6 days
48166550Ferrari Screw - 166550$17.15Special order, ships in 7-14 days
4963762800Ferrari Strip - 63762800Price on requestContact us for price and availability
5063882200Ferrari Strip - 63882200Price on requestContact us for price and availability
52181602Ferrari Gasket - 181602$2.80Available, ships in 3-6 days
52169382Ferrari Strip - 169382$2.20Available, ships in 3-6 days
53168346Ferrari Strip - 168346$1.36Available, ships in 3-6 days
53181603Ferrari Gasket - 181603$34.79Available, ships in 3-6 days
54164096Ferrari Fan Blade - 164096Price on requestContact us for price and availability
55174538Ferrari 550/575/612 Radiator Drain Plug - 174538$22.45In stock
55174538/AFerrari Radiator Drain Plug - 174538/A$23.61Available, ships in 3-6 days
56174539Ferrari O-Ring Seal - 174539$23.90Available, ships in 3-6 days
57153174Ferrari Fan Motor - 153174Price on requestContact us for price and availability
58152920Ferrari RH Air Inlet - 152920Price on requestContact us for price and availability
59155441Ferrari Strap - 155441$3.39Available, ships in 3-6 days
60183649Ferrari Blanking Cap - 183649$3.39Available, ships in 3-6 days
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
105303Ferrari Clamp - 105303SupersededOrder 13000690 instead
12173990Ferrari Clip - 12173990SupersededOrder 13000690 instead
12180290Ferrari Hose Clip 19-29 - 12180290SupersededOrder 13000490 instead
10169290Ferrari Hose Clip 26-30 - 10169290SupersededOrder 13000490 instead
12174090Ferrari Hose Clip 32-50 - 12174090SupersededOrder 13000690 instead
12177090Ferrari Hose Clip 32-50 - 12177090SupersededOrder 13000690 instead
104022Ferrari Jubilee Clip - 104022SupersededOrder 13000390 instead
12179990Ferrari Jubilee Clip 20-32mm - 12179990SupersededOrder 13000390 instead
102007Ferrari Mounting - 102007SupersededOrder 102947 instead
20456Ferrari Mounting - 20456SupersededOrder 102947 instead
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
106849Ferrari Spring Washer - 106849SupersededOrder 127493 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
11195471Ferrari Washer - 11195471SupersededOrder 127493 instead
11195473Ferrari Washer - 11195473SupersededOrder 127493 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
194911Ferrari Water Hose - 194911$76.55Available, ships in 3-6 days
