Ferrari 550 Maranello — Inside Gearbox Controls (diagram 034)

Exploded view of the inside gearbox controls on the Ferrari 550 Maranello, with 71 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

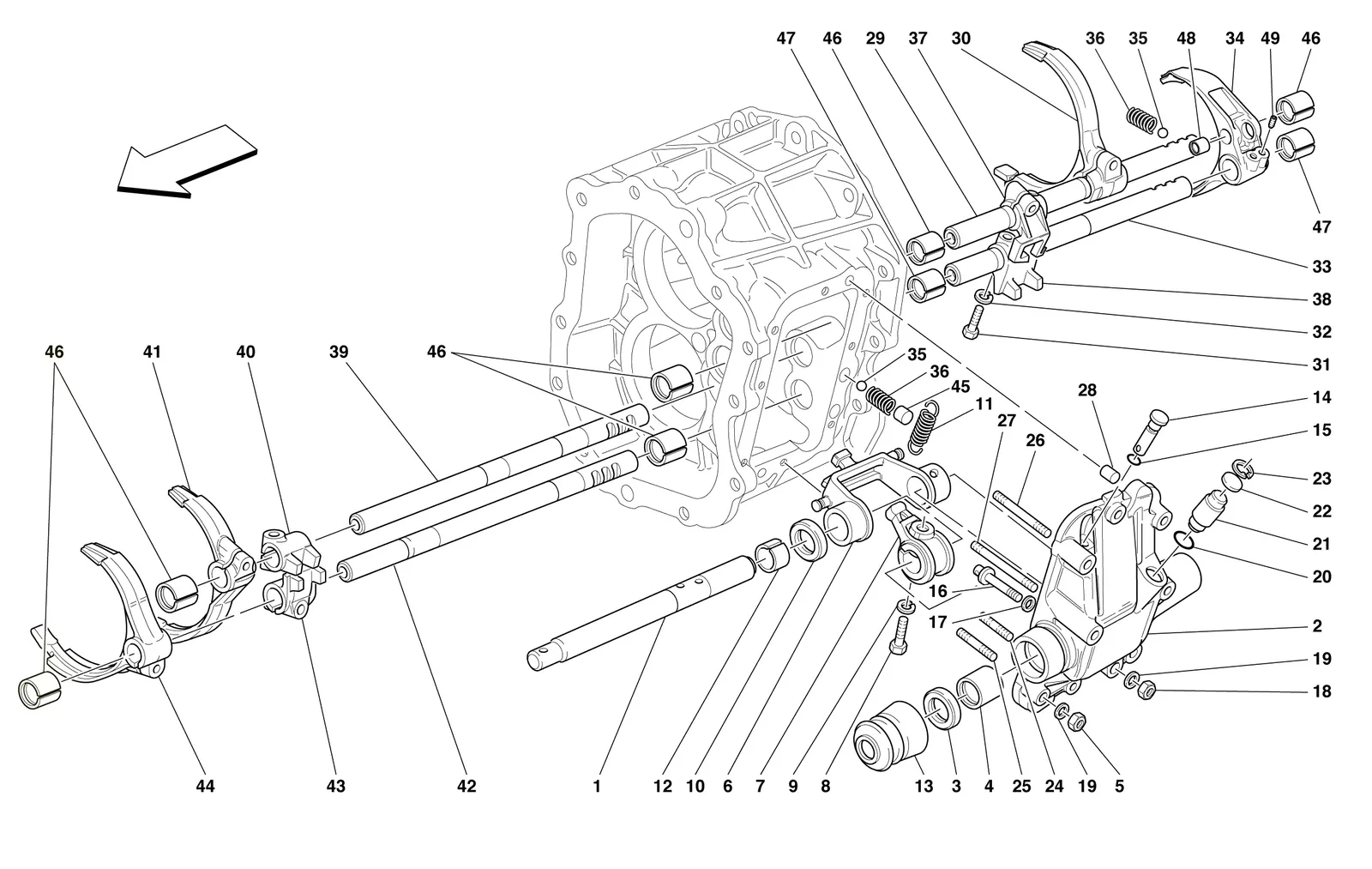

Ferrari 550 Maranello Inside Gearbox Controls exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1146224Ferrari Gearbox Control Rod Complete - 146224Price on requestContact us for price and availability
2153697Ferrari Gear Selector Case - 153697Price on requestContact us for price and availability
35007Gearbox Shaft Oil Seal - 146306$2.59In stock
4149907Ferrari Bush - 149907$70.02Available, ships in 3-6 days
515896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
515896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
6157623Ferrari Rocker - 157623Price on requestContact us for price and availability
7157624Ferrari Selector Lever - 157624$170.51Special order, ships in 7-14 days
7171832Ferrari Selector Lever - 171832SupersededOrder 157624 instead
811306934Ferrari Screw M10 x 1.25 x 30 - 11306934$1.04Available, ships in 3-6 days
9127497Ferrari Spring Washer 10mm - 127497$0.69In stock
10147346Ferrari Washer - D. 18.25 - 32 x 1.5 Antifriction - 147346$10.85Available, ships in 3-6 days
11150737Ferrari Spring - 150737Price on requestContact us for price and availability
12103226Ferrari Self Lubricating Bush - 103226$15.53Available, ships in 3-6 days
13147572Gear Linkage Boot-147572$53.74In stock
14154714Ferrari Pin - 154714Price on requestContact us for price and availability
15132934Ferrari O-Ring - 132934Price on requestContact us for price and availability
16150692Ferrari Pin - 150692$19.88Available, ships in 3-6 days
1710297760Ferrari/Maserati Copper Washer - 10297760$0.42In stock
1810720111Ferrari Nut M6 x 6 - 10720111$0.13Available, ships in 3-6 days
1912601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
20134232Ferrari O-Ring - 134232$2.59Available, ships in 3-6 days
21153719Ferrari Pin - 153719Price on requestContact us for price and availability
22154698Ferrari Disc - 154698Price on requestContact us for price and availability
2311057476Ferrari Circlip - 11057476$0.17Available, ships in 3-6 days
2413541224Ferrari Stud 6x12 -Shank length 22- - 13541224$71.17Available, ships in 3-6 days
2513541524Ferrari Stud 6x12 Stem 30 - 13541524Price on requestContact us for price and availability
2713542024Ferrari Stud 6x12 Stem 55 - 13542024$52.50Available, ships in 3-6 days
28125717Ferrari Dowel - 125717$6.32Available, ships in 3-6 days
29159676Ferrari Selector Shaft RM - 159676$749.26Special order, ships in 7-14 days
30159854Ferrari Selector Fork RM - 159854$209.26Available, ships in 3-6 days
3116043634Ferrari Screw M8 x 25 - 16043634$0.40Available, ships in 3-6 days
31176212Ferrari Screw - 176212$1.67Special order, ships in 7-14 days
32127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
33159530Ferrari Selector Shaft 1st & 2nd - 159530Price on requestContact us for price and availability
34159110Ferrari Selector Fork 1st & 2nd Gears - 159110Price on requestContact us for price and availability
34181952Ferrari Selector Fork 1st & 2nd - 181952Price on requestContact us for price and availability
35101612Ferrari Ball - 101612$1.96Available, ships in 3-6 days
36100750Ferrari Gear Selector Fork Spring - 100750$2.48In stock
37157622Ferrari Selector Rod Fork RM - 157622Price on requestContact us for price and availability
37171827Ferrari Control Fork RM - 171827Price on requestContact us for price and availability
38157629Ferrari Selector Rod Fork 1st & 2nd - 157629$121.40Special order, ships in 7-14 days
38171828Ferrari Control Fork 1st & 2nd - 171828$129.16Special order, ships in 7-14 days
39158051Ferrari Selector Shaft 3rd & 4th - 158051$310.02Special order, ships in 7-14 days
40145454Ferrari Selector Rod Fork 3rd & 4th - 145454$155.00Special order, ships in 7-14 days
40171829Ferrari Control Fork 3rd & 4th - 171829SupersededOrder 145454 instead
41189449Ferrari Selector Fork 3rd & 4th - 189449$627.10Available, ships in 3-6 days
41159855Ferrari Selector Fork 3rd & 4th - 159855SupersededOrder 189449 instead
41179304Ferrari Selector Fork 3rd & 4th - 179304SupersededOrder 189449 instead
42159582Ferrari Selector Shaft 5th & 6th - 159582$90.41Special order, ships in 7-14 days
43145455Ferrari Selector Rod Fork 5th & 6th - 145455$152.41Special order, ships in 7-14 days
43171830Ferrari Control Fork 5th & 6th - 171830$129.16Special order, ships in 7-14 days
44159856Ferrari Selector Fork 5th & 6th - 159856$209.26Special order, ships in 7-14 days
45150173Ferrari Spacer - 150173$36.95Special order, ships in 7-14 days
46106500Ferrari Bush - 106500$16.83Special order, ships in 7-14 days
47150093Ferrari Bush - 150093$39.14Special order, ships in 7-14 days
48112161Ferrari Self-Lubricating Bush - 112161Price on requestContact us for price and availability
48185566Ferrari Self-Lubricating Bush - 185566$14.15Special order, ships in 7-14 days
49142245Ferrari Screw - 142245$2.01Special order, ships in 7-14 days
175729Ferrari Bushing - 175729SupersededOrder 185566 instead
153709Ferrari Disc - 153709Price on requestContact us for price and availability
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
172994Ferrari Selector Fork 1st & 2nd - 172994Price on requestContact us for price and availability
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
13541521Ferrari Stud - 13541521Price on requestContact us for price and availability
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead

All 550 Maranello diagrams
