Ferrari 575M Maranello — Fuel Pump (diagram 010)

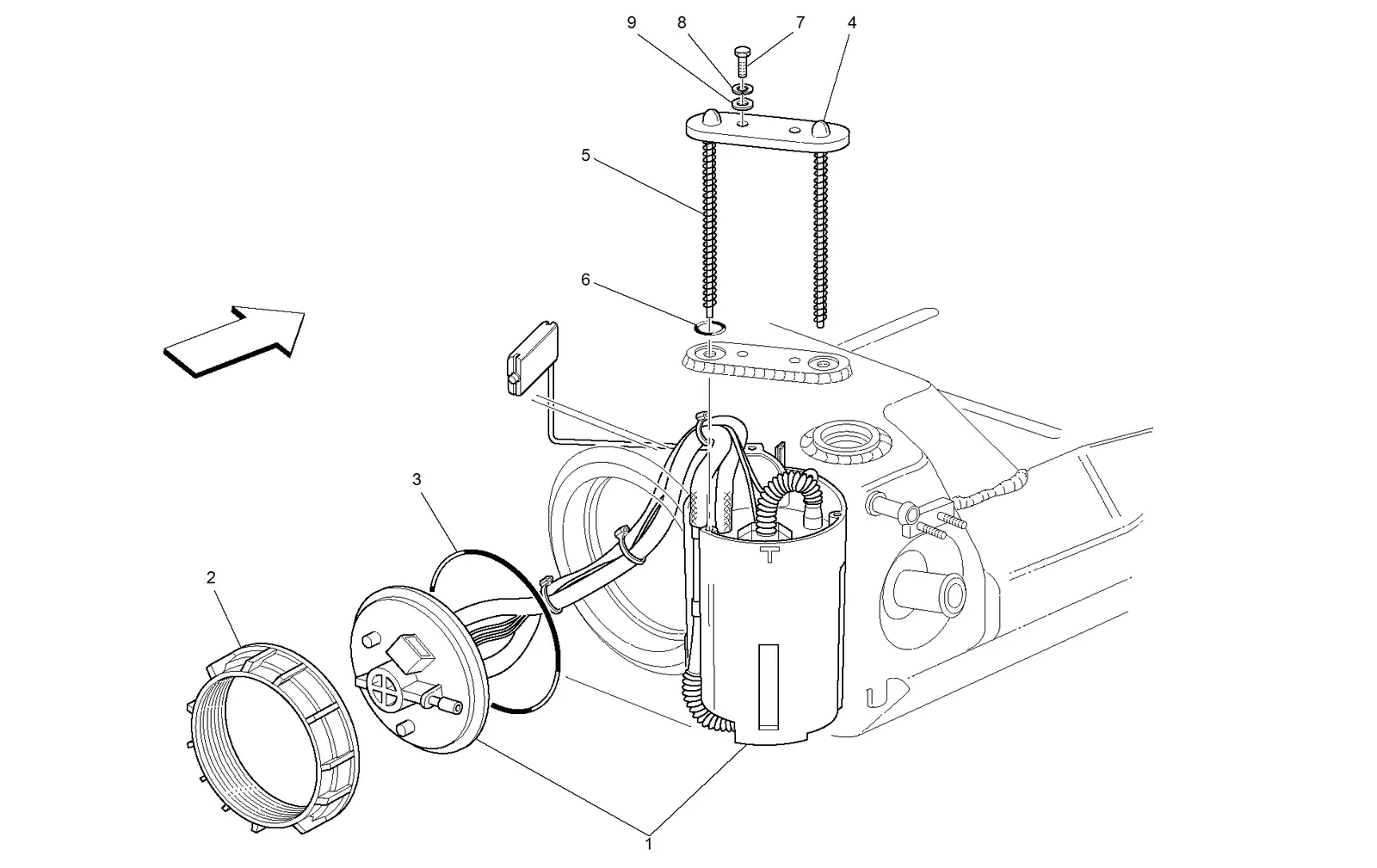

Exploded view of the fuel pump on the Ferrari 575M Maranello, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 239819 | Ferrari 575 Left Fuel Pump - 239819 | $730.00 | In stock |
| 1 | 239818 | Ferrari 575 Right Fuel Pump - 239818 | $760.88 | In stock |
| 1 | 180463 | Ferrari RH Fuel Pump Complete - 180463 | Superseded | Order 239818 instead |
| 1 | 180464 | Ferrari LH Fuel Pump Complete - 180464 | Superseded | Order 239819 instead |
| 2 | 181682 | Ferrari/Maserati Fuel Pump Lock Ring - 181682 | $29.98 | In stock |
| 3 | 181681 | Ferrari/Maserati Fuel Pump Gasket - 181681 | $16.49 | In stock |
| 3 | 202698 | Ferrari Gasket - 202698 | $34.25 | Available, ships in 3-6 days |
| 4 | 182618 | Ferrari Fuel Pump Bracket - 182618 | $85.64 | Special order, ships in 7-14 days |
| 5 | 187794 | Ferrari Spring - 187794 | $39.14 | Special order, ships in 7-14 days |
| 6 | 14453389 | Ferrari Seal D. 15.60 x 1 - 14453389 | $4.77 | Available, ships in 3-6 days |
| 7 | 16043624 | Ferrari Screw - 16043624 | $0.85 | In stock |
| 8 | 127496 | Ferrari Spring Washer 8mm - 127496 | $0.12 | Available, ships in 3-6 days |
| 9 | 14499404 | Ferrari Washer - 14499404 | Price on request | Contact us for price and availability |
| 106526 | Ferrari Bolt - 106526 | Superseded | Order 16043624 instead | |
| 16043611 | Ferrari Bolt - 16043611 | Superseded | Order 16043624 instead | |
| 16043621 | Ferrari Screw - 16043621 | Superseded | Order 16043624 instead |
