Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH (diagram 0048)

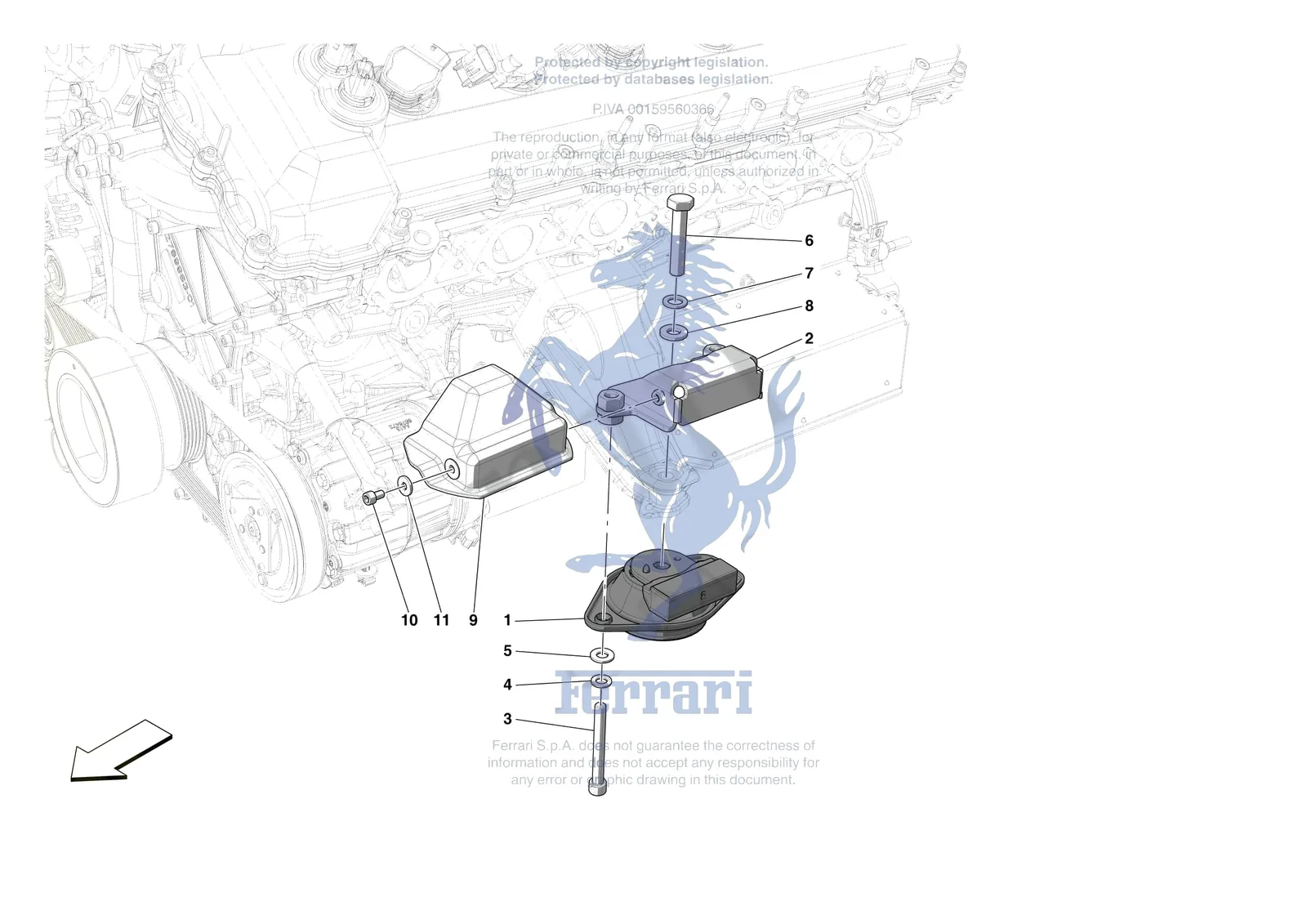

Exploded view of the [mechanical system] - d.1 - engine suspension bush on the Ferrari 812 Competizione, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0048.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead | |
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead | |
| 126648 | Ferrari Washer - 126648 | Superseded | Order 14496624 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 1 | 296231 | Ferrari LH Flexible Engine Mounting - 296231 | $713.04 | Special order, ships in 7-14 days |
| 1 | 296230 | Ferrari RH Flexible Engine Mounting - 296230 | $713.04 | Special order, ships in 7-14 days |
| 2 | 269829 | Ferrari LH Engine Mounting Bush Limiter Bracket - 269829 | $243.40 | Special order, ships in 7-14 days |
| 2 | 269828 | Ferrari RH Engine Mounting Bush Limiter Bracket - 269828 | $243.40 | Special order, ships in 7-14 days |
| 3 | 285972 | Ferrari Screw - 285972 | $27.03 | Special order, ships in 7-14 days |
| 4 | 127497 | Ferrari Spring Washer 10mm - 127497 | $0.69 | In stock |
| 5 | 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days |
| 6 | 15215834 | Ferrari Screw - 15215834 | $3.26 | Special order, ships in 7-14 days |
| 7 | 127498 | Ferrari Spring Washer 12mm - 127498 | $0.27 | Available, ships in 3-6 days |
| 8 | 13550521 | Ferrari Washer - 13550521 | $0.96 | Available, ships in 3-6 days |
| 9 | 277259 | Ferrari Bush Heat Shield - 277259 | $184.38 | Special order, ships in 7-14 days |
| 10 | 14305024 | Ferrari Screw - 14305024 | $0.38 | Special order, ships in 7-14 days |
| 11 | 12647624 | Ferrari Washer D 6.45-16x2 - 12647624 | $0.19 | Available, ships in 3-6 days |
