Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS (diagram 0076)

Exploded view of the [mechanical system] - d.25.02 - front suspension - arms on the Ferrari 812 Competizione, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

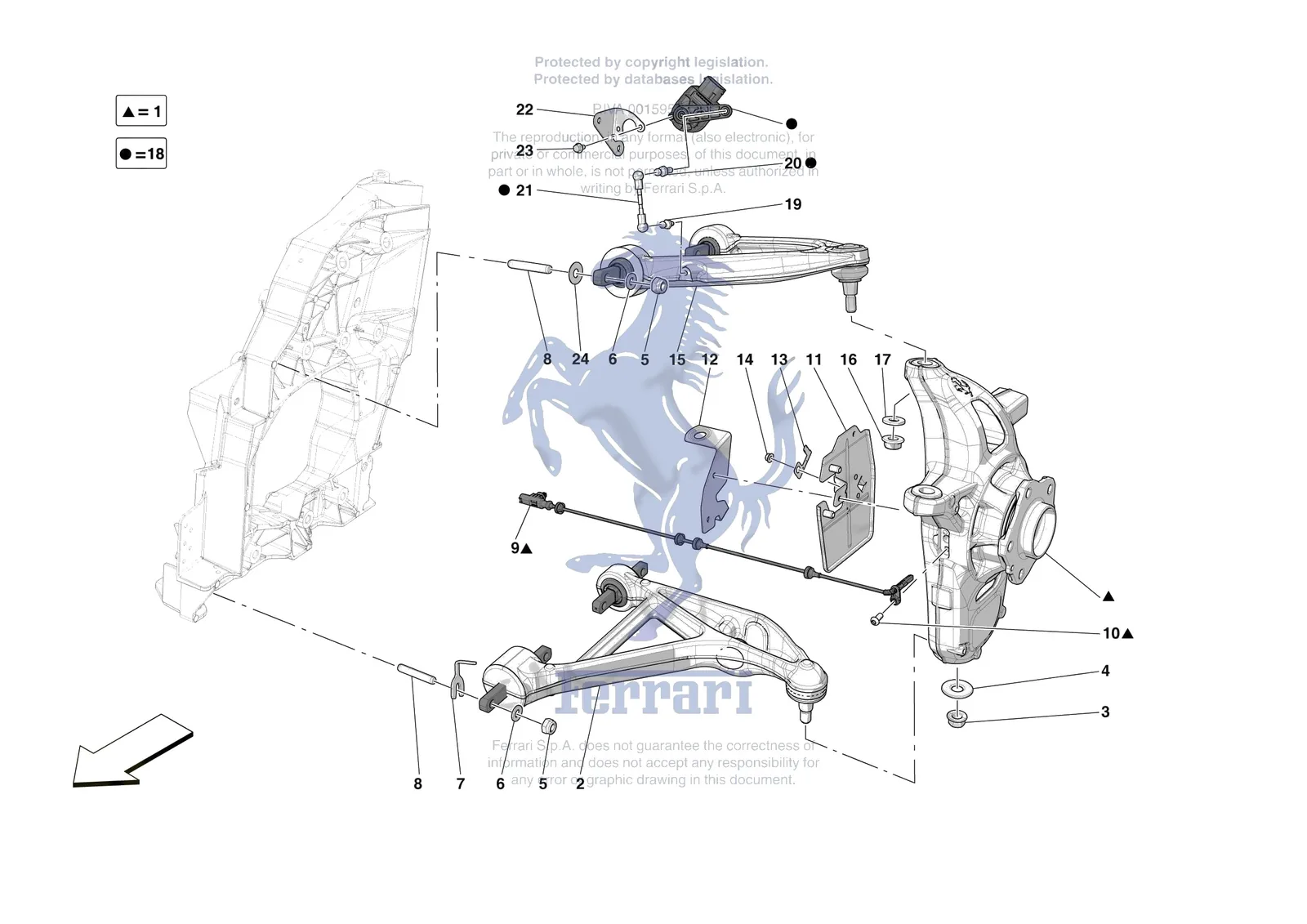

Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
263033Ferrari Camber Spacer 1.0mm - 263033$7.19Special order, ships in 7-14 days
263034Ferrari Camber Spacer 1.5mm - 263034$7.19Special order, ships in 7-14 days
263036Ferrari Camber Spacer 2.5mm - 263036$10.25Special order, ships in 7-14 days
263038Ferrari Camber Spacer 3.5mm - 263038$10.25Special order, ships in 7-14 days
263039Ferrari Camber Spacer 4.0mm - 263039$10.25Special order, ships in 7-14 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
268896Ferrari LH Front Lower Arm Complete - 268896$1,695.11Available, ships in 3-6 days
248758Ferrari LH Front Upper Arm - 248758$1,297.30Special order, ships in 7-14 days
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
320528Ferrari Potentiometer Tie-Rod - 320528$113.08Special order, ships in 7-14 days
268897Ferrari RH Front Lower Arm Complete - 268897$2,051.44Special order, ships in 7-14 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1985489Ferrari Compl. LH Front Hub Carrier - 985489$3,765.47Special order, ships in 7-14 days
1985490Ferrari Compl. RH Front Hub Carrier - 985490$3,765.47Special order, ships in 7-14 days
2268894Ferrari LH Front Lower Arm Complete - 268894$1,893.26Special order, ships in 7-14 days
2268895Ferrari RH Front Lower Arm Complete - 268895$1,893.26Special order, ships in 7-14 days
3203795Ferrari Nut M14 x 1.5 - 203795$4.56Available, ships in 3-6 days
4241689Ferrari Spacer - 241689$14.62Special order, ships in 7-14 days
5104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
614496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
7238692Ferrari Camber Spacer 0.5mm - 238692$12.65Special order, ships in 7-14 days
7238693Ferrari Camber Spacer 1.0mm - 238693$10.25Special order, ships in 7-14 days
7238881Ferrari Camber Spacer 1.5mm - 238881$10.25Special order, ships in 7-14 days
7238694Ferrari Camber Spacer 2.0mm - 238694SupersededOrder 263035 instead
7263035Ferrari Camber Spacer 2.0mm - 263035$7.19Available, ships in 3-6 days
7238882Ferrari Camber Spacer 2.5mm - 238882$10.25Special order, ships in 7-14 days
7238883Ferrari Camber Spacer 3.0mm - 238883$10.25Available, ships in 3-6 days
7238884Ferrari Camber Spacer 3.5mm - 238884$10.25Special order, ships in 7-14 days
7238885Ferrari Camber Spacer 4.0mm - 238885$10.25Special order, ships in 7-14 days
8264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
9338963Ferrari ABS Sensor - Front - 338963$128.92Available, ships in 3-6 days
11830076Ferrari LH Front Fastener Bracket - 830076$81.11Special order, ships in 7-14 days
11830077Ferrari RH Front Fastener Bracket - 830077$81.11Special order, ships in 7-14 days
12897163Ferrari LH Front Removable Bracket - 897163$56.52Special order, ships in 7-14 days
12897197Ferrari RH Front Removable Bracket - 897197$56.52Special order, ships in 7-14 days
13162606Ferrari Clip - 162606$2.82Available, ships in 3-6 days
1414040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
15295788Ferrari LH Front Upper Arm - 295788$2,409.62Special order, ships in 7-14 days
15248760Ferrari RH Front Upper Arm - 248760$1,303.14Available, ships in 3-6 days
15295789Ferrari RH Front Upper Arm - 295789SupersededOrder 248760 instead
16149807Ferrari Self-Locking Nut For Top And Bottom Ball Joints - 149807$2.13Available, ships in 3-6 days
1712646921Ferrari Washer - 12646921$0.92Available, ships in 3-6 days
18934265Ferrari Compl. Travel Sensor - 934265$349.68Special order, ships in 7-14 days
19216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
20340273Ferrari Ball Joint - 340273$88.49Special order, ships in 7-14 days
21984041Ferrari Potentiometer Tie-Rod - 984041$194.22Special order, ships in 7-14 days
22912341Ferrari Front LH Travel Sensor Brack - 912341$34.40Special order, ships in 7-14 days
22912479Ferrari Front RH Travel Sensor Brack - 912479$34.40Special order, ships in 7-14 days
2316284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
2316284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
24312826Ferrari Washer D. 10.20-25x1 - 312826$0.92Special order, ships in 7-14 days

All 812 Competizione diagrams
