Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.14 - FRONT SHIELDS (diagram 0113)

Exploded view of the [vehicle trim] - e.14 - front shields on the Ferrari 812 CompetizioneA, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

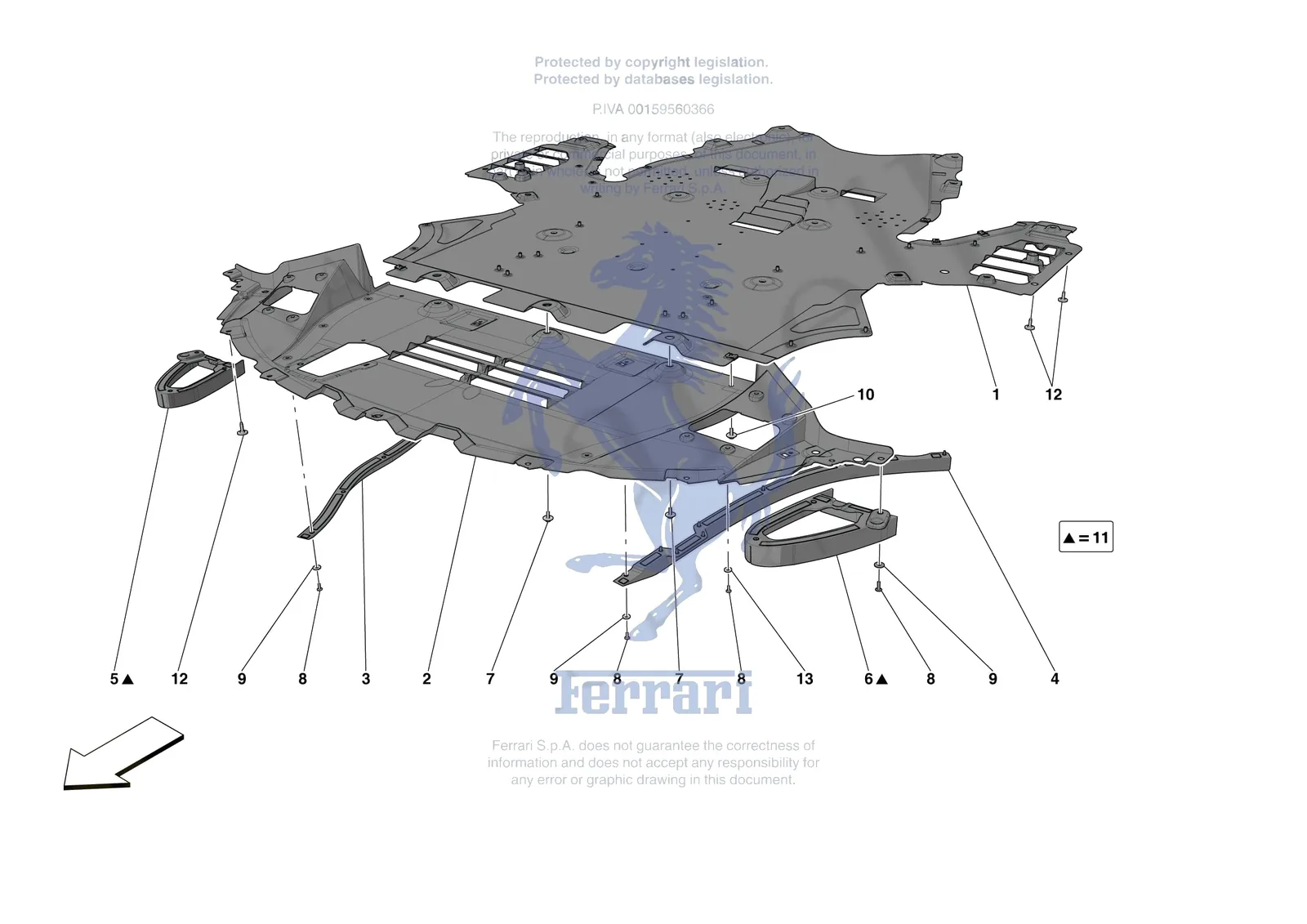

Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.14 - FRONT SHIELDS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
88080500Ferrari LH Front Dam - 88080500SupersededOrder 940000 instead
88080600Ferrari RH Front Dam - 88080600SupersededOrder 940000 instead
1798707Ferrari Compl. Front Flat Undertray - 798707$1,450.67Contact us to order
2798720Ferrari Compl. Front Flat Undertray - 798720$909.73Contact us to order
3798726Ferrari Lateral Front Dam LH Front - 798726$113.08Special order, ships in 7-14 days
3798709Ferrari Lateral Front Dam RH Front - 798709$113.08Special order, ships in 7-14 days
4798717Ferrari LH Central Front Dam Front - 798717$149.96Special order, ships in 7-14 days
4798724Ferrari RH Central Front Dam Front - 798724$149.96Special order, ships in 7-14 days
781290900Ferrari Screw With Double Washer - 81290900$1.42In stock
885833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
912643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
1082115900Ferrari Screw M6 x 14 With Washer - 82115900$1.23Available, ships in 3-6 days
11940000Ferrari Front Dam Kit - 940000$152.41Available, ships in 3-6 days
1283442900Ferrari Body Screw - 83442900$1.51In stock
1314447078Ferrari Washer D. 5.5 - 15 x 1 - 14447078$0.54Special order, ships in 7-14 days
