Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE (diagram 0117)
Exploded view of the [vehicle trim] - e.18 - rear wheelhouse on the Ferrari 812 CompetizioneA, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

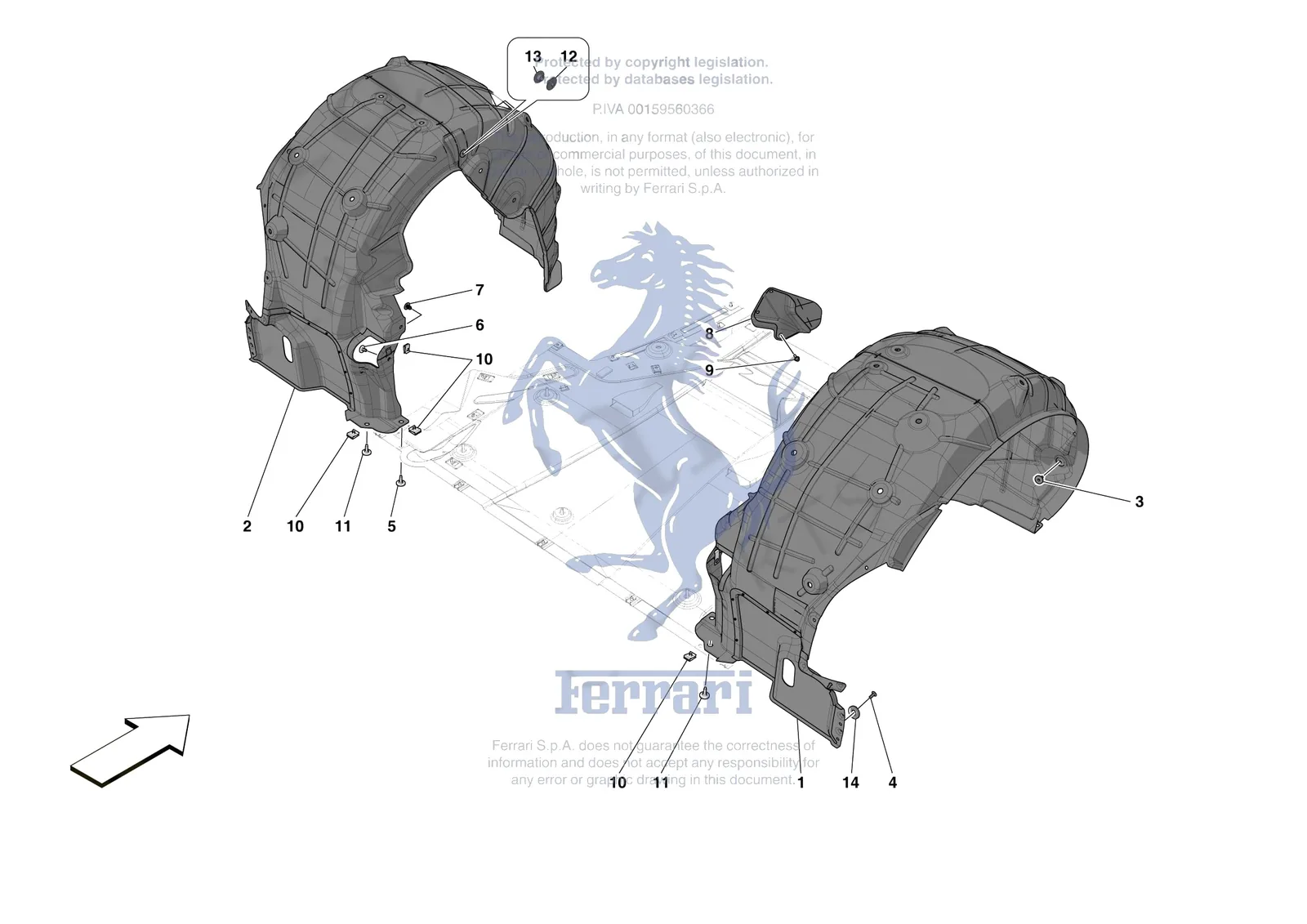

![Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0117.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 802347 | Ferrari Compl. RH Rear WheeLHouse - 802347 | $830.51 | Special order, ships in 7-14 days |
| 1 | 805017 | Ferrari Compl. RH Rear WheeLHouse - 805017 | $830.51 | Special order, ships in 7-14 days |
| 2 | 802350 | Ferrari Compl. LH Rear WheeLHouse - 802350 | $830.51 | Special order, ships in 7-14 days |
| 2 | 805019 | Ferrari Compl. LH Rear WheeLHouse - 805019 | $830.51 | Special order, ships in 7-14 days |
| 3 | 82362500 | Ferrari Screw - 82362500 | $1.49 | Available, ships in 3-6 days |
| 4 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 5 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 6 | 82115900 | Ferrari Screw M6 x 14 With Washer - 82115900 | $1.23 | Available, ships in 3-6 days |
| 7 | 83222200 | Ferrari Fastener Button - 83222200 | $1.42 | Available, ships in 3-6 days |
| 8 | 85145000 | Ferrari Wheel Bay Cover Hatch - 85145000 | $88.49 | Special order, ships in 7-14 days |
| 9 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 10 | 14189071 | Ferrari M6 x 1Screw clip - 14189071 | $1.36 | Available, ships in 3-6 days |
| 11 | 83442900 | Ferrari Body Screw - 83442900 | $1.51 | In stock |
| 12 | 84247300 | Ferrari Male Clip - 84247300 | $2.82 | Available, ships in 3-6 days |
| 13 | 84247400 | Ferrari Female Clip - 84247400 | $2.59 | Available, ships in 3-6 days |
| 14 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
