Ferrari Daytona SP3 — [ENGINE] - B.01 - CRANKCASE (diagram 0004)

Exploded view of the [engine] - b.01 - crankcase on the Ferrari Daytona SP3, with 66 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

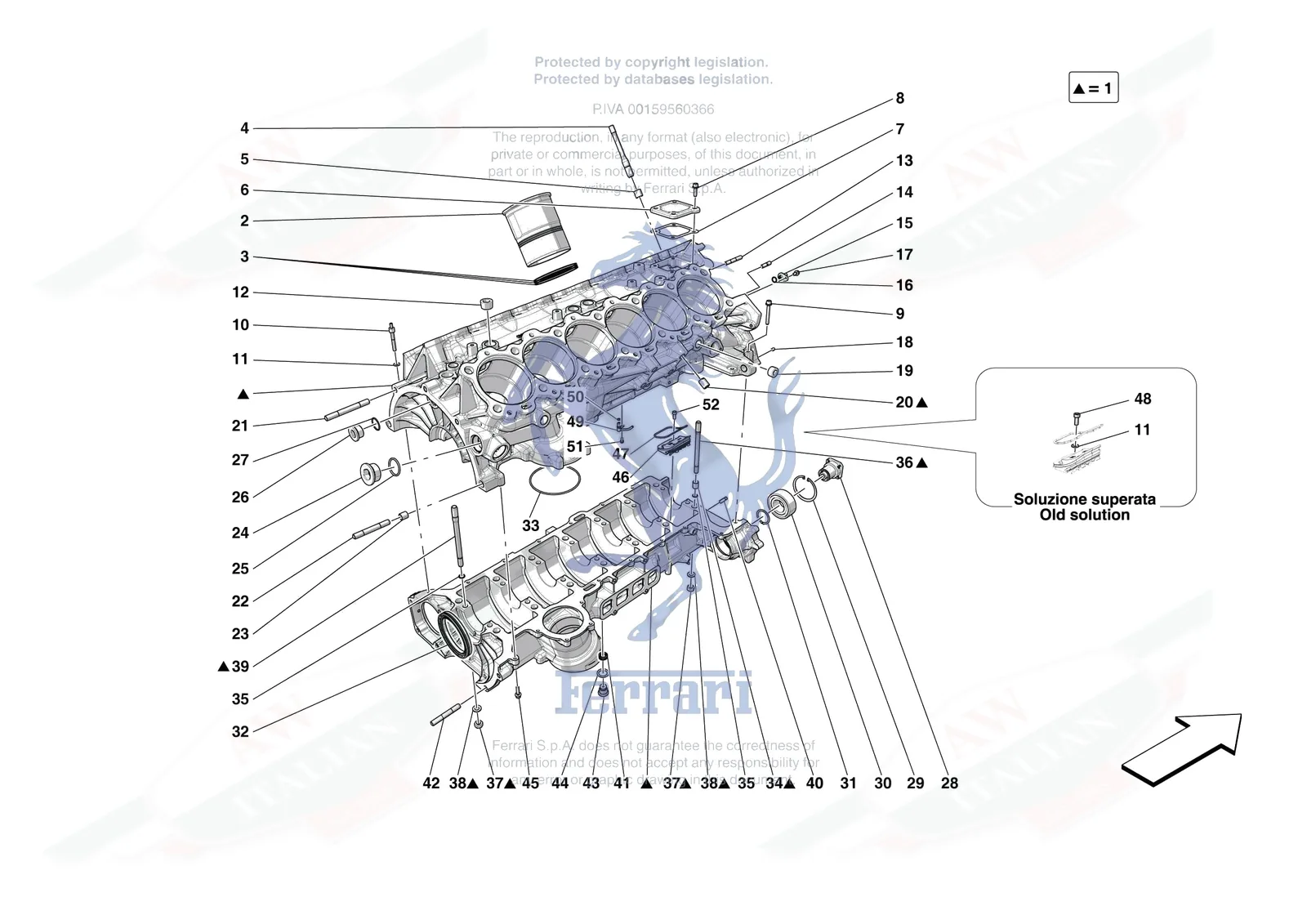

Ferrari Daytona SP3 [ENGINE] - B.01 - CRANKCASE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
302154Ferrari Cap - 302154$13.03Special order, ships in 7-14 days
290106Ferrari Chain Cooling Nozzle Complete - 290106SupersededOrder 294944 instead
799985Ferrari Crankcase-Lower Crankcase Sh - 799985SupersededOrder 55002685 instead
209623Ferrari Gasket - 209623$10.50Special order, ships in 7-14 days
248026Ferrari Gasket - 248026Price on requestContact us for price and availability
290282Ferrari Pump Drive Joint - 290282SupersededOrder 295132 instead
294950Ferrari Pump Drive Joint - 294950SupersededOrder 295132 instead
242269Ferrari Rear Main Oil Seal - 242269$104.41Available, ships in 3-6 days
300499Ferrari Screw - 300499$1.44Special order, ships in 7-14 days
13543121Ferrari Stud - 13543121SupersededOrder 13543124 instead
13543821Ferrari Stud M8 x 16 Gambo 40 - 13543821$4.54Special order, ships in 7-14 days
183447Ferrari Threaded Plug - 183447$18.48Available, ships in 3-6 days
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
1751061Ferrari Crankcase-Lower Crankcase Sh - 751061SupersededOrder 55002685 instead
155002685Ferrari Crankcase-Lower Crankcase Shell Assembly - 55002685$13,080.87Contact us to order
2266366Ferrari Cylinder Sleeve D.94 - 266366$467.15Special order, ships in 7-14 days
3186251Ferrari O-Ring Cylinder Liner - 186251$4.56Available, ships in 3-6 days
4802590Ferrari Stud Bolt M14x2 - 802590$28.39Available, ships in 3-6 days
5185360Ferrari Centering Dowel - 185360$5.44Special order, ships in 7-14 days
6208451Ferrari Cover - 208451$56.52Special order, ships in 7-14 days
7317312Ferrari Gasket - 317312$5.39Special order, ships in 7-14 days
8231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
9231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
10219283Ferrari Stud - 219283$27.03Special order, ships in 7-14 days
1111197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
12282753Ferrari Cover - Threaded Plug - 282753$13.09Special order, ships in 7-14 days
1313543824Ferrari Stud Bolt M8x16 -Shank length 40mm- - 13543824$6.31Available, ships in 3-6 days
1413543124Ferrari Stud Bolt M8x16 -Stem 16mm - 13543124$13.53Special order, ships in 7-14 days
15294944Ferrari Chain Cooling Nozzle Complete - 294944$154.89Special order, ships in 7-14 days
16137192Ferrari/Maserati O-Ring - 137192$1.25In stock
17282393Ferrari Screw 6x16 - 282393$1.48Available, ships in 3-6 days
18175611Ferrari Centering Dowel - 175611$3.26Available, ships in 3-6 days
19127635Ferrari Threaded Plug M18 x 11 x 1.5 - 127635$6.75Available, ships in 3-6 days
20218440Ferrari Threaded Insert - 218440Price on requestContact us for price and availability
2113547334Ferrari Stud M10 x 1.25 x 20 Gambo - 13547334$13.95Available, ships in 3-6 days
2213547034Ferrari Stud 55mm - 13547034$6.31Available, ships in 3-6 days
23100052Ferrari Centering Dowel - 100052$4.35Available, ships in 3-6 days
24915186Ferrari PLUG - 915186$56.27Special order, ships in 7-14 days
25952890Ferrari O-RING - 952890$1.38Special order, ships in 7-14 days
26915159Ferrari Plug - 915159$41.76Special order, ships in 7-14 days
27952889Ferrari O-Ring - 952889$1.28Special order, ships in 7-14 days
28295132Ferrari Pump Drive Joint - 295132$688.45Special order, ships in 7-14 days
2911061576Ferrari Circlip - 11061576$3.47Available, ships in 3-6 days
30128799Ferrari Bearing - 128799$170.45Special order, ships in 7-14 days
3111068376Ferrari Circlip - 11068376$0.92Available, ships in 3-6 days
32240214Ferrari/Maserati Rear Main Crankshaft Oil Seal - 240214SupersededOrder 242269 instead
33176388Ferrari Oil Disareator O-Ring - 176388$3.95In stock
34176421Ferrari Centering Dowel - 176421$7.84Available, ships in 3-6 days
35134704Ferrari O-Ring Gasket - 134704$0.27Available, ships in 3-6 days
36330554Ferrari Stud Bolt - 330554$31.93Special order, ships in 7-14 days
37133988Ferrari Plain Nut M10 x 1.25 x 8 - 133988$0.38Available, ships in 3-6 days
38178348Ferrari Washer - 178348$1.40Available, ships in 3-6 days
39333917Ferrari Stud Bolt - 333917$34.40Special order, ships in 7-14 days
40766469Ferrari Pin for Tensioner - 766469$12.86Special order, ships in 7-14 days
41112254Ferrari Heli Coil - 112254$7.84Available, ships in 3-6 days
4213546934Ferrari Stud 50mm - 13546934$3.26Available, ships in 3-6 days
43104280Ferrari/Maserati Drain Plug Magnetic - 104280$12.75In stock
4410261860Ferrari Copper Washer - 10261860$1.42In stock
45231620Ferrari/Maserati Screw - 231620$0.58In stock
46300580Ferrari Valve Holder Complete - 300580$442.56Special order, ships in 7-14 days
47154691Ferrari O-Ring - 154691$3.26Available, ships in 3-6 days
4813026924Ferrari Screw 6x14 - 13026924$0.57Available, ships in 3-6 days
49319988Ferrari Piston Cooling Jet - 319988$44.24Special order, ships in 7-14 days
50164877Ferrari O-Ring Gasket - 164877$0.52Available, ships in 3-6 days
51315493Ferrari Screw - 315493$2.13Special order, ships in 7-14 days
52282392Ferrari Screw 6x14 - 282392$0.96Available, ships in 3-6 days
