Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS (diagram 0080)

Exploded view of the [mechanical system] - d.27.02 - rear suspension - arms on the Ferrari Daytona SP3, with 66 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

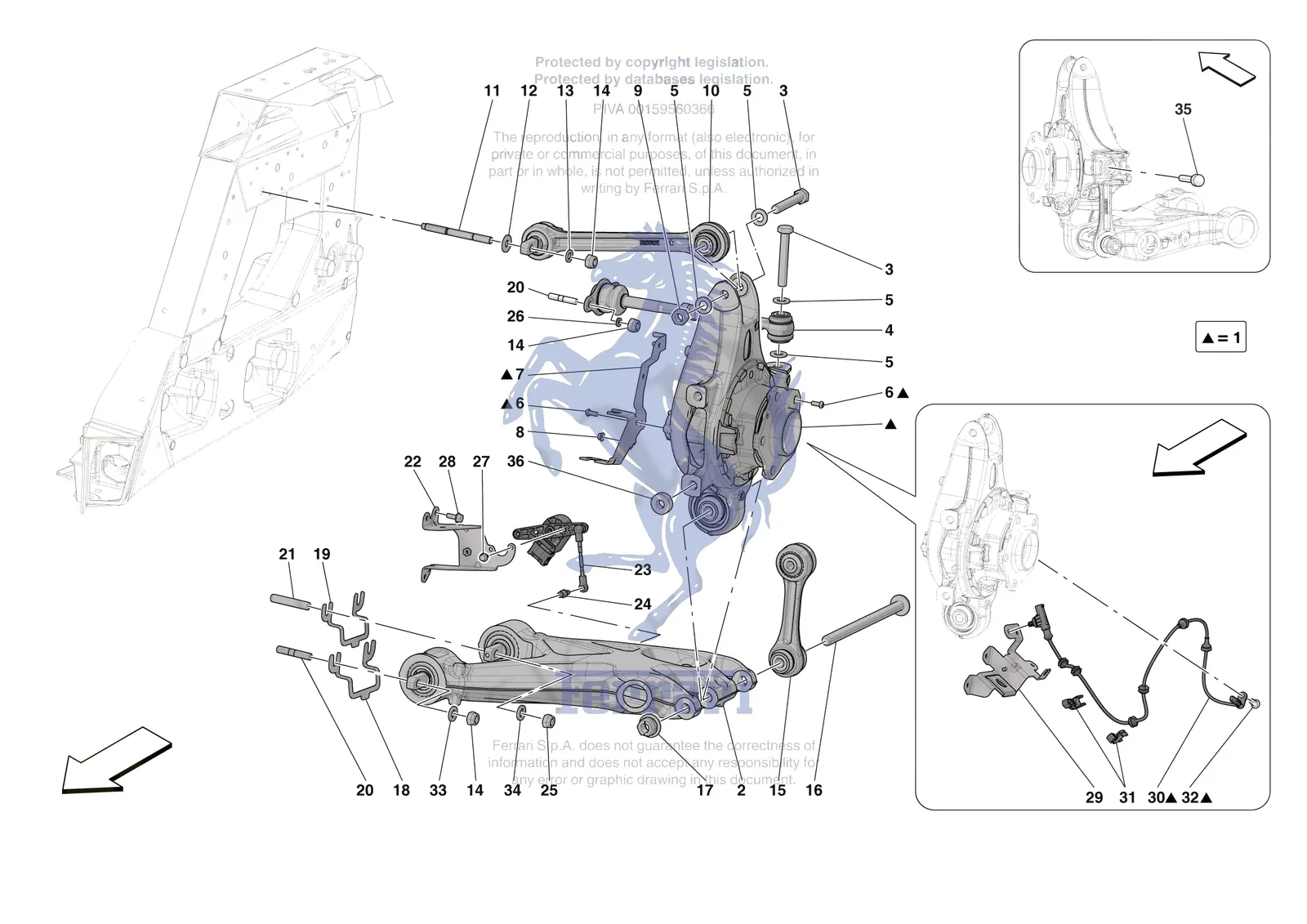

Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
236783Ferrari Rear Suspension Link Arm - 236783SupersededOrder 259688 instead
190870Ferrari Screw 6x14 - 190870$4.10Special order, ships in 7-14 days
764759Ferrari Sensore Di Spostam. Posterio - 764759$326.35Special order, ships in 7-14 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
10520001Ferrari Washer - 10520001SupersededOrder 10520024 instead
10520021Ferrari Washer - 10520021SupersededOrder 10520024 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1843923Ferrari Compl. LH Rear Hub Carrier - 843923$3,868.51Special order, ships in 7-14 days
1843963Ferrari Compl. RH Rear Hub Carrier - 843963$3,868.51Special order, ships in 7-14 days
2989820Ferrari COMPL. LOWER LH REAR ARM - 989820Price on requestContact us for price and availability
2989828Ferrari COMPL. LOWER RH REAR ARM - 989828Price on requestContact us for price and availability
315541434Ferrari Screw 12x1.25x80 - 15541434$4.12Special order, ships in 7-14 days
4293384Ferrari Tie/Rod For Adjusting Rear Toe Angle Complete - 293384$1,499.85Special order, ships in 7-14 days
514496721Ferrari Washer - 14496721$0.19Special order, ships in 7-14 days
6250657Ferrari Screw M6 x 14 TBTX - 250657$13.36Available, ships in 3-6 days
7299534Ferrari LH Rear Joint Bracket - 299534$639.27Special order, ships in 7-14 days
7299535Ferrari RH Rear Joint Bracket - 299535$811.38Special order, ships in 7-14 days
814040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
9203666Ferrari Nut - 203666$1.80Available, ships in 3-6 days
10330726Ferrari Upper Rear Arm - 330726$1,106.43Special order, ships in 7-14 days
11317747Ferrari Stud Bolt - 317747$524.51Special order, ships in 7-14 days
1212646821Ferrari Washer D.10 20-25x2 - 12646821$0.19Available, ships in 3-6 days
1312638624Ferrari Washer - 12638624$0.50Available, ships in 3-6 days
14104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
15259688Ferrari Anti Rotation Linkage - 259688$295.03Special order, ships in 7-14 days
16238656Ferrari Special Screw TCEI M14 x 1.5 x 21 - 238656$45.87Available, ships in 3-6 days
17238063Ferrari Nut M14 x 1.x - 238063$7.40Available, ships in 3-6 days
18287741Ferrari Adjustment Plate 1.0mm - 287741$66.35Special order, ships in 7-14 days
18287742Ferrari Adjustment Plate 1.5mm - 287742$45.87Special order, ships in 7-14 days
18287735Ferrari Adjustment Plate 2.0mm - 287735$66.35Special order, ships in 7-14 days
18287736Ferrari Adjustment Plate 2.5mm - 287736$66.35Special order, ships in 7-14 days
18287737Ferrari Adjustment Plate 3.0mm - 287737$66.35Special order, ships in 7-14 days
18287738Ferrari Adjustment Plate 3.5mm - 287738Price on requestContact us for price and availability
18287739Ferrari Adjustment Plate 4.0mm - 287739$45.87Special order, ships in 7-14 days
19283960Ferrari Adjustment Plate 1.0mm - 283960$66.35Special order, ships in 7-14 days
19283961Ferrari Adjustment Plate 1.5mm - 283961$66.35Special order, ships in 7-14 days
19283954Ferrari Adjustment Plate 2.0mm - 283954$66.35Special order, ships in 7-14 days
19283955Ferrari Adjustment Plate 2.5mm - 283955$66.35Special order, ships in 7-14 days
19283956Ferrari Adjustment Plate 3.0mm - 283956$66.35Special order, ships in 7-14 days
19283957Ferrari Adjustment Plate 3.5mm - 283957$66.35Special order, ships in 7-14 days
19283958Ferrari Adjustment Plate 4.0mm - 283958$66.35Special order, ships in 7-14 days
2013552634Ferrari Stud Bolt - 13552634$83.57Special order, ships in 7-14 days
22782196Ferrari LH Rear Bracket - 782196$117.99Special order, ships in 7-14 days
22782202Ferrari RH Rear Bracket - 782202$117.99Special order, ships in 7-14 days
23984047Ferrari Potentiometer Link L=80Mm - 984047$270.44Special order, ships in 7-14 days
24984046Ferrari Sensore Di Spostam. Posterio - 984046$327.81Special order, ships in 7-14 days
25216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
26340273Ferrari Ball Joint - 340273$88.49Special order, ships in 7-14 days
2716284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
2716284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
2816286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
29283934Ferrari LH Rear Joint Bracket - 283934$113.08Special order, ships in 7-14 days
29283935Ferrari RH Rear Joint Bracket - 283935$113.08Special order, ships in 7-14 days
30336026Ferrari ABS Sensor - 336026$120.18Available, ships in 3-6 days
31310942Ferrari Triple Clip - 310942$3.26Special order, ships in 7-14 days
3314496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
3410520024Ferrari Washer - 10520024$4.35Available, ships in 3-6 days
35238258Ferrari Screw M12 x 1.25 x 75 - 238258$63.37Special order, ships in 7-14 days
36291775Ferrari Rear Brake Calliper Spacer - 291775$36.86Special order, ships in 7-14 days
37102825Ferrari Locking Suspension Nut - 102825$1.10In stock
38302111Ferrari Spacer - 302111$10.91Special order, ships in 7-14 days
