Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH (diagram 0048)

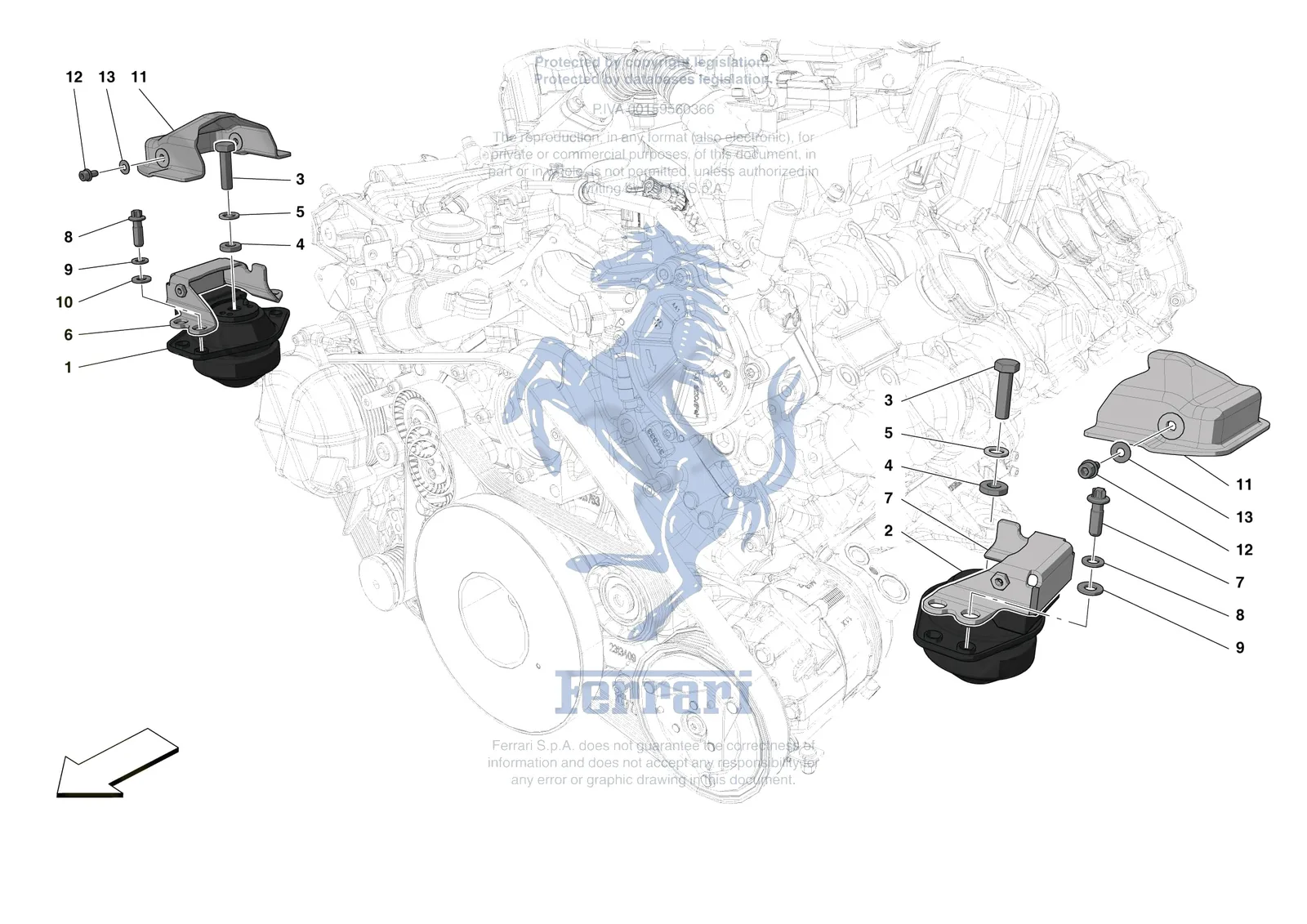

Exploded view of the [mechanical system] - d.1 - engine suspension bush on the Ferrari F8 Spider, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0048.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead | |
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead | |
| 126648 | Ferrari Washer - 126648 | Superseded | Order 14496624 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 1 | 312805 | Ferrari LH Engine Mounting - 312805 | $664.78 | Special order, ships in 7-14 days |
| 2 | 312806 | Ferrari LH Engine Mounting - 312806 | $664.78 | Special order, ships in 7-14 days |
| 3 | 11599534 | Ferrari Screw - 11599534 | $3.91 | Available, ships in 3-6 days |
| 4 | 10738021 | Ferrari Washer - 10738021 | Superseded | Order 13550521 instead |
| 4 | 13550521 | Ferrari Washer - 13550521 | $0.96 | Available, ships in 3-6 days |
| 5 | 127498 | Ferrari Spring Washer 12mm - 127498 | $0.27 | Available, ships in 3-6 days |
| 6 | 278027 | Ferrari Bracket - 278027 | Superseded | Order 263593 instead |
| 6 | 263593 | Ferrari RH Bush Travel Limiter Bracket - 263593 | $156.63 | Available, ships in 3-6 days |
| 7 | 278028 | Ferrari Bracket - 278028 | Superseded | Order 263594 instead |
| 7 | 263594 | Ferrari LH Bush Travel Limiter Bracket - 263594 | $156.63 | Available, ships in 3-6 days |
| 8 | 243841 | Ferrari Screw Torx M10 x 1.25 x - 243841 | $3.26 | Available, ships in 3-6 days |
| 9 | 127497 | Ferrari Spring Washer 10mm - 127497 | $0.69 | In stock |
| 10 | 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days |
| 11 | 304792 | Ferrari Shield - 304792 | $86.15 | Special order, ships in 7-14 days |
| 12 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 13 | 12644404 | Ferrari Washer - 12644404 | Superseded | Order 12644424 instead |
| 13 | 12644424 | Ferrari Washer 6.15-15 x 1 - 12644424 | $0.12 | Available, ships in 3-6 days |
