Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS (diagram 0080)

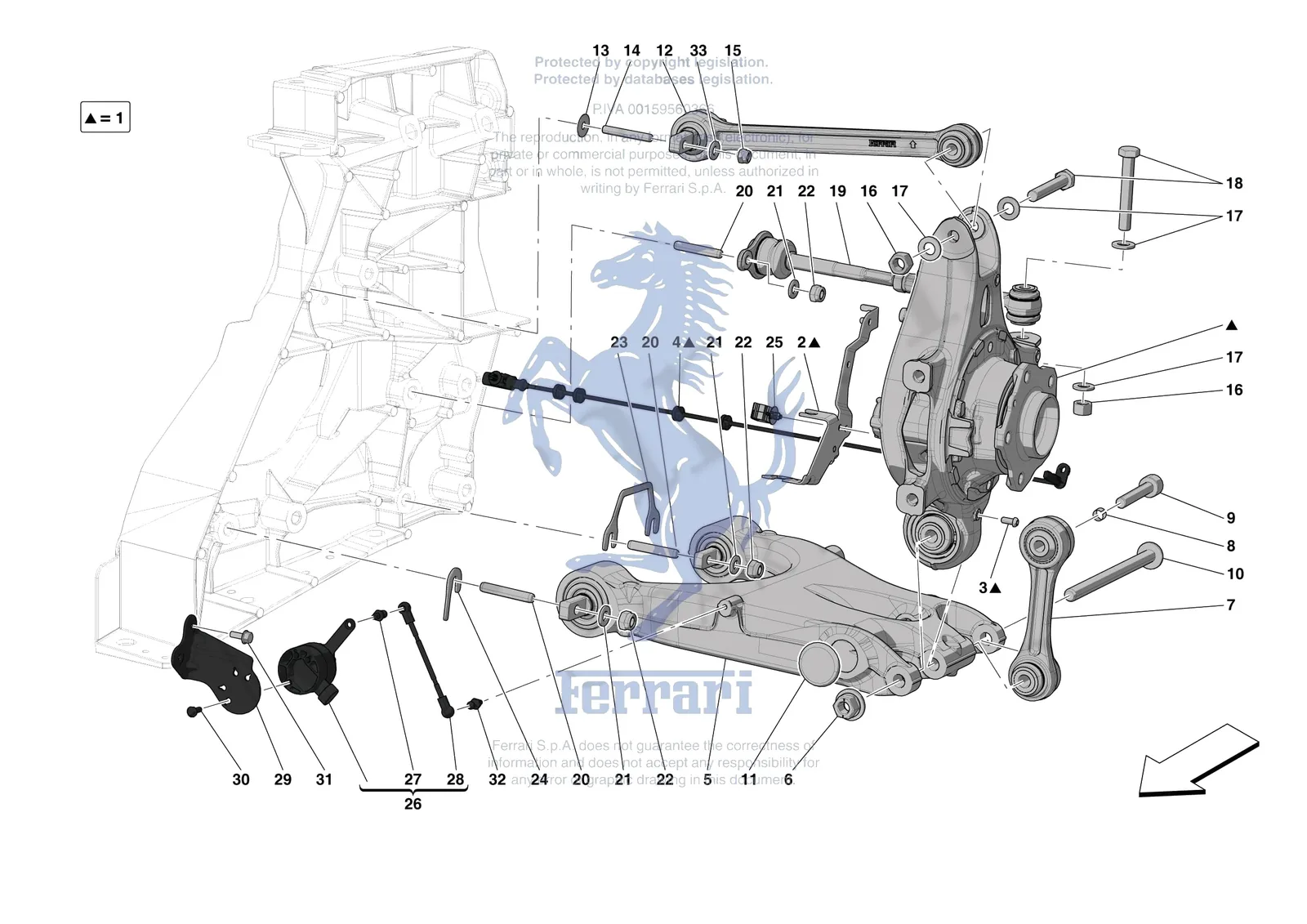

Exploded view of the [mechanical system] - d.27.02 - rear suspension - arms on the Ferrari F8 Spider, with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F8 Spider [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
238693Ferrari Camber Spacer 1.0mm - 238693$10.25Special order, ships in 7-14 days
238881Ferrari Camber Spacer 1.5mm - 238881$10.25Special order, ships in 7-14 days
238694Ferrari Camber Spacer 2.0mm - 238694SupersededOrder 263035 instead
238882Ferrari Camber Spacer 2.5mm - 238882$10.25Special order, ships in 7-14 days
238884Ferrari Camber Spacer 3.5mm - 238884$10.25Special order, ships in 7-14 days
238885Ferrari Camber Spacer 4.0mm - 238885$10.25Special order, ships in 7-14 days
314774Ferrari LH Rear Lower Arm Complete - 314774SupersededOrder 911176 instead
329243Ferrari LH Rear Lower Arm Complete - 329243SupersededOrder 911176 instead
230953Ferrari LH Rear Motion Sensor Complete - 230953SupersededOrder 259265 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
236783Ferrari Rear Suspension Link Arm - 236783SupersededOrder 259688 instead
314775Ferrari RH Rear Lower Arm Complete - 314775SupersededOrder 911175 instead
329244Ferrari RH Rear Lower Arm Complete - 329244SupersededOrder 911175 instead
230954Ferrari RH Rear Motion Sensor Complete - 230954$391.61Special order, ships in 7-14 days
190870Ferrari Screw 6x14 - 190870$4.10Special order, ships in 7-14 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1843923Ferrari Compl. LH Rear Hub Carrier - 843923$3,868.51Special order, ships in 7-14 days
1843963Ferrari Compl. RH Rear Hub Carrier - 843963$3,868.51Special order, ships in 7-14 days
2299534Ferrari LH Rear Joint Bracket - 299534$639.27Special order, ships in 7-14 days
2299535Ferrari RH Rear Joint Bracket - 299535$811.38Special order, ships in 7-14 days
3250657Ferrari Screw M6 x 14 TBTX - 250657$13.36Available, ships in 3-6 days
4336026Ferrari ABS Sensor - 336026$120.18Available, ships in 3-6 days
5896443Ferrari Compl. LH Rear Lower Arm - 896443SupersededOrder 911176 instead
5911176Ferrari Compl. LH Rear Lower Arm - 911176$1,745.74Special order, ships in 7-14 days
5896445Ferrari Compl. RH Rear Lower Arm - 896445SupersededOrder 911175 instead
5911175Ferrari Compl. RH Rear Lower Arm - 911175$1,745.74Special order, ships in 7-14 days
6238063Ferrari Nut M14 x 1.x - 238063$7.40Available, ships in 3-6 days
7259688Ferrari Anti Rotation Linkage - 259688$295.03Special order, ships in 7-14 days
8222956Ferrari Compensator Ring 24x12 - 222956$20.76Available, ships in 3-6 days
9238258Ferrari Screw M12 x 1.25 x 75 - 238258$63.37Special order, ships in 7-14 days
10238656Ferrari Special Screw TCEI M14 x 1.5 x 21 - 238656$45.87Available, ships in 3-6 days
1114507987Ferrari Rubber Plug - 14507987$3.85In stock
12295792Ferrari Rear Upper Arm - 295792$888.98Available, ships in 3-6 days
13816274Ferrari Washer - 816274$3.91Special order, ships in 7-14 days
14302406Ferrari Threaded Rod - 302406$4.77Special order, ships in 7-14 days
15104030Ferrari/Maserati Nut - 104030$0.88In stock
16203666Ferrari Nut - 203666$1.80Available, ships in 3-6 days
1714496721Ferrari Washer - 14496721$0.19Special order, ships in 7-14 days
1815541434Ferrari Screw 12x1.25x80 - 15541434$4.12Special order, ships in 7-14 days
19245161Ferrari Tie Rod Complete - 245161$301.17Available, ships in 3-6 days
20264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
2114496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
22104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
23262544Ferrari Camber Spacer 0.5mm - 262544$18.36Special order, ships in 7-14 days
23262545Ferrari Camber Spacer 1.0mm - 262545$18.32Special order, ships in 7-14 days
23262546Ferrari Camber Spacer 1.5mm - 262546$18.32Special order, ships in 7-14 days
23262539Ferrari Camber Spacer 2.0mm - 262539$18.32Special order, ships in 7-14 days
23262540Ferrari Camber Spacer 2.5mm - 262540$18.32Special order, ships in 7-14 days
23262541Ferrari Camber Spacer 3.0mm - 262541$18.32Special order, ships in 7-14 days
23262542Ferrari Camber Spacer 3.5mm - 262542$18.32Available, ships in 3-6 days
23262543Ferrari Camber Spacer 4.0mm - 262543$18.32Special order, ships in 7-14 days
24263032Ferrari Camber Spacer 0.5mm - 263032$24.02Available, ships in 3-6 days
24263033Ferrari Camber Spacer 1.0mm - 263033$7.19Special order, ships in 7-14 days
24263034Ferrari Camber Spacer 1.5mm - 263034$7.19Special order, ships in 7-14 days
24263035Ferrari Camber Spacer 2.0mm - 263035$7.19Available, ships in 3-6 days
24263036Ferrari Camber Spacer 2.5mm - 263036$10.25Special order, ships in 7-14 days
24238883Ferrari Camber Spacer 3.0mm - 238883$10.25Available, ships in 3-6 days
24263037Ferrari Camber Spacer 3.0mm - 263037SupersededOrder 238883 instead
24263038Ferrari Camber Spacer 3.5mm - 263038$10.25Special order, ships in 7-14 days
24263039Ferrari Camber Spacer 4.0mm - 263039$10.25Special order, ships in 7-14 days
25303365Ferrari Clip - 303365$2.61Available, ships in 3-6 days
26259265Ferrari LH Rear Motion Sensor Complete - 259265$349.68Special order, ships in 7-14 days
26259266Ferrari RH Rear Motion Sensor Complete - 259266$349.68Special order, ships in 7-14 days
27216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
28229653Ferrari Potentiometer Tie-Rod - 229653$78.66Special order, ships in 7-14 days
29259569Ferrari LH Rear Bracket - 259569$36.92Special order, ships in 7-14 days
29260444Ferrari RH Rear Bracket - 260444$36.92Special order, ships in 7-14 days
30217456Ferrari Screw 5X16 - 217456$0.59Available, ships in 3-6 days
3116286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
3314496524Ferrari Washer - 14496524$0.19Available, ships in 3-6 days
