Ferrari F8 Tributo — [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS (diagram 0076)

Exploded view of the [mechanical system] - d.25.02 - front suspension - arms on the Ferrari F8 Tributo, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

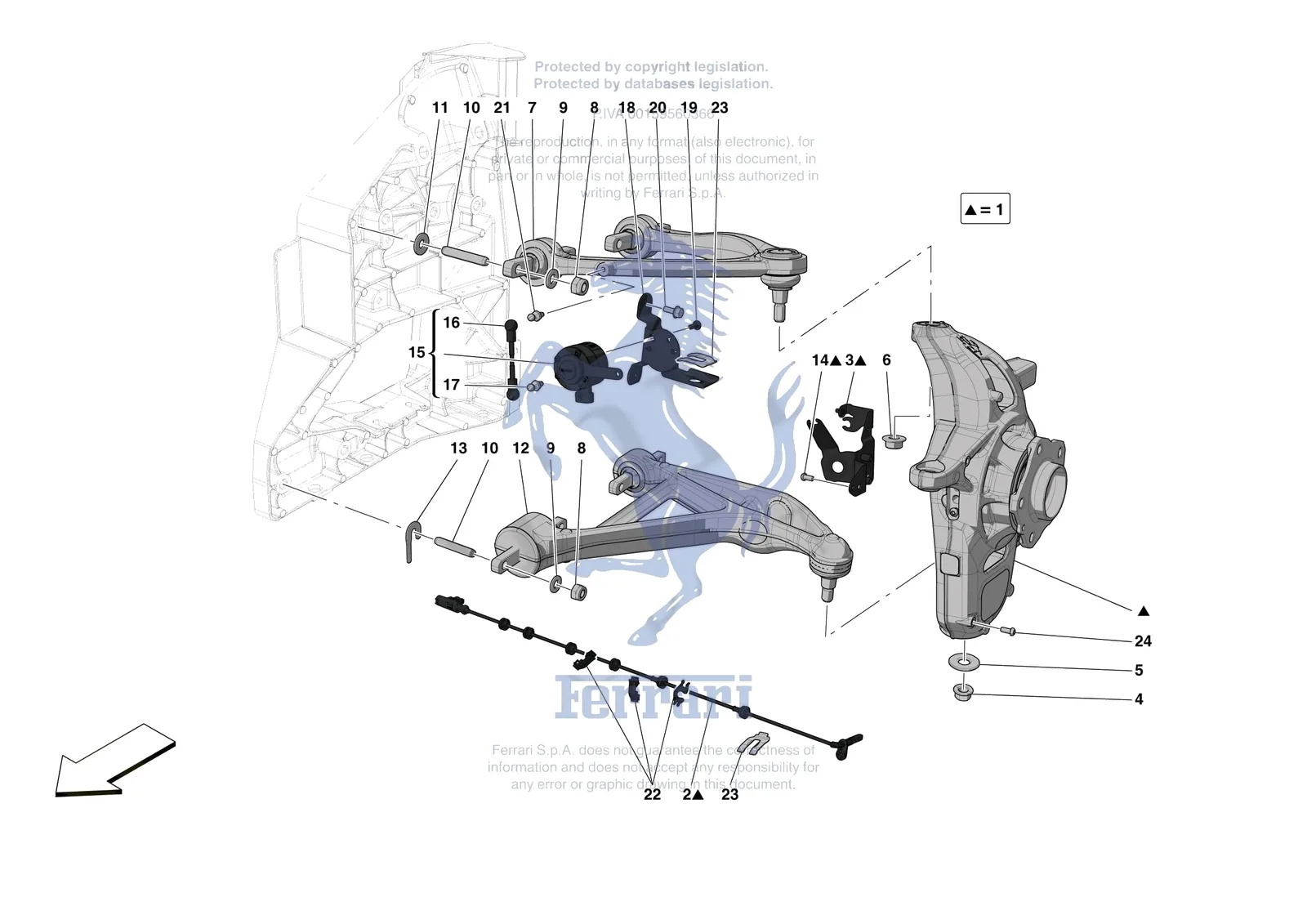

Ferrari F8 Tributo [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
238693Ferrari Camber Spacer 1.0mm - 238693$10.25Special order, ships in 7-14 days
238881Ferrari Camber Spacer 1.5mm - 238881$10.25Special order, ships in 7-14 days
238882Ferrari Camber Spacer 2.5mm - 238882$10.25Special order, ships in 7-14 days
238884Ferrari Camber Spacer 3.5mm - 238884$10.25Special order, ships in 7-14 days
238885Ferrari Camber Spacer 4.0mm - 238885$10.25Special order, ships in 7-14 days
264523Ferrari LH Front Lower Arm - 264523$1,363.94Available, ships in 3-6 days
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
264524Ferrari RH Front Lower Arm - 264524$1,363.94Available, ships in 3-6 days
190870Ferrari Screw 6x14 - 190870$4.10Special order, ships in 7-14 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1843882Ferrari Compl. LH Front Hub Carrier - 843882$3,754.35Special order, ships in 7-14 days
1843904Ferrari Compl. RH Front Hub Carrier - 843904$3,754.35Special order, ships in 7-14 days
2336025Ferrari ABS Sensor - 336025$120.18Special order, ships in 7-14 days
3304733Ferrari LH Front Joint Bracket - 304733$78.76Special order, ships in 7-14 days
3304734Ferrari RH Front Joint Bracket - 304734$78.76Special order, ships in 7-14 days
4203795Ferrari Nut M14 x 1.5 - 203795$4.56Available, ships in 3-6 days
5241689Ferrari Spacer - 241689$14.62Special order, ships in 7-14 days
6149807Ferrari Self-Locking Nut For Top And Bottom Ball Joints - 149807$2.13Available, ships in 3-6 days
7767437Ferrari Compl. LH Front Upper Arm - 767437$1,967.03Special order, ships in 7-14 days
7767438Ferrari Compl. RH Front Upper Arm - 767438$1,967.03Special order, ships in 7-14 days
8104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
914496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
10264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
1112646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
1112646821Ferrari Washer D.10 20-25x2 - 12646821$0.19Available, ships in 3-6 days
12295790Ferrari LH Front Lower Arm - 295790$2,412.99Special order, ships in 7-14 days
12295791Ferrari RH Front Lower Arm - 295791$2,412.99Special order, ships in 7-14 days
13263033Ferrari Camber Spacer 1.0mm - 263033$7.19Special order, ships in 7-14 days
13263034Ferrari Camber Spacer 1.5mm - 263034$7.19Special order, ships in 7-14 days
13238694Ferrari Camber Spacer 2.0mm - 238694SupersededOrder 263035 instead
13263035Ferrari Camber Spacer 2.0mm - 263035$7.19Available, ships in 3-6 days
13263036Ferrari Camber Spacer 2.5mm - 263036$10.25Special order, ships in 7-14 days
13263037Ferrari Camber Spacer 3.0mm - 263037SupersededOrder 238883 instead
13263038Ferrari Camber Spacer 3.5mm - 263038$10.25Special order, ships in 7-14 days
13263039Ferrari Camber Spacer 4.0mm - 263039$10.25Special order, ships in 7-14 days
14250657Ferrari Screw M6 x 14 TBTX - 250657$13.36Available, ships in 3-6 days
15238243Ferrari LH Front Sensor - 238243$393.93Special order, ships in 7-14 days
15238244Ferrari RH Front Sensor - 238244$393.93Special order, ships in 7-14 days
16238266Ferrari Potentiometer Tie Rod - 238266$85.33Special order, ships in 7-14 days
17216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
18318559Ferrari LH Front Bracket - 318559$44.29Special order, ships in 7-14 days
18318560Ferrari RH Front Bracket - 318560$44.29Special order, ships in 7-14 days
19217456Ferrari Screw 5X16 - 217456$0.59Available, ships in 3-6 days
2016286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
22251744Ferrari Clip - 251744$2.82Available, ships in 3-6 days
23116374Ferrari/Maserati Clip - 116374$3.20In stock

All F8 Tributo diagrams
