Ferrari F8 Tributo — [VEHICLE TRIM] - E.16 - REAR SHIELDS (diagram 0115)

Exploded view of the [vehicle trim] - e.16 - rear shields on the Ferrari F8 Tributo, with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

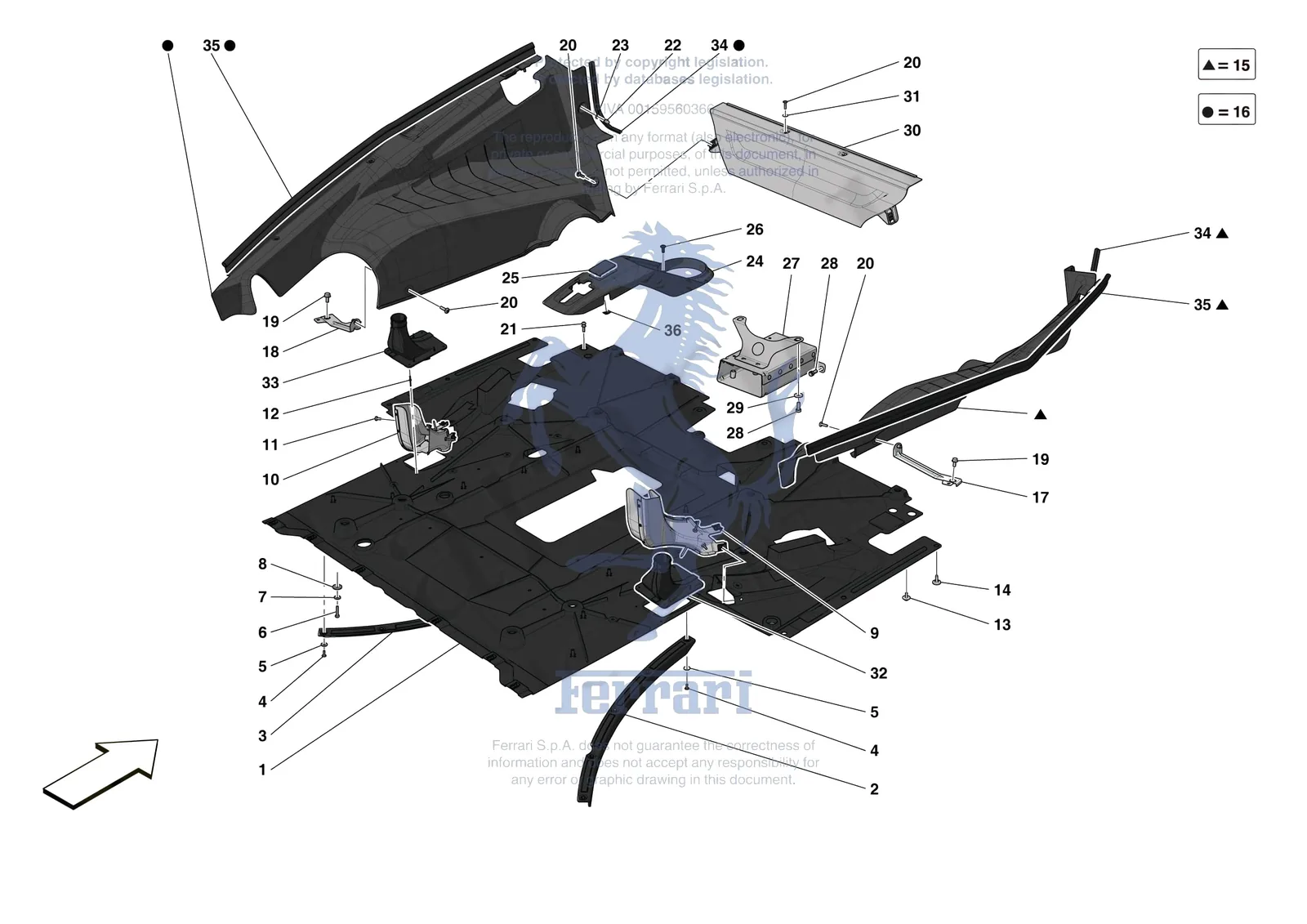

Ferrari F8 Tributo [VEHICLE TRIM] - E.16 - REAR SHIELDS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
300832Ferrari Engine Buffer - 300832SupersededOrder 87546300 instead
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1909606Ferrari Compl. Rear Underbody Shield - 909606$1,076.99Special order, ships in 7-14 days
1922369Ferrari Riparo Sottoscocca Post. Car - 922369$9,406.42Special order, ships in 7-14 days
2768520Ferrari RH Rear Lateral Dam - 768520$184.65Special order, ships in 7-14 days
3768518Ferrari LH Rear Lateral Dam - 768518$184.65Special order, ships in 7-14 days
485833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
512643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
610902824Ferrari Screw M6 x 30 - 10902824$0.17Available, ships in 3-6 days
711197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
812640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
9762216Ferrari Compl. RH Engine Air Vent Du - 762216$206.81Special order, ships in 7-14 days
10762226Ferrari Compl. LH Engine Air Vent Du - 762226$206.81Special order, ships in 7-14 days
1113290024Ferrari Screw M6 x 14 TCIC PZ - 13290024$0.82Available, ships in 3-6 days
1214642294Ferrari Rivet - 14642294$1.36Available, ships in 3-6 days
1381290900Ferrari Screw With Double Washer - 81290900$1.42In stock
1483442900Ferrari Body Screw - 83442900$1.51In stock
15782030Ferrari Compl. RH Engine Compartment - 782030$318.19Special order, ships in 7-14 days
1570006747Ferrari COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD - 70006747Price on requestContact us for price and availability
1570006748Ferrari COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD - 70006748Price on requestContact us for price and availability
15911776Ferrari Paratia Est.Dx Carb.Mot.Stab - 911776$5,326.80Special order, ships in 7-14 days
15880045Ferrari Paratia Est.Dx Motore Carb.A - 880045$5,340.78Special order, ships in 7-14 days
16782017Ferrari Compl. LH Engine Compartment - 782017$5,340.78Special order, ships in 7-14 days
16782040Ferrari Compl. LH Engine Compartment - 782040$318.19Special order, ships in 7-14 days
16813260Ferrari Compl. LH Engine Compartment - 813260$5,336.13Special order, ships in 7-14 days
1670006749Ferrari COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD - 70006749Price on requestContact us for price and availability
1670006750Ferrari COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD - 70006750Price on requestContact us for price and availability
17878660Ferrari Compl. Lower Bracket for RH Engine Compartment Shield - 878660$68.50Special order, ships in 7-14 days
18878661Ferrari Compl. Lower Bracket for LH Engine Compartment Shield - 878661$68.50Special order, ships in 7-14 days
1916296934Ferrari Screw 6x14 - 16296934$0.90Special order, ships in 7-14 days
2085692400Ferrari Screw M5 x 20 TBFTX - 85692400$0.92Available, ships in 3-6 days
2185797600Ferrari Special Screw - 85797600$59.07Available, ships in 3-6 days
2214042177Ferrari Nut - 14042177$1.99Available, ships in 3-6 days
2362769800Ferrari Washer - 62769800$0.44Available, ships in 3-6 days
2486921700Ferrari Central Cosmetic Shield Complete - 86921700$68.92Special order, ships in 7-14 days
2486935100Ferrari Central Cosmetic Shield Complete - 86935100$1,969.79Special order, ships in 7-14 days
2470006751Ferrari Compl. Central Cosmetic Shie - 70006751$16,398.65Contact us to order
25917799Ferrari Serial Number Plate - 917799$183.56Special order, ships in 7-14 days
2665864100Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100$2.82Available, ships in 3-6 days
2787546300Ferrari Engine Buffer Complete - 87546300$344.69Special order, ships in 7-14 days
2813027024Ferrari Screw TCEI M6 x 16 - 13027024$0.38Special order, ships in 7-14 days
2910523401Ferrari Washer - 10523401$0.84Available, ships in 3-6 days
3070006752Ferrari COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD - 70006752Price on requestContact us for price and availability
30826052Ferrari Compl. Underscreen Cosmetic - 826052$3,123.80Special order, ships in 7-14 days
30907054Ferrari Compl. Underscreen Cosmetic - 907054$149.29Special order, ships in 7-14 days
3112638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
32880465Ferrari Presa Aria Freni Post. Dx Cp - 880465$204.34Special order, ships in 7-14 days
33880475Ferrari Presa Aria Freni Post. Sx Cp - 880475$204.34Special order, ships in 7-14 days
34825854Ferrari Front Seal For Lateral Shiel - 825854$56.54Special order, ships in 7-14 days
3586553700Ferrari Lateral Seal For Lateral Shield - 86553700$132.69Available, ships in 3-6 days
3614183376Ferrari Screw Clip - 14183376$0.19Available, ships in 3-6 days
36768645Ferrari Type A Plate For Pin - 768645$0.98Special order, ships in 7-14 days
