Ferrari F8 Tributo — [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM (diagram 0172)
Exploded view of the [vehicle trim] - e.59 - external lateral trim on the Ferrari F8 Tributo, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

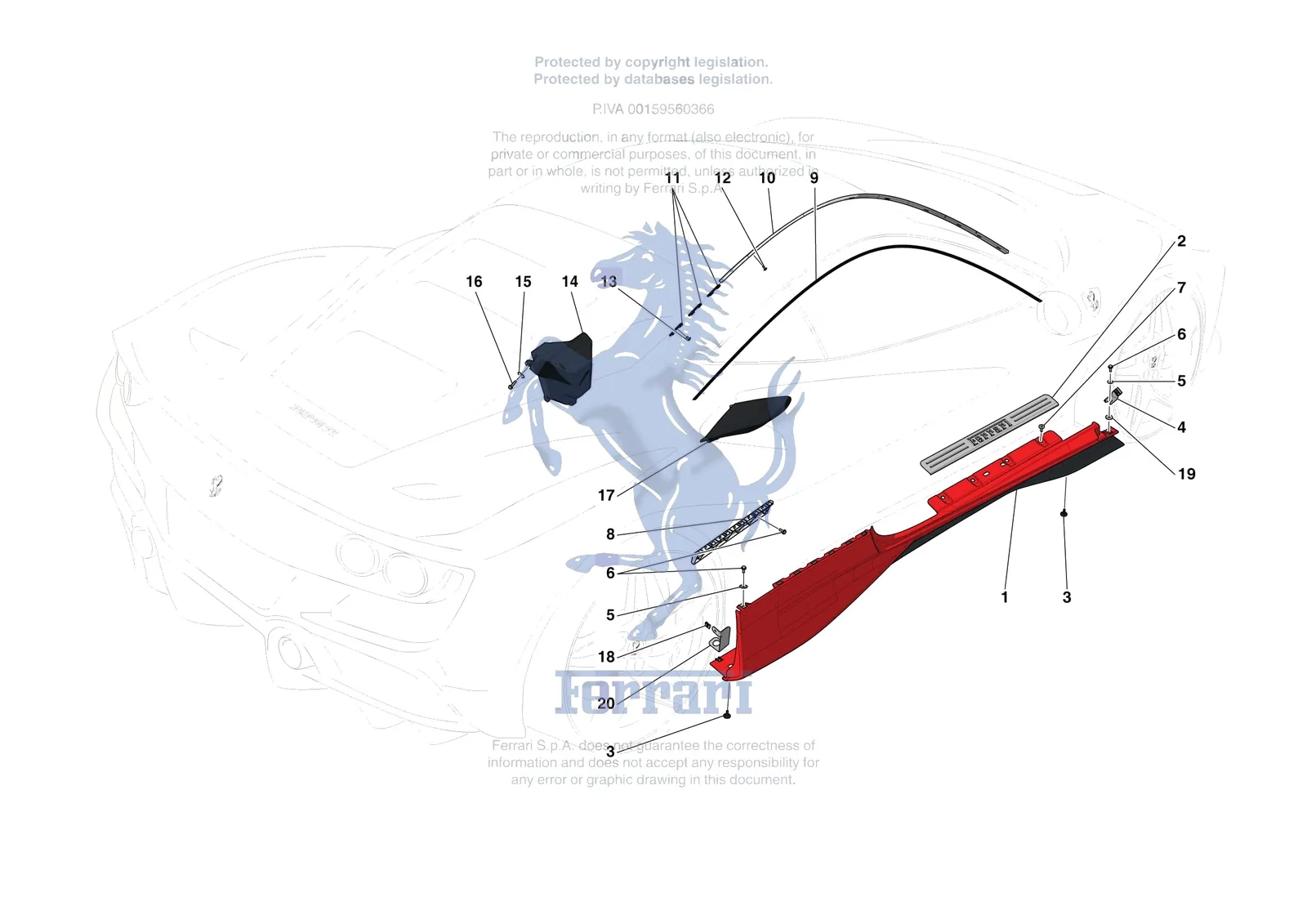

![Ferrari F8 Tributo [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0172.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 84046600 | Ferrari Adhesive Spacer - 84046600 | Superseded | Order 807883 instead | |
| 87546900 | Ferrari Adhesive Spacer - 87546900 | Superseded | Order 807883 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 70006732 | Ferrari Compl. LH Underdoor Trim - 70006732 | $27,309.39 | Contact us to order |
| 1 | 70006731 | Ferrari Compl. RH Underdoor Trim - 70006731 | $27,309.39 | Contact us to order |
| 1 | 985861771 | Ferrari Compl. RH Underdoor Trim - 985861771 | $3,111.81 | Special order, ships in 7-14 days |
| 1 | 985861772 | Ferrari Rivest. Sottoporta Vrnt Sx C - 985861772 | $3,111.81 | Special order, ships in 7-14 days |
| 1 | 985881797 | Ferrari Rivest.Sottoporta Dx Cpl Car - 985881797 | $18,014.37 | Contact us to order |
| 1 | 985881796 | Ferrari Rivest.Sottoporta Sx Cpl Car - 985881796 | $18,014.37 | Contact us to order |
| 2 | 70006921 | Ferrari LH Kickplate - 70006921 | $18,462.62 | Contact us to order |
| 2 | 86538200 | Ferrari LH Kickplate - 86538200 | $1,501.96 | Special order, ships in 7-14 days |
| 2 | 86786000 | Ferrari LH Kickplate - 86786000 | $443.17 | Special order, ships in 7-14 days |
| 2 | 70006920 | Ferrari RH Kickplate - 70006920 | $18,632.08 | Contact us to order |
| 2 | 86538300 | Ferrari RH Kickplate - 86538300 | $1,501.96 | Special order, ships in 7-14 days |
| 2 | 86786100 | Ferrari RH Kickplate - 86786100 | $443.17 | Special order, ships in 7-14 days |
| 3 | 83442900 | Ferrari Body Screw - 83442900 | $1.51 | In stock |
| 4 | 814949 | Ferrari Compl. LH Front Bracket - 814949 | $39.37 | Special order, ships in 7-14 days |
| 4 | 814950 | Ferrari Compl. RH Front Bracket - 814950 | $39.37 | Special order, ships in 7-14 days |
| 5 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 6 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 7 | 65933500 | Ferrari Screw M6 x 15 TBEI - 65933500 | $3.26 | Available, ships in 3-6 days |
| 7 | 80874200 | Ferrari Screw M6 x 22 - 80874200 | $1.59 | Available, ships in 3-6 days |
| 8 | 86785800 | Ferrari LH Sill Fastener Bracket - 86785800 | $24.34 | Available, ships in 3-6 days |
| 8 | 86785900 | Ferrari RH Sill Fastener Bracket - 86785900 | $24.34 | Special order, ships in 7-14 days |
| 9 | 959682 | Ferrari Guarnizione Molura Gronda Dx - 959682 | $39.14 | Special order, ships in 7-14 days |
| 9 | 951708 | Ferrari Guarnizione Molura Gronda Sx - 951708 | $56.54 | Special order, ships in 7-14 days |
| 9 | 87015700 | Ferrari Roof Gutter Moulding Seal - 87015700 | $41.30 | Special order, ships in 7-14 days |
| 10 | 807883 | Ferrari Adhesive Spacer - 807883 | $63.61 | Special order, ships in 7-14 days |
| 11 | 86746200 | Ferrari Clip - 86746200 | $4.75 | Special order, ships in 7-14 days |
| 12 | 15538777 | Ferrari Screw 8x13 - 15538777 | $0.34 | Available, ships in 3-6 days |
| 13 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 14 | 815640 | Ferrari LH Foam Element For Compl. Crash Box - 815640 | $115.69 | Special order, ships in 7-14 days |
| 14 | 86719400 | Ferrari RH Foam Element For Compl. Crash Box - 86719400 | $118.16 | Special order, ships in 7-14 days |
| 15 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 16 | 12648978 | Ferrari Washer - 12648978 | $1.04 | Available, ships in 3-6 days |
| 17 | 891163 | Ferrari Ala Laterale Carbonio Sx Cpl - 891163 | $2,485.70 | Special order, ships in 7-14 days |
| 17 | 70006734 | Ferrari Compl. LH Lateral Wing - 70006734 | $6,793.49 | Contact us to order |
| 17 | 70006733 | Ferrari Compl. RH Lateral Wing - 70006733 | $6,793.49 | Contact us to order |
| 17 | 891184 | Ferrari Compl. RH Lateral Wing - 891184 | $2,485.70 | Contact us to order |
| 18 | 14189071 | Ferrari M6 x 1Screw clip - 14189071 | $1.36 | Available, ships in 3-6 days |
| 19 | 87944700 | Ferrari Washer - 87944700 | $0.57 | Special order, ships in 7-14 days |
| 20 | 829020 | Ferrari LH Inner Lower Sill Trim Bra - 829020 | $51.67 | Special order, ships in 7-14 days |
| 20 | 829085 | Ferrari RH Inner Lower Sill Trim Bracket - 829085 | $49.22 | Special order, ships in 7-14 days |
