Ferrari F80 — [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH (diagram 0049)

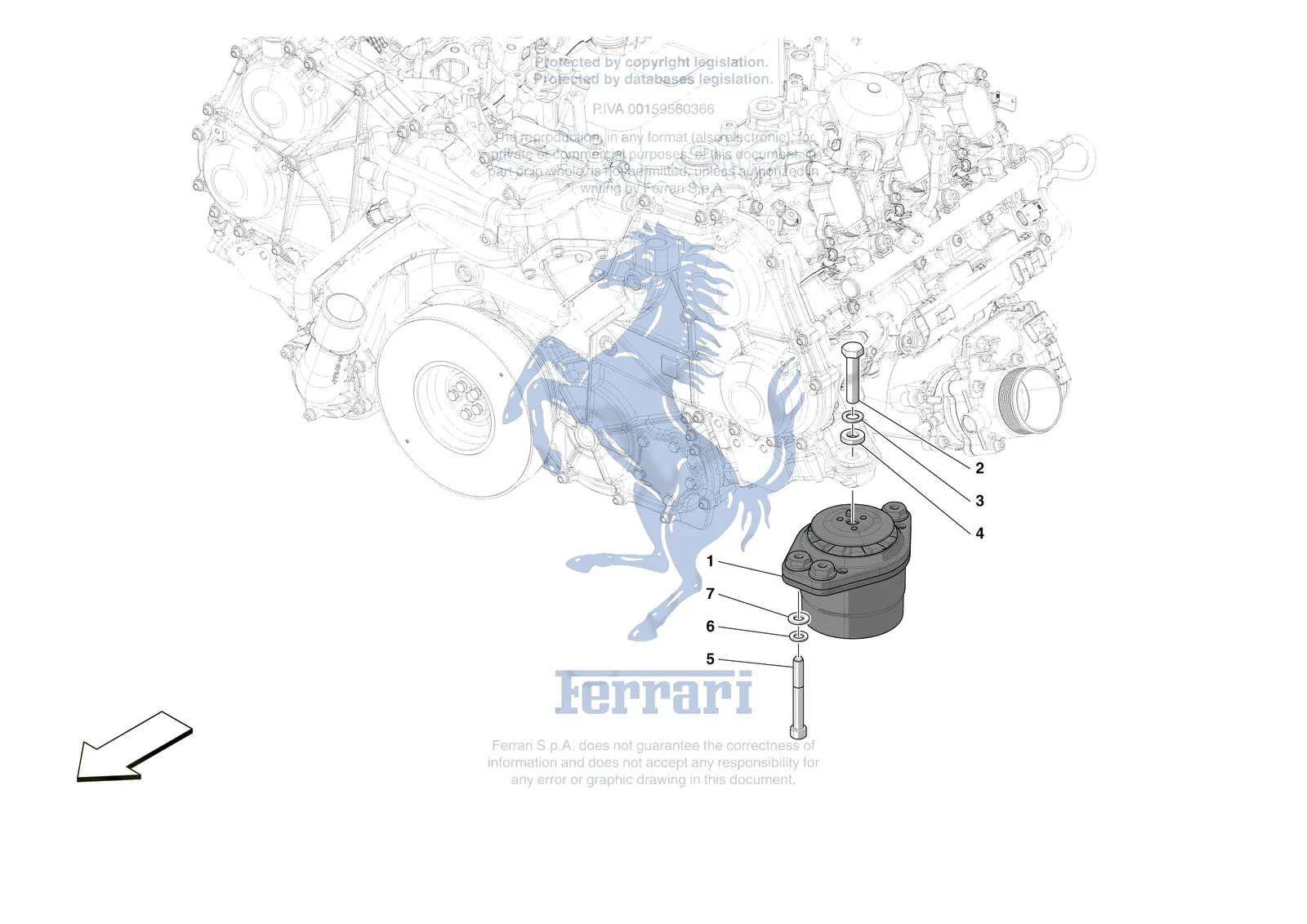

Exploded view of the [mechanical system] - d.1 - engine suspension bush on the Ferrari F80, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0049.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead | |
| 126648 | Ferrari Washer - 126648 | Superseded | Order 14496624 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 1 | 55019564 | Ferrari Engine Mounting Bush - 55019564 | $1,748.17 | Special order, ships in 7-14 days |
| 2 | 939803 | Ferrari Screw - 939803 | $4.56 | Special order, ships in 7-14 days |
| 3 | 127498 | Ferrari Spring Washer 12mm - 127498 | $0.27 | Available, ships in 3-6 days |
| 4 | 10738021 | Ferrari Washer - 10738021 | Superseded | Order 13550521 instead |
| 4 | 13550521 | Ferrari Washer - 13550521 | $0.96 | Available, ships in 3-6 days |
| 5 | 222779 | Ferrari SCREW - 222779 | Price on request | Contact us for price and availability |
| 6 | 202479 | Ferrari WASHER - 202479 | Price on request | Contact us for price and availability |
| 7 | 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days |
